8-40 — HEATER SYSTEM (#52878) — 75 parça

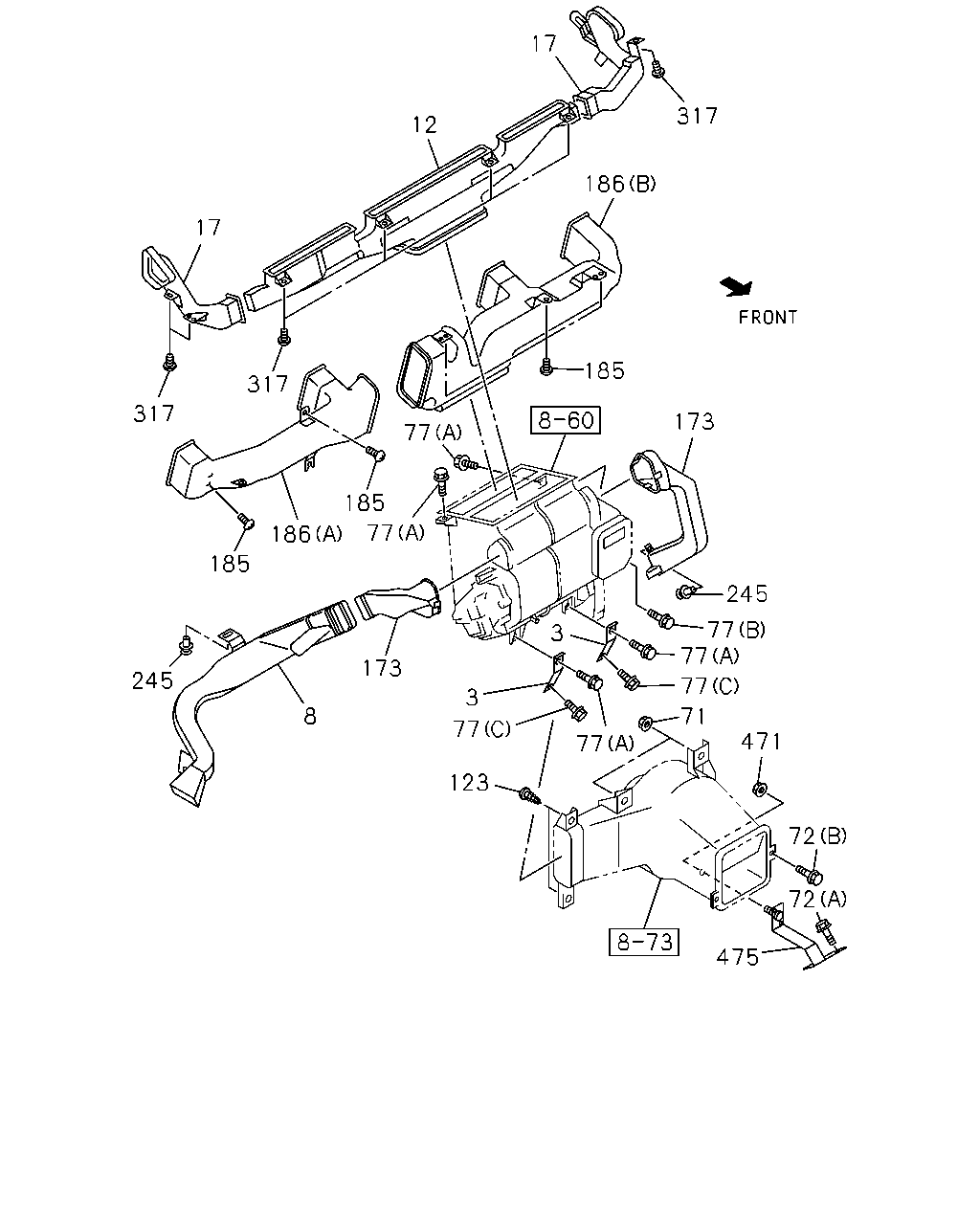

çizim 156614
17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 3 173 245 77 3 8 71 77 471 77 123 72 72 475
BalonParca AdiParca NoAdetTipApplied Date A B C
3 08.854 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98082-473-0 02 1 0712- ● ● ●
3 08.854 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98082-473-0 02 1 0712- ● ● ●
8 09.786 DUCT; HTR AIR,DRIVER FOOT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98084-146-0 01 1 0712- ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97585-480-4 01 1 0712- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-475-5 01 1 0712- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-469-1 01 1 0712- ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0712- ● ● ●
72 08.857 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.085 (A) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0712- ● ● ●
72 08.857 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0712- ● ● ●
77 08.845 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ● ●
77 08.845 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 01 1 0712- ● ● ●
77 08.845 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0712- ● ● ●
123 09.786 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 02 1 0712-1101 ● ● ●
123 09.786 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
123 09.786 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 02 1 1301- ● ● ●
173 09.786 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-504-3 01 1 0712- ● ● ●
173 09.786 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98084-145-0 01 1 0712- ● ● ●
185 09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 05 1 0712-1003 ● ● ●
185 09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 04 1 1004-1101 ● ● ●
185 09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
185 09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 04 1 1301- ● ● ●
186 09.786 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-486-6 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-466-7 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98054-363-0 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E) 		8-98054-371-0 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98054-379-2 01 1 0712- ● ● ●
245 09.786 CLIP; FOOT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 02 1 0712-0802 ● ● ●
245 09.786 CLIP; FOOT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264 		1-09987-144-0 02 1 0803- ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 0712-1101 ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 1301- ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 03 1 0712-0808 ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 02 1 0809-1101 ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 02 1 1301- ● ● ●
471 08.866 NUT; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ●
475 09.277 BRACKET; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) SUSPENSION SEAT<SA3> 		8-98165-379-0 01 1 1009- ● ●
475 09.277 BRACKET; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97387-092-2 01 1 0712- ● ● ●

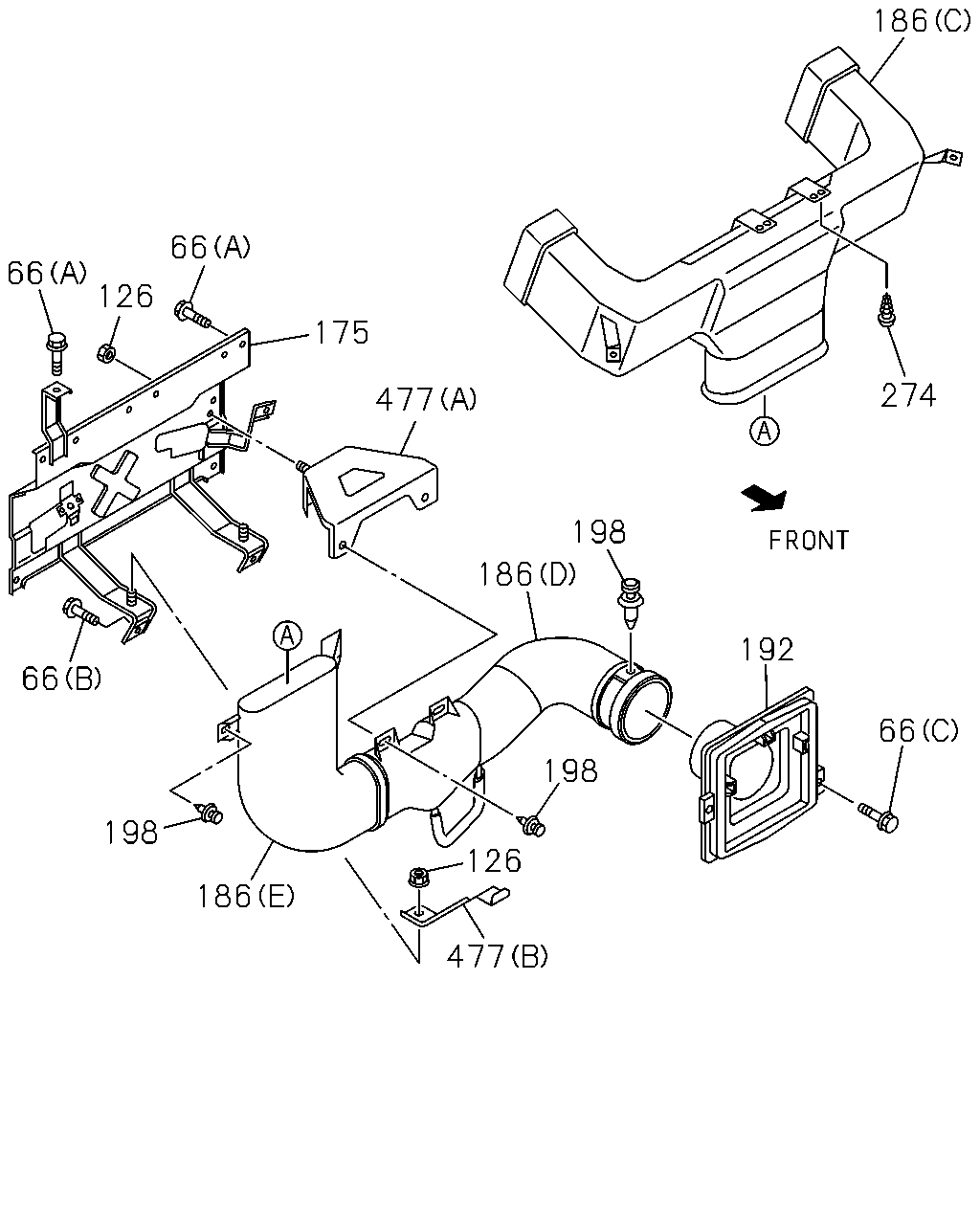

çizim 156615
66 126 175 477 66 66 198 186 477 126 198 186 198 192 66 274 186
BalonParca AdiParca NoAdetTipApplied Date A B C
66 08.845 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ● ●
66 08.845 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0712- ● ● ●
66 08.845 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0712- ● ● ●
126 09.262 NUT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0712-1001 ● ● ●
126 09.262 NUT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1002- ● ● ●
126 09.262 NUT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1002- ● ● ●
175 09.262 BRACKET; HTR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98091-544-5 01 1 0712-1206 ● ● ●
175 09.262 BRACKET; HTR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98221-688-0 01 1 1207- ● ● ●
186 09.786 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-486-6 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-466-7 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98054-363-0 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E) 		8-98054-371-0 01 1 0712- ● ● ●
186 09.786 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98054-379-2 01 1 0712- ● ● ●
192 09.262 DUCT; RAM AIR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.417 		8-98054-386-4 01 1 0712- ● ● ●
198 09.787 CLIP; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.786 		8-98056-059-0 05 1 0712-0802 ● ● ●
198 09.787 CLIP; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264 		1-09987-144-0 05 1 0803- ● ● ●
274 08.852 SCREW; VENT DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 02 1 0712-1101 ● ● ●
274 08.852 SCREW; VENT DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
274 08.852 SCREW; VENT DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING 		0-72180-516-0 02 1 1301- ● ● ●
477 09.786 BRACKET; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98091-304-0 01 1 0712- ● ● ●
477 09.786 BRACKET; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98091-306-0 01 1 0712-0808 ● ● ●
477 09.786 BRACKET; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98132-529-1 01 1 0809-1001 ● ● ●
477 09.786 BRACKET; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98132-529-1 01 1 1002-1005 ● ● ●
477 09.786 BRACKET; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98164-455-0 01 1 1006- ● ● ●

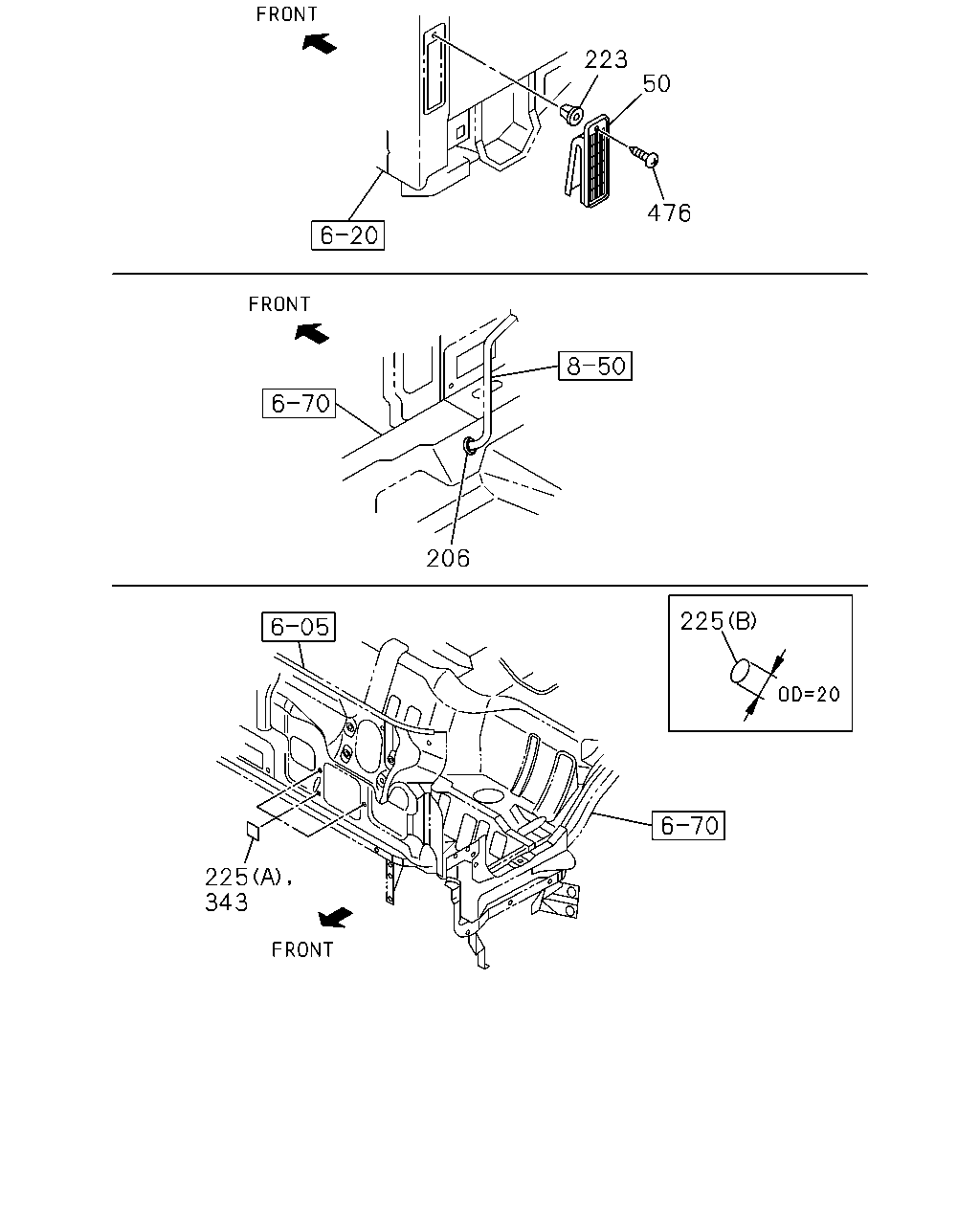

çizim 156618
223 50 476 206 225 225 343
BalonParca AdiParca NoAdetTipApplied Date A B C
50 08.845 VALVE ASM; HTR 8-98080-998-1 01 1 0712- ● ●
50 08.845 VALVE ASM; HTR 8-98080-999-2 01 1 0712- ●
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 0712- ● ● ●
223 08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 0712- ● ● ●
225 08.845 SEAL; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97856-616-0 02 1 1303- ● ● ●
225 08.845 SEAL; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97856-616-0 03 1 0712-1302 ● ● ●
225 08.845 SEAL; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97856-616-0 01 1 1303- ● ● ●
225 08.845 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712- ● ● ●
343 08.845 SEAL; AIR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97856-616-0 02 1 0712- ● ● ●
476 09.222 SCREW; VALVE
M5X16 HEX SOCKET 		8-98062-675-0 01 1 0712- ● ● ●

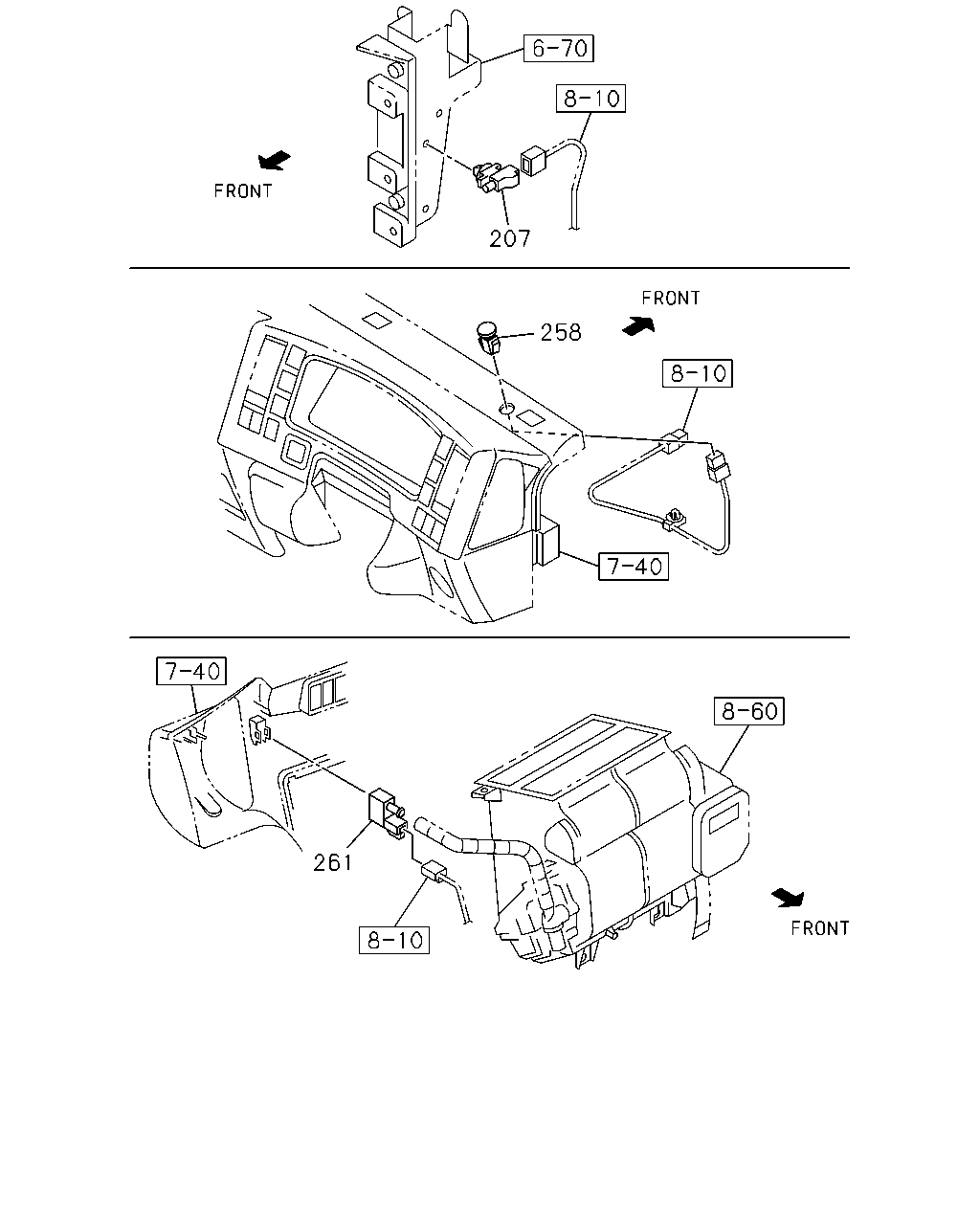

çizim 156620
207 258 261
BalonParca AdiParca NoAdetTipApplied Date A B C
207 08.845 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 01.150 		8-98008-687-0 01 1 0712- ● ● ●
258 08.845 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97386-826-0 01 1 0712- ● ● ●
261 08.845 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97386-701-0 01 1 0712- ● ● ●
