Sayfa 8-26 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51158 - NNR/NPR EU-R EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#52875) — 114 parça

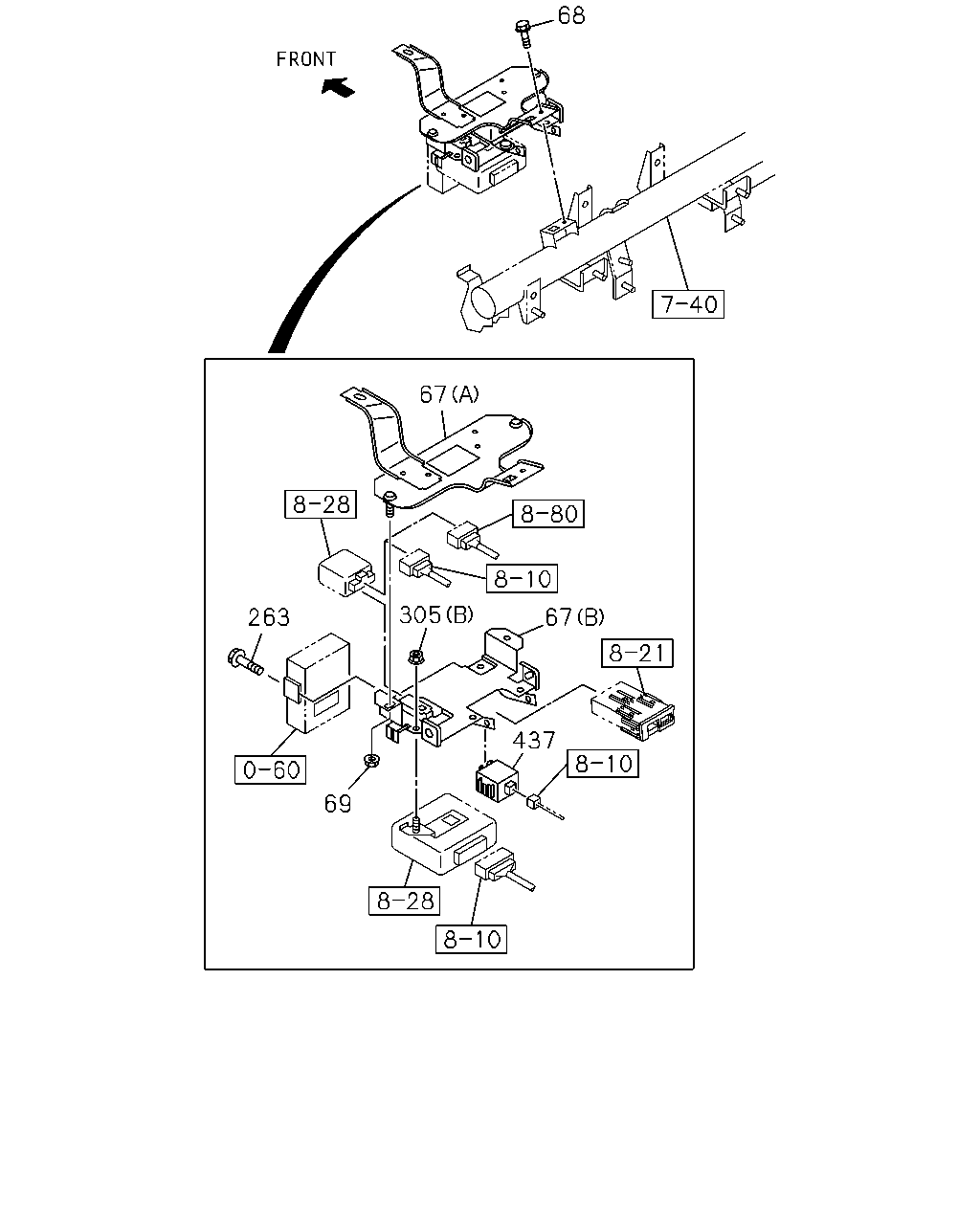

68 67 305 67 437 69 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98203-057-0	01	1	1112-1207		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98217-377-0	01	1	1208-1212		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98237-555-0	01	1	1301-1404		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98217-377-0	01	1	1405-		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (E)	8-98111-836-1	01	1	1101-		●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98022-206-1	01	1	0712-0906	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98022-206-1	01	1	0712-0906		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) (B)	8-98022-206-2	01	1	0907-1111	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98022-206-2	01	1	0907-1111		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98022-206-2	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-554-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT (A)	8-98022-170-1	01	1	0712-	●	●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (C)	8-98083-834-0	01	1	0712-0906		●	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (C)	8-98083-834-0	01	1	0907-0907		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (C)	8-98083-834-0	01	1	0908-		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	0712-0906		●	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	0907-0907		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	0908-1212		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98237-556-0	01	1	1301-1404		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	1405-		●	●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	0712-	●	●	●
68	02.500 BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> 00.206 M6X12 FLANGE	0-28450-612-0	02	1	0712-		●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
263	04.115 BOLT; CONT UNIT 4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0712-0809		●	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0712-0906	●	●	●
305	08.915 NUT; CONT UNIT 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	0712-	●	●	●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	0712-	●	●	●

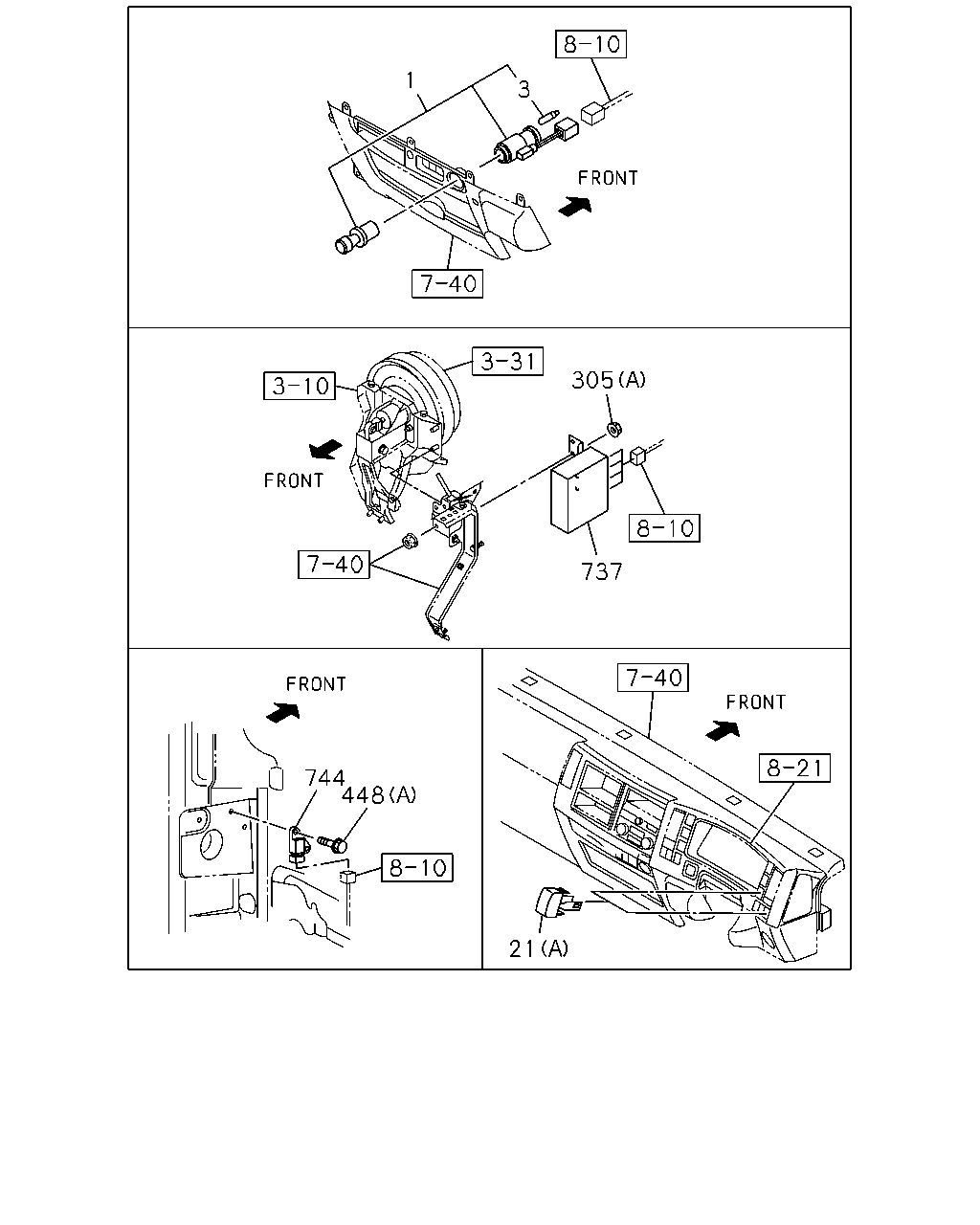

1 3 305 737 744 448 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.709 LIGHTER; CIGAR	8-97320-325-0	01	1	0712-0906	●	●	●
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	0907-	●	●	●
3	08.991 BULB; CIGAR LIGHTER 28V 1.8W	8-97173-159-0	01	1	0712-0906	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	0712-	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	0712-	●
21	09.744 COVER; HOLE EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A)	8-98025-954-1	01	1	0712-		●	●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	0712-		●	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0712-0906	●	●	●
305	08.915 NUT; CONT UNIT 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	0712-	●	●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	0712-	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	0712-		●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-710-6	01	1	0712-	●	●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-715-4	01	1	0712-		●	●
744	03.682 SENSOR; AIR BAG AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	0712-	●	●	●

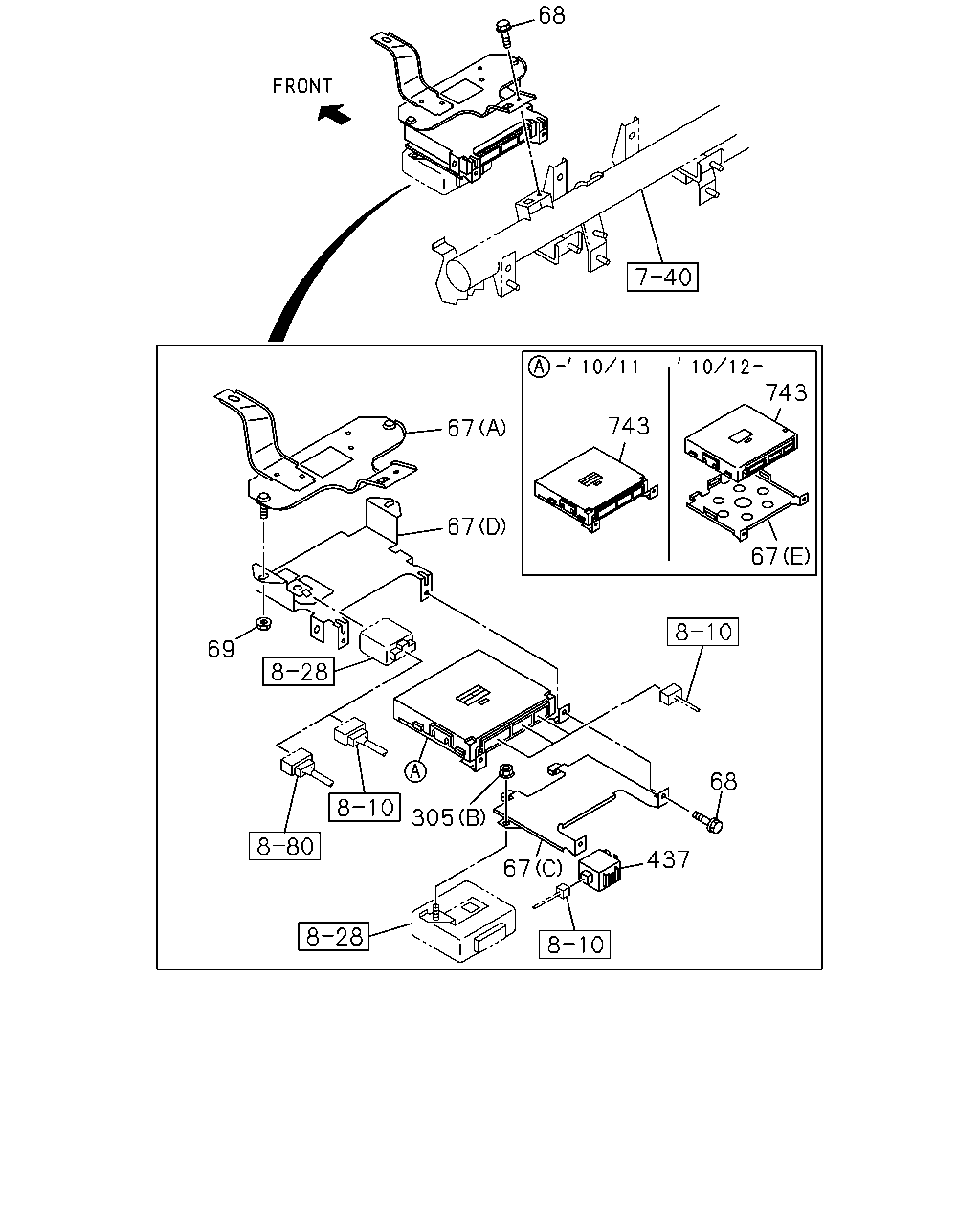

68 743 743 67 67 67 68 437 67 305 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98203-057-0	01	1	1112-1207		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98217-377-0	01	1	1208-1212		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98237-555-0	01	1	1301-1404		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98217-377-0	01	1	1405-		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (E)	8-98111-836-1	01	1	1101-		●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98022-206-1	01	1	0712-0906	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98022-206-1	01	1	0712-0906		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) (B)	8-98022-206-2	01	1	0907-1111	●
67	03.887 BRACKET; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B)	8-98022-206-2	01	1	0907-1111		●	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98022-206-2	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-554-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT (A)	8-98022-170-1	01	1	0712-	●	●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (C)	8-98083-834-0	01	1	0712-0906		●	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (C)	8-98083-834-0	01	1	0907-0907		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (C)	8-98083-834-0	01	1	0908-		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	0712-0906		●	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	0907-0907		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	0908-1212		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98237-556-0	01	1	1301-1404		●	●
67	03.887 BRACKET; CONT UNIT MULTI INFORMATION DISPLAY<7NY> (D)	8-98091-662-0	01	1	1405-		●	●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	0712-	●	●	●
68	02.500 BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> 00.206 M6X12 FLANGE	0-28450-612-0	02	1	0712-		●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0712-0906	●	●	●
305	08.915 NUT; CONT UNIT 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-		●	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	0712-	●	●	●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	0712-	●	●	●
743	02.510 CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98089-297-0	01	1	0712-0802		●	●
743	02.510 CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98102-484-0	01	1	0803-0901		●	●
743	02.510 CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98125-904-0	01	1	0902-1006		●	●
743	02.510 CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98155-169-1	01	1	1007-1007		●	●
743	02.510 CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98176-213-0	01	1	1008-1012		●	●
743	02.510 CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98182-026-2	01	1	1101-		●	●

760 747 759 648 553 448 21 234 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	0712-	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	0712-	●
21	09.744 COVER; HOLE EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A)	8-98025-954-1	01	1	0712-		●	●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	0712-		●	●
234	03.682 SENSOR; VEHICLE SPD TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.750 (B)	8-98035-238-0	01	1	0712-0803	●
234	03.682 SENSOR; VEHICLE SPD IDENTIFICATION LABEL FOR KD<6UT> 09.750 (B)	8-98035-238-0	01	1	0712-0803		●	●
234	03.682 SENSOR; VEHICLE SPD EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 25 PULSE ALUMINUM	8-97328-058-1	01	1	0712-	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	0712-	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	0712-		●	●
553	02.500 GASKET 4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	0712-		●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCS ENG(RJS)	8-97606-943-0	01	1	0712-		●	●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS)	8-98077-118-2	01	1	0712-1012		●	●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS)	8-98162-807-0	01	1	1101-		●	●
759	04.115 BOLT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0712-		●	●
760	04.115 NUT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-		●	●
