Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#52872) — 386 parça

459 552 459 459 552 459 242 459 459 552 459 552 552

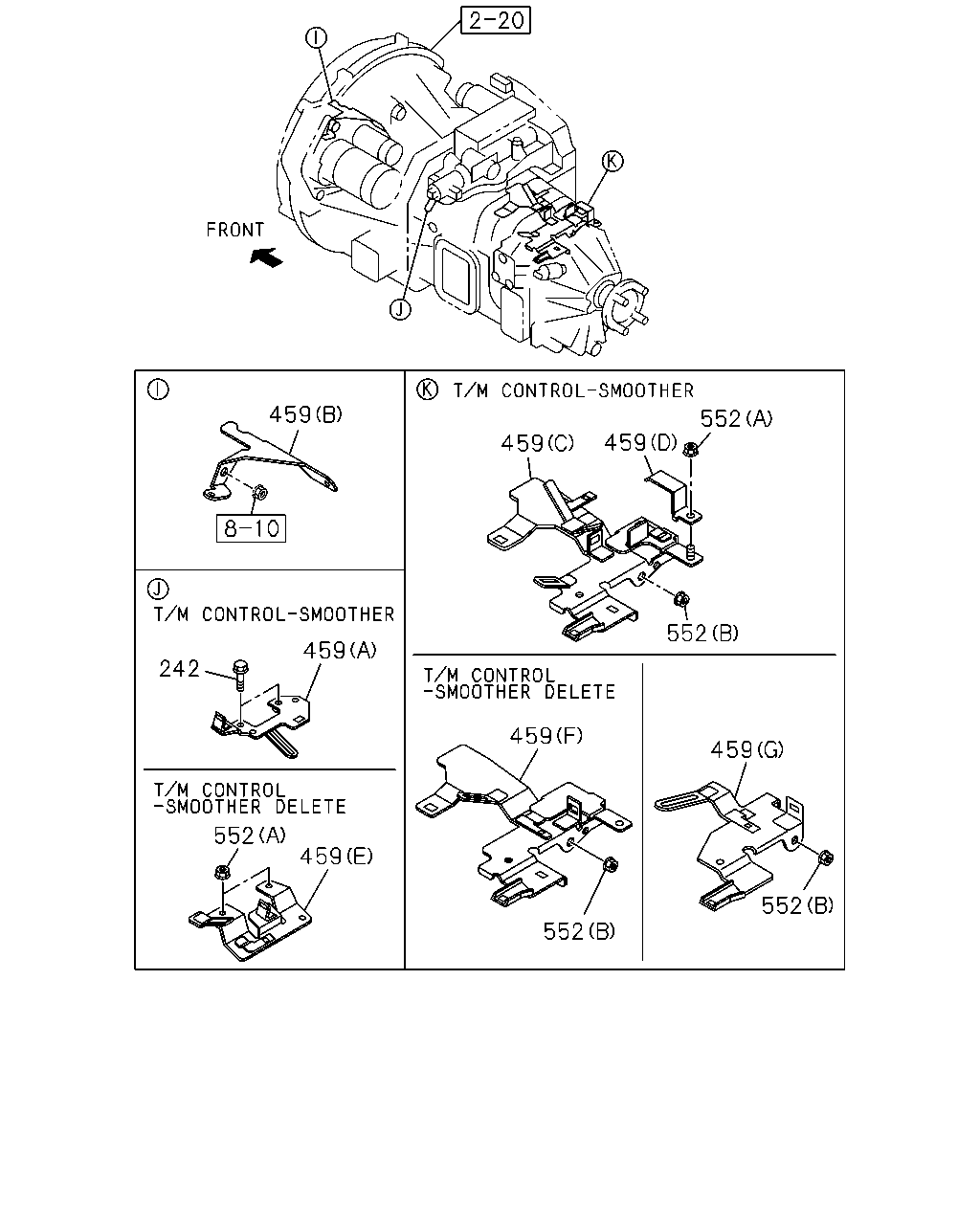

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0712-1109	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0712-0907	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0908-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	0908-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-0907	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●

53 53

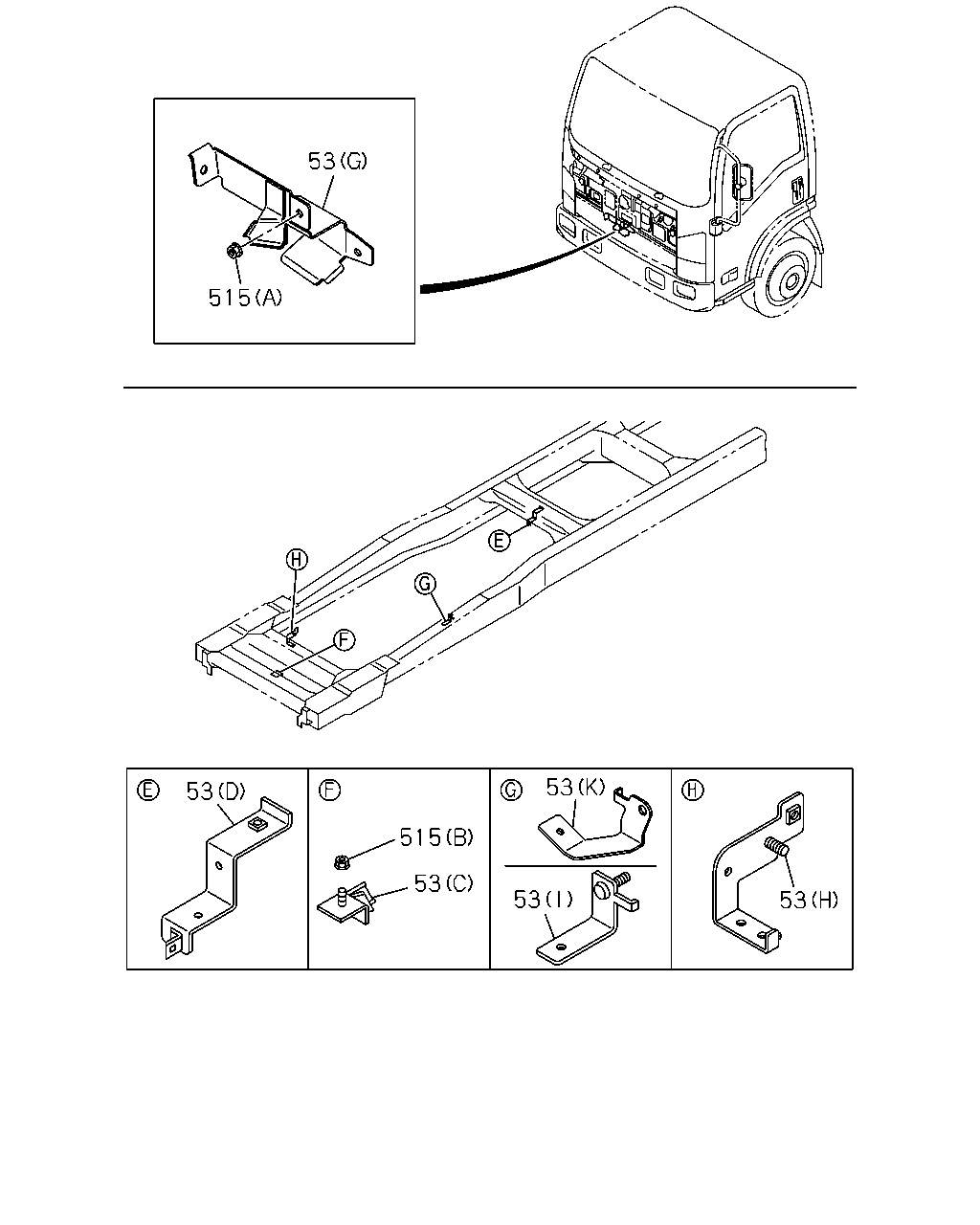

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0712-0805	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-98077-504-0	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98094-629-0	01	1	0712-1303		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1304-		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0712-		●	●

53 515 53 515 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0712-0805	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-98077-504-0	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98094-629-0	01	1	0712-1303		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1304-		●	●

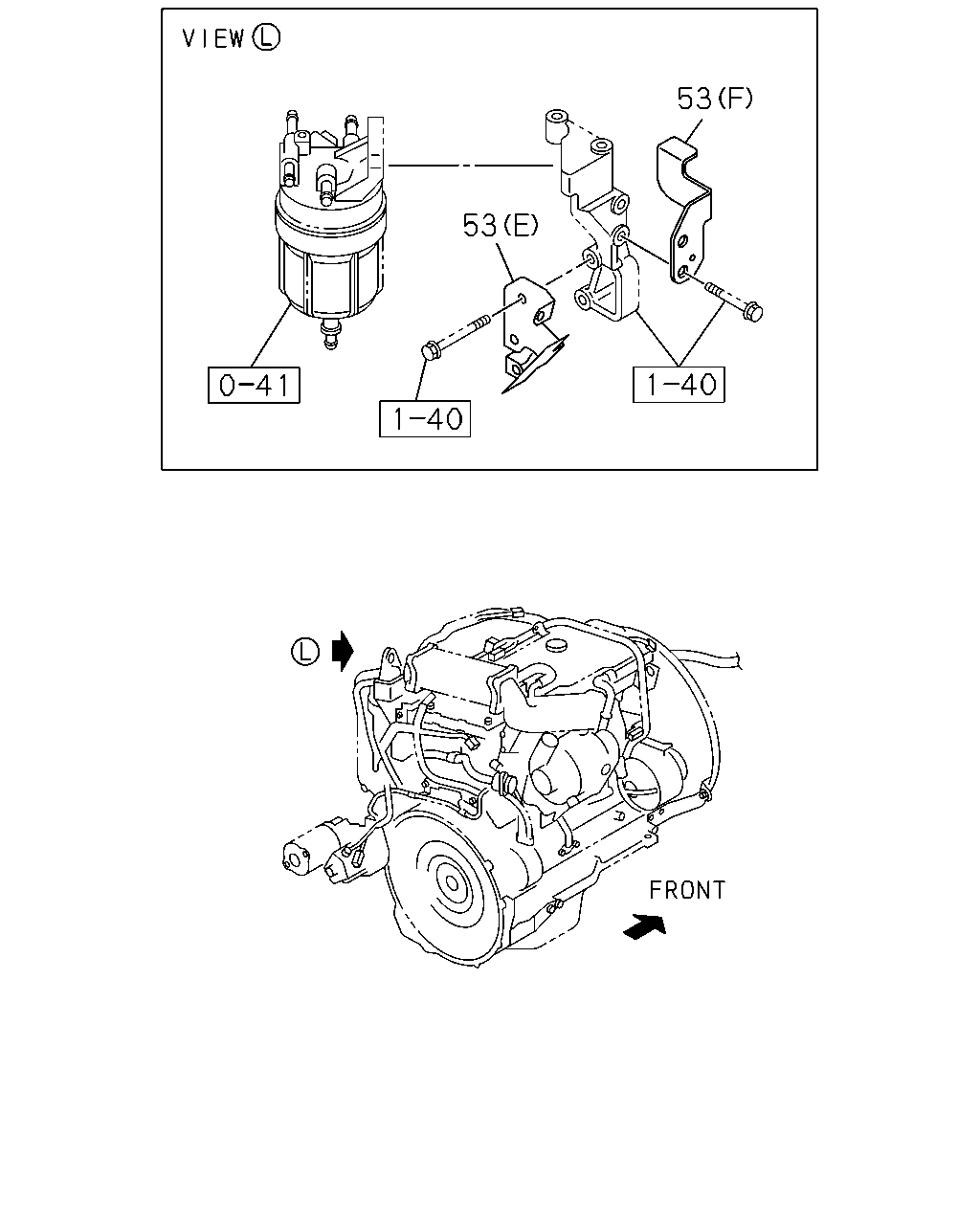

53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0712-		●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0712-0909	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0712-0909		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0712-	●	●	●

16 16 16 48 16 16 483 504 507 513 530 530 16 16 483 483 483 483 483 483

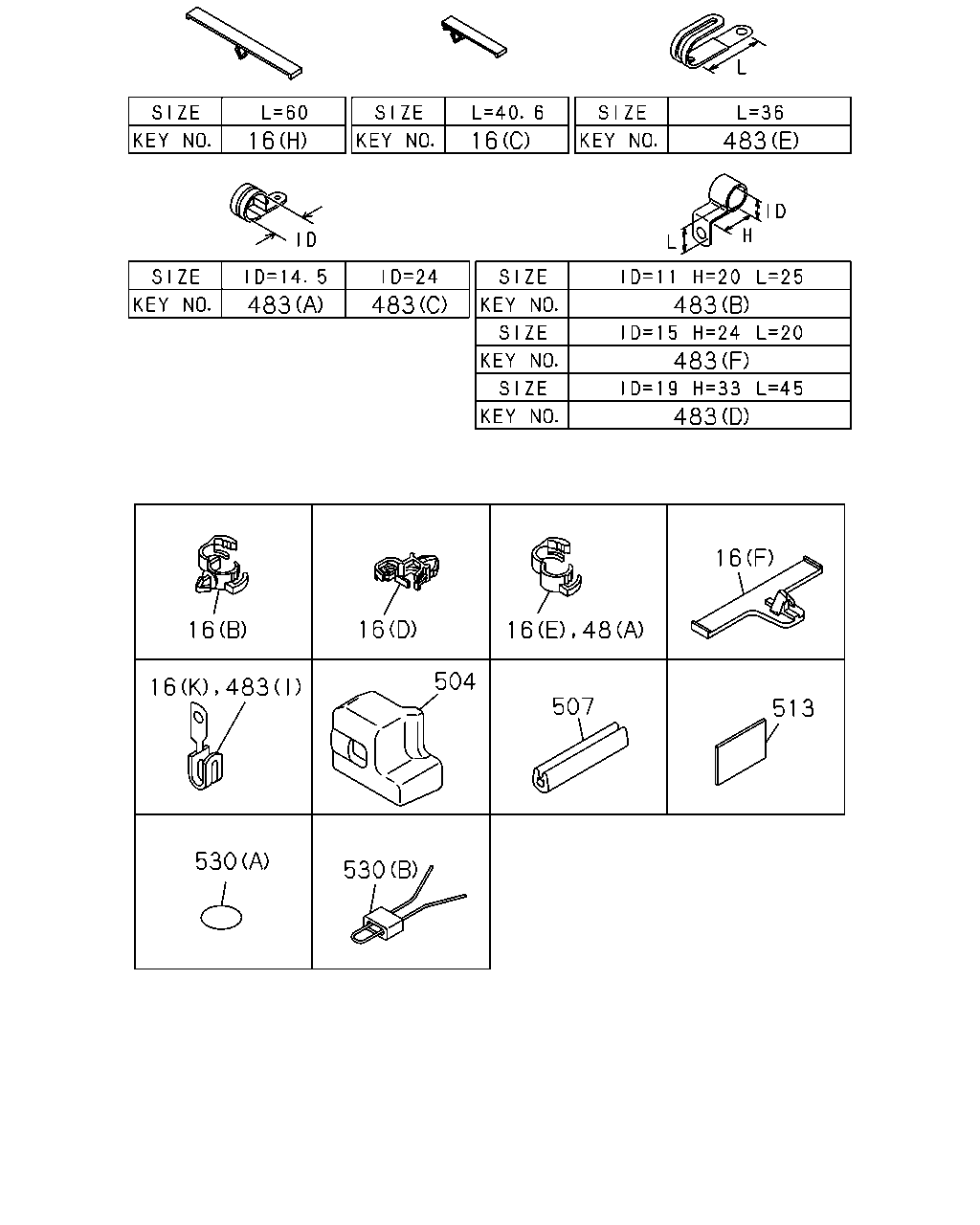

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	0712-		●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (J) L=250	5-09707-030-1	14	1	0712-	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (J) L=250	5-09707-030-1	14	1	0712-		●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0712-	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0712-		●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0712-			●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0712-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0712-0712		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0712-0801		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (E) L=350	8-94152-256-1	01	1	0712-			●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	1111-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H) ID=16.5 & 16.5	8-94468-380-0	02	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.483 (I)	8-97101-436-0	01	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	0712-0801		●	●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1201-	●	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0712-0902	●	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0903-1301			●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●	●
513	02.559 TAPE; SOFT,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 70X45	8-97304-372-0	01	1	1310-			●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> 130X80	8-97304-373-0	01	1	0712-0807		●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-	●	●	●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> 130X80	8-97304-373-0	01	1	0808-		●	●
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0712-	●	●	●
530	02.559 SEAL; HARNESS 03.483 (B)	8-97382-876-0	02	1	0712-		●	●

48 14 22 22 102 617 16 22 102 488 22 488 16 22 48 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	02	1	0712-0801		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	01	1	0802-0810		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	02	1	0811-0906		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	01	1	0907-		●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	0712-		●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (J) L=250	5-09707-030-1	14	1	0712-	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (J) L=250	5-09707-030-1	14	1	0712-		●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0712-	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0712-		●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0712-			●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0712-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=250	5-09707-030-1	01	1	0804-		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I) ID=14-20	8-97061-603-0	02	1	0712-		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (J) L=350	8-94152-256-1	02	1	0801-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0712-		●	●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0712-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0712-0801		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0712-0712		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0712-0801		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (E) L=350	8-94152-256-1	01	1	0712-			●
102	02.559 CLIP; BAND 4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	04	1	0712-0801		●	●
102	02.559 CLIP; BAND 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	11	1	0712-0801		●	●
102	02.559 CLIP; BAND 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	06	1	0802-1110		●	●
102	02.559 CLIP; BAND 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	07	1	1111-		●	●
488	02.559 CLIP; CABLE,TRAILER (B) L=250	5-09707-030-1	04	1	0712-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=170.3	1-09987-182-0	02	1	0712-1104	●	●	●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●	●
617	02.559 STRAP; BAND M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108		●	●

38 139 150 516 150 150 313 481 139 150 304 481 480 242 529 304 480 377 386 377 386 386 377 386 377 24 515 577 219 294 515 524 552 24 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0801-		●	●
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0805	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCS ENG(RJS) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0712-0801		●	●
150	02.343 BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	0712-		●	●
150	02.343 BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0801		●	●
150	02.343 BOLT; CLIP 4HK1-TCS ENG(RJS) 00.662 (C) M8X14 FLANGE	0-28080-814-0	01	1	0712-0801		●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0712-	●	●	●
294	02.559 NUT 4HK1-TCS ENG(RJS) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0801-0904		●	●
294	02.559 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-0904	●	●	●
294	02.559 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-		●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCS ENG(RJS) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-0801		●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCS ENG(RJS) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0712-		●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0712-	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0712-1004	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0712-1004	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0712-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0712-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0712-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0903	●
481	13.090 BOLT; CABLE HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0903		●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0712-	●
481	13.090 BOLT; CABLE HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0712-		●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0712-0909	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0712-0909		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0712-	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-	●
524	02.559 NUT; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-		●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-0907	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0712-	●	●	●

48 22 22 483 22 483 22 22 16 48 48 48 16 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	0712-		●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (J) L=250	5-09707-030-1	14	1	0712-	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (J) L=250	5-09707-030-1	14	1	0712-		●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0712-	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0712-		●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0712-			●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0712-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=250	5-09707-030-1	01	1	0804-		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (I) ID=14-20	8-97061-603-0	02	1	0712-		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 08.852 (J) L=350	8-94152-256-1	02	1	0801-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0712-		●	●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0712-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0712-0801		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0712-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0712-0804			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	0712-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0712-0712		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0712-0801		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0712-0804		●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (E) L=350	8-94152-256-1	01	1	0712-			●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	1111-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	0712-		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H) ID=16.5 & 16.5	8-94468-380-0	02	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 03.483 (I)	8-97101-436-0	01	1	0712-0801		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	0712-0801		●	●

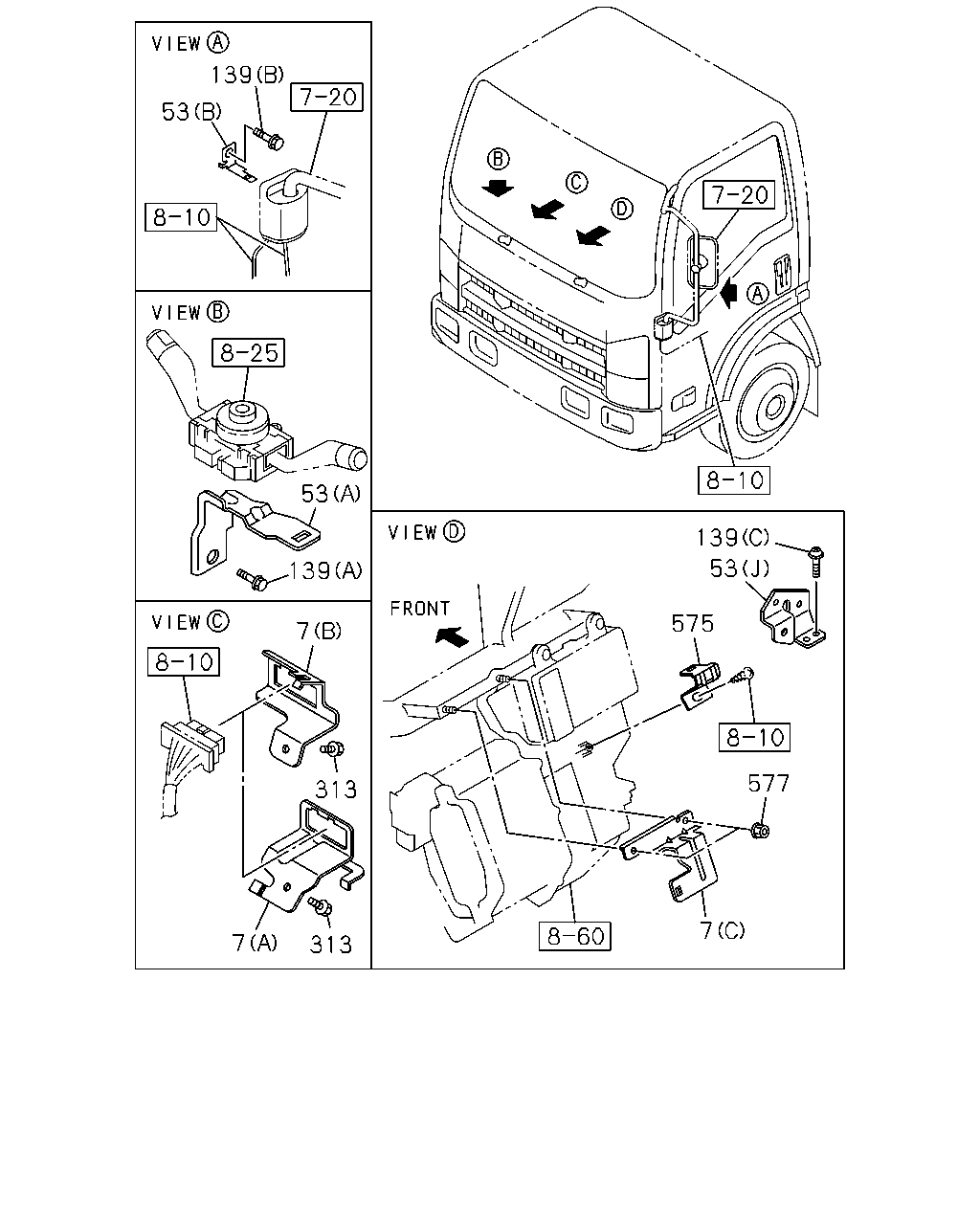

139 53 53 139 53 139 575 7 577 313 7 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR (C)	8-98029-762-4	01	1	0712-	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0712-	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-069-1	01	1	0712-0803	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0712-0805	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-98077-504-0	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98094-629-0	01	1	0712-1303		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98130-669-1	01	1	1304-		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0712-		●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0805	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0712-	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0712-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
