0-60B — ENGINE ELECTRICAL CONTROL PARTS (#5287) — 118 parça

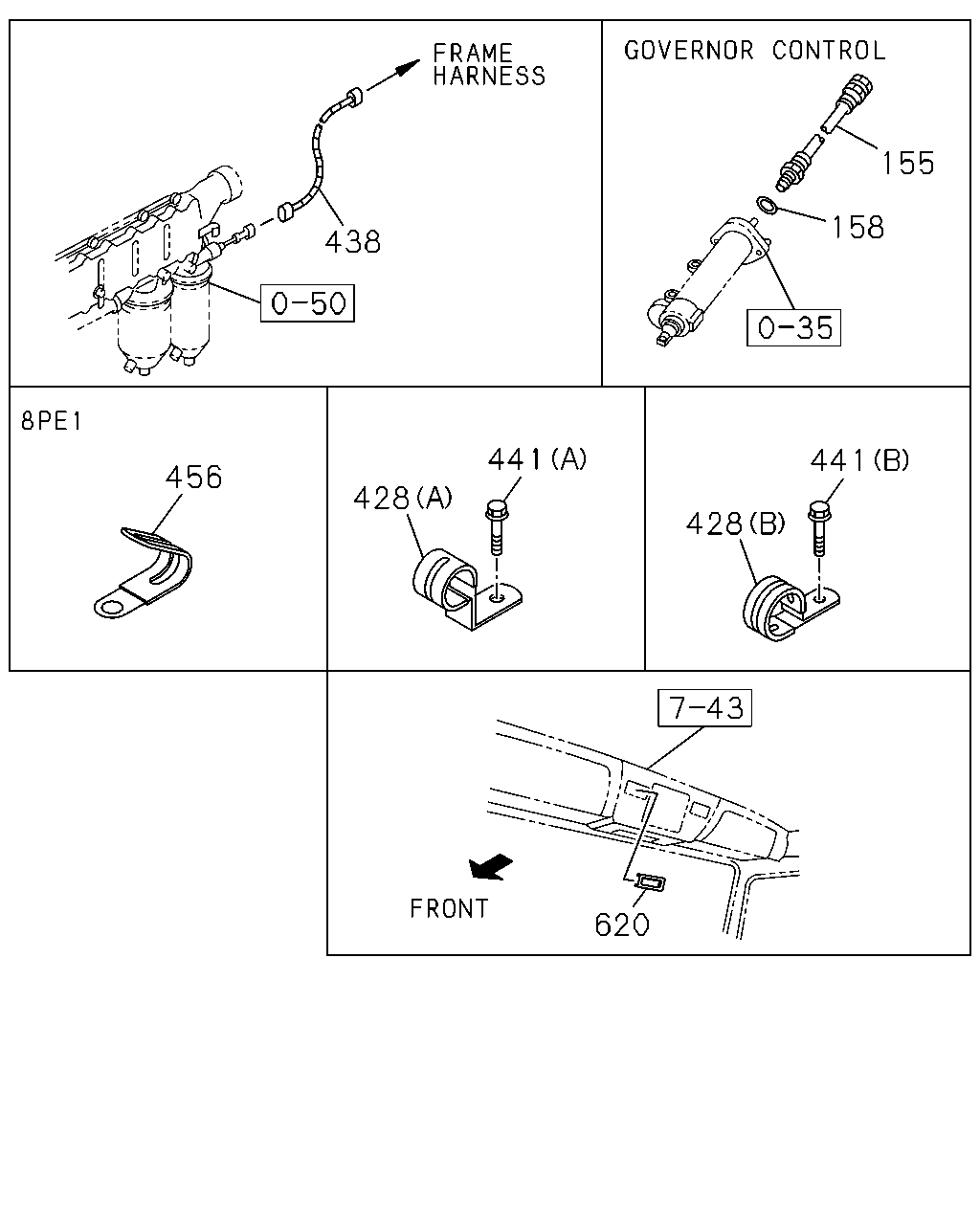

çizim 5116
155 158 438 441 441 456 428 428 620
BalonParca AdiParca NoAdetTipApplied Date A B C D
155 HOSE; FLEX,VGS GOV CONT
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		0-07846-310-1 01 1 9603-9901 ● ● ● ●
155 HOSE; FLEX,VGS GOV CONT
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		0-07846-310-1 01 1 9905- ● ● ● ●
158 GASKET; FLEX HOSE
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> ID=11 OD=18 		9-09572-510-0 02 1 9603-9901 ● ● ● ●
158 GASKET; FLEX HOSE
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> ID=11 OD=18 		9-09572-510-0 02 1 9905- ● ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9603-9901 ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905- ● ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9603-9901 ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9905- ● ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9603-9901 ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9905- ● ● ● ●
438 CABLE; OIL FILTER SW 1-82657-062-0 01 1 9603-9901 ● ●
438 CABLE; OIL FILTER SW 1-82657-062-1 01 1 9905- ● ● ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9705 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9901 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-9909 ● ● ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9910- ● ● ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-9901 ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-9904 ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905- ● ● ● ●
456 CLIP; OIL PRESSURE SW
L=36 		8-94224-891-1 01 1 9603-9901 ●
456 CLIP; OIL PRESSURE SW
L=36 		8-94224-891-1 01 1 9905-9906 ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9603-9901 ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9905- ● ● ● ●

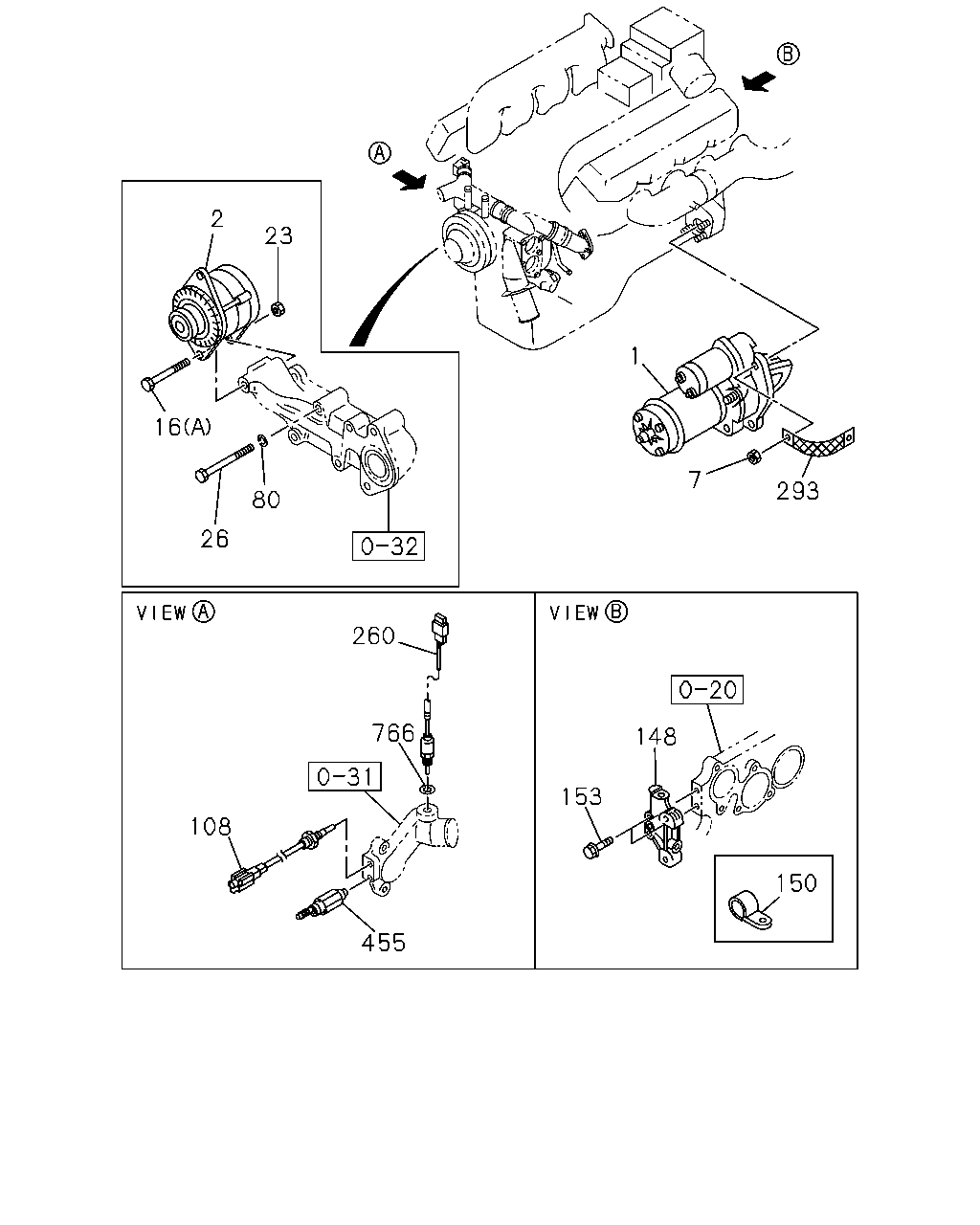

çizim 39560
2 23 1 16 7 293 80 26 260 766 148 153 108 150 455
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-302-0 01 1 9603-9706 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-302-0 01 1 9706-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. SAKHALIN EQUIPMENT(TLE) 24V 6.0KW NIKKO 		1-81100-302-0 01 1 9706-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-327-0 01 1 9709-9901 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. SAKHALIN EQUIPMENT(TLE) 24V 6.0KW NIKKO 		1-81100-327-0 01 1 9709-9901 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-327-0 01 1 9905- ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-345-0 01 1 9905-9907 ● ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SAKHALIN EQUIPMENT(TLE) 24V 8.0KW NIKKO 		1-81100-305-0 01 1 9706-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SAKHALIN EQUIPMENT(TLE) 24V 8.0KW NIKKO 		1-81100-326-0 01 1 9709-9901 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-459-2 01 1 9603-9709 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-459-2 01 1 9710-9901 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-470-3 01 1 9905- ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-522-0 01 1 9905-9907 ● ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9603-9901 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9905-9909 ● ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9910- ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9603-9901 ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9905-9905 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9906-9909 ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9910-0010 ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 0011- ● ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9603-9901 ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9905- ● ● ● ●
26 BOLT; GEN BRKT
M10X70 		9-01666-070-0 03 1 9603-9612 ● ●
26 BOLT; GEN BRKT
M10X70 		9-01661-070-0 03 1 9701-9901 ● ●
26 BOLT; GEN BRKT
M10X70 		9-01661-070-0 03 1 9905- ● ● ● ●
80 WASHER; LK,DUCT & BRKT
ID=10.2 		9-09150-610-0 03 1 9603-9901 ● ●
80 WASHER; LK,DUCT & BRKT
ID=10.2 		9-09150-610-0 03 1 9905- ● ● ● ●
108 SWITCH; THERMO 1-83161-031-1 01 1 9603-9901 ● ●
108 SWITCH; THERMO 1-83161-031-1 01 1 9905- ● ● ● ●
148 BRACKET; SOLENOID VLV
EXC. ENGINE REAR PTO(SV1) 		1-81919-028-0 01 1 9603-9901 ● ●
148 BRACKET; SOLENOID VLV
EXC. ENGINE REAR PTO(SV1) 		1-81919-028-0 01 1 9905- ● ● ● ●
150 CLIP; HARNESS,SOLENOID VLV
ID=11 L=16 		9-09525-025-0 01 1 9703-9901 ● ●
150 CLIP; HARNESS,SOLENOID VLV
ID=11 L=16 		9-09525-025-0 01 1 9905- ● ● ● ●
153 BOLT; BRKT FIX
EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE 		0-28181-040-0 02 1 9603-9901 ● ●
153 BOLT; BRKT FIX
EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE 		0-28181-040-0 02 1 9905- ● ● ● ●
260 SENSOR; WATER TEMP 1-81535-053-1 01 1 9603-9901 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9603-9901 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9905-9909 ● ● ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9910- ● ● ● ●
455 SWITCH; ENG OVER HEAT,WATER 1-82450-013-0 01 1 9905-9906 ●
455 SWITCH; ENG OVER HEAT,WATER 1-82450-013-0 01 1 9603-9901 ● ●
766 GASKET; SENSOR
ID=12.2 		1-09630-084-0 01 1 9603-9901 ● ●
766 GASKET; SENSOR
ID=12.2 		1-09630-084-0 01 1 9905- ● ● ● ●

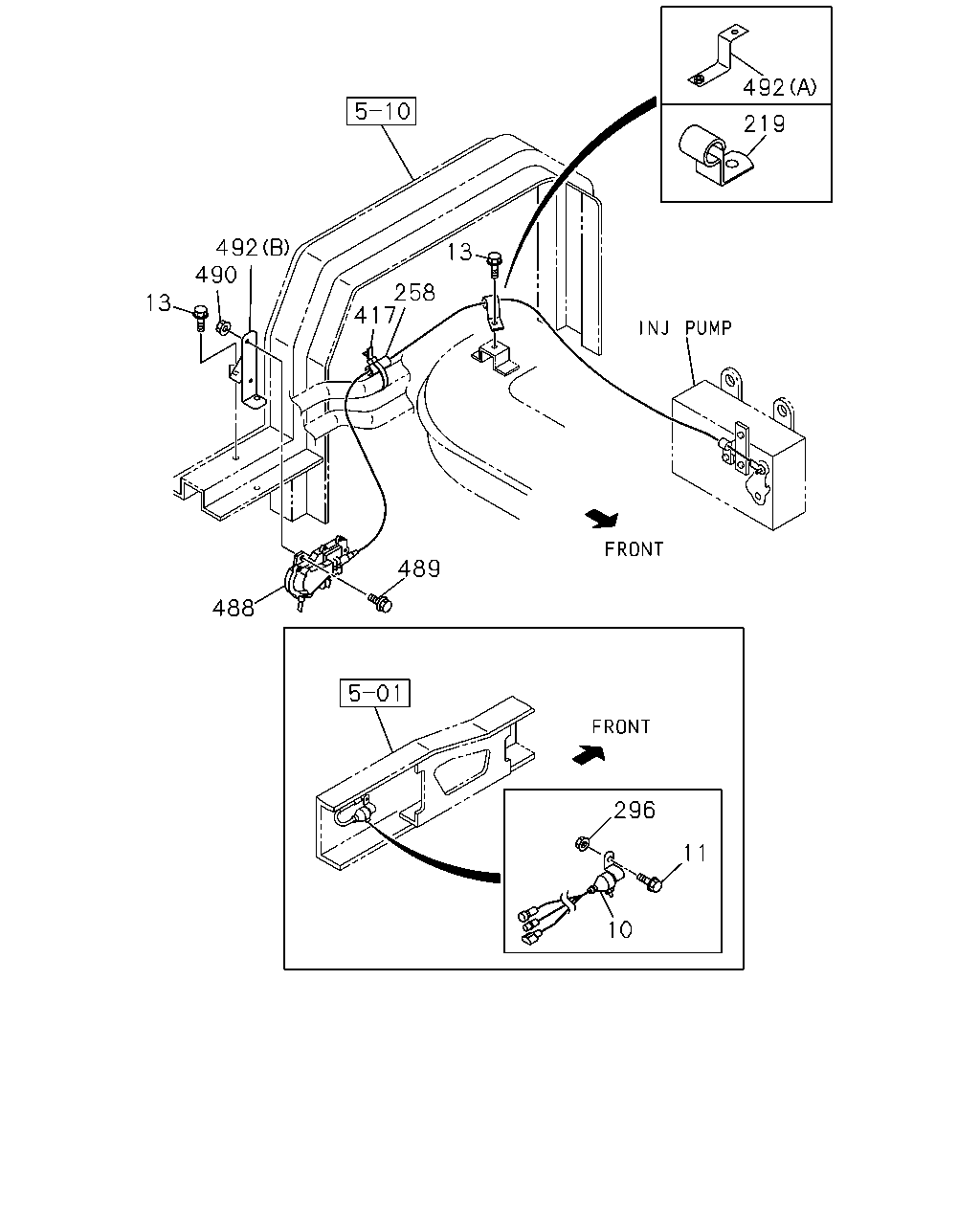

çizim 39707
492 219 492 490 13 258 417 13 489 488 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
NIKKO 		1-81171-071-0 01 1 9603-9606 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9607-9901 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 9902-9904 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 9905- ● ● ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9904-9904 ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9905- ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ● ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 9803-9901 ● ●
11 BOLT; RELAY STARTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ● ● ●
11 BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ●
13 BOLT; BRKT
M8X20 		0-28090-820-0 02 1 9603-9606 ● ●
13 BOLT; BRKT
M8X25 FLANGE 		0-28690-825-0 02 1 9607-9901 ● ●
13 BOLT; BRKT
M8X25 FLANGE 		0-28690-825-0 02 1 9905- ● ● ● ●
219 CLIP; ENG STOP CABLE
ID=7 L=40 		9-09524-675-0 01 1 9603-9901 ● ●
219 CLIP; ENG STOP CABLE
ID=7 L=40 		9-09524-675-0 01 1 9905- ● ● ● ●
258 SLEEVE; RUBBER OIL PIPE
ID=6 L=30 		5-09360-352-0 02 1 9603-9901 ●
258 SLEEVE; RUBBER OIL PIPE
ID=6 L=30 		5-09360-352-0 02 1 9905- ●
258 SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9603-9901 ● ●
258 SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9905- ● ● ● ●
258 SLEEVE; RUBBER OIL PIPE
ID=6 L=30 		5-09360-352-0 01 1 9603-9901 ●
258 SLEEVE; RUBBER OIL PIPE
ID=6 L=30 		5-09360-352-0 01 1 9905- ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9603-9606 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
417 CLIP
L=140 		5-09707-031-0 02 1 9603-9901 ●
417 CLIP
L=140 		5-09707-031-1 02 1 9905- ● ● ●
488 STOPPER; ENG 1-82840-133-2 01 1 9603-9901 ●
488 STOPPER; ENG
RLD GOVERNOR(SD7) 		1-82840-133-2 01 1 9603-9901 ●
488 STOPPER; ENG 1-82840-133-2 01 1 9905- ●
488 STOPPER; ENG
RLD GOVERNOR(SD7) 		1-82840-133-2 01 1 9905- ● ● ●
488 STOPPER; ENG
EXC. RLD GOVERNOR(SD7) 		1-82840-151-1 01 1 9603-9901 ●
488 STOPPER; ENG
EXC. RLD GOVERNOR(SD7) 		1-82840-151-1 01 1 9905- ● ● ●
489 BOLT; ENG STOPPER
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9610-9807 ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9808-9901 ● ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ●
490 NUT; ENG STOP
M8 		9-09110-408-0 02 1 9603-9606 ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9610-9901 ● ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
492 BRACKET; ENG STOPPER
(A) 		1-47475-654-2 01 1 9603-9901 ● ●
492 BRACKET; ENG STOPPER
(B) 		1-47477-415-0 01 1 9603-9901 ● ●
492 BRACKET; ENG STOPPER
(A) 		1-47475-654-2 01 1 9905- ● ● ● ●
492 BRACKET; ENG STOPPER
(B) 		1-47477-415-0 01 1 9905- ● ● ● ●
