0-60A — ENGINE ELECTRICAL CONTROL PARTS (#5286) — 226 parça

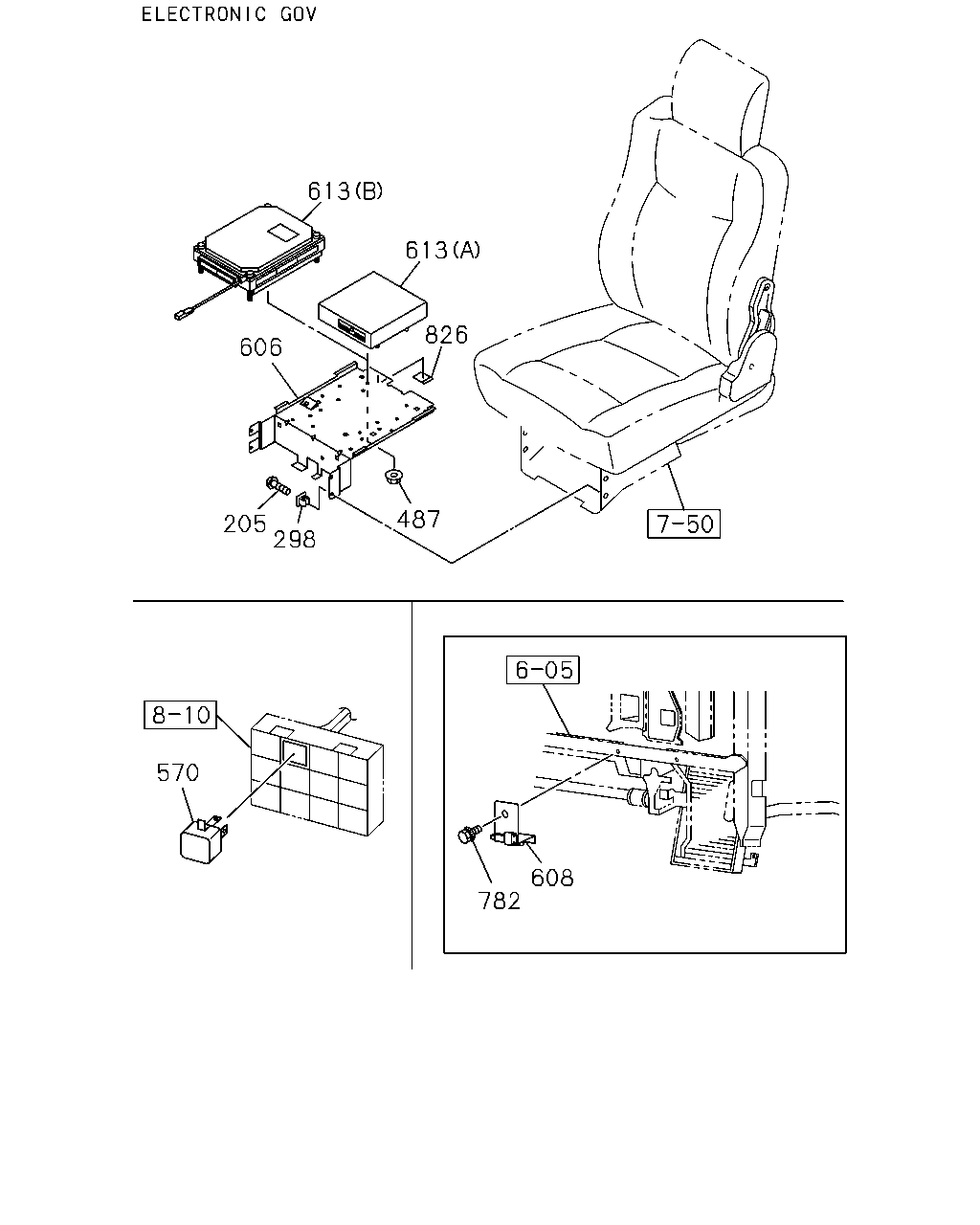

çizim 7332
613 613 826 606 487 205 298 570 608 782
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
205 SCREW; BRKT
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9902-9904 ●
205 SCREW; BRKT
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9905- ● ●
298 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9902-9904 ●
298 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9905- ● ●
487 NUT
ELECTRONIC GOV RED3(KG5) M6 FLANGE 		0-91150-106-0 04 1 9902-9904 ●
487 NUT
ELECTRONIC GOV RED3(KG5) M6 FLANGE 		0-91150-106-0 04 1 9905- ● ●
570 RELAY; EXH SHUTTER
ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0001- ● ●
606 BRACKET; CONT UNIT
ELECTRONIC GOV RED3(KG5) 		1-75558-534-9 01 1 9902-9904 ●
606 BRACKET; CONT UNIT
ELECTRONIC GOV RED3(KG5) 		1-75558-534-9 01 1 9905- ● ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-031-0 01 1 9902-9904 ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-031-0 01 1 9905- ● ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B) 		1-80110-480-0 01 1 9902-9912 ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) INJ PUMP Q SET STD(T1B) (B) 		1-80110-480-0 01 1 0001- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) INJ PUMP Q SET SPECIAL +5%Q(T1A) (B) 		1-80110-666-0 01 1 0001- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSAT OR(Q3T) (B) 		1-80110-402-0 01 1 9902- ●
613 CONTROL UNIT; ENG
RLD GOVERNOR(SD7) (A) 		1-80110-440-0 01 1 9902- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) (B) 		1-80110-437-0 01 1 9905-9908 ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) EXC. FIRE TRUCK<RA9> (B) 		1-80110-437-0 01 1 9909- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) FIRE TRUCK<RA9> (B) 		1-80110-621-0 01 1 9909- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) ENG LOW TORQUE<Q3R> (B) 		1-80110-622-0 01 1 9910- ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) EXC. ENG LOW TORQUE<Q3R> (B) 		1-80110-439-0 01 1 9910- ●
782 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9902-9904 ●
782 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9905- ● ●
826 SEAL; NOISE INSULATION
ELECTRONIC GOV RED3(KG5) 30X30 		8-97866-626-0 03 1 9902-9904 ●
826 SEAL; NOISE INSULATION
ELECTRONIC GOV RED3(KG5) 30X30 		8-97866-626-0 03 1 9905- ● ●
çizim 39197
449 450 449 449 450 690 764 266 765 265 765 266 690 690 690 690 38 46 430
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 RESISTOR; CONT,GLOW PLUG
CXZ(CXZ***) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-81402-008-0 01 1 9902- ●
46 RELAY; GLOW PLUG
CXZ(CXZ***) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-94258-014-0 01 1 9902- ●
265 BOLT; MAG VLV FIX
M6X50 FLANGE 		0-28080-650-0 01 1 9905-9909 ●
265 BOLT; MAG VLV FIX
M6X50 FLANGE 		0-28080-650-0 01 1 9910- ● ●
266 WASHER; PL,MAG VLV FIX 1-82569-266-0 02 1 9905-9909 ●
266 WASHER; PL,MAG VLV FIX 1-82569-266-0 02 1 9910- ● ●
430 NUT; RELAY FIX
CXZ(CXZ***) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE 		0-91150-106-0 01 1 9603- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 01 1 9902- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 02 1 9905-9909 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 02 1 9910- ● ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9902-9904 ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9905-9909 ● ●
450 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9910- ● ● ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9902-9904 ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9905-9909 ● ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9910- ● ● ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9902- ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905-9909 ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9910- ● ●
764 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 9905-9909 ●
764 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 9910- ● ●
765 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 9905-9909 ●
765 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 9910- ● ●

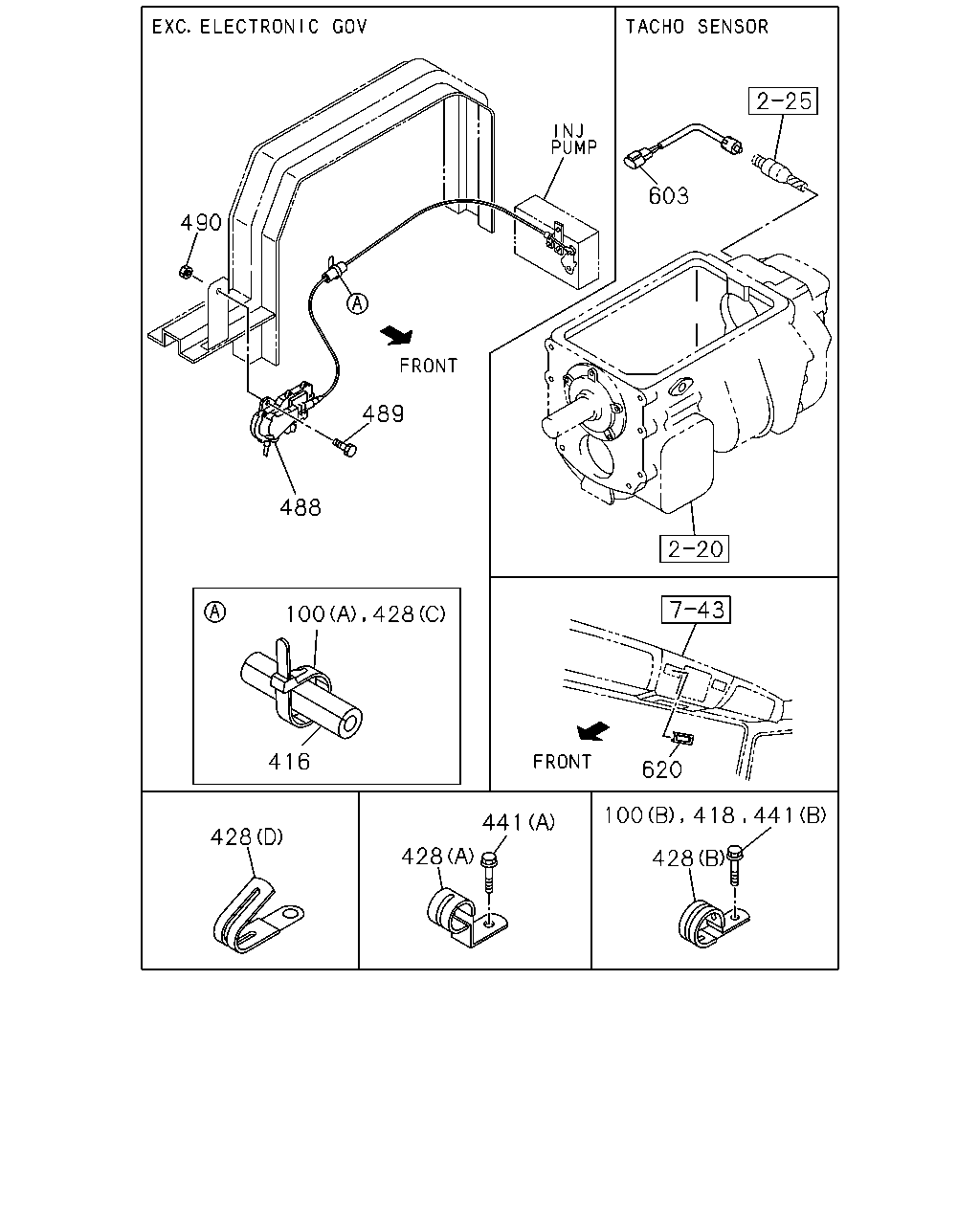

çizim 39318
603 490 489 488 100 416 620 441 428 428 428 428 100 418 441
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0102- ● ● ● ● ●
100 CLIP; HARNESS
(B) ID=11 L=30 		1-09700-511-0 01 1 0102- ● ●
100 CLIP; HARNESS
CXZ(CXZ***) (B) ID=11 L=30 		1-09700-511-0 01 1 0102- ●
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0102- ● ●
100 CLIP; HARNESS
CXZ(CXZ***) (A) L=140 		5-09707-031-1 01 1 0102- ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 9603-9901 ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 9902-9904 ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 9905- ● ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9902-9904 ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9905-9909 ● ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9910- ● ● ●
416 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0102- ● ● ● ● ●
416 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9905- ●
416 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ●
416 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
416 SLEEVE; RUBBER
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9603-9901 ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9902-9904 ● ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9905-9909 ● ● ● ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9910- ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9603-9901 ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9905- ● ● ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9603-9901 ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9905- ● ● ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9603-9901 ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9905- ● ● ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9603-9901 ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9905- ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9603-9901 ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9905-9909 ● ● ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9910- ● ● ● ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9603-9901 ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9902-9904 ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9905-9909 ● ● ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9910- ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902-9904 ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-9909 ● ●
428 CLIP; HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9910- ● ● ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-9909 ● ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9910- ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9902-9904 ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9905-9909 ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9910- ● ● ●
428 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 9902-9904 ●
428 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 9905-9907 ● ●
428 CLIP; HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 03 1 9908-9909 ● ●
428 CLIP; HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 03 1 9910- ● ● ●
428 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 9908-9909 ● ●
428 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 9910- ● ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9705 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9901 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9902-9904 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-9909 ● ● ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9910- ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-9901 ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-9904 ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905- ● ● ● ● ●
488 STOPPER; ENG 1-82840-145-1 01 1 9603-9901 ●
488 STOPPER; ENG
EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> 		1-82840-145-1 01 1 9902-9904 ● ●
488 STOPPER; ENG
EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> 		1-82840-145-1 01 1 9905- ● ● ●
488 STOPPER; ENG
CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-161-0 01 1 9902-9904 ● ●
488 STOPPER; ENG
CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-161-0 01 1 9905- ● ● ●
489 BOLT; ENG STOPPER
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9807 ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9808-9901 ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 02 1 9902-9904 ● ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ●
490 NUT; ENG STOP
M8 		9-09110-408-0 02 1 9603-9606 ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9610-9901 ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
603 SENSOR; TACHO 1-83127-115-0 01 1 9603-9901 ●
603 SENSOR; TACHO 1-83127-115-0 01 1 9902-9904 ●
603 SENSOR; TACHO 1-83127-115-0 01 1 9905- ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9603-9901 ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9902-9904 ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9905- ● ● ●
620 BEZEL; CONT UNIT
CXZ(CXZ***) 		1-72447-666-1 01 1 9905- ●

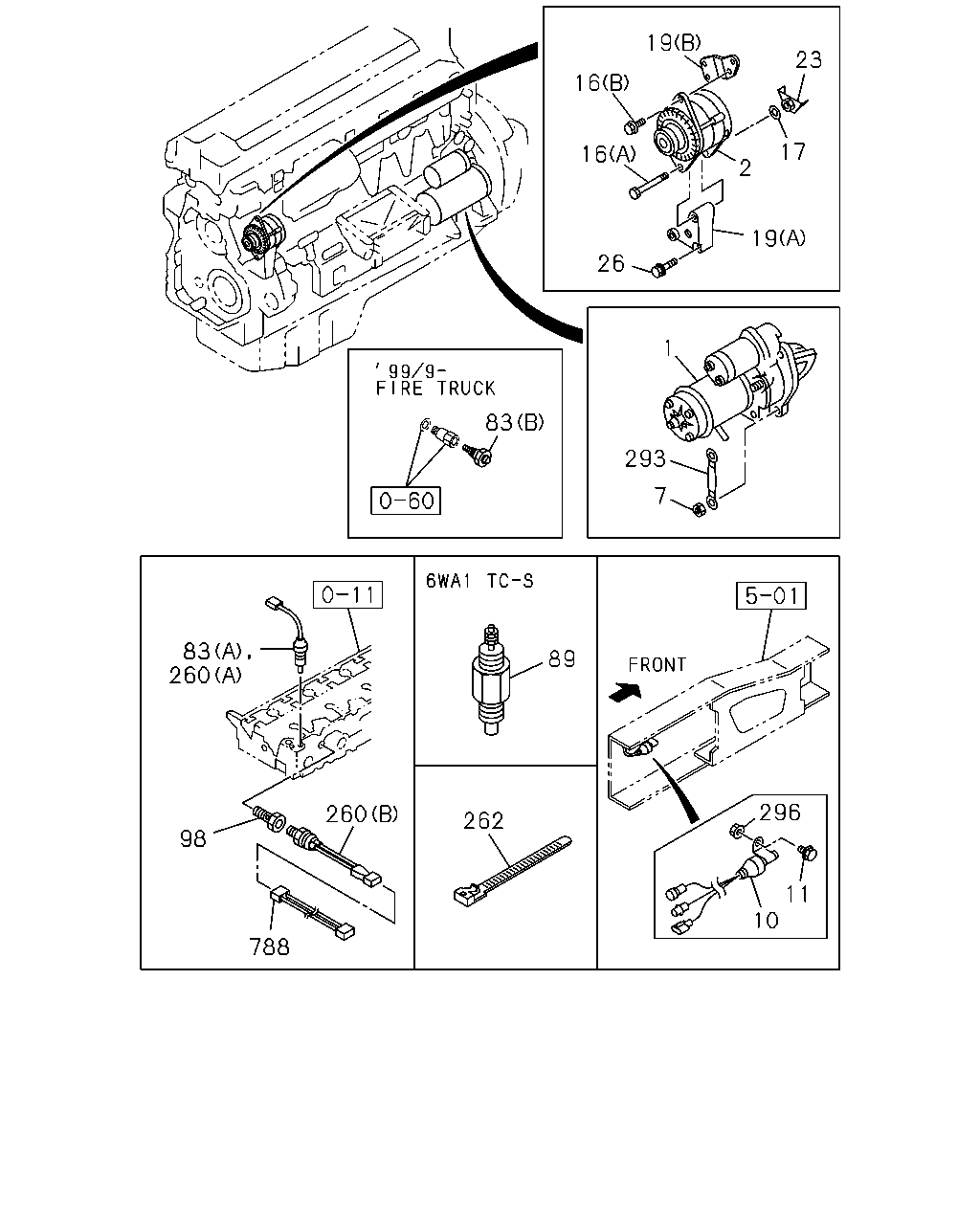

çizim 42018
19 23 16 17 16 2 19 26 1 83 293 7 83 260 89 296 260 262 98 11 10 788
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-293-1 01 1 9603-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9709-9901 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9902-9904 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9905-9909 ● ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 6.0KW NIKKO 		1-81100-325-2 01 1 9910- ● ● ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-352-0 01 1 9904-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-352-1 01 1 9905-9907 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-341-0 01 1 9904-9904 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		1-81100-341-1 01 1 9905-9907 ● ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE KIT<YL3> 24V 8.0KW NIKKO 		1-81100-326-0 01 1 9905- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 24V 6KW 24V 6.0KW NIKKO 		1-81100-314-0 01 1 9902-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 24V 6KW 24V 6.0KW NIKKO 		1-81100-314-1 01 1 9905- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. NIKKO 24V 40A NIKKO 		1-81200-426-2 01 1 9603-9901 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. NIKKO 24V 50A NIKKO 		1-81200-469-3 01 1 9902-9904 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-469-3 01 1 9905-9905 ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A NIKKO 		1-81200-469-3 01 1 9906-9909 ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A NIKKO 		1-81200-469-4 01 1 9910- ● ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-437-4 01 1 9905- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-517-0 01 1 9904-9904 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-517-0 01 1 9905-9905 ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI 		1-81200-517-0 01 1 9905-9907 ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-572-0 01 1 9906-9907 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9603-9901 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9902-9904 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9905-9909 ● ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9910- ● ● ● ● ●
10 RELAY; STARTER
NIKKO 		1-81171-071-0 01 1 9603-9606 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9607-9901 ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 9902-9904 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 9905- ● ● ● ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9904-9904 ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9905- ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
11 BOLT; RELAY STARTER
CXZ(CXZ***) FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9803-9901 ●
11 BOLT; RELAY STARTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9902-9904 ● ●
11 BOLT; RELAY STARTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ● ● ●
11 BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28680-825-0 02 1 9803-9901 ●
11 BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28680-825-0 02 1 9902-9904 ● ●
11 BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9603-9901 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9902-9904 ● ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 9905-9909 ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 9910- ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9905-9905 ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9905-9905 ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9906-9909 ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9910-0010 ● ● ● ● ●
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0011- ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9603-9901 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9902-9904 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9905-9909 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9910- ● ● ● ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9603-9901 ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9902-9904 ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9905-9909 ● ● ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9910-0010 ● ● ● ● ●
19 BRACKET; GEN
(A) 		1-19711-144-0 01 1 0011- ● ● ● ● ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 9905-9909 ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 9910- ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9603-9901 ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9902-9904 ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9905-9909 ● ● ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9910- ● ● ● ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9603-9901 ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9902-9904 ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9905-9909 ● ● ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9910- ● ● ● ● ●
83 THERMOMETER UNIT
(A) 		1-83161-031-1 01 1 9603-9901 ●
83 THERMOMETER UNIT
(A) 		1-83161-031-1 01 1 9902-9904 ●
83 THERMOMETER UNIT
(A) 		1-83161-031-1 01 1 9905- ● ●
83 THERMOMETER UNIT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-83161-032-0 01 1 9909- ●
89 SWITCH; OVER HEAT WARNING 5-82450-020-0 01 1 9603-9901 ●
98 ADAPTER; TEMP SENSOR 1-09675-236-0 01 1 0102- ● ● ● ● ●
260 SENSOR; WATER TEMP
(B) 		1-83161-038-0 01 1 0102- ● ● ● ● ●
260 SENSOR; WATER TEMP
(A) 		1-80210-004-0 01 1 9902-9904 ●
260 SENSOR; WATER TEMP
(A) 		1-80210-004-0 01 1 9905-9909 ● ●
260 SENSOR; WATER TEMP
(A) 		1-80210-004-0 01 1 9910- ● ● ●
262 CLIP; HARNESS
L=140 		5-09707-031-0 03 1 9603-9901 ●
262 CLIP; HARNESS
L=140 		5-09707-031-1 03 1 9902-9904 ●
262 CLIP; HARNESS
L=140 		5-09707-031-1 03 1 9905- ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9603-9901 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9902-9904 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9905-9909 ● ● ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9910- ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9603-9606 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ● ●
788 HARNESS; EXT,WATER TEMP SENSOR 1-82641-186-0 02 1 0102- ● ●
788 HARNESS; EXT,WATER TEMP SENSOR
CXZ(CXZ***) 		1-82641-186-0 02 1 0102- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
