◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51158 - NNR/NPR EU-R EXC.EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#52859) — 62 parça

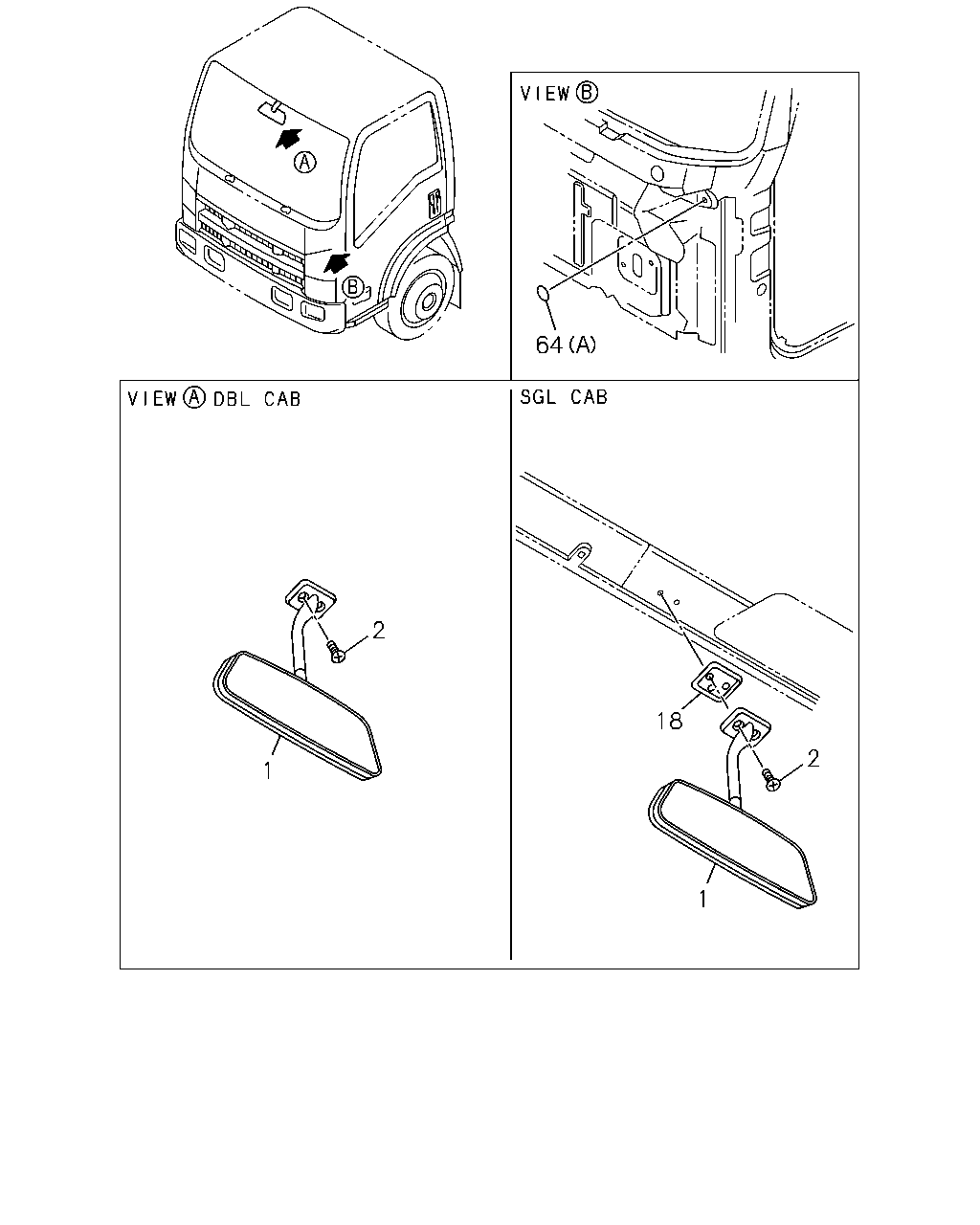

çizim 156547
64 2 18 2 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.068 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0712-0802 ● ●
1 16.068 MIRROR; ROOM
4JJ1-TCS ENG(LFB) DARK GRAY 		8-97405-193-1 01 1 0712-0802 ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ● ●
1 16.068 MIRROR; ROOM
4HK1-TCS ENG(RJS) DARK GRAY 		8-97414-309-0 01 1 0712-0802 ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 0712- ● ● ●
18 16.069 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 0712- ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (B) OD=52 BLACK 		1-76798-041-0 02 1 0803- ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0712- ● ● ●

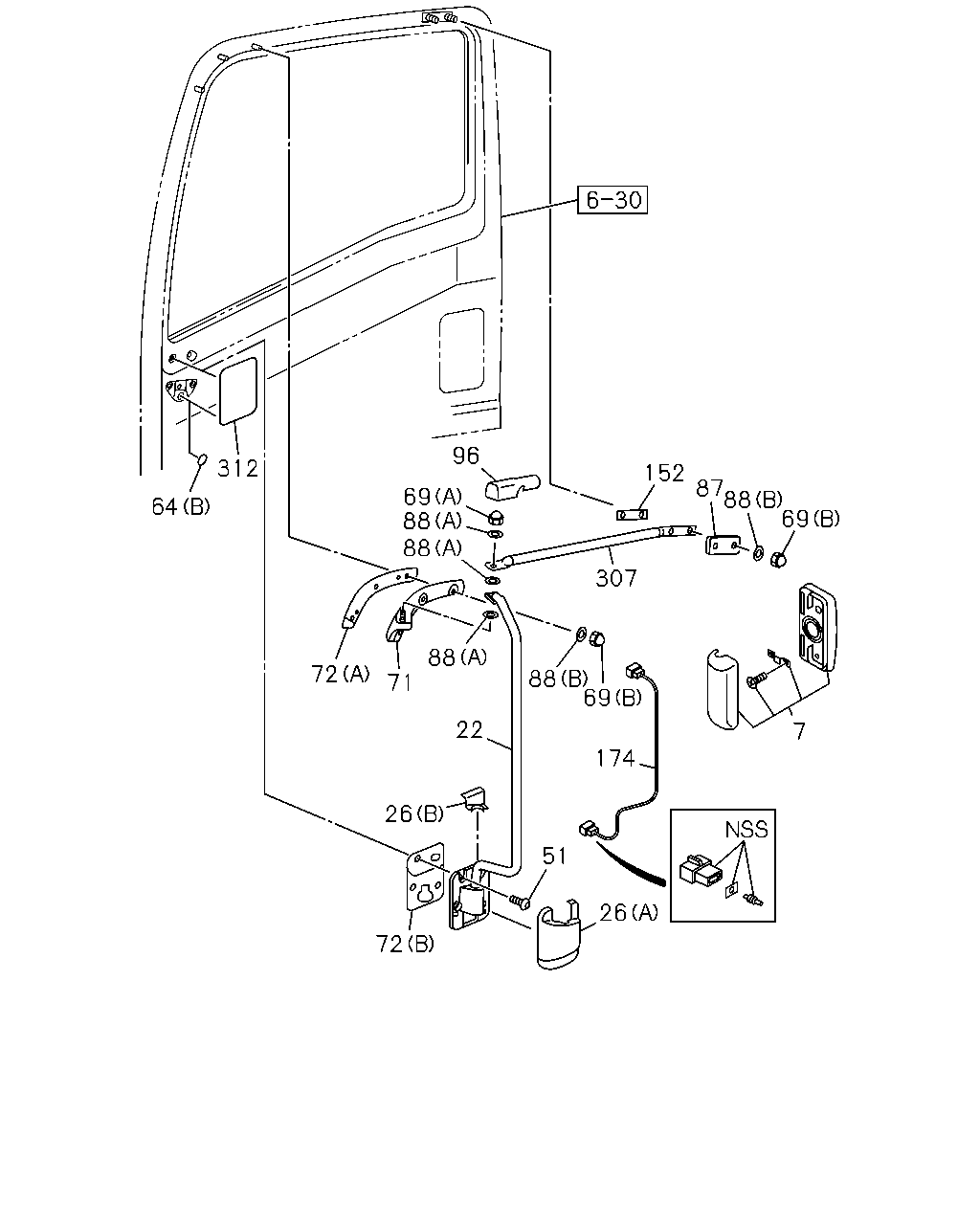

çizim 156551
96 312 152 87 88 69 69 88 88 64 307 88 72 88 69 71 22 7 174 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date A B C
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98043-174-1 01 1 0712- ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 0712- ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 0712- ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98043-058-1 01 1 0712- ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 0712- ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 0712- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98067-511-0 01 1 0712-1204 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-847-0 01 1 1205- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98067-510-0 01 1 0712-1204 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-846-0 01 1 1205- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-031-0 01 1 0712-1204 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98166-177-0 01 1 1205- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-030-0 01 1 0712-1204 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98166-176-0 01 1 1205- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-038-0 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-179-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-037-0 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-178-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-045-1 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98188-202-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-044-1 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98188-201-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98067-515-1 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98166-181-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98067-514-1 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98166-180-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98067-513-0 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-849-0 01 1 1203- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98067-512-0 01 1 0712-1202 ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-848-0 01 1 1203- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) 		8-98031-803-2 01 1 0712- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B) 		8-98031-806-0 01 1 0712- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) 		8-98031-802-2 01 1 0712- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B) 		8-98031-805-0 01 1 0712- ● ● ●
51 16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 0712- ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (B) OD=52 BLACK 		1-76798-041-0 02 1 0803- ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0712- ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0712-1404 ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) M10 CAP NUT 		1-09984-134-0 02 1 1405- ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98031-794-2 01 1 0712- ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98031-793-2 01 1 0712- ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B) 		8-98080-418-0 02 1 0712- ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) 		8-98031-797-0 01 1 0712- ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) 		8-98031-796-0 01 1 0712- ● ● ●
87 16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98063-789-0 02 1 0712- ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98080-173-0 02 1 0712- ● ● ●
152 16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98063-786-0 02 1 0712- ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.480 		8-98079-660-0 02 1 0712- ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98063-785-2 01 1 0712- ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98063-784-2 01 1 0712- ● ● ●
312 16.081 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 		8-98164-812-0 02 1 1003- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
