Isuzu WW
▶
TRUCKS
▶
NNR
▶
51158 - NNR/NPR EU-R EXC.EU5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#52856) — 29 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WN
◀

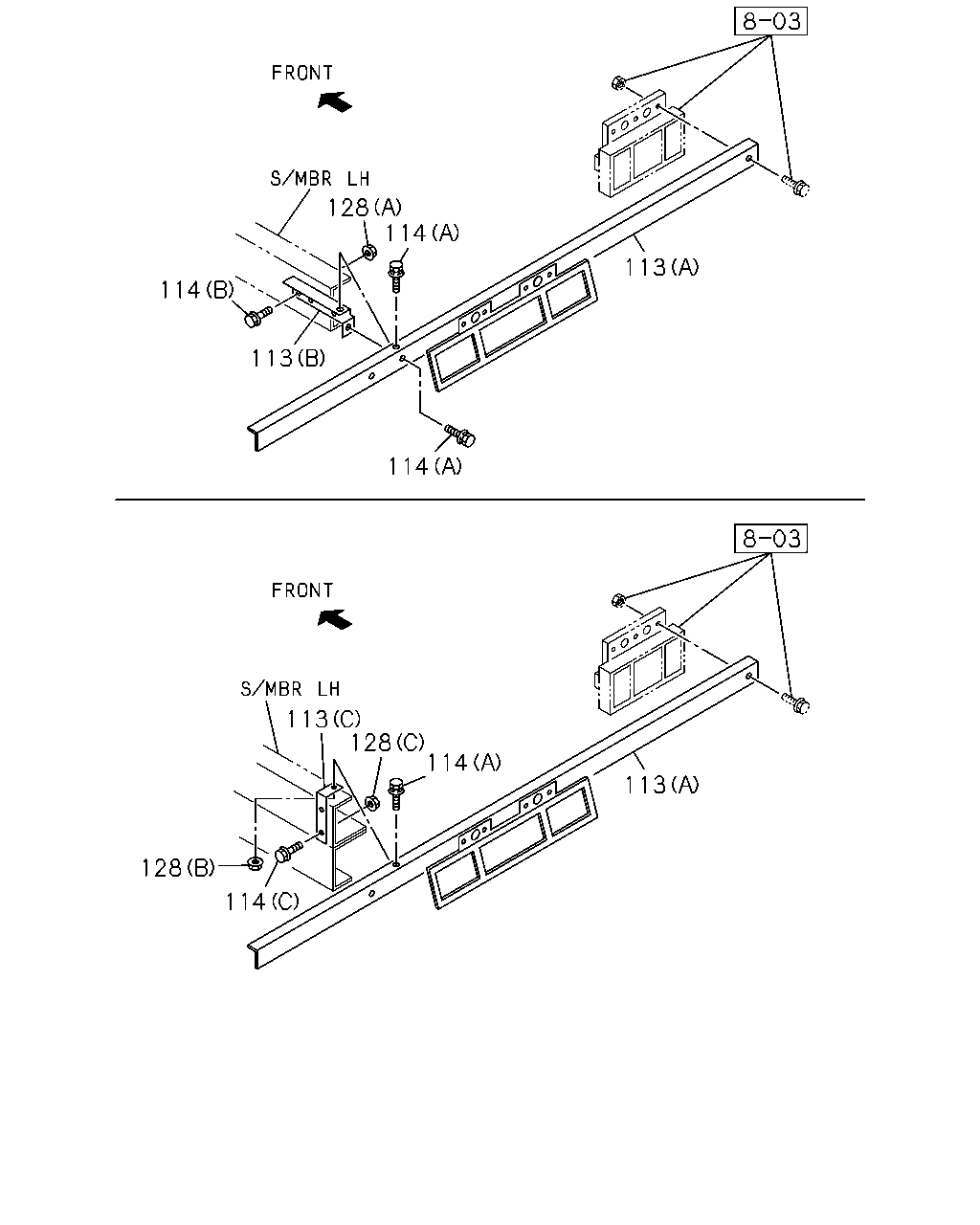

[690A] LICENSE PLATE (19 parça)

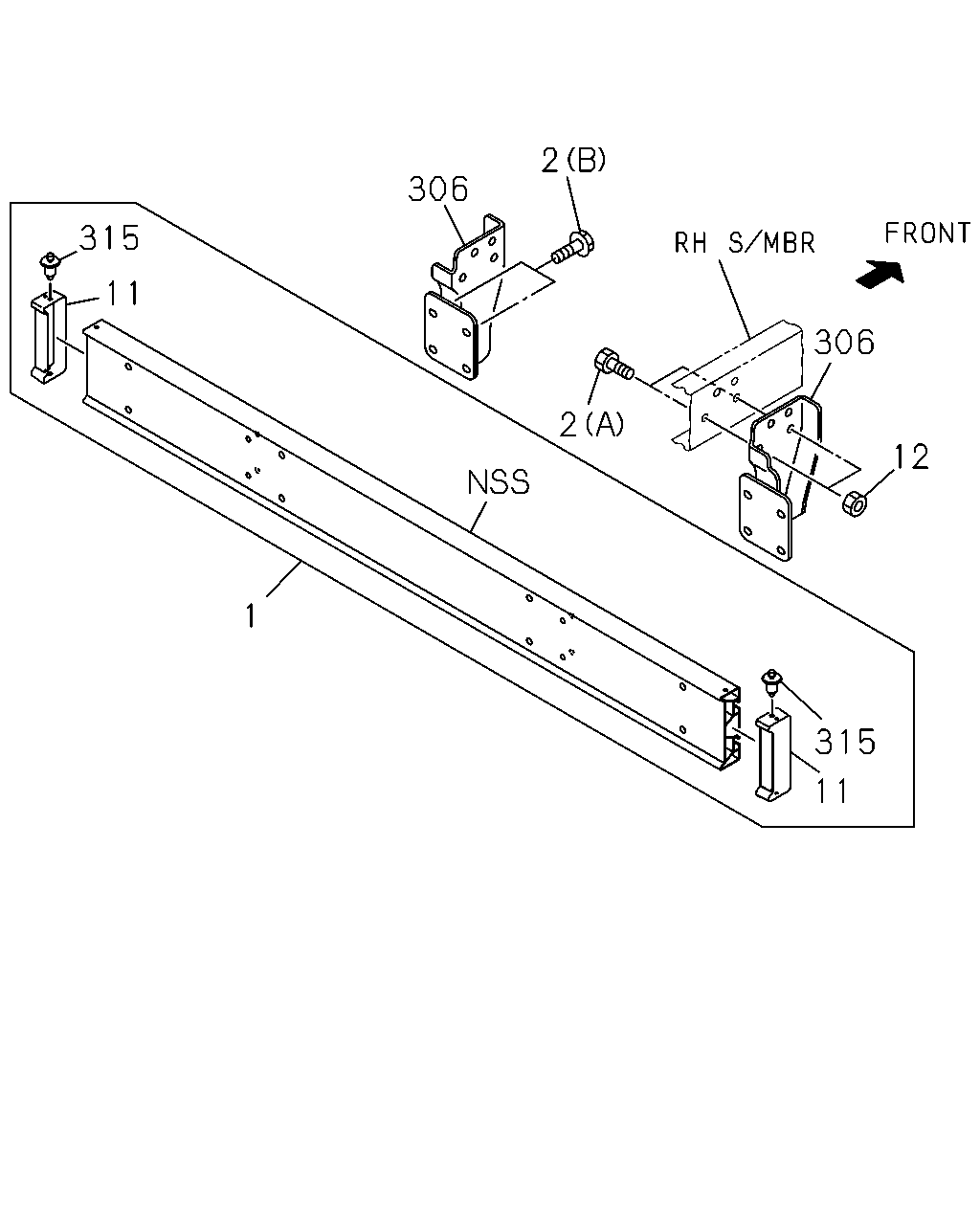

[690A] BUMPER (10 parça)
▶
128
114
113
114
113
114
113
128
114
113
128
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
113
07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> (A)
8-98079-146-0
01
1
0712-
●
113
07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (A)
8-98079-146-0
01
1
0712-
●
●
113
07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98079-732-0
01
1
0712-
●
113
07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,FRAME STRAIGHT TYPE<7KJ>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98079-732-0
01
1
0712-
●
●
113
07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98079-147-0
01
1
0712-
●
113
07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (A)
8-98079-147-0
01
1
0712-
●
●
113
07.800 BRACKET; LICENSE PLATE
(B)
8-98100-015-0
01
1
0712-
●
●
●
113
07.800 BRACKET; LICENSE PLATE
(B)
8-98100-014-0
01
1
0712-
●
●
●
113
07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (A)
8-98079-733-0
01
1
0712-
●
●
113
07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98070-523-0
01
1
0712-
●
●
113
07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)
8-98079-734-0
01
1
0712-
●
●
113
07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C)
8-98091-681-0
02
1
0712-
●
●
114
07.800 BOLT; BRKT,LICENSE PLATE
07.874 (B) M14X30
0-20851-430-0
04
1
0712-
●
●
●
114
07.800 BOLT; BRKT,LICENSE PLATE
06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
0712-
●
●
●
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
0712-
●
●
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE
0-28661-025-0
04
1
0712-
●
●
128
02.662 NUT; CROSS PLATE
00.429 (A) M14 FLANGE
0-91180-214-0
04
1
0712-
●
●
●
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (B) M8 FLANGE
0-91180-108-0
02
1
0712-
●
●
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE
0-91180-110-0
04
1
0712-
●
●
2
306
315
11
306
2
12
1
315
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
07.070 BUMPER; RR
ALUMINUM BUMPER STAMP D8P
8-98088-674-0
01
1
0712-
●
1
07.070 BUMPER; RR
EXC. FRAME STRAIGHT TYPE<7KJ> ALUMINUM BUMPER STAMP D8P
8-98088-674-0
01
1
0712-
●
●
1
07.070 BUMPER; RR
FRAME STRAIGHT TYPE<7KJ> ALUMINUM BUMPER STAMP D8Q
8-98088-675-0
01
1
0712-
●
●
2
07.874 BOLT; BACK BAR
(A) M14X30
0-20851-430-0
08
1
0712-
●
●
●
2
07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE
0-28651-230-0
08
1
0712-
●
●
●
11
07.829 CAP; RR BUMPER
8-98070-331-0
02
1
0712-
●
●
●
12
07.833 NUT; BRKT
00.429 M14 FLANGE
0-91180-214-0
08
1
0712-
●
●
●
306
07.836 BAR; BACK,RR
STAMP IA3
8-98039-408-0
01
1
0712-
●
●
●
306
07.836 BAR; BACK,RR
STAMP IA3
8-98039-409-0
01
1
0712-
●
●
●
315
07.829 RIVET; CAP
1-71290-062-0
04
1
0712-
●
●
●
