6-80 — BACK PANEL (#52853) — 69 parça

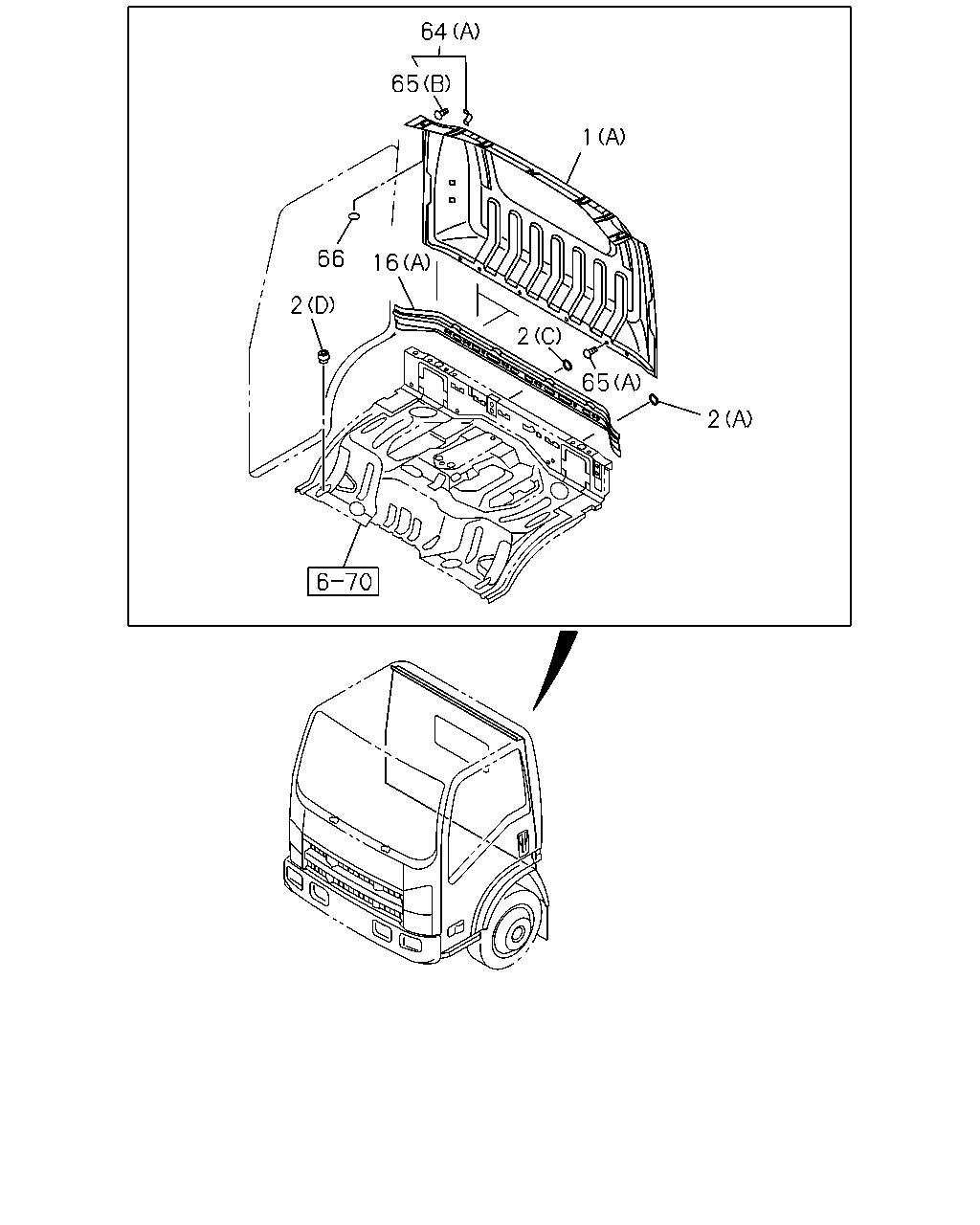

64 65 1 66 16 2 2 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.587 PANEL; BACK OUTER (A)	8-97584-304-3	01	1	0712-	●	●
1	16.587 PANEL; BACK OUTER (B)	8-97583-749-5	01	1	0712-			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK	8-98031-126-0	10	1	0712-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	0712-1109	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1110-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	0712-1109	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	1110-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK	8-98031-126-0	06	1	0712-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (D) OD=12.1	8-97898-423-0	04	1	0712-	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (E) OD=35	8-94122-971-0	04	1	0712-			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0712-0908			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (B) OD=15.0	8-94279-040-0	02	1	0909-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97584-608-2	01	1	0712-	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97583-754-0	01	1	0712-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL (C)	8-98006-213-0	01	1	0712-			●
64	16.587 BRACKET; AIR INTAKE DUCT 16.570 (A)	8-97584-611-1	01	1	0712-	●	●
64	16.587 BRACKET; AIR INTAKE DUCT (B)	8-98054-615-0	01	1	0712-			●
64	16.587 BRACKET; AIR INTAKE DUCT (C)	8-98054-617-0	01	1	0712-			●
65	17.198 STUD; BACK PANEL (B)	8-94389-701-0	01	1	0712-	●	●
65	17.198 STUD; BACK PANEL 16.588 (A) M6X12	8-98013-112-0	04	1	0712-1001	●	●
65	17.198 STUD; BACK PANEL (B)	8-94389-701-0	02	1	0712-			●
66	16.587 SEAL; BACK PANEL BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0712-	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0712-			●
66	16.587 SEAL; BACK PANEL BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	05	1	0712-	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0712-0802	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0712-0802			●
66	16.587 SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0803-	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0803-			●
66	16.587 SEAL; BACK PANEL BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	05	1	0712-0802	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	05	1	0803-	●	●

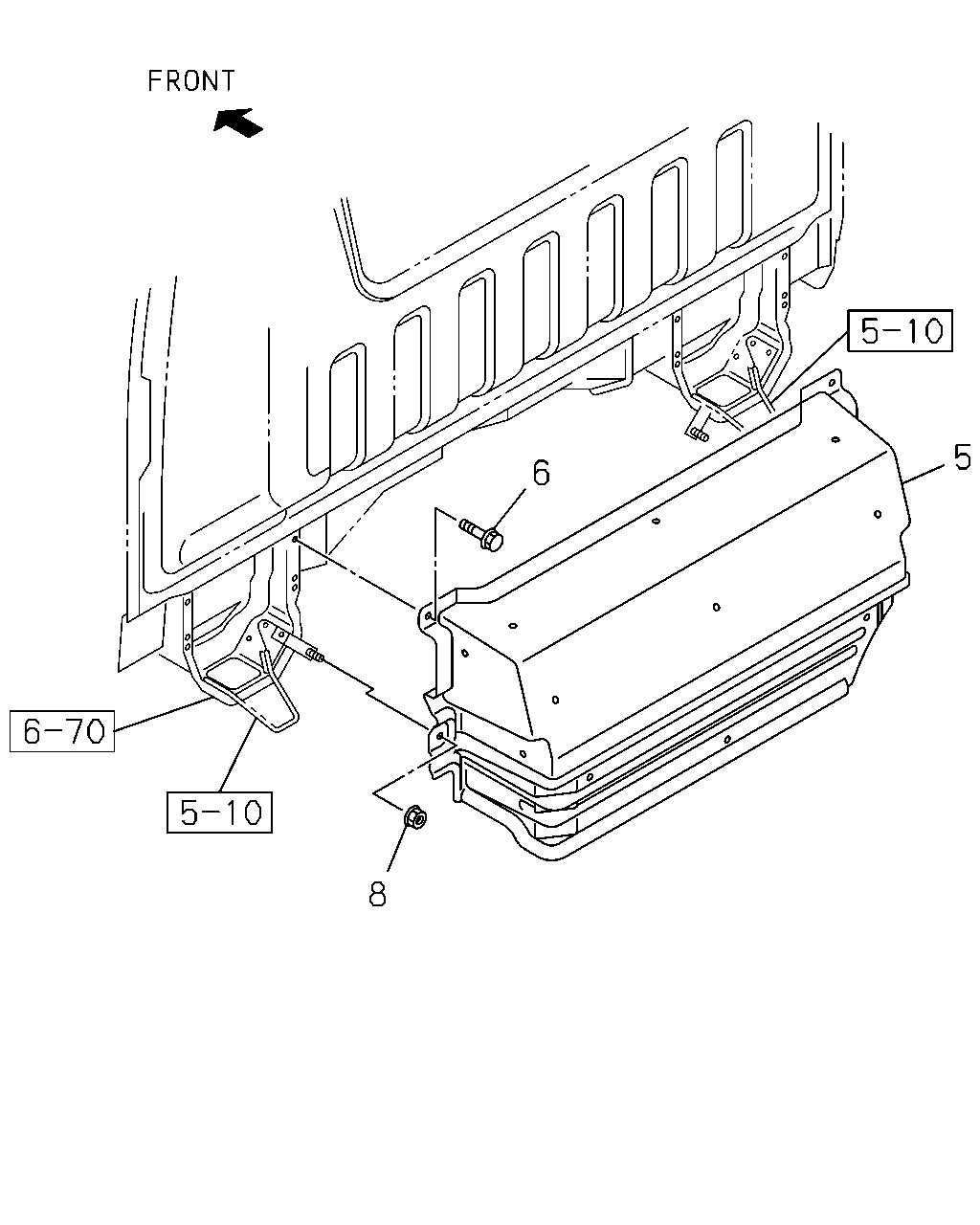

5 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
5	16.587 PANEL; CAB BACK 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98011-595-0	01	1	0712-	●
6	16.587 BOLT; BACK PANEL 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0712-	●
8	16.587 NUT; BACK PANEL 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0712-	●

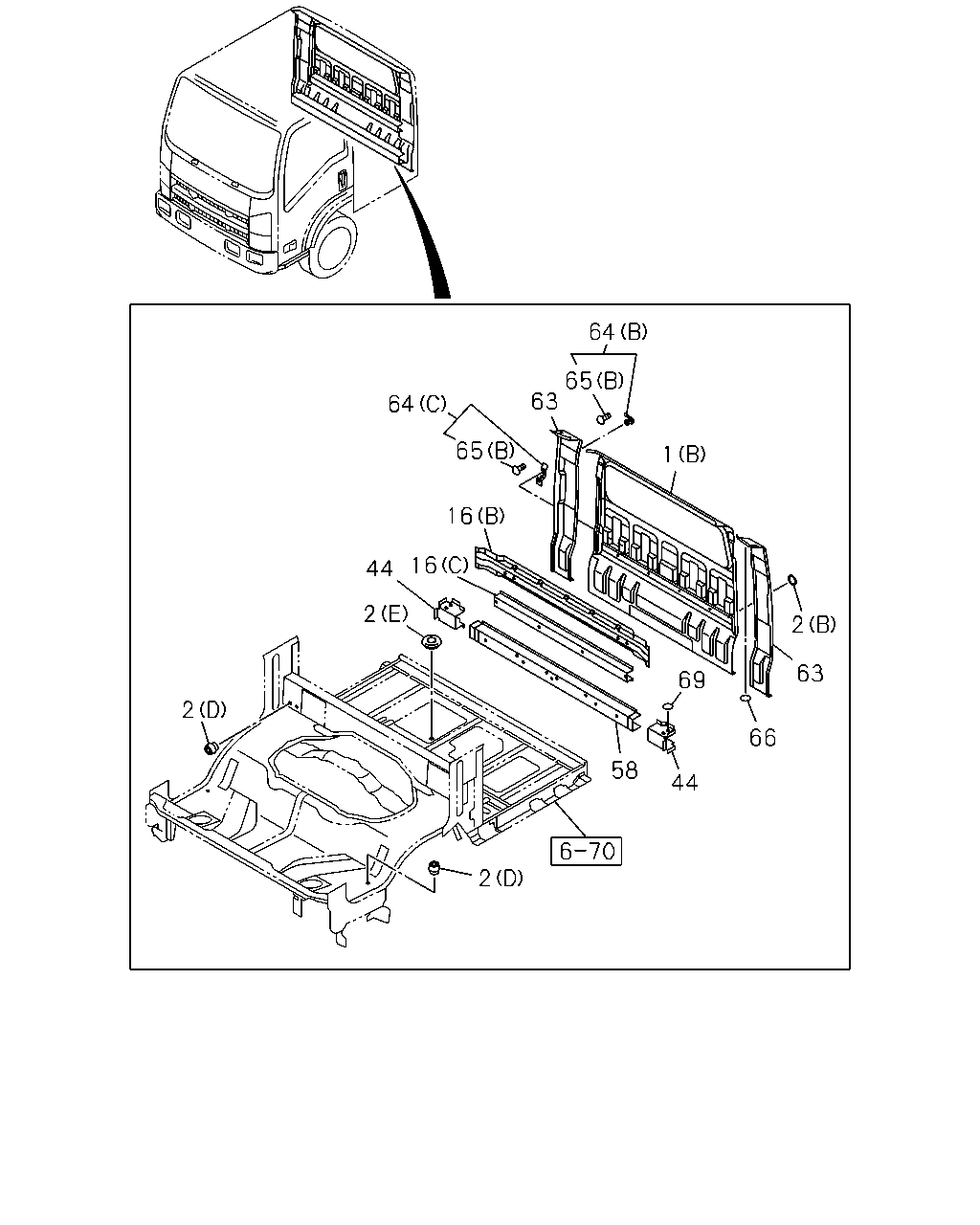

64 65 63 64 65 1 16 16 44 2 2 63 69 2 66 58 44 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.587 PANEL; BACK OUTER (A)	8-97584-304-3	01	1	0712-	●	●
1	16.587 PANEL; BACK OUTER (B)	8-97583-749-5	01	1	0712-			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK	8-98031-126-0	10	1	0712-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	0712-1109	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1110-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	0712-1109	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	1110-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK	8-98031-126-0	06	1	0712-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (D) OD=12.1	8-97898-423-0	04	1	0712-	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (E) OD=35	8-94122-971-0	04	1	0712-			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0712-0908			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (B) OD=15.0	8-94279-040-0	02	1	0909-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97584-608-2	01	1	0712-	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97583-754-0	01	1	0712-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL (C)	8-98006-213-0	01	1	0712-			●
44	16.587 BRACKET; RR SEAT ANCHOR 16.714	8-98055-947-0	01	1	0712-			●
44	16.587 BRACKET; RR SEAT ANCHOR 16.714	8-98055-949-0	01	1	0712-			●
58	16.575 REINFORCEMENT; SEAT BELT ANCHOR	8-98006-720-0	01	1	0712-			●
63	16.575 PANEL; BACK,SIDE	8-97583-751-5	01	1	0712-			●
63	16.575 PANEL; BACK,SIDE	8-97583-750-6	01	1	0712-			●
64	16.587 BRACKET; AIR INTAKE DUCT 16.570 (A)	8-97584-611-1	01	1	0712-	●	●
64	16.587 BRACKET; AIR INTAKE DUCT (B)	8-98054-615-0	01	1	0712-			●
64	16.587 BRACKET; AIR INTAKE DUCT (C)	8-98054-617-0	01	1	0712-			●
65	17.198 STUD; BACK PANEL (B)	8-94389-701-0	01	1	0712-	●	●
65	17.198 STUD; BACK PANEL 16.588 (A) M6X12	8-98013-112-0	04	1	0712-1001	●	●
65	17.198 STUD; BACK PANEL (B)	8-94389-701-0	02	1	0712-			●
66	16.587 SEAL; BACK PANEL BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0712-	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0712-			●
66	16.587 SEAL; BACK PANEL BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	05	1	0712-	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0712-0802	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0712-0802			●
66	16.587 SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0803-	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0803-			●
66	16.587 SEAL; BACK PANEL BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	05	1	0712-0802	●	●
66	16.587 SEAL; BACK PANEL BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	05	1	0803-	●	●
69	16.587 SEAL; LOCATION HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0712-			●
