6-75 — MAT AND CARPET (#52850) — 59 parça

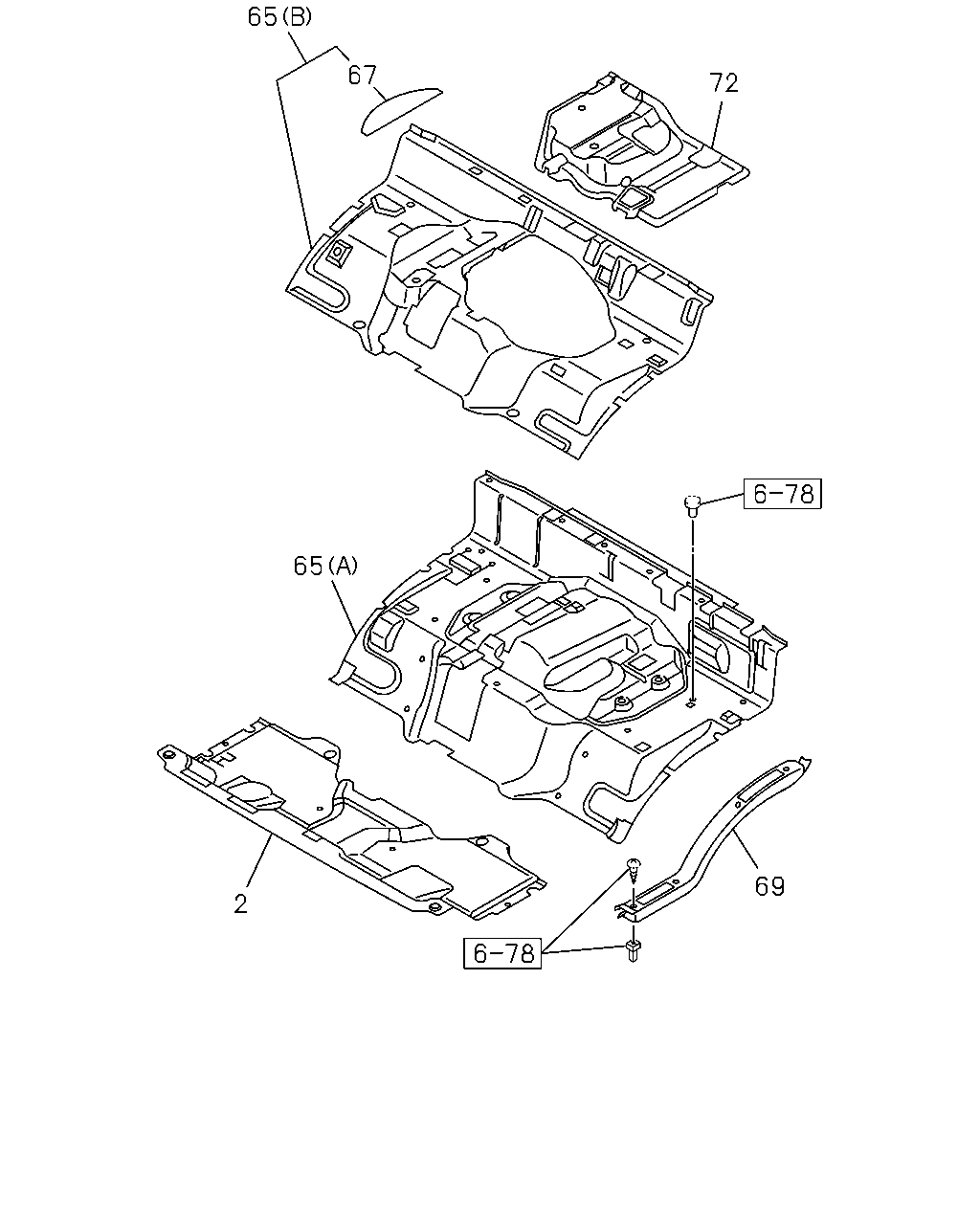

65 67 72 65 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0712-	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0712-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-4	01	1	0712-0804	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-5	01	1	0805-0906	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0907-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0907-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-0	01	1	0805-0906	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0907-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0907-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-122-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-122-1	01	1	1304-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-5	01	1	0712-0906	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0907-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0907-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0712-1303			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-			●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0712-0904	●	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0712-0904			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0712-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0712-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0712-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0712-			●

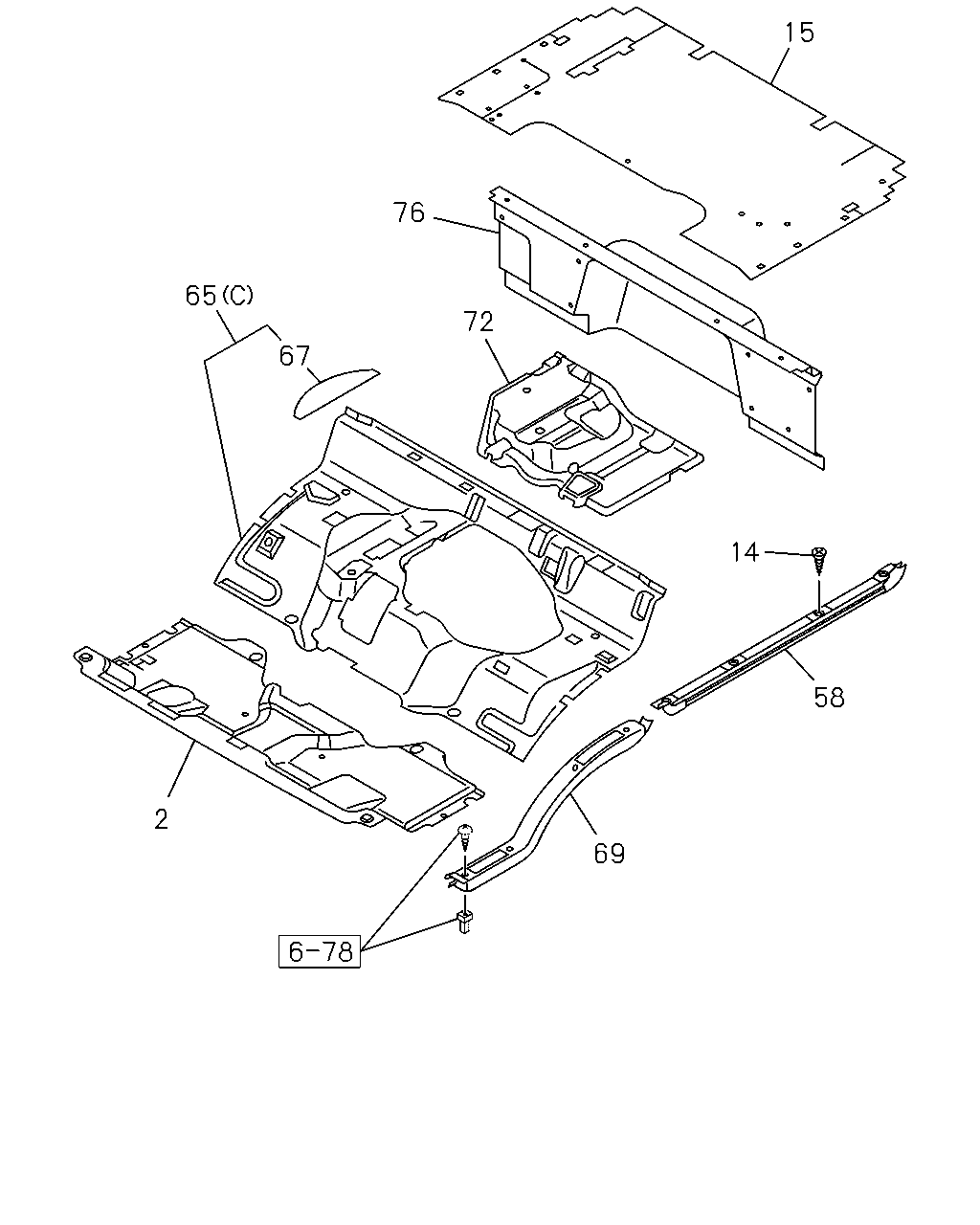

15 76 65 72 67 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0712-	●	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0712-	●	●	●
14	16.870 SCREW; PLATE 04.681 M5X12 TAPPING	0-72180-512-0	08	1	0712-			●
15	16.800 MAT; FLOOR REAR 4HK1-TCS ENG(RJS) GRAY	8-97412-602-1	01	1	0712-			●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97412-601-2	01	1	0712-			●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97412-603-2	01	1	0712-			●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0712-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-4	01	1	0712-0804	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-5	01	1	0805-0906	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0907-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0907-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-0	01	1	0805-0906	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0907-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0907-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-122-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-122-1	01	1	1304-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-5	01	1	0712-0906	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0907-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0907-1303		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0712-1303			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-111-1	01	1	1304-			●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0712-0904	●	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0712-0904			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0712-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0712-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0712-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0712-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCS ENG(RJS) GRAY	8-97412-600-1	01	1	0712-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4JJ1-TCS ENG(LFB) GRAY	8-97405-204-4	01	1	0712-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
