6-66 — HEAD LINING AND TRIM (#52848) — 110 parça

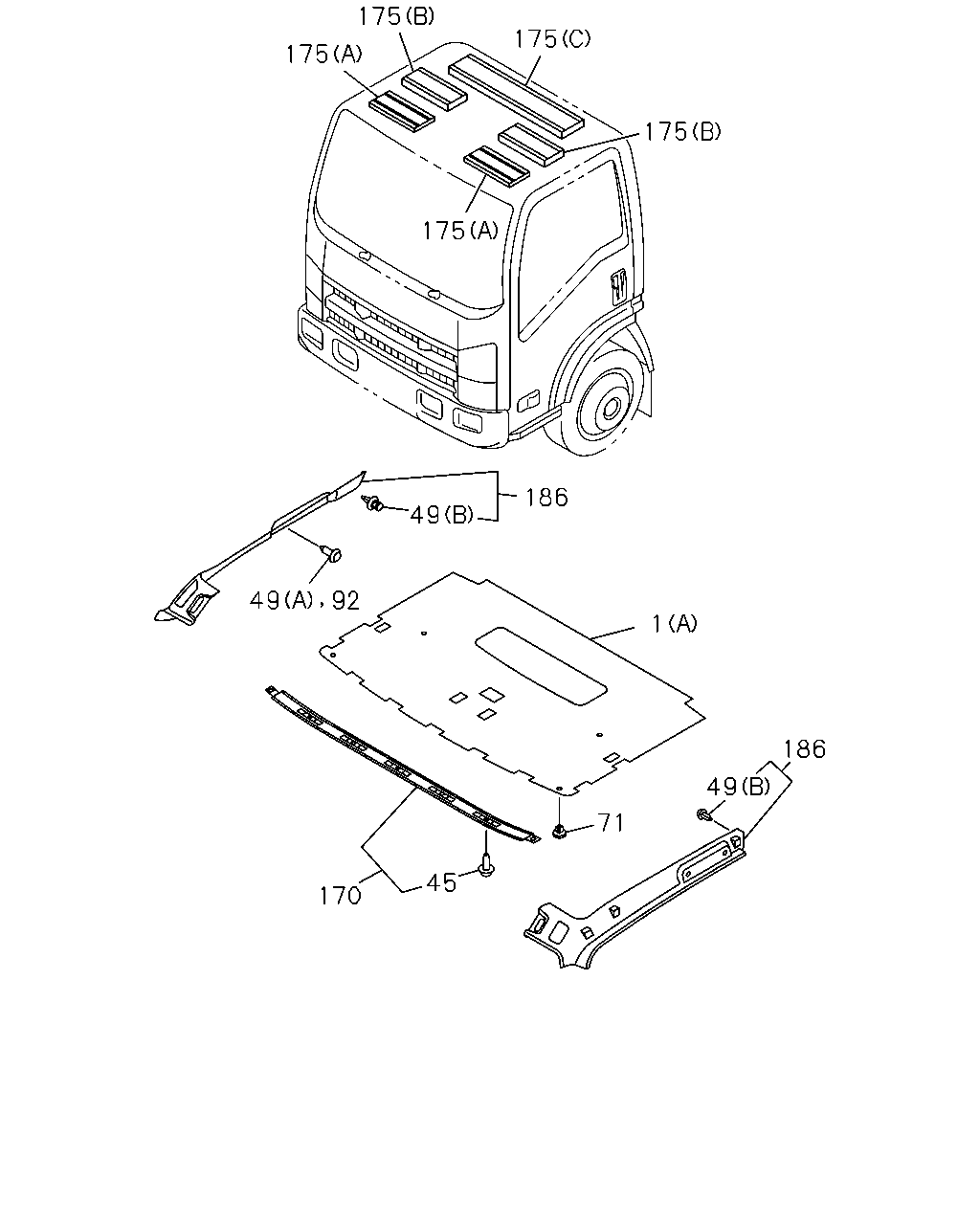

175 175 175 175 175 186 49 49 92 1 186 49 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	0712-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	0712-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-272-8	01	1	0712-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-274-3	01	1	0712-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-053-0	01	1	1212-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97409-860-1	01	1	0712-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97425-062-0	01	1	1212-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-279-3	01	1	0712-			●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97405-277-3	01	1	0712-			●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-278-2	01	1	0712-			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	05	1	0712-0911	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	05	1	0712-0911			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	0912-	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	0912-			●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	0712-	●	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	0712-			●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0712-	●	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0712-	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	0712-			●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0712-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0712-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	0712-	●	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0712-	●	●
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	20	1	0712-			●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> DARK GRAY	8-97407-768-0	04	1	0712-	●	●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	0712-			●
170	16.742 FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-281-5	01	1	0712-	●	●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	0712-			●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98037-298-3	01	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0712-	●	●	●
175	16.742 CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	0712-			●
175	16.742 CUSHION; HEAD LINING (E)	8-98054-171-3	02	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-2	01	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-2	01	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-2	01	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-251-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-2	01	1	0712-			●

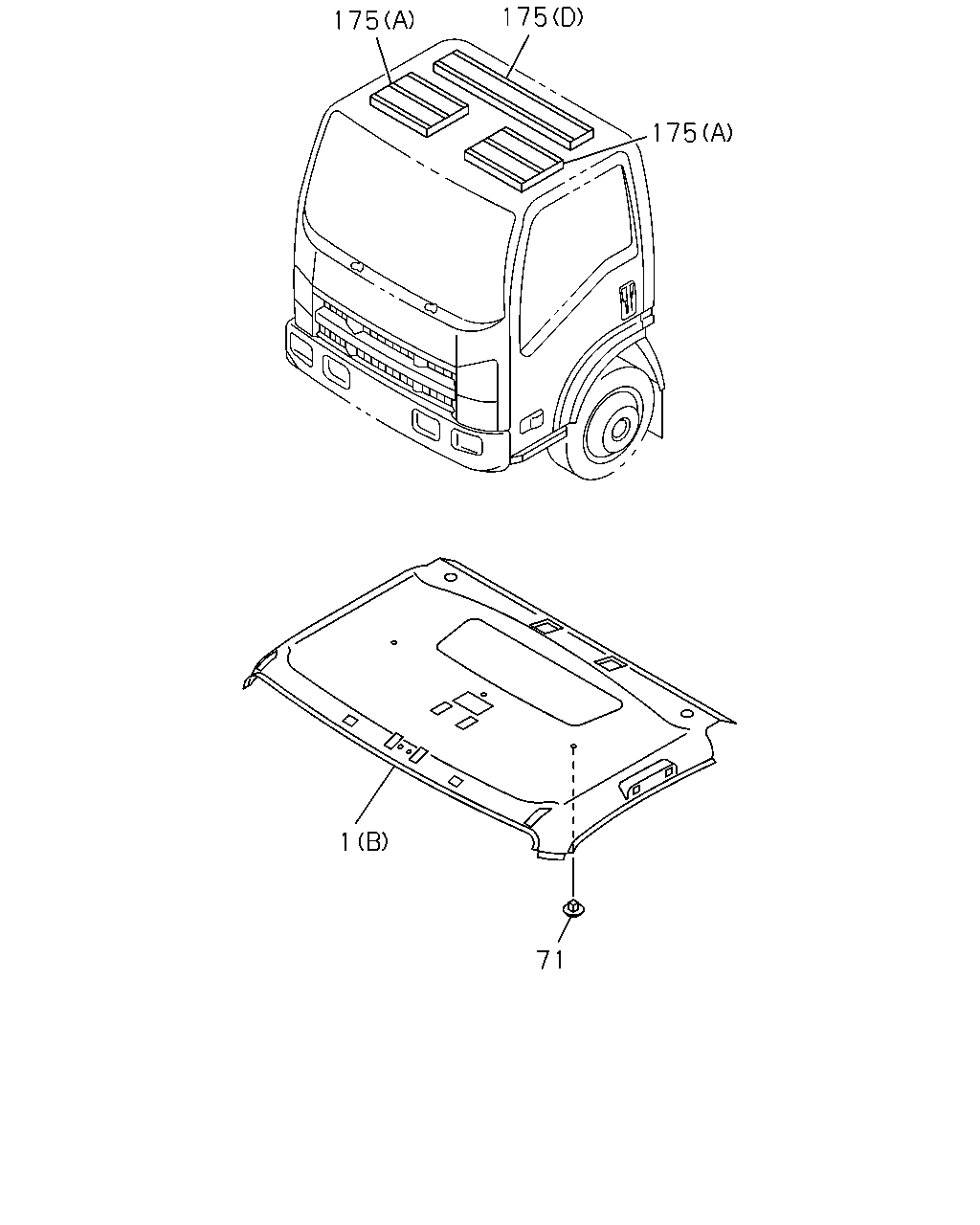

175 175 175 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	0712-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	0712-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-272-8	01	1	0712-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-274-3	01	1	0712-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-053-0	01	1	1212-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97409-860-1	01	1	0712-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97425-062-0	01	1	1212-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-279-3	01	1	0712-			●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97405-277-3	01	1	0712-			●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-278-2	01	1	0712-			●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0712-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0712-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	0712-	●	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0712-	●	●
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	20	1	0712-			●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98037-298-3	01	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0712-	●	●	●
175	16.742 CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	0712-			●
175	16.742 CUSHION; HEAD LINING (E)	8-98054-171-3	02	1	0712-			●

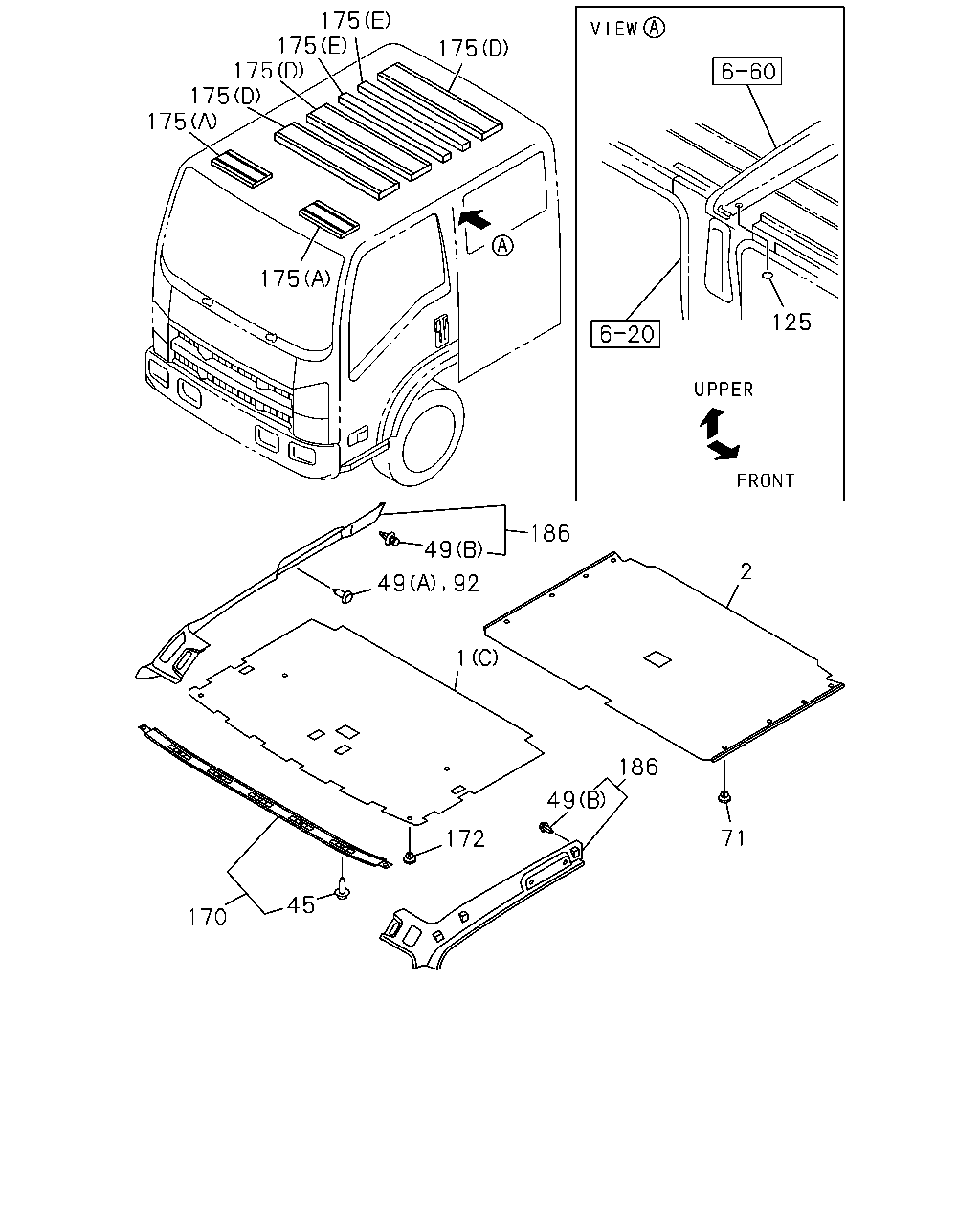

175 175 175 175 175 175 175 125 186 49 2 49 92 1 186 49 71 172 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	0712-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	0712-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-272-8	01	1	0712-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-274-3	01	1	0712-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-053-0	01	1	1212-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97409-860-1	01	1	0712-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97425-062-0	01	1	1212-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-279-3	01	1	0712-			●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97405-277-3	01	1	0712-			●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97405-278-2	01	1	0712-			●
2	16.742 LINING; HD,ROOF RR DARK GRAY	8-97405-280-3	01	1	0712-			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	05	1	0712-0911	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	05	1	0712-0911			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	0912-	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	0912-			●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	0712-	●	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	0712-			●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0712-	●	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0712-	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	0712-			●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0712-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0712-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	0712-	●	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0712-	●	●
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	20	1	0712-			●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> DARK GRAY	8-97407-768-0	04	1	0712-	●	●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	0712-			●
125	16.570 SEAL; HOLE BODY COLOR ARC WHITE(729) 16.592 OD=36 WHITE	1-76778-007-0	02	1	0712-			●
125	16.570 SEAL; HOLE BODY COLOR TRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0712-0901			●
125	16.570 SEAL; HOLE BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0902-			●
170	16.742 FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-281-5	01	1	0712-	●	●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	0712-			●
172	16.742 RETAINER; HEAD LINING DARK GRAY	8-97405-282-0	06	1	0712-			●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98037-298-3	01	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0712-	●	●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0712-	●	●	●
175	16.742 CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	0712-			●
175	16.742 CUSHION; HEAD LINING (E)	8-98054-171-3	02	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-2	01	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-2	01	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-2	01	1	0712-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-251-2	01	1	0712-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-2	01	1	0712-			●
