Isuzu WW
▶
TRUCKS
▶
NNR
▶
51158 - NNR/NPR EU-R EXC.EU5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#52847) — 29 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WN
◀

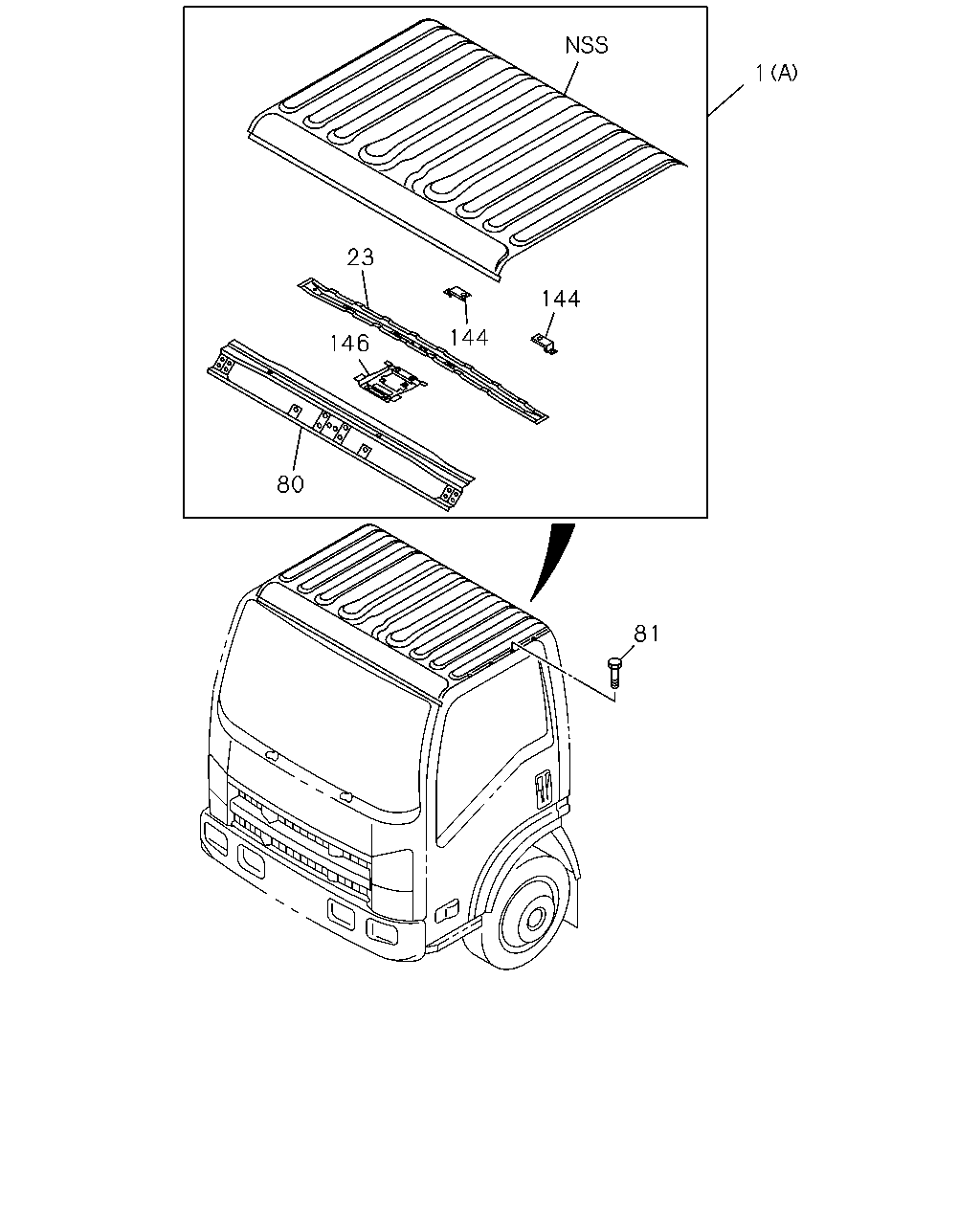

[660A] SGL CAB (10 parça)

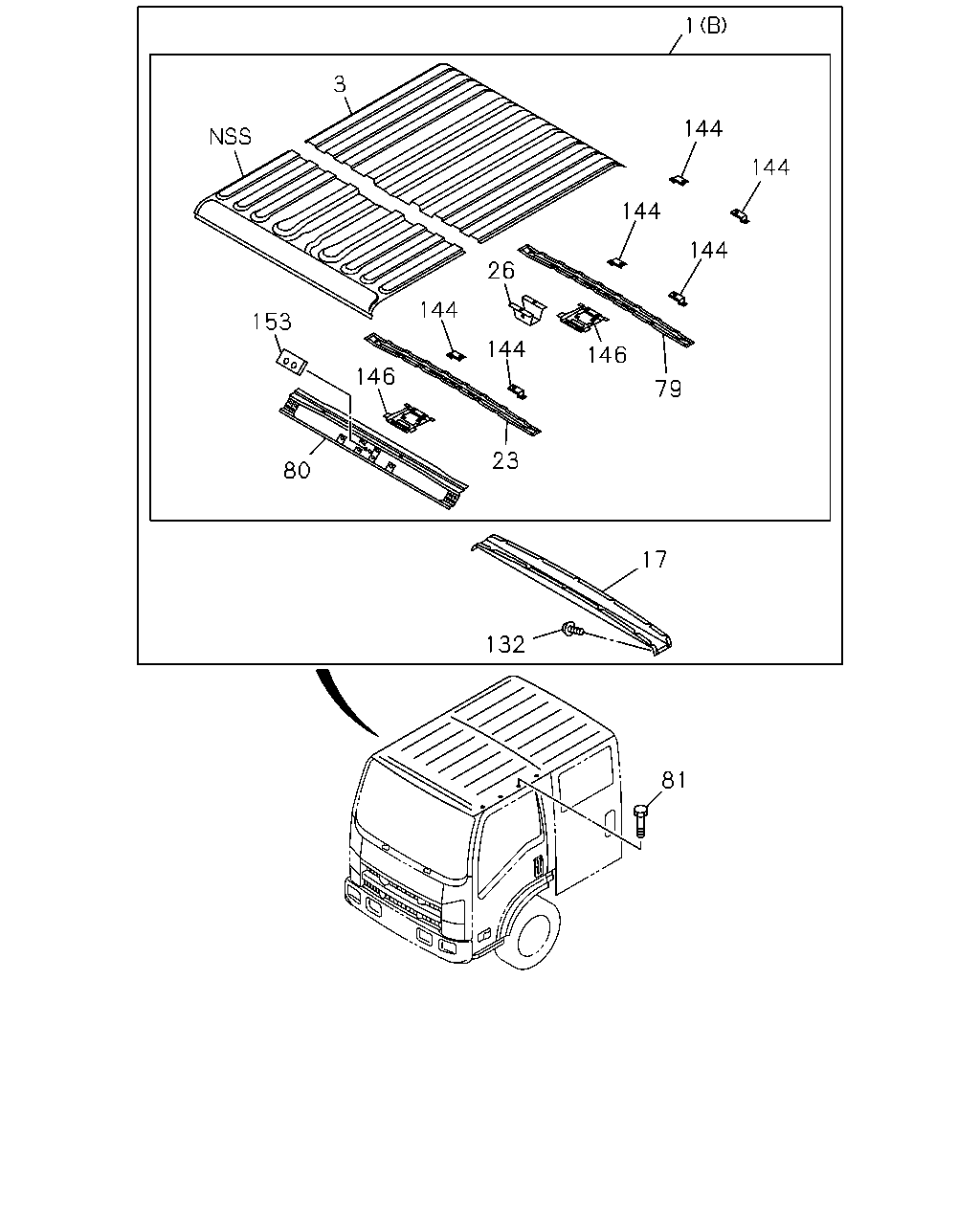

[660A] DBL CAB (19 parça)
▶
1
23
144
144
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.585 PANEL; ROOF
(A)
8-97411-005-6
01
1
0712-
●
●
1
16.585 PANEL; ROOF
(B)
8-98050-530-7
01
1
0712-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
0712-
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-97584-190-4
01
1
0712-
●
●
●
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEX SOCKET
8-98028-744-0
08
1
0712-0910
●
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEX SOCKET
8-98141-874-0
08
1
0911-
●
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
0712-
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
06
1
0712-
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
0712-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
02
1
0712-
●
1
3
144
144
144
144
26
144
153
144
146
146
79
23
80
17
132
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.585 PANEL; ROOF
(A)
8-97411-005-6
01
1
0712-
●
●
1
16.585 PANEL; ROOF
(B)
8-98050-530-7
01
1
0712-
●
3
16.585 PANEL; ROOF,RR
8-98109-819-0
01
1
0712-0801
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97583-763-1
01
1
0712-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
0712-
●
●
●
26
16.570 BRACKET; ROOF REINF
8-98006-519-0
01
1
0712-
●
79
16.570 REINFORCEMENT; ROOF PANEL,RR
8-97583-761-2
01
1
0712-
●
80
16.585 PANEL; HEADER,ROOF
8-97584-190-4
01
1
0712-
●
●
●
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEX SOCKET
8-98028-744-0
08
1
0712-0910
●
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEX SOCKET
8-98141-874-0
08
1
0911-
●
●
●
132
16.585 FASTENER; HEADER SHELF
16.570 M6X16
0-38050-616-0
05
1
0712-0803
●
132
16.585 FASTENER; HEADER SHELF
16.650 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
05
1
0804-1101
●
132
16.585 FASTENER; HEADER SHELF
M6X12 HEXALOBULAR SOCKET
8-98177-720-0
05
1
1102-1212
●
132
16.585 FASTENER; HEADER SHELF
16.650 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
05
1
1301-
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
0712-
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
06
1
0712-
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
0712-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
02
1
0712-
●
153
16.570 STIFFENER; HEADER,ROOF
8-98094-096-0
01
1
0712-
●
