◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51158 - NNR/NPR EU-R EXC.EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#52845) — 37 parça
çizim 156516
3 14 1 30 32
BalonParca AdiParca NoAdetTipApplied Date
1 16.360 HANDLE; OUTSIDE,RR DOOR 8-98040-992-2 01 1 0712-
1 16.360 HANDLE; OUTSIDE,RR DOOR 8-98040-991-2 01 1 0712-
3 16.350 BOLT; DOOR OUTSIDE HANDLE
16.183 M6X10 FLANGE 		8-98032-500-0 04 1 0712-0802
3 16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0803-
14 16.330 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 0712-
14 16.330 HOLDER; DOOR LK ROD
16.350 BLACK 		8-98095-813-0 01 1 0712-
30 16.335 STRIKER; RR DOOR 8-98029-173-2 02 1 0712-
32 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0712-

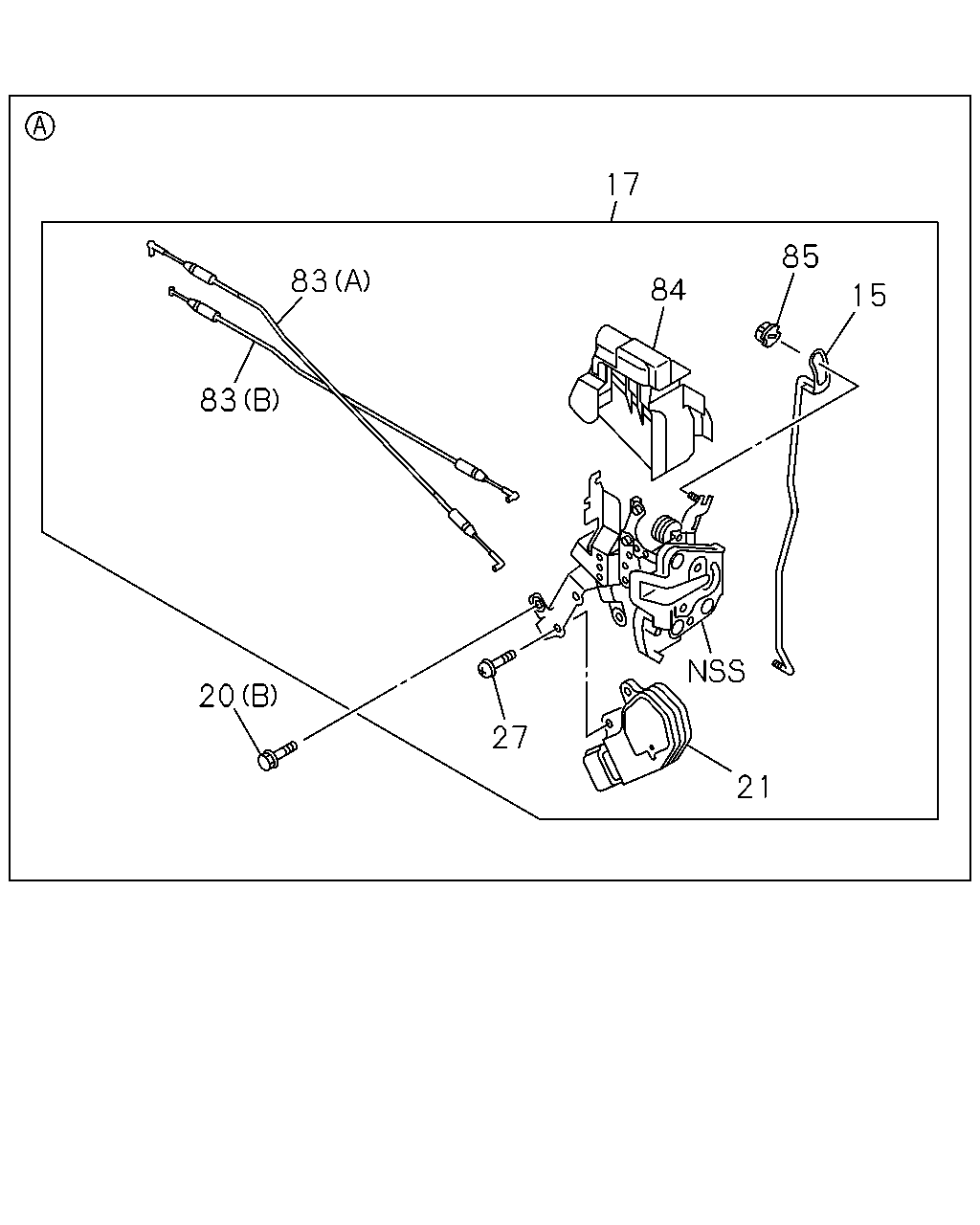

çizim 156518
17 85 83 84 15 83 20 27 21
BalonParca AdiParca NoAdetTipApplied Date
15 16.341 LINK; RR DOOR LK 8-98058-336-0 01 1 0712-
15 16.341 LINK; RR DOOR LK 8-98058-335-0 01 1 0712-
17 16.330 LOCK; DOOR,RR DOOR 8-97587-659-3 01 1 0712-1203
17 16.330 LOCK; DOOR,RR DOOR 8-98202-462-0 01 1 1204-
17 16.330 LOCK; DOOR,RR DOOR 8-97587-658-3 01 1 0712-1203
17 16.330 LOCK; DOOR,RR DOOR 8-98202-461-0 01 1 1204-
20 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 0712-
20 16.330 SCREW; DOOR LK
16.183 (B) M6X10 FLANGE 		8-98032-500-0 02 1 0712-0802
20 16.330 SCREW; DOOR LK
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0803-
21 16.345 ACTUATOR; RR DOOR LOCK 8-98058-231-0 01 1 0712-
21 16.345 ACTUATOR; RR DOOR LOCK
16.263 		8-98089-562-0 01 1 0712-
27 16.330 SCREW; RR DOOR LOCK 8-97310-549-0 04 1 0712-
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-345-0 02 1 0712-
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-344-0 01 1 0712-
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-342-0 01 1 0712-
84 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 0712-
84 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 0712-
85 16.155 SNAP; RR DOOR LOCK
16.335 		8-98058-227-0 01 1 0712-
85 16.155 SNAP; RR DOOR LOCK
16.335 		8-98058-226-0 01 1 0712-

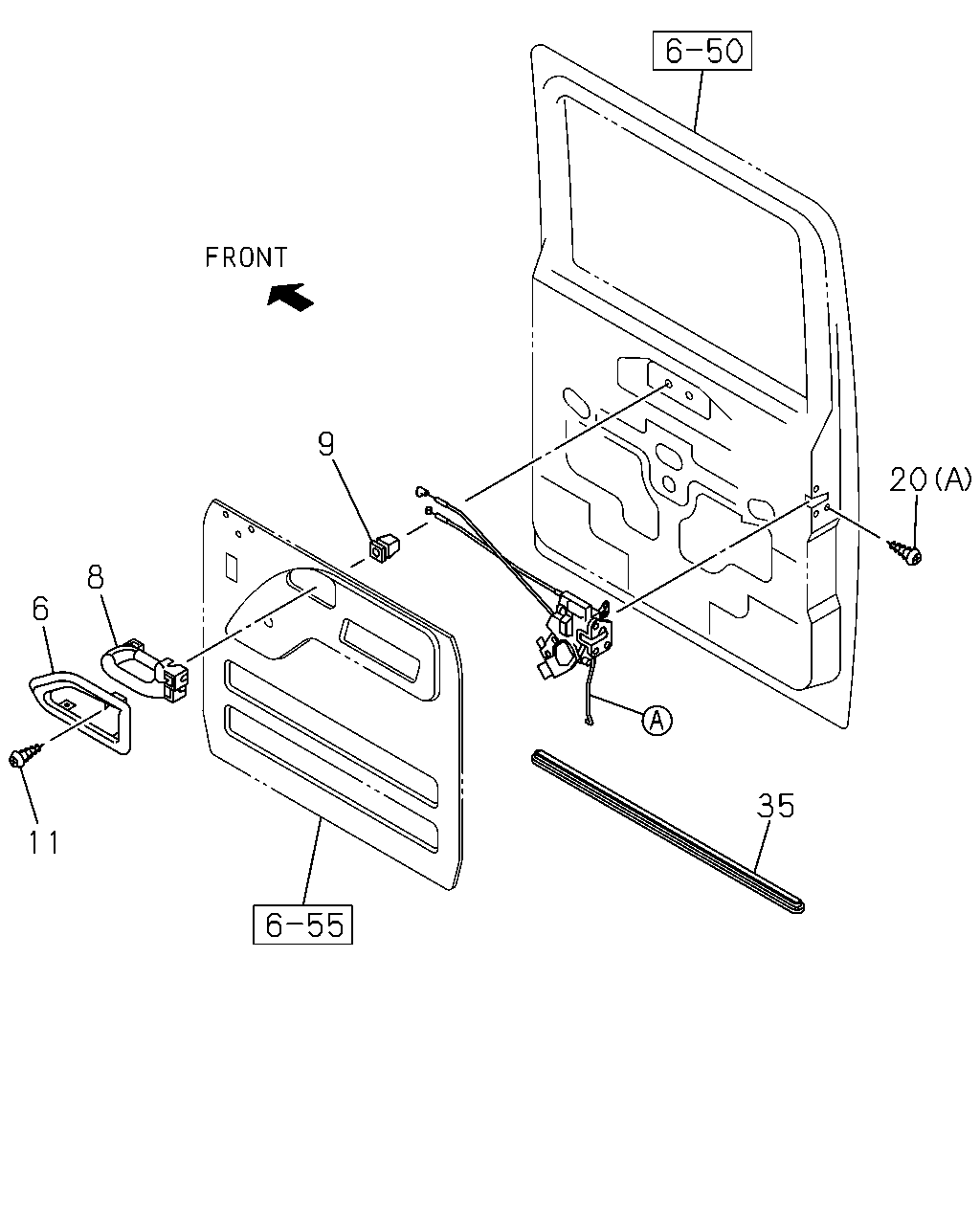

çizim 156522
9 20 8 6 35 11
BalonParca AdiParca NoAdetTipApplied Date
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97405-312-0 01 1 0712-
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97405-311-0 01 1 0712-
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97409-817-0 01 1 0712-
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97409-816-0 01 1 0712-
9 16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0712-
11 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0712-
20 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 0712-
20 16.330 SCREW; DOOR LK
16.183 (B) M6X10 FLANGE 		8-98032-500-0 02 1 0712-0802
20 16.330 SCREW; DOOR LK
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0803-
35 16.155 PLUG; RR DOOR LWR HOLE 8-98009-201-4 02 1 0712-
