Isuzu WW
▶
TRUCKS
▶
NNR
▶
51158 - NNR/NPR EU-R EXC.EU5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#52842) — 84 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WN
◀
[647A] PROTECTOR AND OTHER PARTS (22 parça)
[647A] FLAP;AIR CLEANER (5 parça)
[647A] SIDE COVER (11 parça)
[647A] MUD GUARD (31 parça)
[647A] UNDER COVER (15 parça)
▶

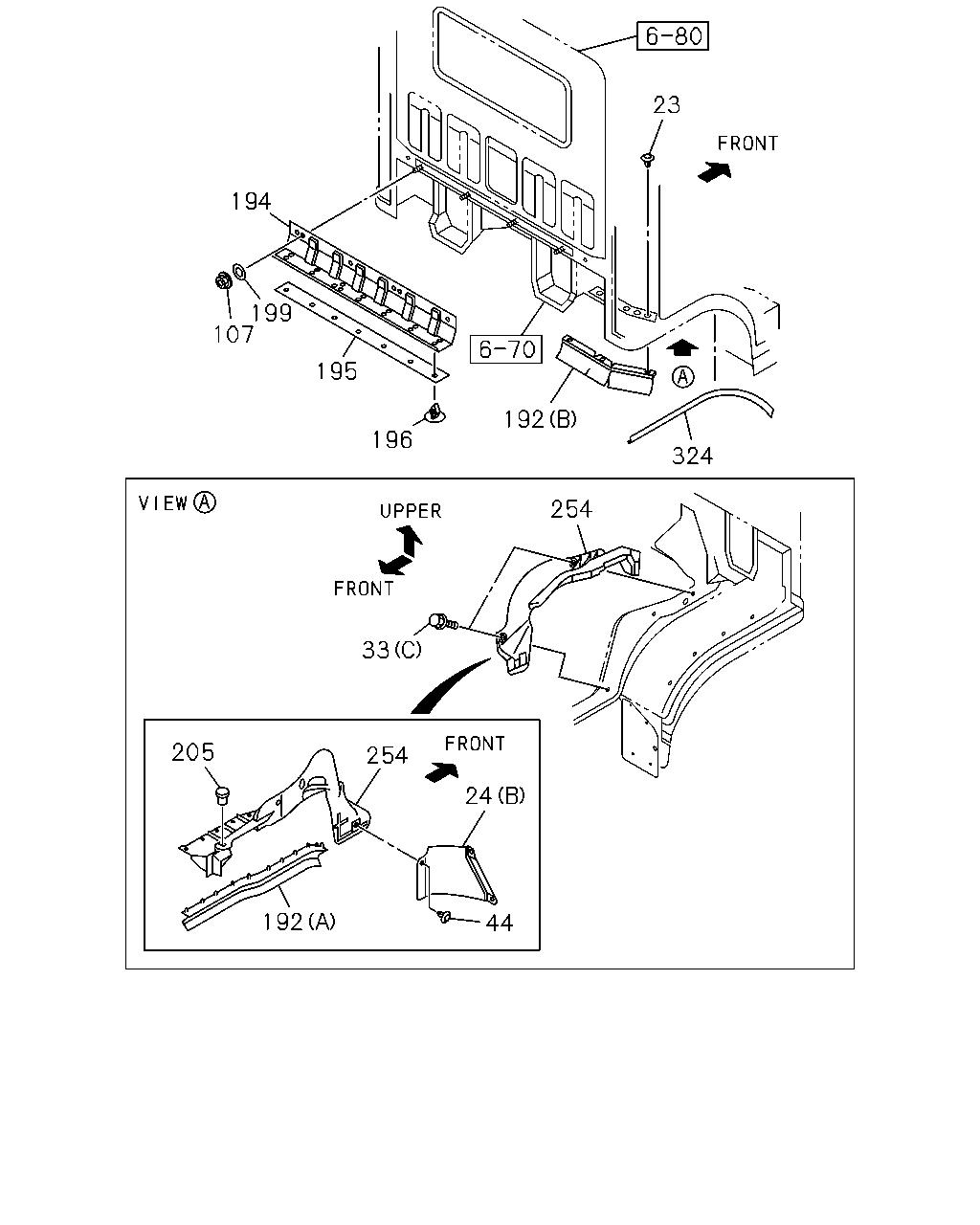

23
194
199
107
195
192
196
324
254
33
205
254
24
192
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
23
08.154 FASTENER; MUD COVER
16.320 OD=8.3
8-97997-832-0
06
1
0712-
●
●
●
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
0712-
●
●
●
24
08.155 PLATE; MUD COVER
(B)
8-98037-561-0
02
1
0712-0910
●
●
●
24
08.155 PLATE; MUD COVER
(B)
8-98154-258-0
02
1
0911-
●
●
●
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0712-1209
●
●
●
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
●
●
●
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0712-
●
●
●
33
08.155 BOLT; MUD COVER
07.832 (C) M6X16 FLANGE
8-98016-982-0
04
1
0712-0804
●
●
●
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0805-
●
●
●
44
08.154 CLIP; ANCHOR
08.155 OD=16 L=11
1-76378-155-0
06
1
0712-
●
●
●
107
08.214 NUT; HEAT PROTECTOR
03.417 M6 FLANGE
8-94279-514-0
04
1
0712-
●
192
08.153 SEAL; MUD COVER
(B)
8-98022-782-3
02
1
0712-
●
●
●
192
08.153 SEAL; MUD COVER
(A)
8-98022-756-1
01
1
0712-
●
●
●
192
08.153 SEAL; MUD COVER
(A)
8-98022-755-1
01
1
0712-
●
●
●
194
03.602 BRACKET; HEAT PROTECTOR
8-98065-107-0
01
1
0712-
●
195
03.602 PROTECTOR; HEAT
8-94272-528-1
01
1
0712-
●
196
03.602 CLIP; HEAT PROTECTOR
8-94244-922-0
07
1
0712-
●
199
03.602 WASHER; PL,HEAT PROTECTOR
8-94292-135-0
04
1
0712-
●
205
08.155 FASTENER; MUD COVER
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
0712-
●
●
●
254
08.153 COVER; MUD,VALANCE
8-98022-751-3
01
1
0712-
●
●
●
254
08.153 COVER; MUD,VALANCE
8-98022-750-3
01
1
0712-
●
●
●
324
08.155 PROTECTOR; FRT FENDER
8-98022-786-2
02
1
0712-
●
●
●

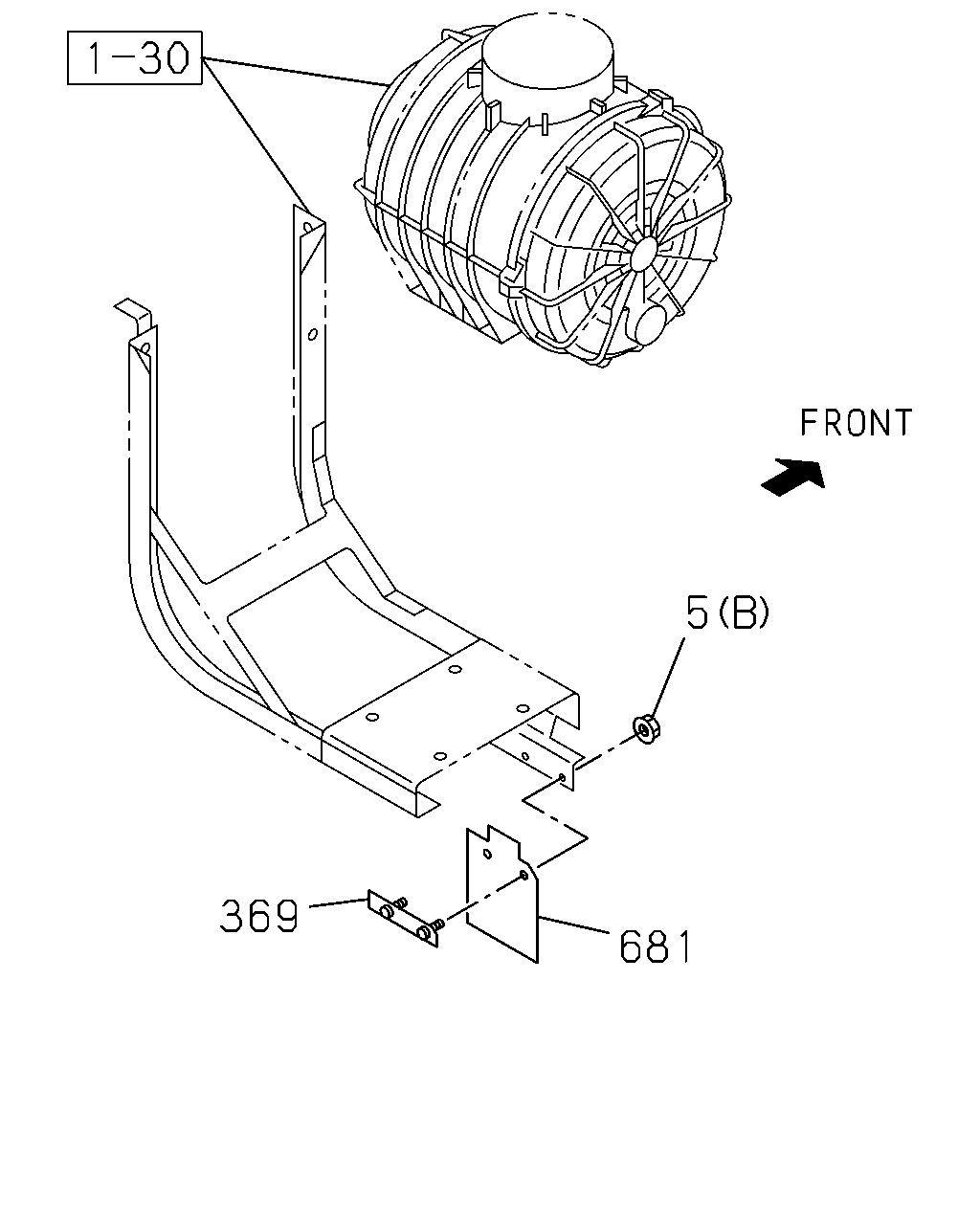

5
369
681
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
5
08.155 NUT; FLAP RUBBER
03.330 (A) M6
0-91110-506-0
08
1
0712-1209
●
●
●
5
08.155 NUT; FLAP RUBBER
(A) M6
8-98227-380-0
08
1
1210-
●
●
●
5
08.155 NUT; FLAP RUBBER
01.062 (B) M6 FLANGE
0-91180-106-0
02
1
0712-
●
369
08.155 PLATE
8-98061-674-0
01
1
0712-
●
681
03.402 FLAP; AIR CLEANER
8-98061-671-0
01
1
0712-
●

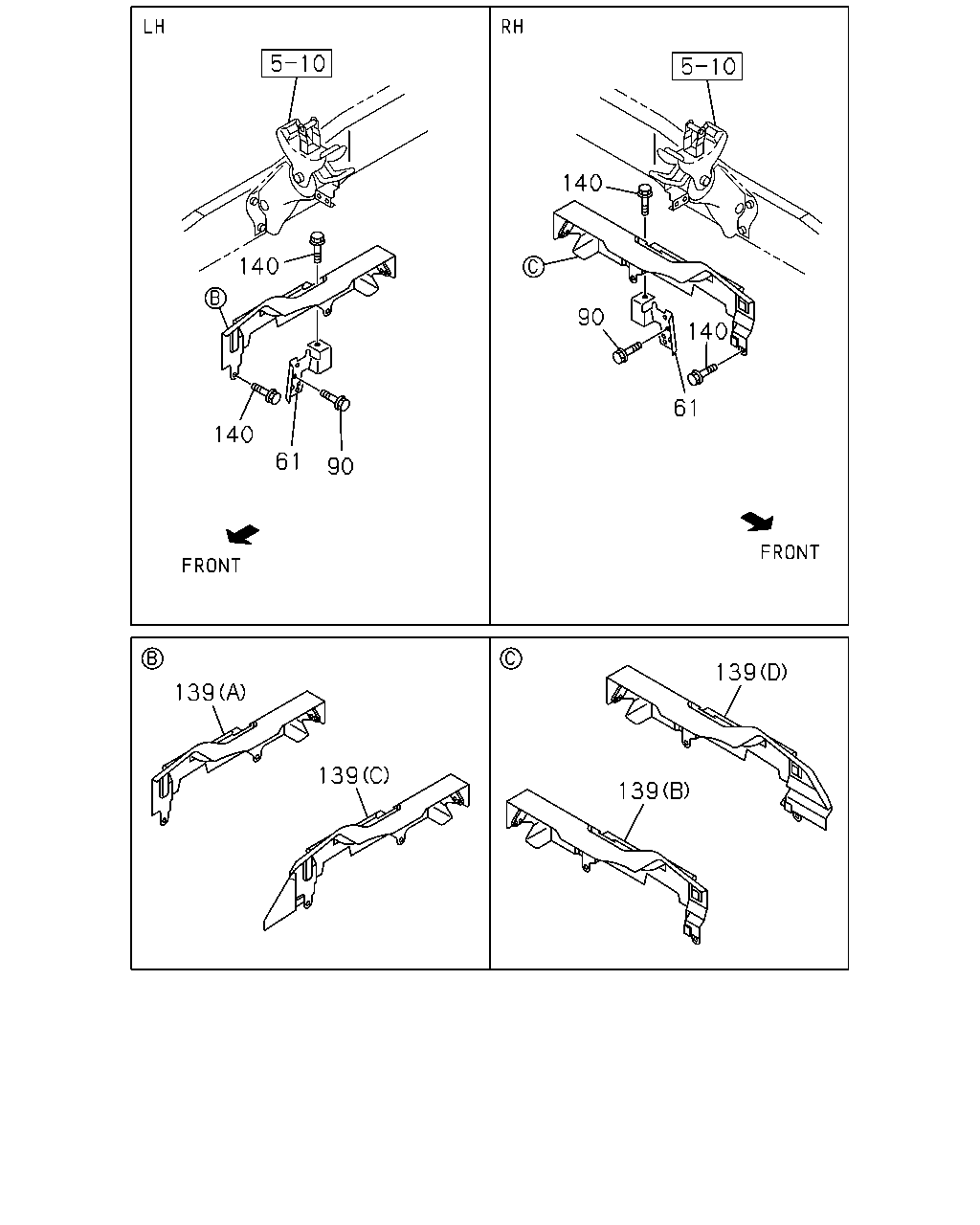

140
140
90
140
61
140
61
90
139
139
139
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
61
08.155 BRACKET; COVER
8-98040-466-1
01
1
0712-
●
●
●
61
08.155 BRACKET; COVER
8-98040-465-1
01
1
0712-
●
●
●
90
08.153 BOLT; COVER
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0712-
●
●
●
139
08.153 PANEL; SIDE
(C)
8-97387-728-7
01
1
0712-
●
139
08.153 PANEL; SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C)
8-97387-728-7
01
1
0712-
●
●
139
08.153 PANEL; SIDE
(D)
8-97387-727-4
01
1
0712-
●
139
08.153 PANEL; SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (D)
8-97387-727-4
01
1
0712-
●
●
139
08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (A)
8-98092-595-0
01
1
0712-0806
●
●
139
08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (A)
8-98115-458-0
01
1
0807-
●
●
139
08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (B)
8-98043-920-2
01
1
0712-
●
●
140
08.155 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
06
1
0712-
●
●
●

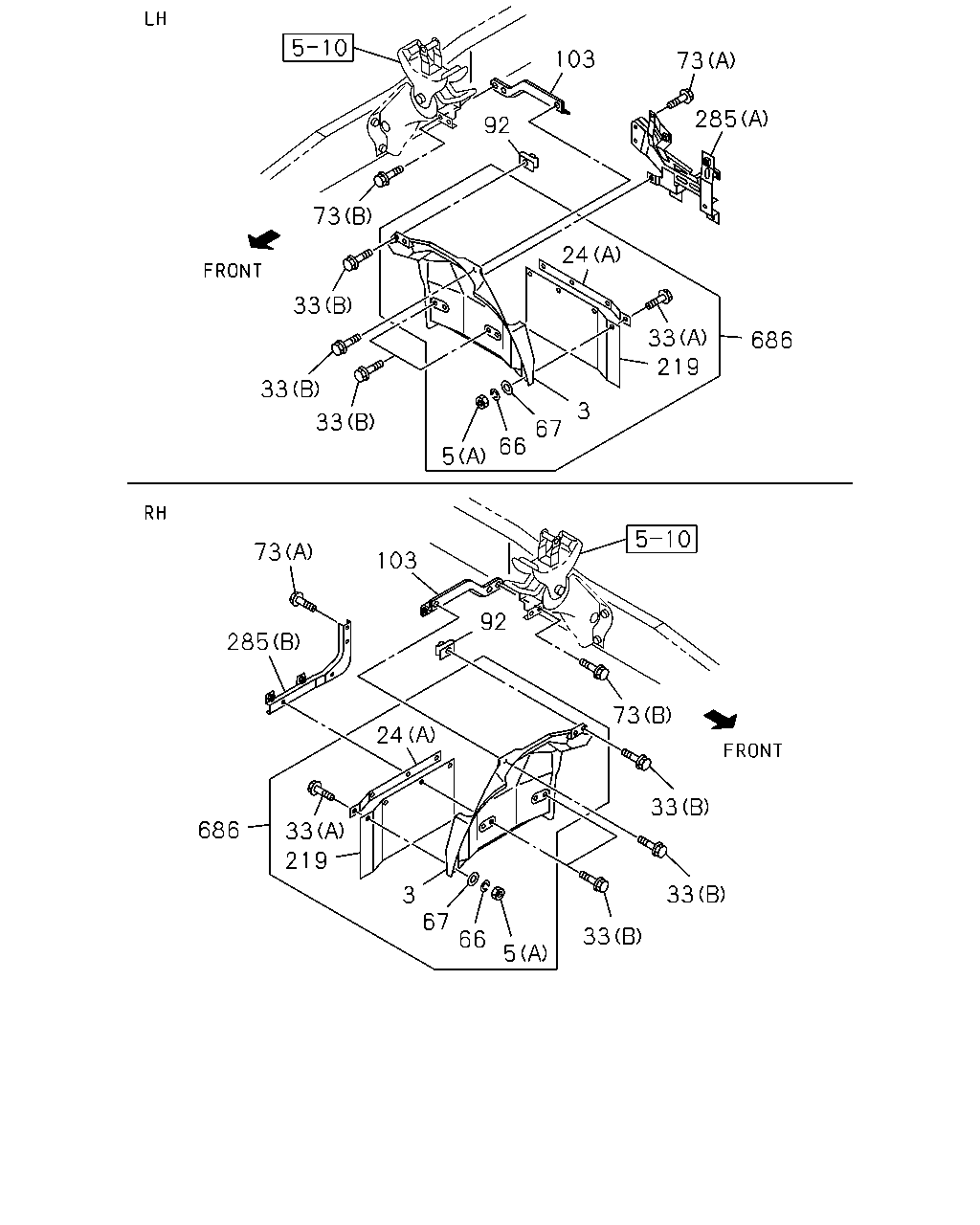

103
73
285
92
73
24
33
33
686
219
33
3
33
67
66
5
73
103
92
285
73
24
33
686
33
219
33
3
67
66
33
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
08.153 GUARD; MUD,RR
8-98004-030-4
01
1
0712-
●
●
●
3
08.153 GUARD; MUD,RR
8-98004-029-5
01
1
0712-
●
●
●
5
08.155 NUT; FLAP RUBBER
03.330 (A) M6
0-91110-506-0
08
1
0712-1209
●
●
●
5
08.155 NUT; FLAP RUBBER
(A) M6
8-98227-380-0
08
1
1210-
●
●
●
5
08.155 NUT; FLAP RUBBER
01.062 (B) M6 FLANGE
0-91180-106-0
02
1
0712-
●
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
0712-
●
●
●
24
08.155 PLATE; MUD COVER
(B)
8-98037-561-0
02
1
0712-0910
●
●
●
24
08.155 PLATE; MUD COVER
(B)
8-98154-258-0
02
1
0911-
●
●
●
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0712-1209
●
●
●
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
●
●
●
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0712-
●
●
●
33
08.155 BOLT; MUD COVER
07.832 (C) M6X16 FLANGE
8-98016-982-0
04
1
0712-0804
●
●
●
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0805-
●
●
●
66
08.155 WASHER; LK
ID=6.1
0-91510-606-0
08
1
0712-1209
●
●
●
67
08.155 WASHER; PL
00.413 ID=6.4
0-91610-606-0
08
1
0712-1209
●
●
●
73
08.155 BOLT; MUD COVER BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0712-
●
●
●
73
08.155 BOLT; MUD COVER BRKT
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
0712-
●
●
●
92
08.155 NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
0712-
●
●
●
103
08.214 BRACKET ASM; RR MUD FLAP
08.155
8-98001-319-2
01
1
0712-
●
●
●
103
08.214 BRACKET ASM; RR MUD FLAP
08.155
8-98001-315-2
01
1
0712-
●
●
●
219
08.155 FLAP; MUD GUARD
8-98004-032-1
02
1
0712-
●
219
08.155 FLAP; MUD GUARD
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
8-98004-032-1
02
1
0712-
●
●
219
08.155 FLAP; MUD GUARD
G.V.W. 7.5-8.0TON(RPY)
8-98004-033-1
02
1
0712-
●
●
285
08.155 BRACKET; MUD COVER
(A)
8-98001-320-3
01
1
0712-
●
●
●
285
08.155 BRACKET; MUD COVER
(B)
8-98001-314-2
01
1
0712-
●
●
●
686
08.155 FLAP ASM; MUD
8-97387-746-7
01
1
0712-
●
686
08.155 FLAP ASM; MUD
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
8-97387-746-7
01
1
0712-
●
●
686
08.155 FLAP ASM; MUD
8-97387-747-6
01
1
0712-
●
686
08.155 FLAP ASM; MUD
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
8-97387-747-6
01
1
0712-
●
●
686
08.155 FLAP ASM; MUD
G.V.W. 7.5-8.0TON(RPY)
8-97387-750-7
01
1
0712-
●
●
686
08.155 FLAP ASM; MUD
G.V.W. 7.5-8.0TON(RPY)
8-97387-751-6
01
1
0712-
●
●

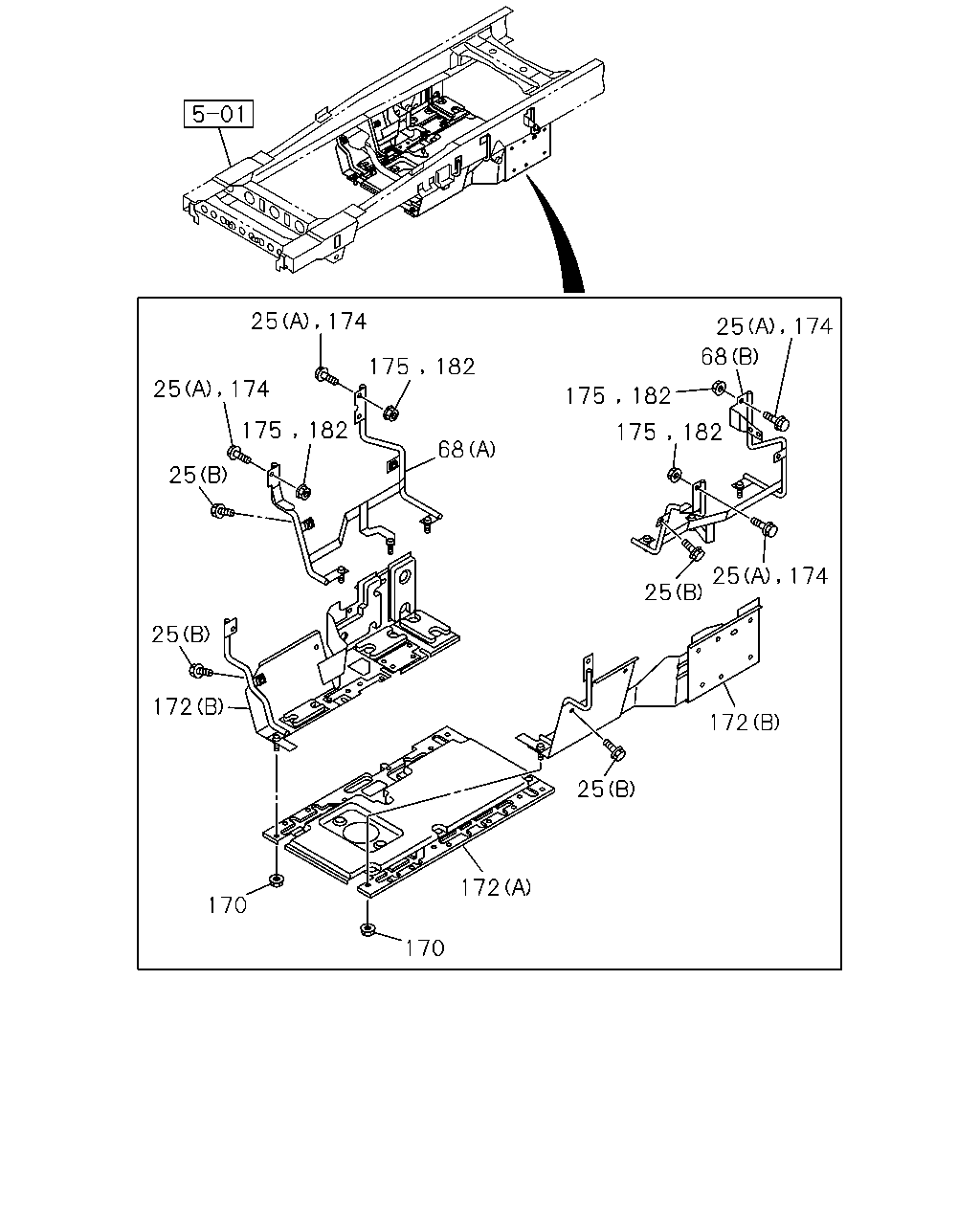

25
25
25
25
172
170
175
174
174
182
175
68
175
182
25
68
174
174
25
25
172
25
172
170
175
182
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
25
08.155 BOLT; PLATE TO MUD COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE
0-28651-030-0
06
1
0712-1312
●
●
25
08.155 BOLT; PLATE TO MUD COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
0712-
●
●
68
08.155 STAY; COVER
4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98150-453-0
01
1
0912-
●
●
68
08.155 STAY; COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98080-387-2
01
1
0712-0911
●
●
68
08.155 STAY; COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98080-387-2
01
1
0912-1112
●
●
68
08.155 STAY; COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98201-755-0
01
1
1201-
●
●
68
08.155 STAY; COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98080-386-2
01
1
0712-
●
●
170
08.155 NUT; COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER
8-97329-625-0
08
1
0712-
●
●
172
08.155 COVER; UNDER,ENG SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98024-942-1
01
1
0712-
●
●
172
08.155 COVER; UNDER,ENG SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98079-016-3
01
1
0712-1312
●
●
172
08.155 COVER; UNDER,ENG SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98225-680-0
01
1
1401-
●
●
172
08.155 COVER; UNDER,ENG SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98079-017-4
01
1
0712-
●
●
174
08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE
0-28651-030-0
06
1
1401-
●
●
175
08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE
0-91180-110-0
04
1
1401-
●
●
182
08.155 NUT; COVER
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE
0-91180-110-0
04
1
0712-1312
●
●
