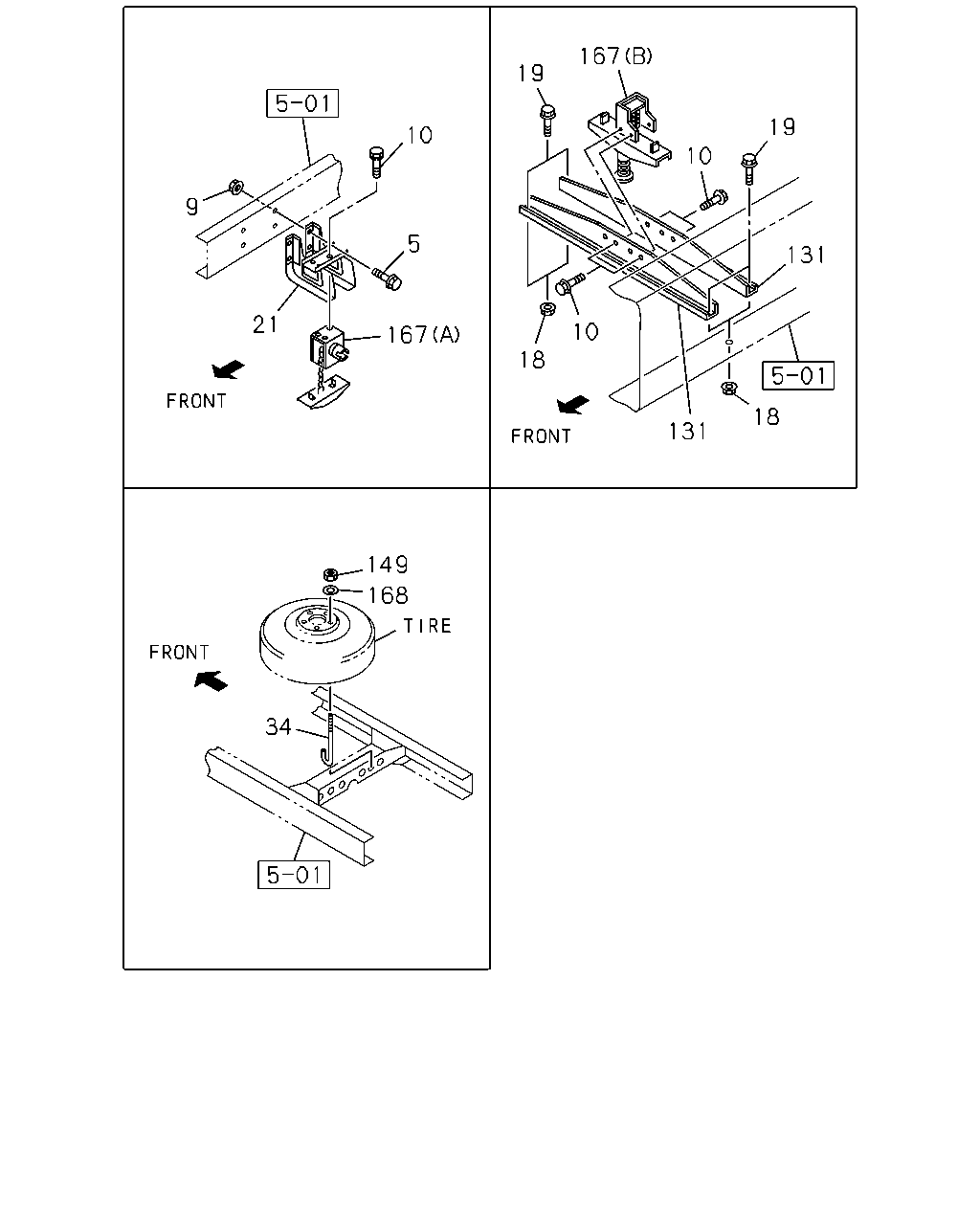

5-30 — SPARE TIRE CARRIER AND COVER (#52830) — 50 parça

167 19 19 10 10 9 5 131 21 10 167 18 18 131 149 168 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-0805	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-0805		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903		●	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-		●	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-0805	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-0805		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-		●	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0712-		●	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0712-	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0712-		●	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0712-	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0712-		●	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0712-		●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-	●
18	07.633 NUT; MEMBER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-		●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-		●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-			●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-	●
19	07.632 BOLT; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-		●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-		●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-			●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ>	8-98036-085-2	01	1	0712-		●	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W)	8-98072-378-2	01	1	0712-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ>	8-98072-378-2	01	1	0712-		●	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98072-378-2	01	1	0712-		●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X305	8-94441-189-0	02	1	0712-1209		●	●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X330	8-98226-501-0	02	1	1210-		●	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W)	8-98024-842-2	02	1	0712-	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98024-842-2	02	1	0712-		●	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98035-827-1	02	1	0712-		●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98035-827-1	02	1	0712-			●
149	07.629 NUT; CARRIER FRAME STRAIGHT TYPE<7KJ> 05.002 M12	0-91110-512-0	02	1	0712-		●	●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (A)	8-94382-875-1	01	1	0712-	●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94382-875-1	01	1	0712-		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B)	8-98036-384-0	01	1	0712-	●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-384-0	01	1	0712-		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-384-0	01	1	0712-		●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-383-0	01	1	0712-		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98036-383-0	01	1	0712-		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) (B)	8-98036-383-0	01	1	0712-			●
167	07.629 HANGER; TIRE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRAME STRAIGHT TYPE<7KJ> (A)	8-97010-955-1	01	1	0712-		●	●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97010-955-1	01	1	0712-		●
168	07.633 WASHER; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	0712-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
