◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#5283) — 69 parça

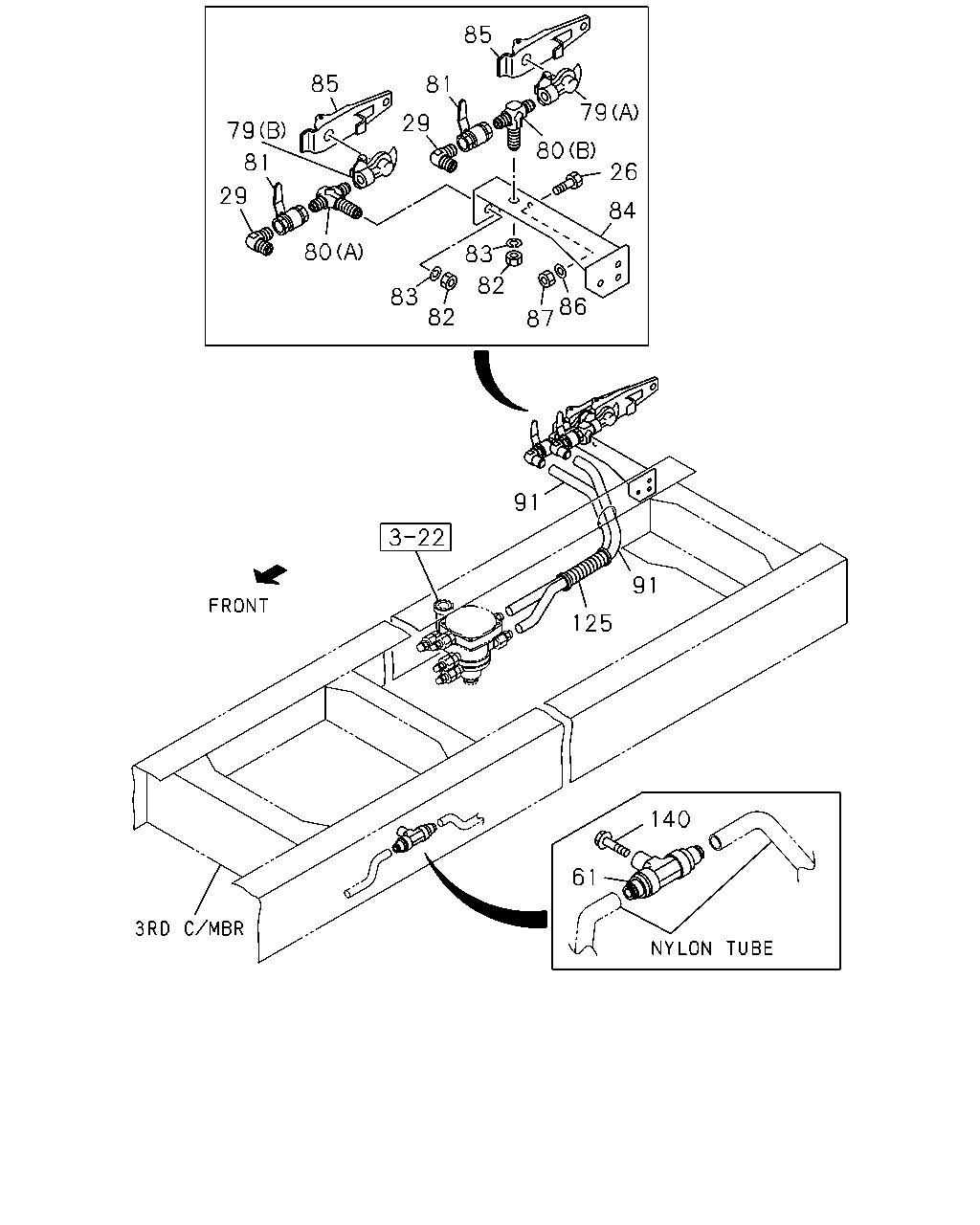

çizim 40774
85 85 81 79 29 79 80 81 26 29 83 84 80 86 87 82 83 82 91 91 125 140 61
BalonParca AdiParca NoAdetTipApplied Date A B
26 BOLT; CHAIN
NEW ZEALAND EQUIPMENT(PK5) M10X33 		9-09808-590-0 02 1 9603-9904 ●
26 BOLT; CHAIN
FULL TRACTOR TRUCK<RD6> M10X33 		9-09808-590-0 02 1 9905- ●
29 CONNECTOR; COCK
NEW ZEALAND EQUIPMENT(PK5) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9904 ●
29 CONNECTOR; COCK
FULL TRACTOR TRUCK<RD6> DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9905-9907 ●
29 CONNECTOR; COCK
FULL TRACTOR TRUCK<RD6> DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9908- ●
61 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) 		1-09660-771-1 01 1 9701-9904 ●
61 UNION; NYLON TUBE
BRAKE REGULATION ECE<TDV> 		1-09661-128-0 01 1 9905- ●
79 COUPLING; AIR,TRAILER
NEW ZEALAND EQUIPMENT(PK5) (A) BLUE 		1-47465-151-0 01 1 9603-9904 ●
79 COUPLING; AIR,TRAILER
FULL TRACTOR TRUCK<RD6> (A) BLUE 		1-47465-151-0 01 1 9905- ●
79 COUPLING; AIR,TRAILER
NEW ZEALAND EQUIPMENT(PK5) (B) RED 		1-47465-152-0 01 1 9603-9904 ●
79 COUPLING; AIR,TRAILER
FULL TRACTOR TRUCK<RD6> (B) RED 		1-47465-152-0 01 1 9905- ●
80 NIPPLE; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-09656-377-1 01 1 9603-9904 ●
80 NIPPLE; AIR COUPLING
FULL TRACTOR TRUCK<RD6> (B) 		1-09656-377-1 01 1 9905- ●
80 NIPPLE; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-09664-171-1 01 1 9603-9904 ●
80 NIPPLE; AIR COUPLING
FULL TRACTOR TRUCK<RD6> (A) 		1-09664-171-1 01 1 9905- ●
81 COCK; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) BLUE 		1-09680-078-0 01 1 9603-9704 ●
81 COCK; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) RED 		1-09680-086-0 01 1 9705-9711 ●
81 COCK; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) RED 		1-09680-091-0 01 1 9712-9904 ●
81 COCK; AIR COUPLING
FULL TRACTOR TRUCK<RD6> RED 		1-09680-091-0 01 1 9905- ●
81 COCK; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) RED 		1-09680-079-0 01 1 9603-9704 ●
81 COCK; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) BLUE 		1-09680-087-0 01 1 9705-9711 ●
81 COCK; AIR COUPLING
NEW ZEALAND EQUIPMENT(PK5) BLUE 		1-09680-092-0 01 1 9712-9904 ●
81 COCK; AIR COUPLING
FULL TRACTOR TRUCK<RD6> BLUE 		1-09680-092-0 01 1 9905- ●
82 NUT; LK,CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) M16 		9-99111-416-0 02 1 9603-9904 ●
82 NUT; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> M16 		9-99111-416-0 02 1 9905- ●
83 WASHER; LK,CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) ID=10.2 		9-09150-510-0 02 1 9603-9606 ●
83 WASHER; LK,CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) ID=16.2 		9-09150-516-0 02 1 9603-9904 ●
83 WASHER; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> ID=16.2 		9-09150-516-0 02 1 9905- ●
84 BRACKET; COUPLER
NEW ZEALAND EQUIPMENT(PK5) 		1-47465-883-1 01 1 9603-9904 ●
84 BRACKET; COUPLER
FULL TRACTOR TRUCK<RD6> 		1-47465-883-1 01 1 9905- ●
85 CHAIN; AIR HOSE
NEW ZEALAND EQUIPMENT(PK5) 		1-47469-010-0 02 1 9603-9904 ●
85 CHAIN; AIR HOSE
FULL TRACTOR TRUCK<RD6> 		1-47469-010-0 02 1 9905- ●
86 WASHER; PL
NEW ZEALAND EQUIPMENT(PK5) ID=10.5 OD=22 		9-09164-610-0 02 1 9603-9904 ●
86 WASHER; PL
FULL TRACTOR TRUCK<RD6> ID=10.5 OD=22 		9-09164-610-0 02 1 9905- ●
87 NUT
NEW ZEALAND EQUIPMENT(PK5) M10 		9-09110-410-0 02 1 9603-9606 ●
87 NUT
NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ●
87 NUT
FULL TRACTOR TRUCK<RD6> M10 FLANGE 		0-91150-210-0 02 1 9905- ●
91 TUBE; NYLON
NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9606-9904 ●
91 TUBE; NYLON
BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9905- ●
125 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9701-9904 ●
125 TUBE; CORRUGATE
BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9905- ●
140 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28080-825-0 01 1 9701-9904 ●
140 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X25 FLANGE 		0-28080-825-0 01 1 9905- ●

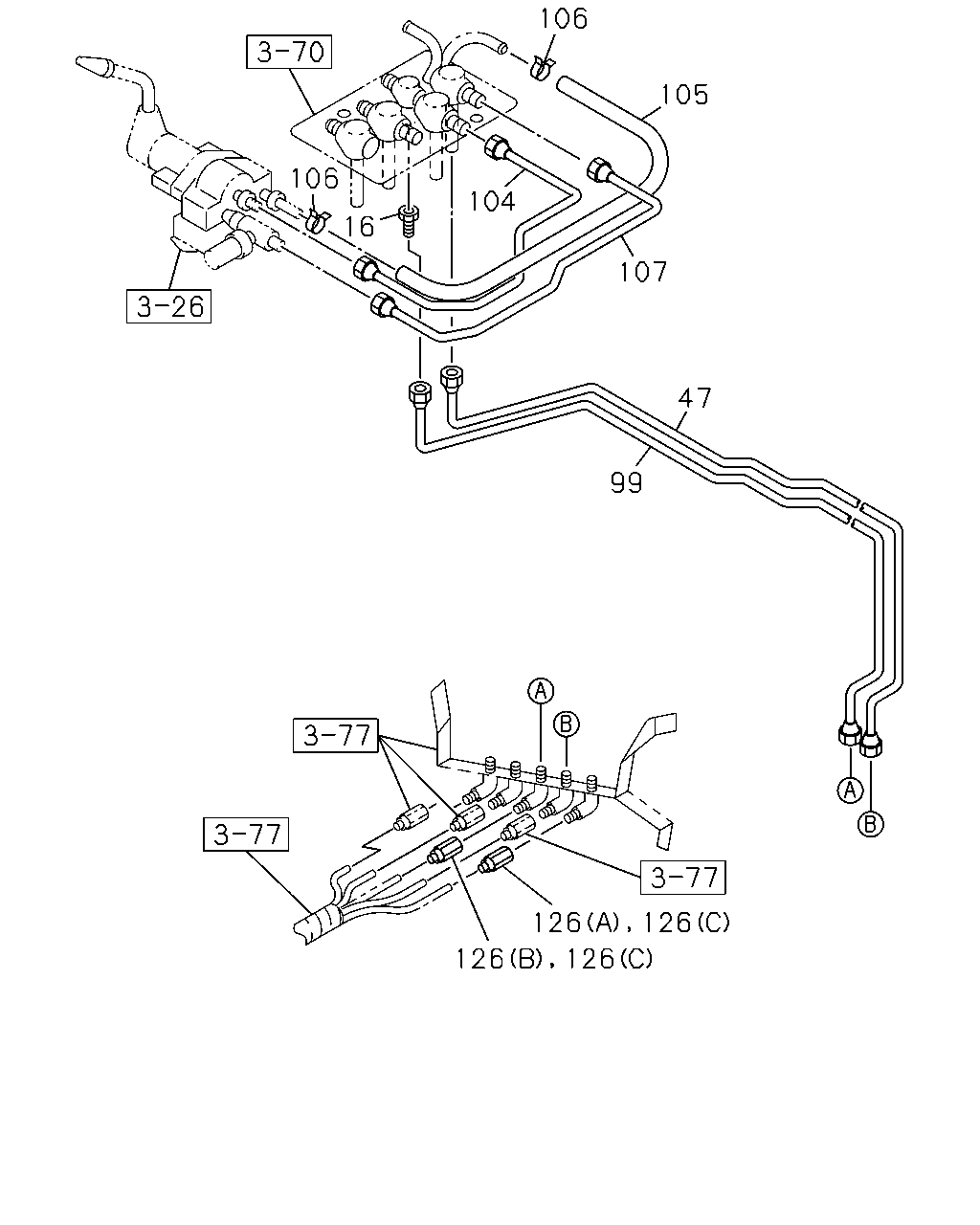

çizim 43399
106 105 106 104 16 107 47 99 126 126 126 126
BalonParca AdiParca NoAdetTipApplied Date A B
16 UNION; AIR PIPE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09654-258-1 01 1 9603- ●
47 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> L=1933 SERVICED BY L=1950 		1-47426-393-0 01 1 9603-9810 ●
47 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> L=1936 		1-49121-056-1 01 1 9811-9901 ●
47 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> L=1936 		1-49121-473-0 01 1 9902-9910 ●
47 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) L=1936 		1-49121-473-0 01 1 9911- ●
99 PIPE; AIR,JOINT TO JOINT
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=1764 		1-49114-294-0 01 1 9603-9810 ●
99 PIPE; AIR,JOINT TO JOINT
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=1551 		1-49121-054-0 01 1 9811- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-295-0 01 1 9603- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9606- ● ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9908- ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9603-9705 ● ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9706-9904 ● ●
106 CLIP; PIPE
BRAKE REGULATION ECE<TDV> ID=14 		8-94238-572-0 02 1 9706-9904 ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9905-9910 ● ●
106 CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=14 		8-94238-572-0 02 1 9905-9910 ● ●
106 CLIP; PIPE
SPRING BRAKE(SU9) ID=14 		8-94238-572-0 02 1 9911- ● ●
106 CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=14 		8-94238-572-0 02 1 9911- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-296-0 01 1 9603- ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9603-9910 ● ●
126 CONNECTOR; NYLON TUBE
SPRING BRAKE(SU9) (A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9911-9912 ● ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9910 ● ●
126 CONNECTOR; NYLON TUBE
SPRING BRAKE(SU9) (B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9911-9912 ● ●
126 CONNECTOR; NYLON TUBE
SPRING BRAKE(SU9) (C) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0001-0007 ● ●
126 CONNECTOR; NYLON TUBE
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) (C) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0001-0007 ●
126 CONNECTOR; NYLON TUBE
SPRING BRAKE(SU9) (C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
126 CONNECTOR; NYLON TUBE
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) (C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ●
