◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51158 - NNR/NPR EU-R EXC.EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#52820) — 12 parça

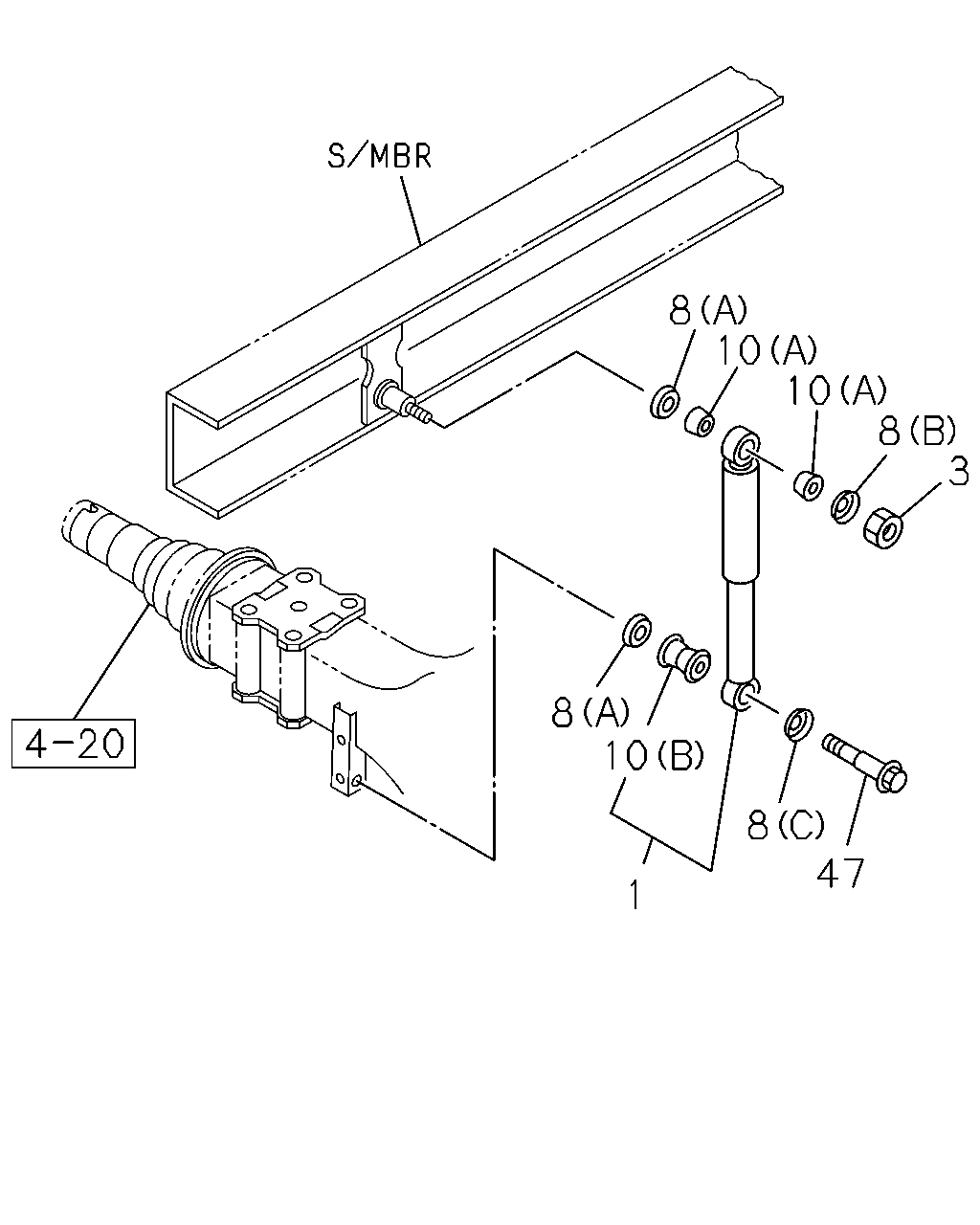

çizim 156460
8 10 10 8 3 8 10 8 47 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-654-2 02 1 0712- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0712- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0712- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) 		8-97253-651-2 02 1 0712- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 0712- ● ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0712- ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0712- ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0712- ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0712- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0712- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0712- ● ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
