Sayfa 3-78 - Isuzu EPC

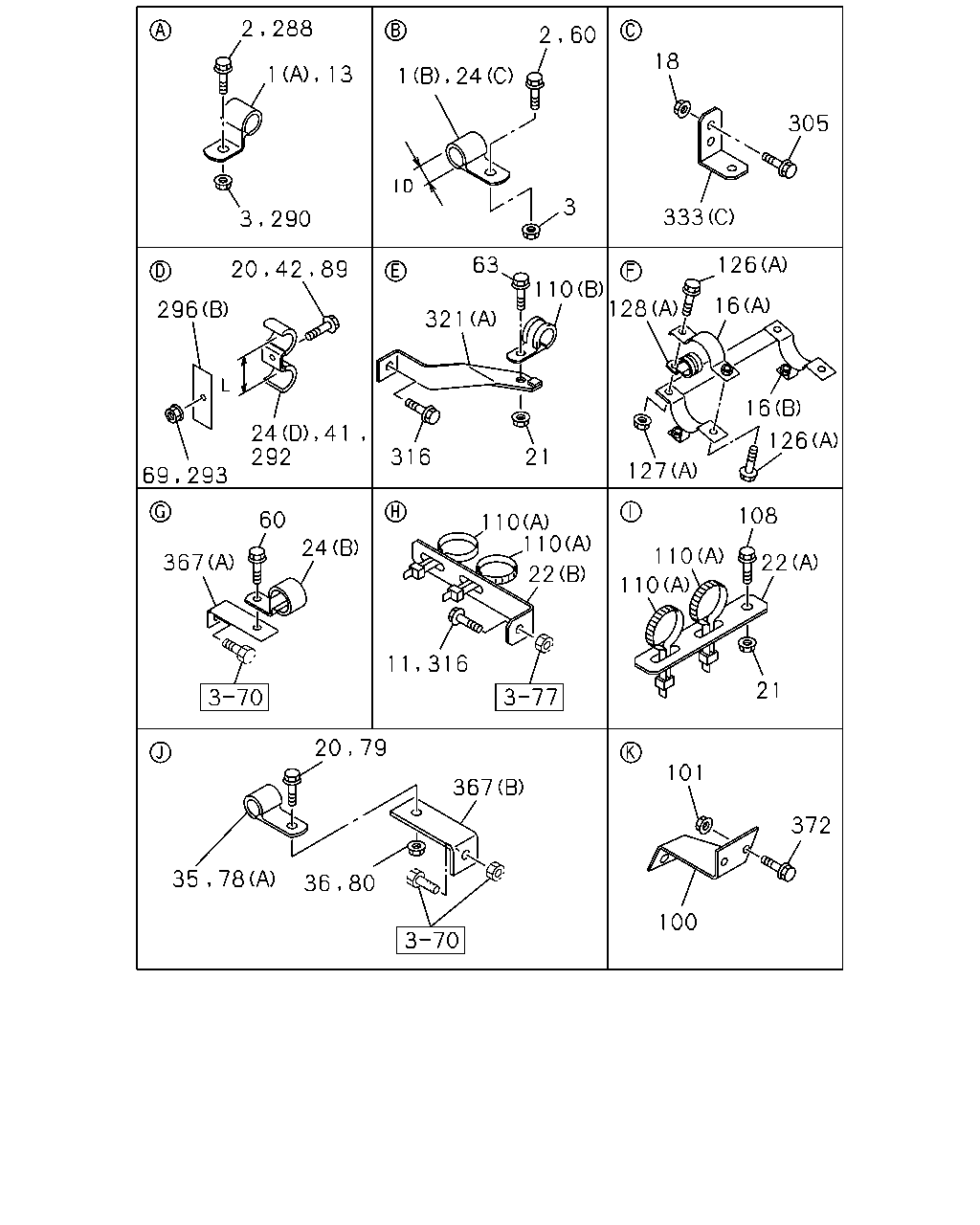

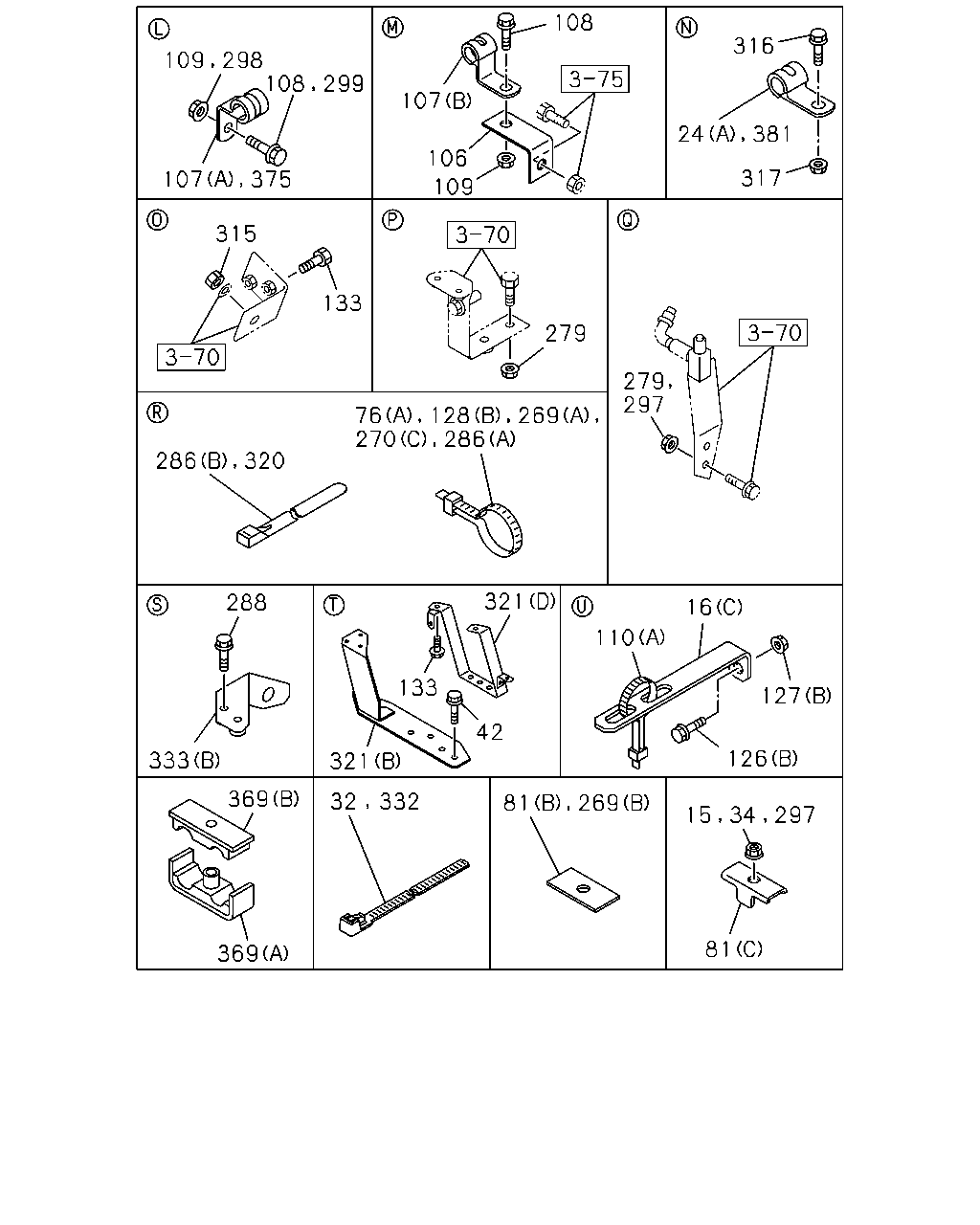

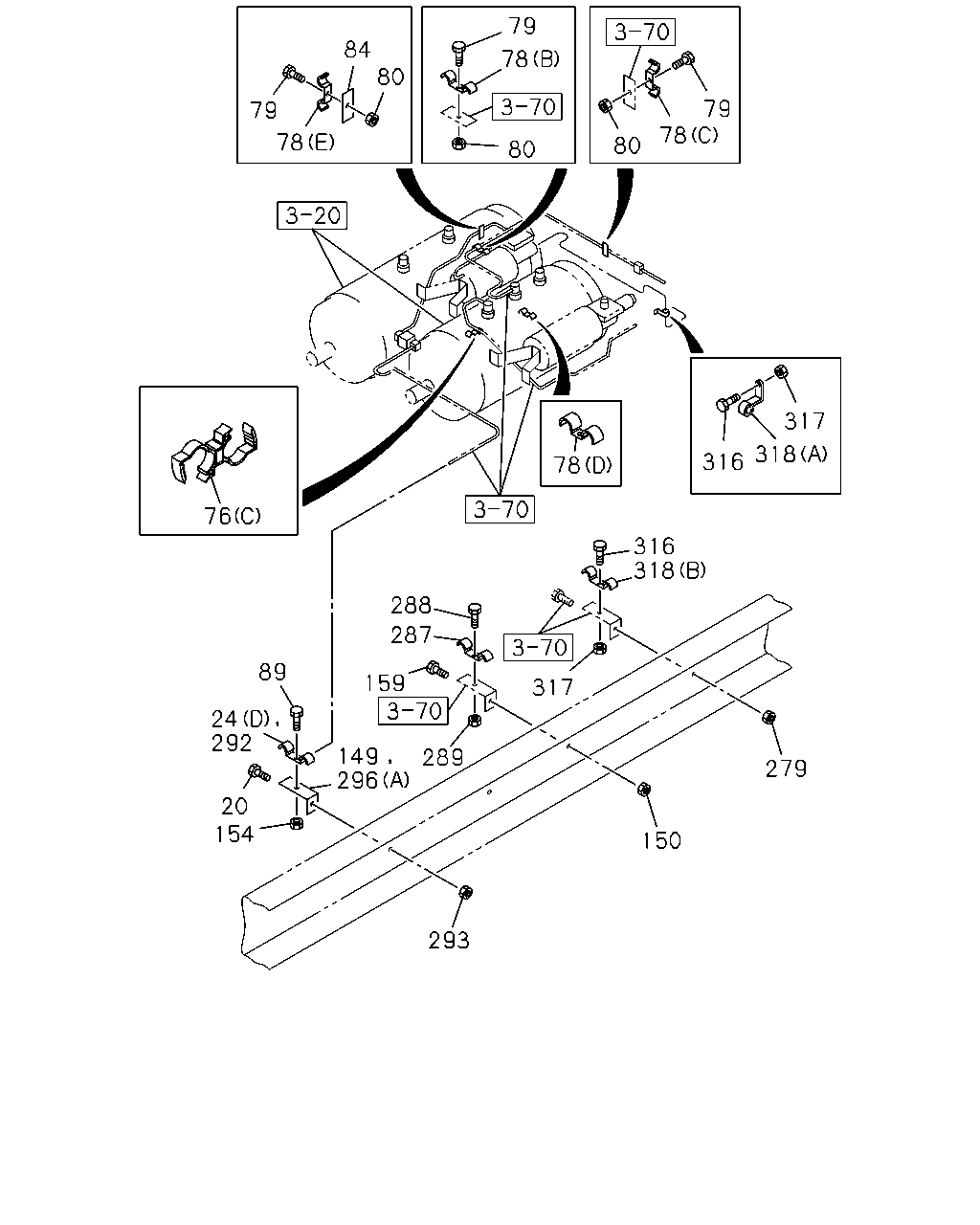

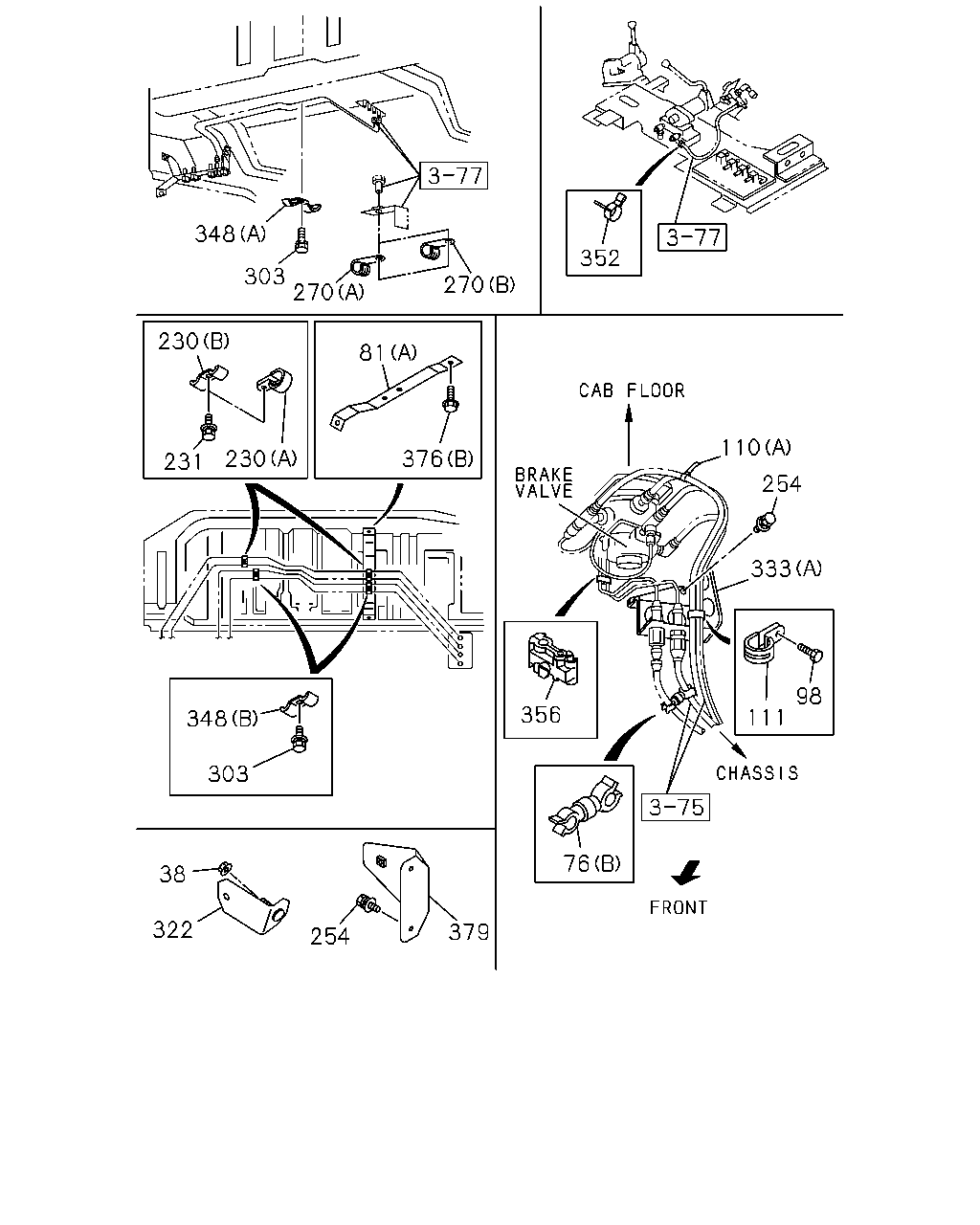

3-78 — FIXING PARTS; AIR PIPING (#5282) — 918 parça

108 316 107 24 381 106 317 375 107 109 315 133 279 279 297 76 321 288 16 110 133 127 42 126 333 321 369 81 369 109 298 108 299 128 269 286 270 320 286 297 34 15 269 81 32 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	NUT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8	9-09110-508-0	02	1	9603-9606	●
15	NUT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
16	BRACKET; PIPE CLIP EXC. THAILAND EQUIPMENT(PM9) (A)	1-47477-743-0	04	1	9603-9708	●	●
16	BRACKET; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-47477-743-0	04	1	9709-9904		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47477-743-0	04	1	9709-9904	●
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	9905-9910		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47477-743-0	04	1	9905-9910	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9911-9911		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9911-9911	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9912-		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-47477-743-0	04	1	9912-	●
16	BRACKET; PIPE CLIP EXC. THAILAND EQUIPMENT(PM9) (B)	1-47477-744-0	02	1	9603-9708	●	●
16	BRACKET; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-47477-744-0	02	1	9709-9904		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B)	1-47477-744-0	02	1	9709-9904	●
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	9905-9910		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B)	1-47477-744-0	02	1	9905-9910	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9911-9911		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9911-9911	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9912-		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-47477-744-0	02	1	9912-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-1	02	1	9604-9604	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-2	03	1	9605-9905	●
16	BRACKET; PIPE CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	01	1	9906-9911		●
16	BRACKET; PIPE CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	01	1	9912-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	03	1	9906-9910	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	03	1	9911-	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-	●	●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9910	●	●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M),MJD7R M/T(Y2X) (A) ID=16 L=20	9-09525-535-0	02	1	9911-	●	●
24	CLIP; PIPE ZF M/T<X9E> (C) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●	●
24	CLIP; PIPE ZF M/T<X9E> (C) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=16 L=28	9-09525-556-0	01	1	9910-	●	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (B) ID=18 L=50	1-09701-072-0	01	1	9603-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B) ID=18 L=50	1-09701-072-0	01	1	9909-	●
32	CLIP; BAND,RUBBER SLEEVE FIRE ENGINE PACKAGE<WS2> L=250	5-09707-030-1	01	1	9603-9908	●
32	CLIP; BAND,RUBBER SLEEVE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=250	5-09707-030-1	01	1	9909-	●
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
34	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	01	1	9603-9908	●
34	NUT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	01	1	9909-	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9607	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> '96/7/15- M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9911-	●	●
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	8-94152-256-1	01	1	9911-	●	●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9911-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9701-	●	●
76	CLIP; NYLON TUBE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9911-	●	●
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	01	1	9603-9910	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	01	1	9911-	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	9603-9910	●	●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-47477-483-0	01	1	9911-	●	●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (B) L=50	1-47475-299-2	01	1	9603-9904	●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (C)	1-47475-427-1	01	1	9603-9904	●
106	BRACKET; TUBE CLIP	1-47477-694-0	01	1	9603-	●	●
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-9904	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-0011	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-0011	●	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-0011	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0012-	●	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0012-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0012-		●
107	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0012-	●
107	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9911-	●	●
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9904	●	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0011	●	●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0012-		●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0012-	●
107	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-9910	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9911-	●
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9603-9904	●
107	CLIP; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-9910	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9911-		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9911-	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	9603-9606	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9607-0103	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0104-	●	●
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9603-9606	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
109	NUT; TUBE CLIP M8	9-09110-408-0	05	1	9603-9606	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9607-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	AR	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	1-09707-126-0	05	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904	●	●
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9905-9910	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	07	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (A) L=250	1-09707-126-0	01	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	0104-	●	●
126	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8X25 FLANGE	0-28080-825-0	08	1	9603-9606	●	●
126	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8X30 FLANGE	0-28680-830-0	08	1	9607-9708	●	●
126	BOLT; CLIP BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28680-830-0	08	1	9709-9904		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8X30 FLANGE	0-28680-830-0	08	1	9709-9904	●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	08	1	9905-9910		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8X30 FLANGE	0-28680-830-0	08	1	9905-9910	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	08	1	9911-9911		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	08	1	9911-9911	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	08	1	9912-		●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28680-830-0	08	1	9912-	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X35 FLANGE	0-28080-835-0	02	1	9604-9604	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X35 FLANGE	0-28080-835-0	03	1	9605-9606	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X40 FLANGE	0-28680-840-0	03	1	9607-9905	●
126	BOLT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	01	1	9906-9911		●
126	BOLT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	01	1	9912-	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	03	1	9906-9910	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	03	1	9911-	●
127	NUT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8	9-09110-408-0	04	1	9603-9606	●	●
127	NUT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8 FLANGE	0-91150-108-0	04	1	9607-9708	●	●
127	NUT; CLIP BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8 FLANGE	0-91150-108-0	04	1	9709-9904		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8 FLANGE	0-91150-108-0	04	1	9709-9904	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9905-9910		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8 FLANGE	0-91150-108-0	04	1	9905-9910	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	04	1	9911-9911		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	04	1	9911-9911	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8 FLANGE	0-91150-108-0	03	1	9912-	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8 FLANGE	0-91150-108-0	03	1	9912-	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8	9-09110-408-0	02	1	9604-9604	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8	9-09110-408-0	03	1	9605-9606	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8 FLANGE	0-91150-108-0	03	1	9607-9905	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9906-9910		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9906-9910	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9911-9911		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9911-9911	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91150-108-0	04	1	9912-		●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 FLANGE	0-91150-108-0	04	1	9912-	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9912-	●	●
128	CLIP; NYLON TUBE EXC. THAILAND EQUIPMENT(PM9) (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9603-9708	●	●
128	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9709-9711		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9709-9711	●
128	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9904		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9904	●
128	CLIP; NYLON TUBE (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9905-9910		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9905-9910	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9911-9911		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9911-9911	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-	●
128	CLIP; NYLON TUBE EXC. THAILAND EQUIPMENT(PM9) (B) L=250	1-09707-126-0	08	1	9603-9708	●	●
128	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=250	1-09707-126-0	08	1	9709-9904		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B) L=250	1-09707-126-0	08	1	9709-9904	●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	9905-9910		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B) L=250	1-09707-126-0	08	1	9905-9910	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9911-9911		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9911-9911	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9912-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=250	1-09707-126-0	08	1	9912-	●
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
133	BOLT; BRKT ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9607-9908	●
133	BOLT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9909-	●
269	CLIP; BAND,NYLON TUBE POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	9906-9911		●
269	CLIP; BAND,NYLON TUBE POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	9912-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	13	1	9603-9904		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	14	1	9905-9910		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9911-		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=250	1-09707-126-0	12	1	9603-9904		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=250	1-09707-126-0	13	1	9905-9910		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9911-		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) (A) L=250	1-09707-126-0	15	1	9603-9612	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	15	1	9701-9810	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) (A) L=250	1-09707-126-0	15	1	9701-9810	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) (A) L=250	1-09707-126-0	15	1	9811-9904	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	16	1	9905-9910	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) (A) L=250	1-09707-126-0	16	1	9905-9910	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	16	1	9911-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	16	1	9911-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=250	1-09707-126-0	14	1	9603-9612	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	14	1	9701-9904	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	15	1	9905-9910	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	15	1	9911-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	16	1	9811-9904	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=250	1-09707-126-0	01	1	9605-9910	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=250	1-09707-126-0	01	1	9911-	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	04	1	9911-		●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9603-9603	●	●
270	CLIP; NYLON TUBE (B) ID=28 L=32	1-09701-107-1	02	1	9604-9910		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=32	1-09701-107-1	02	1	9604-9910	●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9604-9910	●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9911-	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=32	1-09701-107-1	02	1	9911-	●	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	08	1	9911-	●
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	9603-	●
279	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
279	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
279	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9608-9910	●	●
279	NUT; BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9908	●	●
279	NUT; BRKT MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) M10 FLANGE	0-91150-210-0	02	1	9909-9910	●	●
279	NUT; BRKT MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M),MJD7R M/T(Y2X) M10 FLANGE	0-91150-210-0	02	1	9911-	●	●
279	NUT; BRKT MAL5 M/T<X9F> M10 FLANGE	0-91150-210-0	01	1	9909-	●	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9603-	●	●
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9603-	●	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9603-9904	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9905-	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9911-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-9607	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9608-9904	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9607-9607	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9608-9904	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9711	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9712-9904	●	●
297	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9712-9904		●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9712-9904	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9905-9908	●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-9911	●	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9909-9911	●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9912-	●	●
297	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9912-	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
297	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9603-9908	●
297	NUT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9909-	●
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
315	NUT; BRKT,FLEX HOSE FIRE ENGINE PACKAGE<WS2> M20	9-99111-420-0	02	1	9603-9908	●
315	NUT; BRKT,FLEX HOSE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M20	9-99111-420-0	02	1	9909-	●
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-9904	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-9910	●	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9911-	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X30 FLANGE	0-28680-830-0	01	1	9607-9708	●	●
316	BOLT; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9709-9904		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9709-9904	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9910		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9905-9910	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9912-		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9912-	●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●
317	NUT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8	9-09110-408-0	01	1	9603-9606	●	●
317	NUT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8 FLANGE	0-91150-108-0	01	1	9607-9708	●	●
317	NUT; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9709-9904		●
317	NUT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	01	1	9709-9904	●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9910		●
317	NUT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	01	1	9905-9910	●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9911-9911		●
317	NUT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9911-9911	●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9912-		●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9912-	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9603-0103	●	●
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104	●	●
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9603-9609	●	●
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711	●	●
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (C) L=100 H=30	1-47477-645-2	01	1	9701-9908	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (C) L=100 H=30	1-47477-645-2	01	1	9909-9910	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (C) L=100 H=30	1-47477-645-2	01	1	9911-	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=100 H=30	1-47477-645-2	01	1	9911-	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-47477-632-0	01	1	9911-	●	●
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711	●	●
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903	●	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B)	1-47477-386-2	01	1	9905-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9603-9606	●
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9607-9904	●	●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (D)	1-47477-472-1	01	1	9905-	●	●
332	CLIP; BAND FIRE ENGINE PACKAGE<WS2> L=140	5-09707-031-1	01	1	9603-9908	●
332	CLIP; BAND V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=140	5-09707-031-1	01	1	9909-	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9603-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9603-9702	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9603-	●	●
369	CLIP; AIR PIPE FIRE ENGINE PACKAGE<WS2> (A)	1-09701-193-1	01	1	9603-9908	●
369	CLIP; AIR PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (A)	1-09701-193-1	01	1	9909-	●
369	CLIP; AIR PIPE FIRE ENGINE PACKAGE<WS2> (B)	1-09701-194-0	01	1	9603-9908	●
369	CLIP; AIR PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B)	1-09701-194-1	01	1	9909-	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-	●	●
381	PLATE; AIR PIPE EXC. THAILAND EQUIPMENT(PM9) ID=24 L=32	1-09700-766-1	01	1	9603-9708	●	●
381	PLATE; AIR PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=24 L=32	1-09700-766-1	01	1	9709-9904		●
381	PLATE; AIR PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) ID=24 L=32	1-09700-766-1	01	1	9709-9904	●

18 13 1 305 3 333 126 63 110 128 16 296 321 16 292 126 21 316 127 108 60 110 110 24 110 367 22 22 110 21 101 367 372 100 2 288 1 24 2 60 3 290 20 42 89 24 41 69 293 11 316 20 79 35 78 36 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9606	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9607-9609	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9706	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9707-9904	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-9910	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9911-	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9603-9606	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9607-9609	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9706	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	9-09524-635-0	01	1	9707-9904	●	●
1	CLIP; AIR PIPE V TYPE ENG<91L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9910	●	●
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-	●	●
2	BOLT; CLIP FIX V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9610-9706	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9607	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
11	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●	●
11	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) M8X30 FLANGE	0-28080-830-0	02	1	9605-9606	●	●
11	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) M8X35 FLANGE	0-28680-835-0	02	1	9607-9708	●	●
11	BOLT; CLIP BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28680-835-0	02	1	9709-9904		●
11	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	02	1	9709-9904	●
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-9910		●
11	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	02	1	9905-9910	●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9911-9911		●
11	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9911-9911	●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9912-		●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28680-835-0	02	1	9912-	●
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9904	●	●
13	CLIP; AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9904	●	●
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	02	1	9905-	●	●
16	BRACKET; PIPE CLIP EXC. THAILAND EQUIPMENT(PM9) (A)	1-47477-743-0	04	1	9603-9708	●	●
16	BRACKET; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-47477-743-0	04	1	9709-9904		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47477-743-0	04	1	9709-9904	●
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	9905-9910		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47477-743-0	04	1	9905-9910	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9911-9911		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9911-9911	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9912-		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-47477-743-0	04	1	9912-	●
16	BRACKET; PIPE CLIP EXC. THAILAND EQUIPMENT(PM9) (B)	1-47477-744-0	02	1	9603-9708	●	●
16	BRACKET; PIPE CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-47477-744-0	02	1	9709-9904		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B)	1-47477-744-0	02	1	9709-9904	●
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	9905-9910		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B)	1-47477-744-0	02	1	9905-9910	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9911-9911		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9911-9911	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9912-		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-47477-744-0	02	1	9912-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-1	02	1	9604-9604	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-2	03	1	9605-9905	●
16	BRACKET; PIPE CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	01	1	9906-9911		●
16	BRACKET; PIPE CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	01	1	9912-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	03	1	9906-9910	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	03	1	9911-	●
18	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9910	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9911-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9911-	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9911-	●	●
21	NUT; CLIP M8	9-09110-408-0	01	1	9603-9606	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9603-9910	●	●
22	BRACKET; CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	02	1	9911-	●	●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-47477-514-3	02	1	9911-	●	●
22	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=125	1-47477-975-0	02	1	9911-	●	●
22	BRACKET; CLIP EXC. THAILAND EQUIPMENT(PM9) (B) L=150 H=30	1-47477-629-1	02	1	9603-9708	●	●
22	BRACKET; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150 H=30	1-47477-629-2	02	1	9709-9904		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B) L=150 H=30	1-47477-629-2	02	1	9709-9904	●
22	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	9905-9910		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B) L=150 H=30	1-47477-629-2	02	1	9905-9910	●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9911-9911		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9911-9911	●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9912-		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150 H=30	1-47477-629-2	02	1	9912-	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-	●	●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9910	●	●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M),MJD7R M/T(Y2X) (A) ID=16 L=20	9-09525-535-0	02	1	9911-	●	●
24	CLIP; PIPE ZF M/T<X9E> (C) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●	●
24	CLIP; PIPE ZF M/T<X9E> (C) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=16 L=28	9-09525-556-0	01	1	9910-	●	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (B) ID=18 L=50	1-09701-072-0	01	1	9603-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B) ID=18 L=50	1-09701-072-0	01	1	9909-	●
35	CLIP; AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9603-9606	●
35	CLIP; AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9607-9607	●	●
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8	9-09110-408-0	03	1	9603-9606	●
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	03	1	9607-9607	●	●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9606	●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9607-	●	●
41	CLIP; AIR PIPE V TYPE ENG<91L> GOVERNOR CONTROL<W69> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9603-9904	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9607	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> '96/7/15- M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) M8X25 FLANGE	0-28680-825-0	02	1	9607-9910	●	●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M),MJD7R M/T(Y2X) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9905-9909	●	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9910-	●	●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9603-9908	●
60	BOLT; CLIP FIX V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9909-	●
63	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9910	●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-	●	●
63	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9603-9606	●
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=16 L=28	9-09525-556-0	01	1	9603-9910	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 L=28	9-09525-556-0	01	1	9911-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9911-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9911-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9911-	●	●
78	CLIP; AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0002-	●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-9910	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9911-	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9911-	●	●
79	BOLT; PIPE CLIP V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-9910	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9911-0001	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
80	NUT; CLIP,AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9911-	●	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X40 FLANGE	0-28680-840-0	01	1	9607-9904	●
100	BRACKET; PIPE CLIP	1-47477-369-1	01	1	9603-9604	●	●
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	9605-9910	●	●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-770-0	01	1	9911-	●	●
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	9603-9910	●	●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-365-0	01	1	9911-	●	●
101	NUT; CLIP BRKT M8	9-09110-508-0	04	1	9603-9606	●	●
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9910	●	●
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9911-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	9603-9606	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9607-0103	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	AR	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	1-09707-126-0	05	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904	●	●
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9905-9910	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	07	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (A) L=250	1-09707-126-0	01	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	0104-	●	●
126	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8X25 FLANGE	0-28080-825-0	08	1	9603-9606	●	●
126	BOLT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8X30 FLANGE	0-28680-830-0	08	1	9607-9708	●	●
126	BOLT; CLIP BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28680-830-0	08	1	9709-9904		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8X30 FLANGE	0-28680-830-0	08	1	9709-9904	●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	08	1	9905-9910		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8X30 FLANGE	0-28680-830-0	08	1	9905-9910	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	08	1	9911-9911		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	08	1	9911-9911	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	08	1	9912-		●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28680-830-0	08	1	9912-	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X35 FLANGE	0-28080-835-0	02	1	9604-9604	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X35 FLANGE	0-28080-835-0	03	1	9605-9606	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X40 FLANGE	0-28680-840-0	03	1	9607-9905	●
126	BOLT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	01	1	9906-9911		●
126	BOLT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	01	1	9912-	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	03	1	9906-9910	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X40 FLANGE	0-28680-840-0	03	1	9911-	●
127	NUT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8	9-09110-408-0	04	1	9603-9606	●	●
127	NUT; CLIP BRKT EXC. THAILAND EQUIPMENT(PM9) (A) M8 FLANGE	0-91150-108-0	04	1	9607-9708	●	●
127	NUT; CLIP BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8 FLANGE	0-91150-108-0	04	1	9709-9904		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8 FLANGE	0-91150-108-0	04	1	9709-9904	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9905-9910		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) M8 FLANGE	0-91150-108-0	04	1	9905-9910	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	04	1	9911-9911		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	04	1	9911-9911	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8 FLANGE	0-91150-108-0	03	1	9912-	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8 FLANGE	0-91150-108-0	03	1	9912-	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8	9-09110-408-0	02	1	9604-9604	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8	9-09110-408-0	03	1	9605-9606	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8 FLANGE	0-91150-108-0	03	1	9607-9905	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9906-9910		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9906-9910	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9911-9911		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8 FLANGE	0-91150-108-0	03	1	9911-9911	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91150-108-0	04	1	9912-		●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 FLANGE	0-91150-108-0	04	1	9912-	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9912-	●	●
128	CLIP; NYLON TUBE EXC. THAILAND EQUIPMENT(PM9) (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9603-9708	●	●
128	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9709-9711		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9709-9711	●
128	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9904		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9904	●
128	CLIP; NYLON TUBE (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9905-9910		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9905-9910	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9911-9911		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9911-9911	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-	●
128	CLIP; NYLON TUBE EXC. THAILAND EQUIPMENT(PM9) (B) L=250	1-09707-126-0	08	1	9603-9708	●	●
128	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=250	1-09707-126-0	08	1	9709-9904		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B) L=250	1-09707-126-0	08	1	9709-9904	●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	9905-9910		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (B) L=250	1-09707-126-0	08	1	9905-9910	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9911-9911		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9911-9911	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9912-		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=250	1-09707-126-0	08	1	9912-	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9911-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-9607	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9608-9904	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9607-9607	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9608-9904	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	03	1	9603-9606	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9607-9607	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9608-9904	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8	9-09110-508-0	01	1	9603-9606	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	01	1	9608-9904	●	●
292	CLIP; AIR PIPE L=30 ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9603-9706	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9910	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	9911-	●	●
293	NUT; CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
293	NUT; CLIP M8	9-09110-508-0	05	1	9603-9606	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9707-9910	●	●
293	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
293	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9603	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9707-	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9911-	●	●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-9904	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-9910	●	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9911-	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X30 FLANGE	0-28680-830-0	01	1	9607-9708	●	●
316	BOLT; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9709-9904		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9709-9904	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9910		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9905-9910	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9912-		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9912-	●
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9603-9609	●	●
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711	●	●
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (C) L=100 H=30	1-47477-645-2	01	1	9701-9908	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (C) L=100 H=30	1-47477-645-2	01	1	9909-9910	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (C) L=100 H=30	1-47477-645-2	01	1	9911-	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=100 H=30	1-47477-645-2	01	1	9911-	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-47477-632-0	01	1	9911-	●	●
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711	●	●
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903	●	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B)	1-47477-386-2	01	1	9905-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9603-9606	●
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9607-9904	●	●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (D)	1-47477-472-1	01	1	9905-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9603-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9603-9702	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9603-	●	●
367	BRACKET ASM FIRE ENGINE PACKAGE<WS2> (A) L=125	1-47475-897-0	01	1	9603-9908	●
367	BRACKET ASM V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (A) L=125	1-47475-897-0	01	1	9909-	●
367	BRACKET ASM L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) L=55	1-47475-304-0	01	1	9603-9606	●
367	BRACKET ASM L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) L=55	1-47475-304-0	01	1	9607-9607	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9603-9606	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	9905-9910	●	●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9911-	●	●

348 352 303 270 270 230 81 110 230 376 231 254 333 98 356 111 348 303 76 38 322 379 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9911-	●	●
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	8-94152-256-1	01	1	9911-	●	●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9911-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9701-	●	●
76	CLIP; NYLON TUBE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9911-	●	●
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	01	1	9603-9910	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	01	1	9911-	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	9603-9910	●	●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-47477-483-0	01	1	9911-	●	●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (B) L=50	1-47475-299-2	01	1	9603-9904	●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (C)	1-47475-427-1	01	1	9603-9904	●
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	AR	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	1-09707-126-0	05	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904	●	●
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9905-9910	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) ID=25 L=40	1-09700-215-1	01	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	07	1	9911-	●	●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (A) L=250	1-09707-126-0	01	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	0104-	●	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	0104-	●	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9603-	●	●
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9603-9910	●	●
230	CLIP; PIPE,AIR SPRING BRAKE(SU9) (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9911-	●	●
230	CLIP; PIPE,AIR FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	02	1	9603-	●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9910	●	●
231	BOLT; CLIP SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9911-	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9603-9904	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-9910	●	●
254	BOLT; PIPE CLIP SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9911-	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9905-	●	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	04	1	9911-		●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9603-9603	●	●
270	CLIP; NYLON TUBE (B) ID=28 L=32	1-09701-107-1	02	1	9604-9910		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=32	1-09701-107-1	02	1	9604-9910	●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9604-9910	●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9911-	●	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (B) ID=28 L=32	1-09701-107-1	02	1	9911-	●	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	08	1	9911-	●
270	CLIP; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	9603-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9910	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9911-	●	●
322	BRACKET; CLIP	1-79996-311-1	01	1	9603-9612	●	●
322	BRACKET; CLIP	1-79996-360-0	01	1	9701-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9603-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9603-9702	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9603-	●	●
348	CLIP; AIR PIPE (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9603-9910	●	●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9911-	●	●
348	CLIP; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	9603-	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9603-	●	●
356	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	9603-9912	●	●
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	9603-9912	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	9603-9912	●	●
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0001-0011	●	●
356	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-0011	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-0011	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0012-	●	●
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0012-		●
356	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0012-		●
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0012-	●
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0012-	●
376	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X35 FLANGE	0-28680-835-0	01	1	9712-9904		●
376	BOLT; BRKT WHEEL BASE 5300MM(53W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9712-9904	●
376	BOLT; BRKT WHEEL BASE 5300MM(53W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-9911	●
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X35 FLANGE	0-28680-835-0	01	1	9912-	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9910	●	●
376	BOLT; BRKT SPRING BRAKE(SU9) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9911-	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9603-9910	●	●
379	BRACKET; NYLON TUBE SPRING BRAKE(SU9)	1-79996-110-2	01	1	9911-	●	●

297 120 122 321 49 49 121 120 376 316 27 321 306 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=10 & 10	1-09709-277-1	01	1	0105-	●	●
49	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9605-9606	●	●
49	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28680-835-0	02	1	9607-9708	●	●
49	BOLT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28680-835-0	02	1	9709-9904		●
49	BOLT; PIPE CLIP WHEEL BASE 5300MM(53W) M8X35 FLANGE	0-28680-835-0	02	1	9709-9904	●
49	BOLT; PIPE CLIP WHEEL BASE 5300MM(53W) M8X35 FLANGE	0-28680-835-0	02	1	9905-9911	●
49	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28680-835-0	02	1	9912-	●
120	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9605-9708	●	●
120	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9709-9904		●
120	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9709-9904	●
120	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9905-9911	●
120	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9912-	●
120	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=13 L=20	9-09525-235-0	01	1	9605-9708	●	●
120	CLIP; AIR PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=13 L=20	9-09525-235-0	01	1	9709-9904		●
120	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (B) ID=13 L=20	9-09525-235-0	01	1	9709-9904	●
120	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (B) ID=13 L=20	9-09525-235-0	01	1	9905-9911	●
120	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=13 L=20	9-09525-235-0	01	1	9912-	●
121	NUT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	01	1	9605-9606	●	●
121	NUT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9607-9708	●	●
121	NUT; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9709-9904		●
121	NUT; PIPE CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9709-9904	●
121	NUT; PIPE CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9905-9911	●
121	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9912-	●
122	BRACKET; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47476-200-0	01	1	9605-9708	●	●
122	BRACKET; PIPE CLIP TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47476-200-0	01	1	9709-9904		●
122	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W)	1-47476-200-0	01	1	9709-9904	●
122	BRACKET; PIPE CLIP WHEEL BASE 5300MM(53W)	1-47476-200-0	01	1	9905-9911	●
122	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47476-200-0	01	1	9912-	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9711	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9712-9904	●	●
297	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9712-9904		●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9712-9904	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9905-9908	●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-9911	●	●
297	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91150-108-0	01	1	9909-9911	●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9912-	●	●
297	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9912-	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
297	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9603-9908	●
297	NUT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9909-	●
306	CLIP; NYLON TUBE ID=24 L=32	1-09700-766-1	01	1	9905-9905		●
306	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) ID=24 L=32	1-09700-766-1	01	1	9905-9905	●
306	CLIP; NYLON TUBE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ> ID=24 L=32	1-09700-766-1	01	1	9905-9910	●	●
306	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ> ID=24 L=32	1-09700-766-1	01	1	9911-	●	●
306	CLIP; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=21 L=24	8-94176-807-1	01	1	9905-9910	●	●
306	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION HONG KONG<TCZ> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=21 L=24	8-94176-807-1	01	1	9911-	●	●
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-9904	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-9910	●	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9911-	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X30 FLANGE	0-28680-830-0	01	1	9607-9708	●	●
316	BOLT; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9709-9904		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9709-9904	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9910		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9905-9910	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9912-		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9912-	●
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9603-9609	●	●
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711	●	●
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (C) L=100 H=30	1-47477-645-2	01	1	9701-9908	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (C) L=100 H=30	1-47477-645-2	01	1	9909-9910	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (C) L=100 H=30	1-47477-645-2	01	1	9911-	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=100 H=30	1-47477-645-2	01	1	9911-	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-47477-632-0	01	1	9911-	●	●
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711	●	●
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903	●	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B)	1-47477-386-2	01	1	9905-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9603-9606	●
321	BRACKET; CLIP L TYPE ENG<90L> (B)	1-47477-386-1	01	1	9607-9904	●	●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (D)	1-47477-472-1	01	1	9905-	●	●
376	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X35 FLANGE	0-28680-835-0	01	1	9712-9904		●
376	BOLT; BRKT WHEEL BASE 5300MM(53W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9712-9904	●
376	BOLT; BRKT WHEEL BASE 5300MM(53W) (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-9911	●
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X35 FLANGE	0-28680-835-0	01	1	9912-	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9910	●	●
376	BOLT; BRKT SPRING BRAKE(SU9) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9911-	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
381	PLATE; AIR PIPE EXC. THAILAND EQUIPMENT(PM9) ID=24 L=32	1-09700-766-1	01	1	9603-9708	●	●
381	PLATE; AIR PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=24 L=32	1-09700-766-1	01	1	9709-9904		●
381	PLATE; AIR PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) ID=24 L=32	1-09700-766-1	01	1	9709-9904	●

79 84 80 78 79 78 79 78 80 80 317 318 316 78 76 316 318 288 287 89 159 317 24 292 149 296 289 279 20 154 150 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9910	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9911-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9911-	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9911-	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-	●	●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9910	●	●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M),MJD7R M/T(Y2X) (A) ID=16 L=20	9-09525-535-0	02	1	9911-	●	●
24	CLIP; PIPE ZF M/T<X9E> (C) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●	●
24	CLIP; PIPE ZF M/T<X9E> (C) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●	●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (C) ID=16 L=28	9-09525-556-0	01	1	9910-	●	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (B) ID=18 L=50	1-09701-072-0	01	1	9603-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B) ID=18 L=50	1-09701-072-0	01	1	9909-	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9911-	●	●
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	8-94152-256-1	01	1	9911-	●	●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9911-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9701-	●	●
76	CLIP; NYLON TUBE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-9910	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9911-	●	●
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	01	1	9603-9910	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) L=250	1-09707-126-0	01	1	9911-	●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=16 L=28	9-09525-556-0	01	1	9603-9910	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 L=28	9-09525-556-0	01	1	9911-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9911-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9911-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9911-	●	●
78	CLIP; AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0002-	●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-9910	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9911-	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9911-	●	●
79	BOLT; PIPE CLIP V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-9910	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9911-0001	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
80	NUT; CLIP,AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9911-0001	●	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	0002-	●	●
84	BRACKET; PIPE CLIP V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	0002-	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9911-	●	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X40 FLANGE	0-28680-840-0	01	1	9607-9904	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=55	1-47475-304-0	01	1	9911-	●	●
150	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9911-	●	●
279	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
279	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
279	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9608-9910	●	●
279	NUT; BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9908	●	●
279	NUT; BRKT MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M) M10 FLANGE	0-91150-210-0	02	1	9909-9910	●	●
279	NUT; BRKT MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6QM/T(Y1M),MJD7R M/T(Y2X) M10 FLANGE	0-91150-210-0	02	1	9911-	●	●
279	NUT; BRKT MAL5 M/T<X9F> M10 FLANGE	0-91150-210-0	01	1	9909-	●	●
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9911-	●	●
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9911-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-9607	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9608-9904	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9607-9607	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9608-9904	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
292	CLIP; AIR PIPE L=30 ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9603-9706	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9910	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	9911-	●	●
293	NUT; CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
293	NUT; CLIP M8	9-09110-508-0	05	1	9603-9606	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9707-9910	●	●
293	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
293	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9603	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9707-	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9911-	●	●
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-9904	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-9910	●	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9911-	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9911-	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
316	BOLT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8X30 FLANGE	0-28680-830-0	01	1	9607-9708	●	●
316	BOLT; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9709-9904		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9709-9904	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9910		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	01	1	9905-9910	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911		●
316	BOLT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-9911	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9912-		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	01	1	9912-	●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●
317	NUT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8	9-09110-408-0	01	1	9603-9606	●	●
317	NUT; CLIP EXC. THAILAND EQUIPMENT(PM9) M8 FLANGE	0-91150-108-0	01	1	9607-9708	●	●
317	NUT; CLIP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9709-9904		●
317	NUT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	01	1	9709-9904	●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9910		●
317	NUT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	01	1	9905-9910	●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9911-9911		●
317	NUT; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9911-9911	●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9912-		●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9912-	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-	●	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9911-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
