Sayfa 4-50 - Isuzu EPC

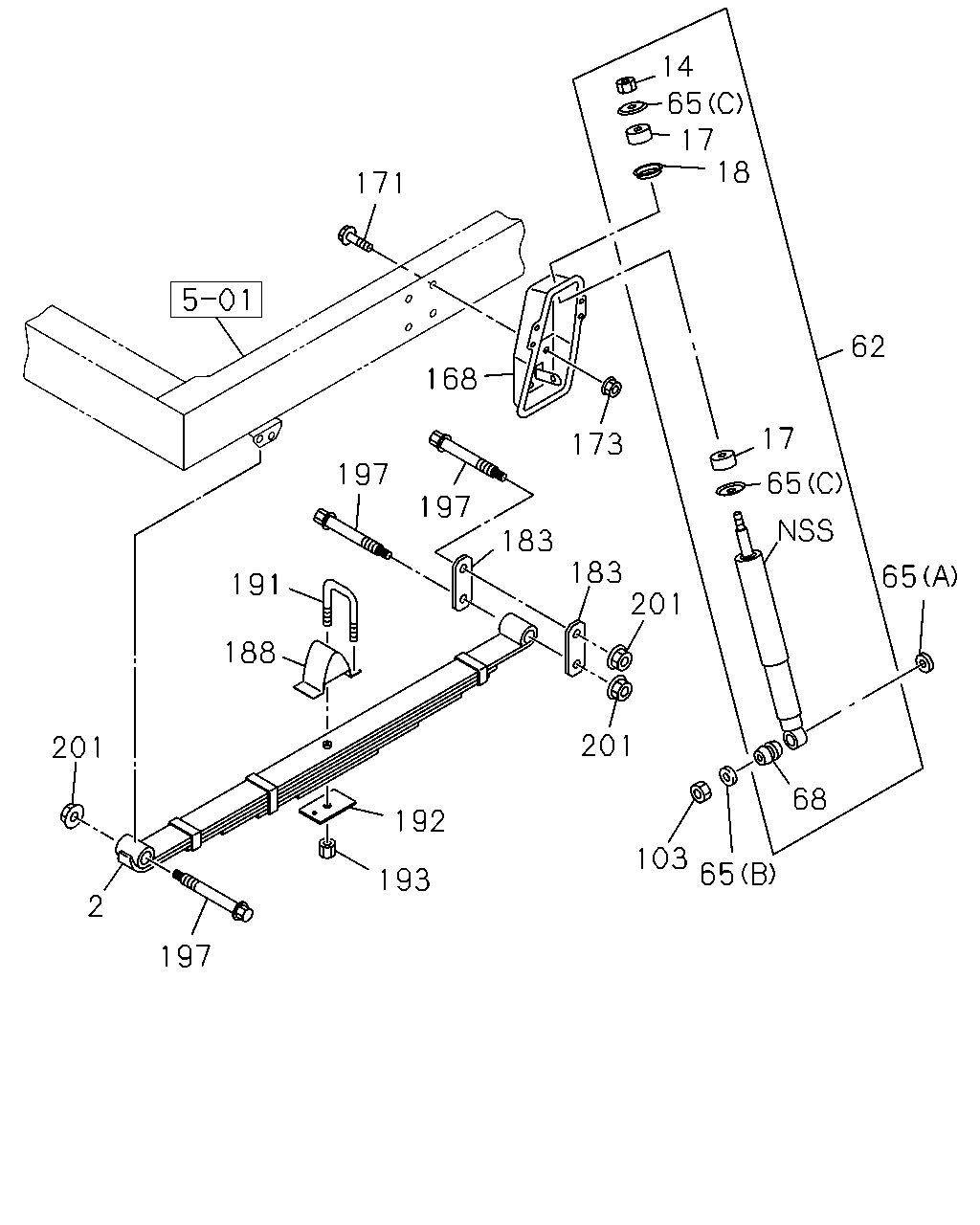

4-50 — FRONT SUSPENSION (#52816) — 135 parça

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 192 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-908-0	01	1	0712-1109	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-604-0	01	1	1110-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-909-0	01	1	0712-1109	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-605-0	01	1	1110-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-906-0	01	1	0712-1111	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-602-0	01	1	1112-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-907-0	01	1	0712-1111	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-603-0	01	1	1112-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-018-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-018-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-019-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-019-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98075-743-0	01	1	0712-1008		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98079-965-0	01	1	1009-		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98075-745-0	01	1	0712-1008		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98079-966-0	01	1	1009-		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-016-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-016-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-017-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-017-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF	8-98079-917-0	01	1	0712-		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF	8-98079-918-0	01	1	0712-		●	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0712-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0712-	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0712-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-618-1	02	1	0712-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)	8-97253-618-1	02	1	0712-		●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97253-618-1	02	1	0712-			●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-617-1	02	1	0712-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.5-8.0TON(RPY)	8-98080-130-1	02	1	0712-		●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0712-	●	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0712-	●	●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0712-	●	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0712-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0712-	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-958-1	01	1	0712-	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98006-958-1	01	1	0712-		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-959-1	01	1	0712-	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98006-959-1	01	1	0712-		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98015-001-0	01	1	0712-		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98015-002-0	01	1	0712-		●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0712-	●	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0712-	●	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0712-	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0712-0906	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0907-	●	●	●
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-2	04	1	0712-0802	●
191	07.417 U-BOLT; FRT SPR EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-2	04	1	0712-0802		●	●
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-3	04	1	0803-	●
191	07.417 U-BOLT; FRT SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-3	04	1	0803-		●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-3	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-3	04	1	0712-0802		●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125	8-94119-671-5	04	1	0712-		●	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-553-0	02	1	1001-	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-554-1	02	1	0712-0912	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	0712-0912		●	●
192	07.436 PIECE; DIST WHEEL BASE 2700MM(27W)	8-97093-554-1	02	1	1001-	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	1001-		●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	1001-			●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-	●
193	07.417 NUT; U BOLT G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-		●	●
193	07.417 NUT; U BOLT G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-		●
193	07.417 NUT; U BOLT G.V.W. 6.0-6.5TON(RPV) 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-			●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0712-	●	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0712-	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0712-	●	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0712-	●	●	●

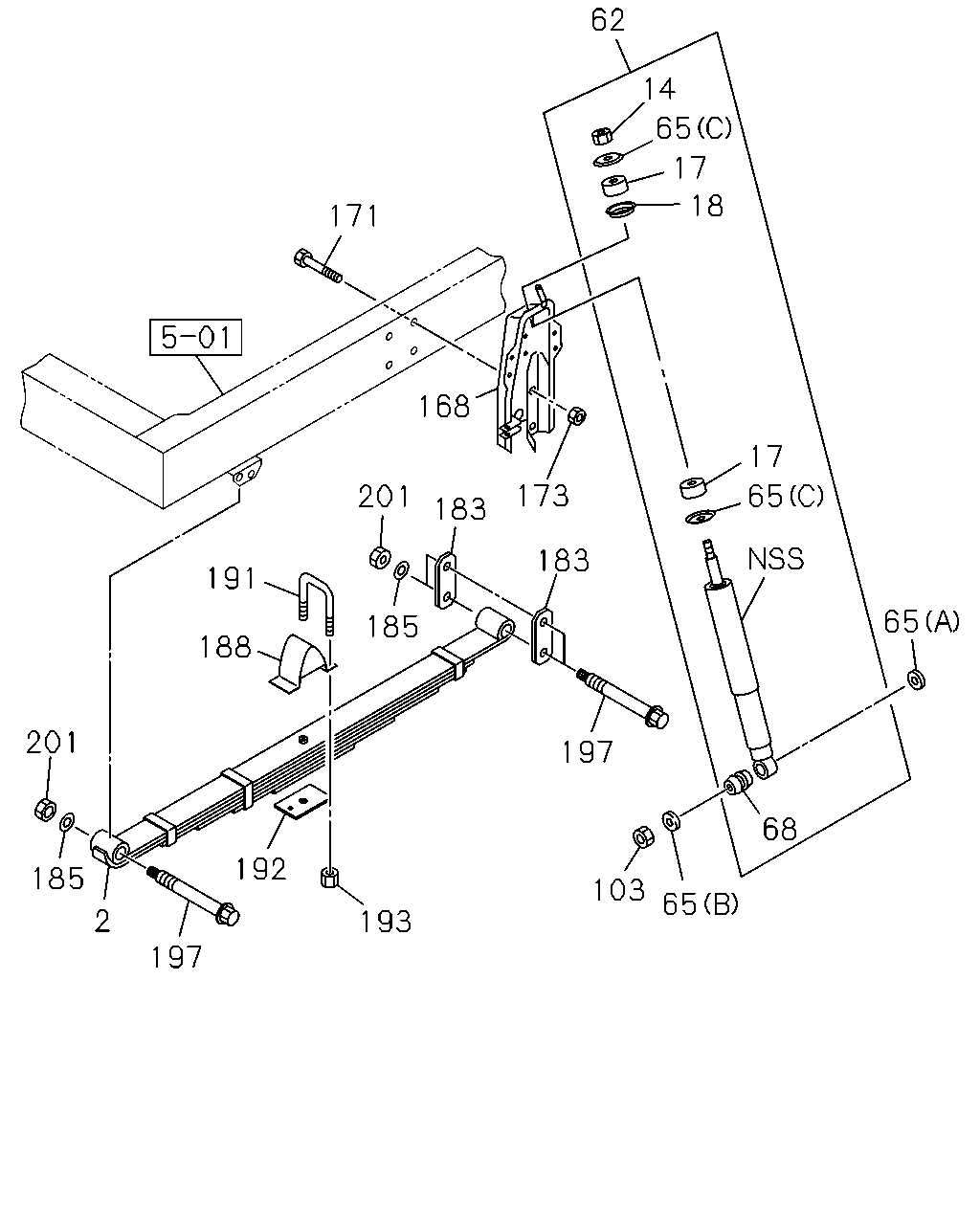

62 14 65 17 18 171 168 17 173 65 201 183 183 191 65 185 188 201 197 68 192 185 103 65 2 193 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-908-0	01	1	0712-1109	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-604-0	01	1	1110-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-909-0	01	1	0712-1109	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-605-0	01	1	1110-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-906-0	01	1	0712-1111	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-602-0	01	1	1112-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98079-907-0	01	1	0712-1111	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF	8-98197-603-0	01	1	1112-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-018-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-018-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-019-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-019-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98075-743-0	01	1	0712-1008		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98079-965-0	01	1	1009-		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98075-745-0	01	1	0712-1008		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF	8-98079-966-0	01	1	1009-		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-016-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-016-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-017-0	01	1	0712-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF	8-98025-017-0	01	1	0712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF	8-98079-917-0	01	1	0712-		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF	8-98079-918-0	01	1	0712-		●	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0712-	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0712-	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0712-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-618-1	02	1	0712-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)	8-97253-618-1	02	1	0712-		●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97253-618-1	02	1	0712-			●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-617-1	02	1	0712-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.5-8.0TON(RPY)	8-98080-130-1	02	1	0712-		●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0712-	●	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0712-	●	●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0712-	●	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0712-	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0712-	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-958-1	01	1	0712-	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98006-958-1	01	1	0712-		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-959-1	01	1	0712-	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98006-959-1	01	1	0712-		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98015-001-0	01	1	0712-		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98015-002-0	01	1	0712-		●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0712-	●	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0712-	●	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0712-	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0712-	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0712-0906	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0907-	●	●	●
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-2	04	1	0712-0802	●
191	07.417 U-BOLT; FRT SPR EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-2	04	1	0712-0802		●	●
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-3	04	1	0803-	●
191	07.417 U-BOLT; FRT SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-3	04	1	0803-		●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-3	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-3	04	1	0712-0802		●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125	8-94119-671-5	04	1	0712-		●	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-553-0	02	1	1001-	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-554-1	02	1	0712-0912	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	0712-0912		●	●
192	07.436 PIECE; DIST WHEEL BASE 2700MM(27W)	8-97093-554-1	02	1	1001-	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	1001-		●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	1001-			●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-	●
193	07.417 NUT; U BOLT G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-		●	●
193	07.417 NUT; U BOLT G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-		●
193	07.417 NUT; U BOLT G.V.W. 6.0-6.5TON(RPV) 06.174 M14 FLANGE	8-97360-124-0	08	1	0712-			●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0712-	●	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0712-	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0712-	●	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0712-	●	●	●
