◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51158 - NNR/NPR EU-R EXC.EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#52814) — 36 parça

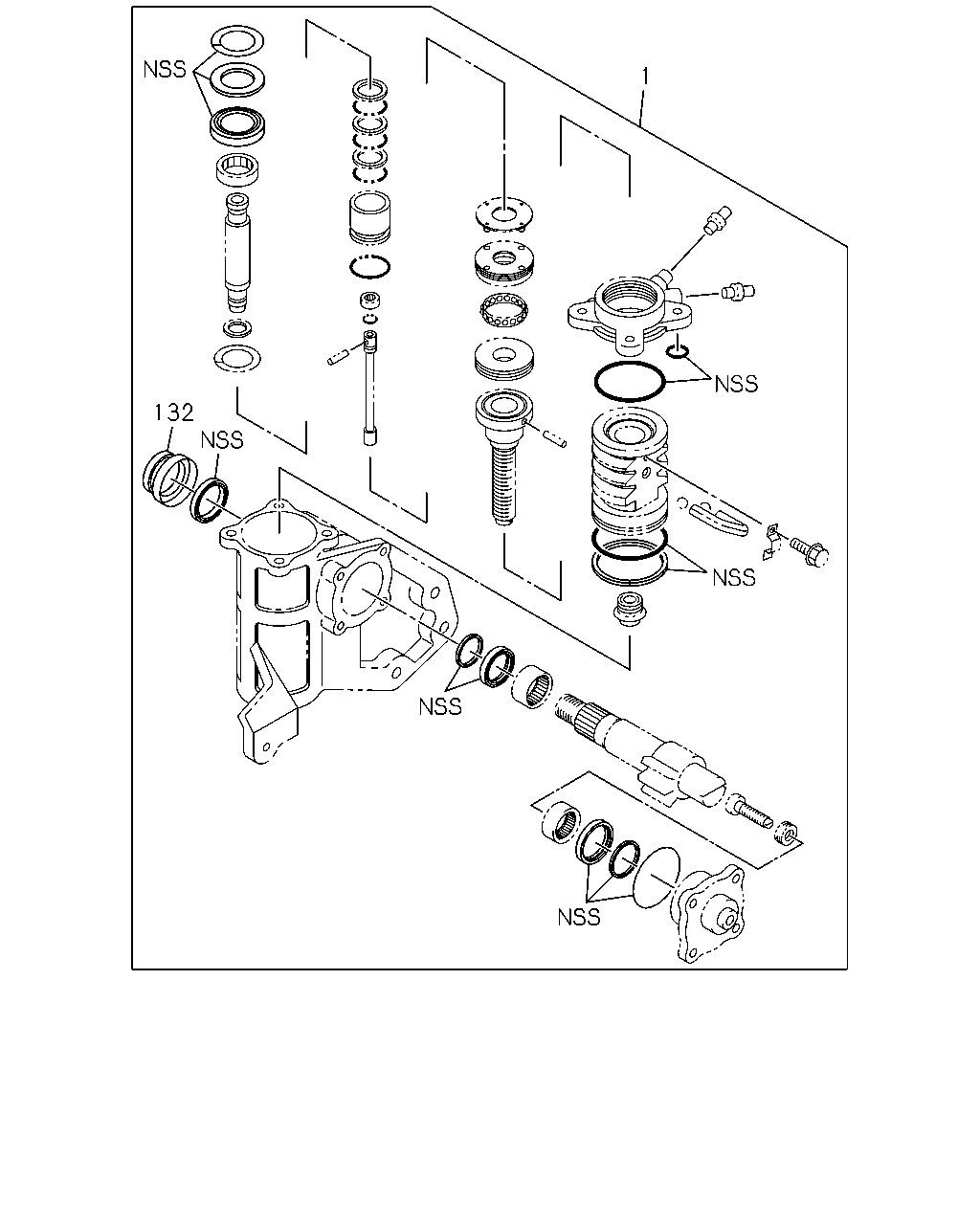

çizim 156445
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97387-818-3, 97387818 		8-97264-442-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98110-219-5, 98110219 		8-98172-286-0 01 1 1309-
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98110-219-5, 98110219 		8-98172-286-0 01 1 -1309
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-97078-179-0 01 1 -1309
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-97078-179-0 01 1 1309-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-97078-179-0 01 1 -

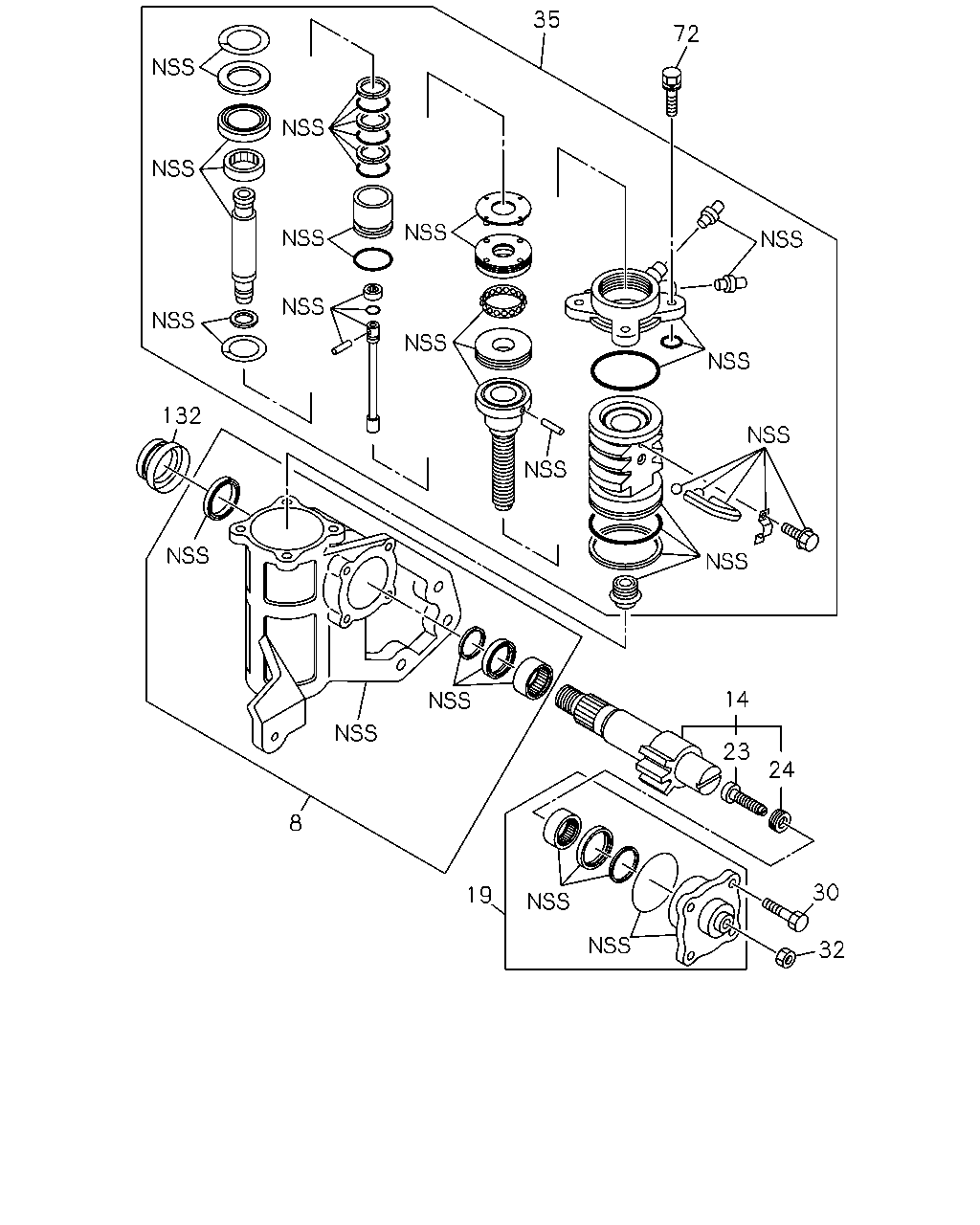

çizim 156452
35 72 132 14 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-324-0 01 1 -1309
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-324-0 01 1 1309-
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-324-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-331-0 01 1 -1309
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-331-0 01 1 1309-
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-331-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-333-0 01 1 -1309
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-333-0 01 1 1309-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97387-818-3, 97387818 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-98110-219-5, 98110219 		8-97014-842-0 01 1 1309-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-98110-219-5, 98110219 		8-97014-842-0 01 1 -1309
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-97014-841-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-97014-841-0 01 1 1309-
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-97014-841-0 01 1 -1309
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-336-0 04 1 1309-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-336-0 04 1 -1309
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-337-0 01 1 -1309
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-337-0 01 1 1309-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-337-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-328-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98112-933-3 01 1 1309-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98112-933-3 01 1 -1309
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-335-0 03 1 1309-
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-98036-335-0 03 1 -1309
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-98036-335-0 04 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-97078-179-0 01 1 -1309
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-98110-219-5, 98110219 		8-97078-179-0 01 1 1309-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-97387-818-3, 97387818 		8-97078-179-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
