Sayfa 4-25 - Isuzu EPC

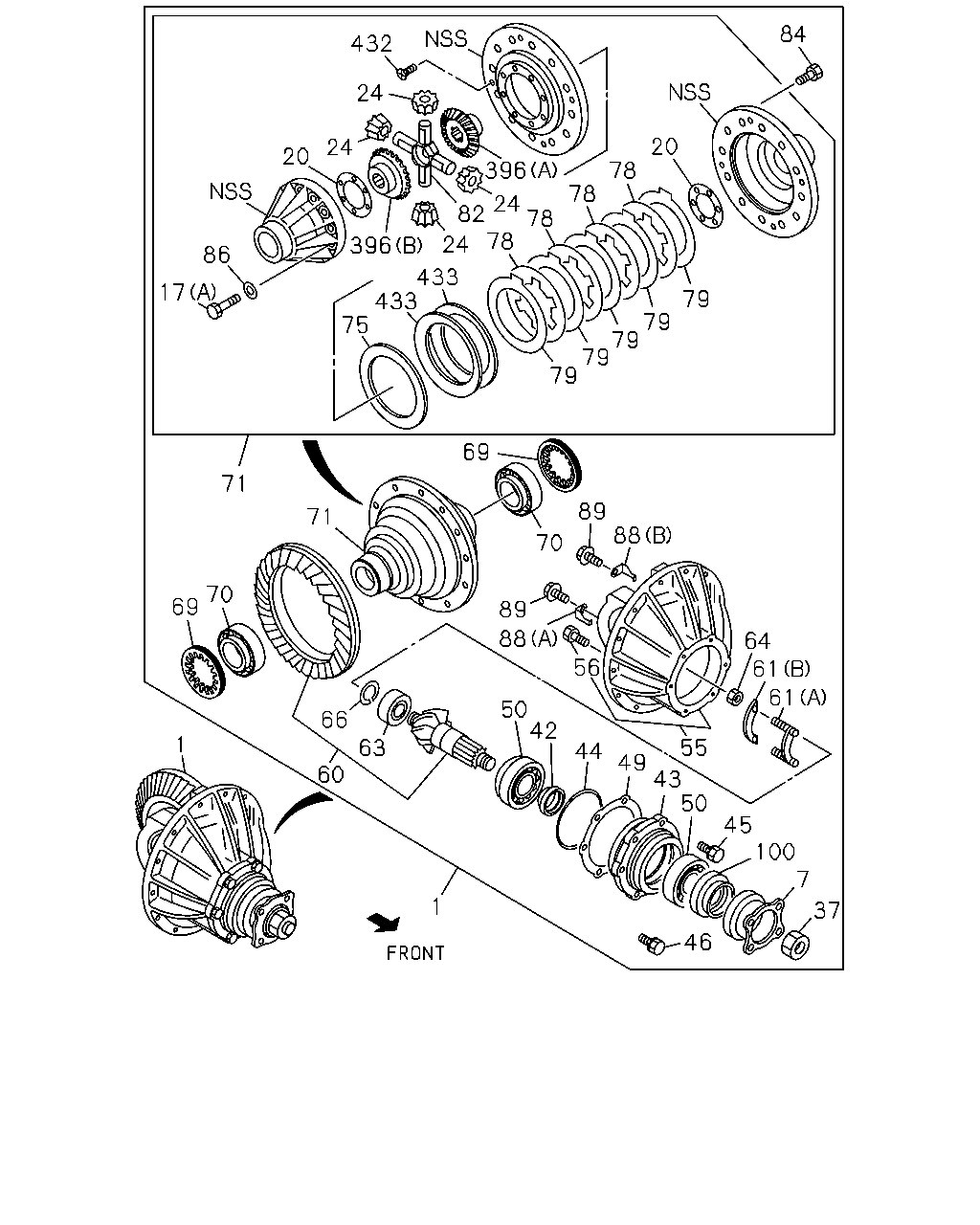

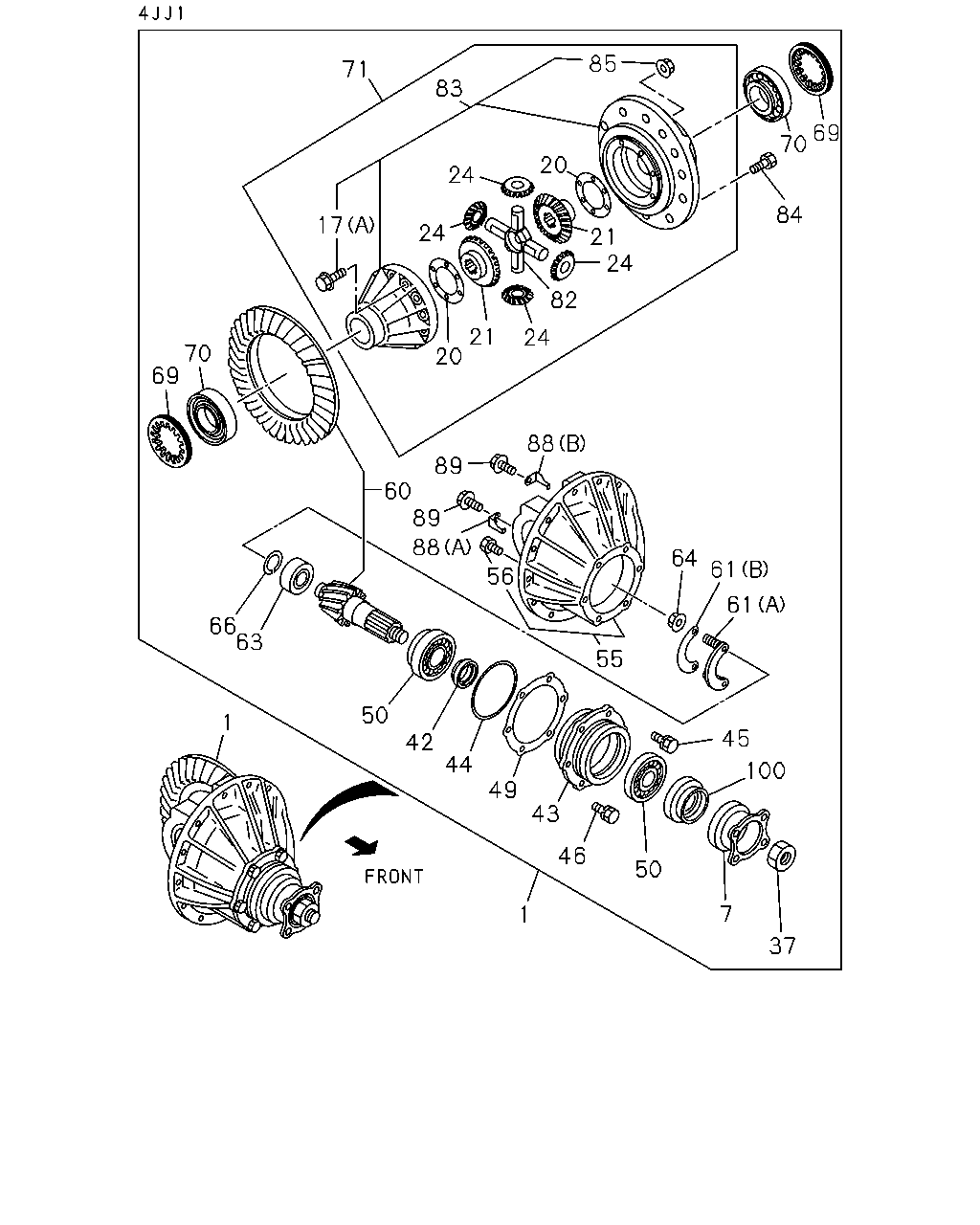

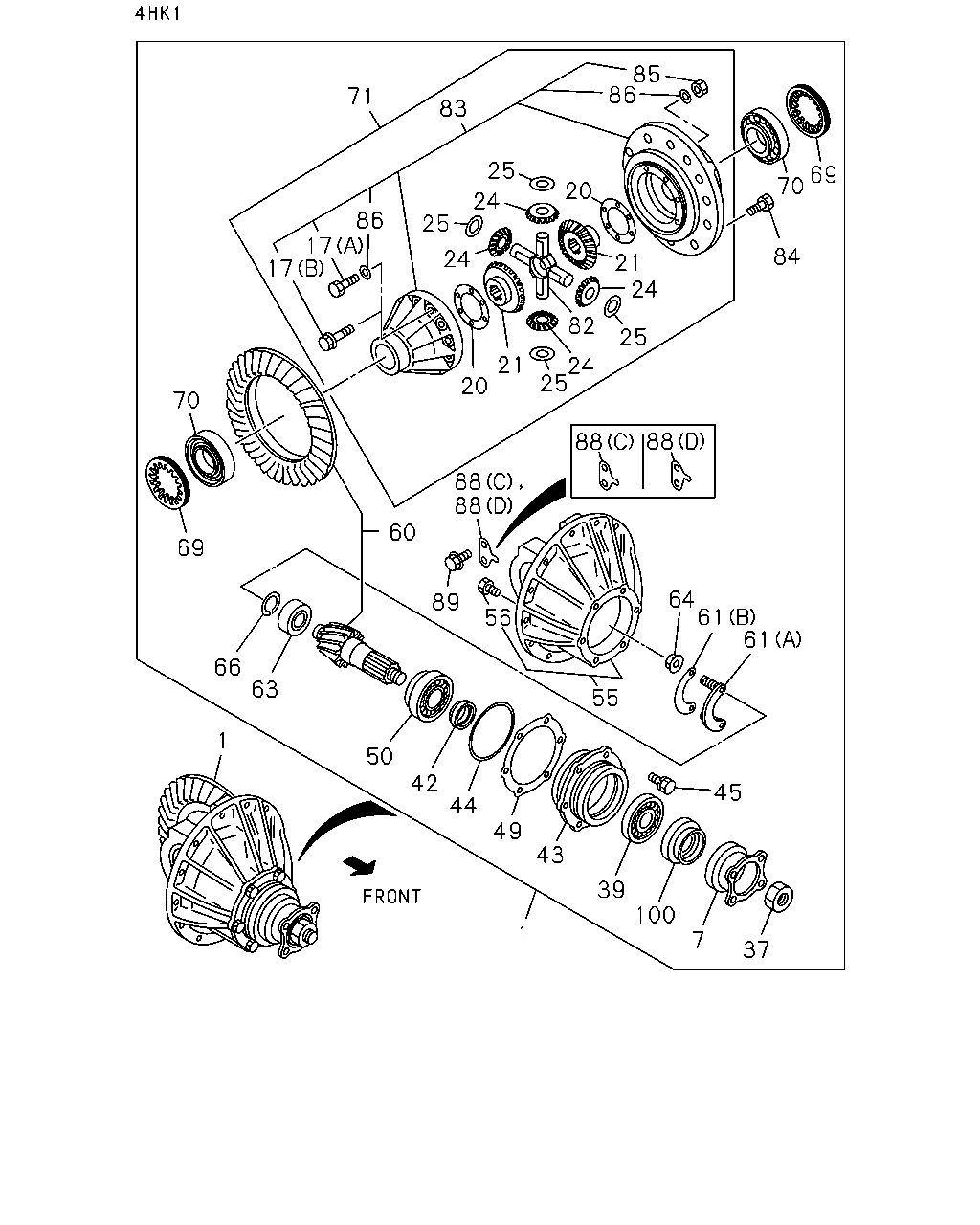

4-25 — REAR FINAL DRIVE (#52808) — 505 parça

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 45 42 44 100 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-		●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-		●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-97388-700-0	01	1	0712-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	0712-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98015-124-0	01	1	0712-		●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0712-	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB)	8-94477-723-4	01	1	0712-		●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS)	8-97047-095-2	01	1	0712-		●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-		●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-		●	●
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) (A)	8-97047-295-0	12	1	0712-1208		●	●
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) (A)	8-98219-448-0	12	1	1209-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) T=1.40	9-41562-601-0	02	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=2.80	1-41562-073-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=2.90	1-41562-074-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.00	1-41562-075-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.10	1-41562-076-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.20	1-41562-077-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.30	1-41562-078-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.40	1-41562-079-0	AR	1	0712-		●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-	●
21	05.528 GEAR; SIDE,DIFF 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-		●
21	05.528 GEAR; SIDE,DIFF 4HK1-TCS ENG(RJS) Z=16	1-41561-093-0	02	1	0712-1004		●	●
21	05.528 GEAR; SIDE,DIFF 4HK1-TCS ENG(RJS) Z=16	8-98165-935-0	02	1	1005-		●	●
21	05.528 GEAR; SIDE,DIFF 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) Z=20	8-97362-598-1	02	1	0712-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0712-	●
24	05.526 GEAR; PINION,DIFF 4JJ1-TCS ENG(LFB) Z=10	8-98015-202-0	04	1	0712-		●	●
24	05.526 GEAR; PINION,DIFF 4HK1-TCS ENG(RJS) Z=10	1-41551-024-0	04	1	0712-1004		●	●
24	05.526 GEAR; PINION,DIFF 4HK1-TCS ENG(RJS) Z=10	1-41551-050-0	04	1	1005-		●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0712-	●
37	05.595 NUT; DRIVING PINION 4JJ1-TCS ENG(LFB) M24 FLANGE	8-94329-526-1	01	1	0712-		●	●
37	05.595 NUT; DRIVING PINION 4HK1-TCS ENG(RJS) M30 FLANGE	8-97047-146-0	01	1	0712-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0712-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JJ1-TCS ENG(LFB) L=19.6	9-41219-603-1	01	1	0712-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4HK1-TCS ENG(RJS)	8-97047-097-0	01	1	0712-		●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0712-	●
43	05.453 CAGE; FINAL PINION 4JJ1-TCS ENG(LFB)	8-94400-890-0	01	1	0712-		●	●
43	05.453 CAGE; FINAL PINION 4HK1-TCS ENG(RJS)	8-97047-098-0	01	1	0712-		●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0712-	●
44	05.476 GASKET; PINION CAGE 4JJ1-TCS ENG(LFB) 05.458	9-09720-505-0	01	1	0712-		●	●
44	05.476 GASKET; PINION CAGE 4HK1-TCS ENG(RJS)	8-97048-053-0	01	1	0712-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) M12X40 W/LK WASHER	0-50071-240-0	06	1	0712-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909	●
46	05.453 BOLT 4JJ1-TCS ENG(LFB) M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909		●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●
46	05.453 BOLT 4JJ1-TCS ENG(LFB) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.10	8-94401-335-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.12	8-94401-336-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.14	8-94401-337-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.16	8-94401-338-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.18	8-94401-339-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.20	8-94401-340-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.12	8-97047-298-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.15	8-97047-299-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.20	8-97047-300-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.25	8-97048-418-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0712-	●
50	05.447 BEARING; FINAL PINION 4JJ1-TCS ENG(LFB) 05.484 KOYO	5-09812-062-1	02	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0712-	●
50	05.447 BEARING; FINAL PINION 4JJ1-TCS ENG(LFB) 05.484 NSK	5-09812-063-0	02	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) 05.484 NSK	1-09812-041-2	01	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) KOYO	1-09812-042-1	01	1	0712-		●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0712-	●
55	05.505 CARRIER; DIFF 4JJ1-TCS ENG(LFB)	8-97307-760-0	01	1	0712-		●	●
55	05.505 CARRIER; DIFF 4HK1-TCS ENG(RJS)	8-97094-637-0	01	1	0712-		●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0712-	●
56	05.506 BOLT; BRG CAP 4JJ1-TCS ENG(LFB) 05.387 M14X80	8-94365-377-3	04	1	0712-		●	●
56	05.506 BOLT; BRG CAP 4HK1-TCS ENG(RJS) M14X95 FLANGE	1-09070-027-0	04	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0712-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) 41/10	8-97319-153-0	01	1	0712-1311		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1312-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-97061-846-0	01	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	0712-1311		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0712-	●
61	05.476 RETAINER; PILOT BRG,PINION 4JJ1-TCS ENG(LFB) (A) W/STUD	5-41227-001-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0712-	●
61	05.476 RETAINER; PILOT BRG,PINION 4JJ1-TCS ENG(LFB) (B)	9-41227-601-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION 4HK1-TCS ENG(RJS) (A) W/STUD	8-97047-149-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION 4HK1-TCS ENG(RJS) (B)	8-97047-150-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0712-	●
63	05.447 BEARING; PINION PILOT 4JJ1-TCS ENG(LFB) NSK	5-09810-008-1	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0712-	●
63	05.447 BEARING; PINION PILOT 4JJ1-TCS ENG(LFB) KOYO	8-97107-548-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT 4HK1-TCS ENG(RJS) NSK	8-97047-296-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT 4HK1-TCS ENG(RJS) KOYO	8-97047-928-0	01	1	0712-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0712-	●
66	05.476 RING; SNAP,PILOT BRG 4JJ1-TCS ENG(LFB)	9-09752-002-0	01	1	0712-		●	●
66	05.476 RING; SNAP,PILOT BRG 4HK1-TCS ENG(RJS)	8-97047-297-0	01	1	0712-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0712-	●
69	05.506 NUT; ADJ,DIFF CAGE 4JJ1-TCS ENG(LFB) M110 H=10	5-41121-001-0	02	1	0712-		●	●
69	05.506 NUT; ADJ,DIFF CAGE 4HK1-TCS ENG(RJS) M115 H=20	1-41121-039-0	02	1	0712-		●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0712-	●
70	05.536 BEARING; DIFF CAGE 4JJ1-TCS ENG(LFB) NSK	9-00093-602-0	02	1	0712-		●	●
70	05.536 BEARING; DIFF CAGE 4HK1-TCS ENG(RJS) KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0712-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCS ENG(RJS)	8-97047-099-4	01	1	0712-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98015-178-1	01	1	0712-		●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-	●
82	05.517 SPIDER; DIFF PINION 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-		●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-	●
82	05.517 SPIDER; DIFF PINION 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS) 05.520	1-41521-035-2	01	1	0712-1004		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS)	1-41521-062-0	01	1	1005-1309		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS) 05.520	1-41521-035-2	01	1	1310-		●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-	●
83	05.510 CAGE ASM; DIFF 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-		●	●
83	05.510 CAGE ASM; DIFF 4HK1-TCS ENG(RJS)	8-97047-101-2	01	1	0712-1208		●	●
83	05.510 CAGE ASM; DIFF 4HK1-TCS ENG(RJS)	8-98219-705-0	01	1	1209-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-		●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4HK1-TCS ENG(RJS) M16X30	8-97047-147-0	12	1	0712-		●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-	●
85	05.510 NUT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-		●	●
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) M12	8-97065-214-0	12	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0712-	●
88	05.506 PLATE; LK,ADJ NUT 4JJ1-TCS ENG(LFB) (A)	8-97027-281-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0712-	●
88	05.506 PLATE; LK,ADJ NUT 4JJ1-TCS ENG(LFB) (B)	8-97027-282-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT 4HK1-TCS ENG(RJS) (D)	8-97087-821-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT 4HK1-TCS ENG(RJS) (C) T=2.3	9-41124-015-0	AR	1	0712-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
89	05.506 BOLT; LK PLATE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-		●	●
89	05.506 BOLT; LK PLATE 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-		●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0712-	●
100	05.469 SEAL; OIL,FINAL PINION 4JJ1-TCS ENG(LFB) OD=103	8-94408-083-0	01	1	0712-		●	●
100	05.469 SEAL; OIL,FINAL PINION 4HK1-TCS ENG(RJS) NOK	1-09625-484-1	01	1	0712-		●	●

85 86 71 83 25 69 70 20 24 86 25 17 17 84 24 21 24 82 25 21 20 24 25 70 88 88 88 88 60 69 64 61 61 89 56 66 63 55 1 50 42 45 44 49 43 39 100 1 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-		●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-		●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-97388-700-0	01	1	0712-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	0712-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98015-124-0	01	1	0712-		●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0712-	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB)	8-94477-723-4	01	1	0712-		●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS)	8-97047-095-2	01	1	0712-		●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-		●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-		●	●
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) (A)	8-97047-295-0	12	1	0712-1208		●	●
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) (A)	8-98219-448-0	12	1	1209-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) T=1.40	9-41562-601-0	02	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=2.80	1-41562-073-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=2.90	1-41562-074-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.00	1-41562-075-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.10	1-41562-076-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.20	1-41562-077-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.30	1-41562-078-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.40	1-41562-079-0	AR	1	0712-		●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-	●
21	05.528 GEAR; SIDE,DIFF 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-		●
21	05.528 GEAR; SIDE,DIFF 4HK1-TCS ENG(RJS) Z=16	1-41561-093-0	02	1	0712-1004		●	●
21	05.528 GEAR; SIDE,DIFF 4HK1-TCS ENG(RJS) Z=16	8-98165-935-0	02	1	1005-		●	●
21	05.528 GEAR; SIDE,DIFF 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) Z=20	8-97362-598-1	02	1	0712-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0712-	●
24	05.526 GEAR; PINION,DIFF 4JJ1-TCS ENG(LFB) Z=10	8-98015-202-0	04	1	0712-		●	●
24	05.526 GEAR; PINION,DIFF 4HK1-TCS ENG(RJS) Z=10	1-41551-024-0	04	1	0712-1004		●	●
24	05.526 GEAR; PINION,DIFF 4HK1-TCS ENG(RJS) Z=10	1-41551-050-0	04	1	1005-		●	●
25	05.528 WASHER; THRUST,PINION 4HK1-TCS ENG(RJS)	1-41552-020-0	04	1	0712-		●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0712-	●
37	05.595 NUT; DRIVING PINION 4JJ1-TCS ENG(LFB) M24 FLANGE	8-94329-526-1	01	1	0712-		●	●
37	05.595 NUT; DRIVING PINION 4HK1-TCS ENG(RJS) M30 FLANGE	8-97047-146-0	01	1	0712-		●	●
39	05.484 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) KOYO	5-09812-062-1	01	1	1002-		●	●
39	05.484 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) NSK	1-09812-026-0	01	1	0712-1002		●	●
39	05.484 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) NSK	5-09812-063-0	01	1	1003-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0712-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JJ1-TCS ENG(LFB) L=19.6	9-41219-603-1	01	1	0712-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4HK1-TCS ENG(RJS)	8-97047-097-0	01	1	0712-		●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0712-	●
43	05.453 CAGE; FINAL PINION 4JJ1-TCS ENG(LFB)	8-94400-890-0	01	1	0712-		●	●
43	05.453 CAGE; FINAL PINION 4HK1-TCS ENG(RJS)	8-97047-098-0	01	1	0712-		●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0712-	●
44	05.476 GASKET; PINION CAGE 4JJ1-TCS ENG(LFB) 05.458	9-09720-505-0	01	1	0712-		●	●
44	05.476 GASKET; PINION CAGE 4HK1-TCS ENG(RJS)	8-97048-053-0	01	1	0712-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) M12X40 W/LK WASHER	0-50071-240-0	06	1	0712-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.10	8-94401-335-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.12	8-94401-336-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.14	8-94401-337-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.16	8-94401-338-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.18	8-94401-339-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.20	8-94401-340-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.12	8-97047-298-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.15	8-97047-299-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.20	8-97047-300-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.25	8-97048-418-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0712-	●
50	05.447 BEARING; FINAL PINION 4JJ1-TCS ENG(LFB) 05.484 KOYO	5-09812-062-1	02	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0712-	●
50	05.447 BEARING; FINAL PINION 4JJ1-TCS ENG(LFB) 05.484 NSK	5-09812-063-0	02	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) 05.484 NSK	1-09812-041-2	01	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) KOYO	1-09812-042-1	01	1	0712-		●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0712-	●
55	05.505 CARRIER; DIFF 4JJ1-TCS ENG(LFB)	8-97307-760-0	01	1	0712-		●	●
55	05.505 CARRIER; DIFF 4HK1-TCS ENG(RJS)	8-97094-637-0	01	1	0712-		●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0712-	●
56	05.506 BOLT; BRG CAP 4JJ1-TCS ENG(LFB) 05.387 M14X80	8-94365-377-3	04	1	0712-		●	●
56	05.506 BOLT; BRG CAP 4HK1-TCS ENG(RJS) M14X95 FLANGE	1-09070-027-0	04	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0712-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) 41/10	8-97319-153-0	01	1	0712-1311		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1312-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-97061-846-0	01	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	0712-1311		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0712-	●
61	05.476 RETAINER; PILOT BRG,PINION 4JJ1-TCS ENG(LFB) (A) W/STUD	5-41227-001-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0712-	●
61	05.476 RETAINER; PILOT BRG,PINION 4JJ1-TCS ENG(LFB) (B)	9-41227-601-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION 4HK1-TCS ENG(RJS) (A) W/STUD	8-97047-149-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION 4HK1-TCS ENG(RJS) (B)	8-97047-150-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0712-	●
63	05.447 BEARING; PINION PILOT 4JJ1-TCS ENG(LFB) NSK	5-09810-008-1	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0712-	●
63	05.447 BEARING; PINION PILOT 4JJ1-TCS ENG(LFB) KOYO	8-97107-548-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT 4HK1-TCS ENG(RJS) NSK	8-97047-296-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT 4HK1-TCS ENG(RJS) KOYO	8-97047-928-0	01	1	0712-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0712-	●
66	05.476 RING; SNAP,PILOT BRG 4JJ1-TCS ENG(LFB)	9-09752-002-0	01	1	0712-		●	●
66	05.476 RING; SNAP,PILOT BRG 4HK1-TCS ENG(RJS)	8-97047-297-0	01	1	0712-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0712-	●
69	05.506 NUT; ADJ,DIFF CAGE 4JJ1-TCS ENG(LFB) M110 H=10	5-41121-001-0	02	1	0712-		●	●
69	05.506 NUT; ADJ,DIFF CAGE 4HK1-TCS ENG(RJS) M115 H=20	1-41121-039-0	02	1	0712-		●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0712-	●
70	05.536 BEARING; DIFF CAGE 4JJ1-TCS ENG(LFB) NSK	9-00093-602-0	02	1	0712-		●	●
70	05.536 BEARING; DIFF CAGE 4HK1-TCS ENG(RJS) KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0712-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCS ENG(RJS)	8-97047-099-4	01	1	0712-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98015-178-1	01	1	0712-		●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-	●
82	05.517 SPIDER; DIFF PINION 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-		●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-	●
82	05.517 SPIDER; DIFF PINION 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS) 05.520	1-41521-035-2	01	1	0712-1004		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS)	1-41521-062-0	01	1	1005-1309		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS) 05.520	1-41521-035-2	01	1	1310-		●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-	●
83	05.510 CAGE ASM; DIFF 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-		●	●
83	05.510 CAGE ASM; DIFF 4HK1-TCS ENG(RJS)	8-97047-101-2	01	1	0712-1208		●	●
83	05.510 CAGE ASM; DIFF 4HK1-TCS ENG(RJS)	8-98219-705-0	01	1	1209-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-		●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4HK1-TCS ENG(RJS) M16X30	8-97047-147-0	12	1	0712-		●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-	●
85	05.510 NUT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-		●	●
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) M12	8-97065-214-0	12	1	0712-		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCS ENG(RJS) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0712-1208		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCS ENG(RJS) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-		●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0712-	●
88	05.506 PLATE; LK,ADJ NUT 4JJ1-TCS ENG(LFB) (A)	8-97027-281-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0712-	●
88	05.506 PLATE; LK,ADJ NUT 4JJ1-TCS ENG(LFB) (B)	8-97027-282-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT 4HK1-TCS ENG(RJS) (D)	8-97087-821-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT 4HK1-TCS ENG(RJS) (C) T=2.3	9-41124-015-0	AR	1	0712-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
89	05.506 BOLT; LK PLATE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-		●	●
89	05.506 BOLT; LK PLATE 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-		●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0712-	●
100	05.469 SEAL; OIL,FINAL PINION 4JJ1-TCS ENG(LFB) OD=103	8-94408-083-0	01	1	0712-		●	●
100	05.469 SEAL; OIL,FINAL PINION 4HK1-TCS ENG(RJS) NOK	1-09625-484-1	01	1	0712-		●	●

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 69 71 89 88 71 70 70 69 89 88 64 61 56 61 50 42 66 1 55 63 44 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-		●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-		●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-97388-700-0	01	1	0712-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	0712-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98015-124-0	01	1	0712-		●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0712-	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB)	8-94477-723-4	01	1	0712-		●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS)	8-97047-095-2	01	1	0712-		●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-		●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-		●	●
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) (A)	8-97047-295-0	12	1	0712-1208		●	●
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCS ENG(RJS) (A)	8-98219-448-0	12	1	1209-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) T=1.40	9-41562-601-0	02	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-		●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=2.80	1-41562-073-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=2.90	1-41562-074-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.00	1-41562-075-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.10	1-41562-076-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.20	1-41562-077-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.30	1-41562-078-0	AR	1	0712-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4HK1-TCS ENG(RJS) T=3.40	1-41562-079-0	AR	1	0712-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0712-	●
24	05.526 GEAR; PINION,DIFF 4JJ1-TCS ENG(LFB) Z=10	8-98015-202-0	04	1	0712-		●	●
24	05.526 GEAR; PINION,DIFF 4HK1-TCS ENG(RJS) Z=10	1-41551-024-0	04	1	0712-1004		●	●
24	05.526 GEAR; PINION,DIFF 4HK1-TCS ENG(RJS) Z=10	1-41551-050-0	04	1	1005-		●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0712-	●
37	05.595 NUT; DRIVING PINION 4JJ1-TCS ENG(LFB) M24 FLANGE	8-94329-526-1	01	1	0712-		●	●
37	05.595 NUT; DRIVING PINION 4HK1-TCS ENG(RJS) M30 FLANGE	8-97047-146-0	01	1	0712-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0712-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JJ1-TCS ENG(LFB) L=19.6	9-41219-603-1	01	1	0712-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4HK1-TCS ENG(RJS)	8-97047-097-0	01	1	0712-		●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0712-	●
43	05.453 CAGE; FINAL PINION 4JJ1-TCS ENG(LFB)	8-94400-890-0	01	1	0712-		●	●
43	05.453 CAGE; FINAL PINION 4HK1-TCS ENG(RJS)	8-97047-098-0	01	1	0712-		●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0712-	●
44	05.476 GASKET; PINION CAGE 4JJ1-TCS ENG(LFB) 05.458	9-09720-505-0	01	1	0712-		●	●
44	05.476 GASKET; PINION CAGE 4HK1-TCS ENG(RJS)	8-97048-053-0	01	1	0712-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	05.453 BOLT; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) M12X40 W/LK WASHER	0-50071-240-0	06	1	0712-0909		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●	●
45	05.453 BOLT; FINAL PINION CAGE 4HK1-TCS ENG(RJS) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909	●
46	05.453 BOLT 4JJ1-TCS ENG(LFB) M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909		●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●
46	05.453 BOLT 4JJ1-TCS ENG(LFB) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.10	8-94401-335-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.12	8-94401-336-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.14	8-94401-337-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.16	8-94401-338-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.18	8-94401-339-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0712-	●
49	05.458 SHIM; FINAL PINION CAGE 4JJ1-TCS ENG(LFB) ID=132 T=0.20	8-94401-340-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.12	8-97047-298-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.15	8-97047-299-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.20	8-97047-300-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) ID=142 T=0.25	8-97048-418-0	AR	1	0712-		●	●
49	05.458 SHIM; FINAL PINION CAGE 4HK1-TCS ENG(RJS) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0712-	●
50	05.447 BEARING; FINAL PINION 4JJ1-TCS ENG(LFB) 05.484 KOYO	5-09812-062-1	02	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0712-	●
50	05.447 BEARING; FINAL PINION 4JJ1-TCS ENG(LFB) 05.484 NSK	5-09812-063-0	02	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) 05.484 NSK	1-09812-041-2	01	1	0712-		●	●
50	05.447 BEARING; FINAL PINION 4HK1-TCS ENG(RJS) KOYO	1-09812-042-1	01	1	0712-		●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0712-	●
55	05.505 CARRIER; DIFF 4JJ1-TCS ENG(LFB)	8-97307-760-0	01	1	0712-		●	●
55	05.505 CARRIER; DIFF 4HK1-TCS ENG(RJS)	8-97094-637-0	01	1	0712-		●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0712-	●
56	05.506 BOLT; BRG CAP 4JJ1-TCS ENG(LFB) 05.387 M14X80	8-94365-377-3	04	1	0712-		●	●
56	05.506 BOLT; BRG CAP 4HK1-TCS ENG(RJS) M14X95 FLANGE	1-09070-027-0	04	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0712-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) 41/10	8-97319-153-0	01	1	0712-1311		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1312-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV> 41/10	8-97061-846-0	01	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0712-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	0712-1311		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0712-	●
61	05.476 RETAINER; PILOT BRG,PINION 4JJ1-TCS ENG(LFB) (A) W/STUD	5-41227-001-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0712-	●
61	05.476 RETAINER; PILOT BRG,PINION 4JJ1-TCS ENG(LFB) (B)	9-41227-601-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION 4HK1-TCS ENG(RJS) (A) W/STUD	8-97047-149-0	01	1	0712-		●	●
61	05.476 RETAINER; PILOT BRG,PINION 4HK1-TCS ENG(RJS) (B)	8-97047-150-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0712-	●
63	05.447 BEARING; PINION PILOT 4JJ1-TCS ENG(LFB) NSK	5-09810-008-1	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0712-	●
63	05.447 BEARING; PINION PILOT 4JJ1-TCS ENG(LFB) KOYO	8-97107-548-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT 4HK1-TCS ENG(RJS) NSK	8-97047-296-0	01	1	0712-		●	●
63	05.447 BEARING; PINION PILOT 4HK1-TCS ENG(RJS) KOYO	8-97047-928-0	01	1	0712-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0712-	●
66	05.476 RING; SNAP,PILOT BRG 4JJ1-TCS ENG(LFB)	9-09752-002-0	01	1	0712-		●	●
66	05.476 RING; SNAP,PILOT BRG 4HK1-TCS ENG(RJS)	8-97047-297-0	01	1	0712-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0712-	●
69	05.506 NUT; ADJ,DIFF CAGE 4JJ1-TCS ENG(LFB) M110 H=10	5-41121-001-0	02	1	0712-		●	●
69	05.506 NUT; ADJ,DIFF CAGE 4HK1-TCS ENG(RJS) M115 H=20	1-41121-039-0	02	1	0712-		●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0712-	●
70	05.536 BEARING; DIFF CAGE 4JJ1-TCS ENG(LFB) NSK	9-00093-602-0	02	1	0712-		●	●
70	05.536 BEARING; DIFF CAGE 4HK1-TCS ENG(RJS) KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0712-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCS ENG(RJS)	8-97047-099-4	01	1	0712-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98015-178-1	01	1	0712-		●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0712-		●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0712-		●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0712-		●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0712-		●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0712-		●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0712-		●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0712-	●
75	05.511 PLATE; BEVEL 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0712-		●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0712-	●
78	05.511 DISC; FRICTION 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0712-		●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0712-	●
79	05.511 PLATE; FRICTION 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0712-		●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-	●
82	05.517 SPIDER; DIFF PINION 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-		●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-	●
82	05.517 SPIDER; DIFF PINION 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS) 05.520	1-41521-035-2	01	1	0712-1004		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS)	1-41521-062-0	01	1	1005-1309		●	●
82	05.517 SPIDER; DIFF PINION 4HK1-TCS ENG(RJS) 05.520	1-41521-035-2	01	1	1310-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-		●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JJ1-TCS ENG(LFB) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4HK1-TCS ENG(RJS) M16X30	8-97047-147-0	12	1	0712-		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCS ENG(RJS) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0712-1208		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCS ENG(RJS) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-		●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0712-	●
88	05.506 PLATE; LK,ADJ NUT 4JJ1-TCS ENG(LFB) (A)	8-97027-281-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0712-	●
88	05.506 PLATE; LK,ADJ NUT 4JJ1-TCS ENG(LFB) (B)	8-97027-282-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT 4HK1-TCS ENG(RJS) (D)	8-97087-821-0	AR	1	0712-		●	●
88	05.506 PLATE; LK,ADJ NUT 4HK1-TCS ENG(RJS) (C) T=2.3	9-41124-015-0	AR	1	0712-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
89	05.506 BOLT; LK PLATE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-		●	●
89	05.506 BOLT; LK PLATE 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-		●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0712-	●
100	05.469 SEAL; OIL,FINAL PINION 4JJ1-TCS ENG(LFB) OD=103	8-94408-083-0	01	1	0712-		●	●
100	05.469 SEAL; OIL,FINAL PINION 4HK1-TCS ENG(RJS) NOK	1-09625-484-1	01	1	0712-		●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-599-1	01	1	0712-	●
396	05.515 GEAR; DIFF,LSD 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-599-1	01	1	0712-		●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-602-0	01	1	0712-	●
396	05.515 GEAR; DIFF,LSD 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-602-0	01	1	0712-		●
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0712-	●
432	05.650 SCREW 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0712-		●
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0712-	●
433	05.511 PLATE; FRICTION 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
