Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#52807) — 173 parça

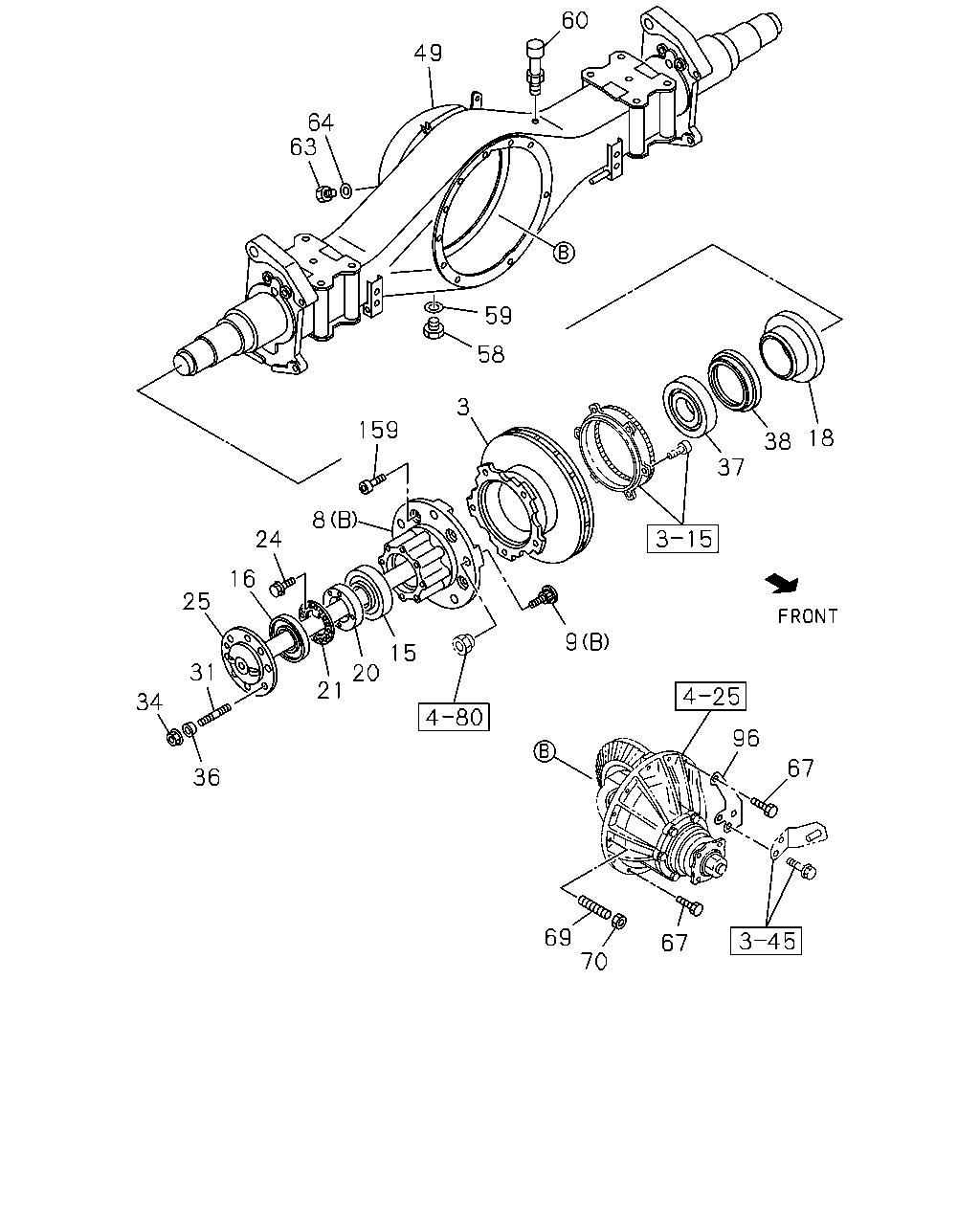

60 49 64 63 59 58 3 159 18 38 37 8 24 16 25 9 15 31 20 21 34 96 67 36 69 70 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	05.809 ROTOR; DISC BRK,RR	8-98024-006-0	02	1	0712-1310	●
3	05.809 ROTOR; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98024-006-0	02	1	0712-1310		●
3	05.809 ROTOR; DISC BRK,RR	8-98248-897-0	02	1	1311-	●
3	05.809 ROTOR; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98248-897-0	02	1	1311-		●
3	05.809 ROTOR; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98028-837-0	02	1	0712-1310		●	●
3	05.809 ROTOR; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98248-898-0	02	1	1311-		●	●
8	05.809 HUB; RR AXLE (B)	8-98022-462-0	02	1	0712-	●
8	05.809 HUB; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B)	8-98022-462-0	02	1	0712-		●
8	05.809 HUB; RR AXLE 4HK1-TCS ENG(RJS) (A)	8-97250-321-1	02	1	0712-		●	●
8	05.809 HUB; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B)	8-98022-463-0	02	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X46 LH THREAD	8-98028-533-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 LH THREAD	8-98028-533-1	05	1	0712-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X46 RH THREAD	8-98028-532-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 RH THREAD	8-98028-532-1	05	1	0712-		●
9	05.812 PIN; WHEEL,RR AXLE 4HK1-TCS ENG(RJS) (A) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4HK1-TCS ENG(RJS) (A) M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B) M20X53 LH THREAD	8-97168-457-2	06	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B) M20X53 RH THREAD	8-97168-456-2	06	1	0712-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0712-	●
15	05.855 BEARING; HUB OUTER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK	9-00093-082-0	02	1	0712-		●
15	05.855 BEARING; HUB OUTER,RR AXLE 4HK1-TCS ENG(RJS) NSK	9-00093-607-0	02	1	0712-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NSK	9-00093-607-0	02	1	0712-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0712-1207	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) TKK	8-94336-315-2	02	1	0712-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK	8-98202-911-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0712-1106	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK	8-94367-961-1	02	1	0712-1106		●
16	05.822 SEAL; OIL,RR HUB,OUTER 4HK1-TCS ENG(RJS) TKK	8-94336-317-2	02	1	0712-1207		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) TKK	8-94336-317-2	02	1	0712-1207		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4HK1-TCS ENG(RJS) NOK	8-98202-912-0	02	1	1208-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NOK	8-98202-912-0	02	1	1208-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4HK1-TCS ENG(RJS) NOK	8-94367-960-1	02	1	0712-1106		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NOK	8-94367-960-1	02	1	0712-1106		●	●
18	05.822 RETAINER; RR AXLE	8-98032-676-0	02	1	0712-1308	●
18	05.822 RETAINER; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98032-676-0	02	1	0712-1308		●
18	05.822 RETAINER; RR AXLE	8-98232-252-0	02	1	1309-	●
18	05.822 RETAINER; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98232-252-0	02	1	1309-		●
18	05.822 RETAINER; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98032-677-0	02	1	0712-		●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0712-1303	●
20	05.830 NUT; BRG,RR HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52	8-97137-092-0	02	1	0712-1303		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●
20	05.830 NUT; BRG,RR HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52	8-98236-850-0	02	1	1304-		●
20	05.830 NUT; BRG,RR HUB 4HK1-TCS ENG(RJS) M55	8-97137-094-0	02	1	0712-		●	●
20	05.830 NUT; BRG,RR HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) M55	8-97137-094-0	02	1	0712-		●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0712-	●
21	05.830 WASHER; LK,BRG NUT 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) ID=52	9-09853-214-0	02	1	0712-		●
21	05.830 WASHER; LK,BRG NUT 4HK1-TCS ENG(RJS) ID=55	9-09653-002-0	02	1	0712-		●	●
21	05.830 WASHER; LK,BRG NUT 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) ID=55	9-09653-002-0	02	1	0712-		●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0712-	●	●	●
25	05.420 SHAFT; AXLE,RR L=804.5	8-97032-497-0	02	1	0712-	●
25	05.420 SHAFT; AXLE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) L=804.5	8-97032-497-0	02	1	0712-		●
25	05.420 SHAFT; AXLE,RR 4HK1-TCS ENG(RJS) L=885	8-97134-439-0	02	1	0712-		●	●
25	05.420 SHAFT; AXLE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) L=830	8-94341-974-1	02	1	0712-		●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0712-	●	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0712-	●	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0712-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0712-	●
37	05.855 BEARING; HUB INNER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK	9-00093-081-0	02	1	0712-		●
37	05.855 BEARING; HUB INNER,RR AXLE 4HK1-TCS ENG(RJS) NSK	8-97122-938-0	02	1	0712-		●	●
37	05.855 BEARING; HUB INNER,RR AXLE 4HK1-TCS ENG(RJS) KOYO	8-97123-119-0	02	1	0712-		●	●
37	05.855 BEARING; HUB INNER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) NSK	9-00093-624-0	02	1	0712-		●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	0712-	●
38	05.822 SEAL; OIL,RR HUB,INNER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK	8-98037-080-0	02	1	0712-		●
38	05.822 SEAL; OIL,RR HUB,INNER 4HK1-TCS ENG(RJS) NOK	8-97122-937-0	02	1	0712-		●	●
38	05.822 SEAL; OIL,RR HUB,INNER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98037-081-0	02	1	0712-		●	●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-460-6	01	1	0712-	●
49	05.387 CASE; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98022-460-6	01	1	0712-		●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-459-6	01	1	0712-	●
49	05.387 CASE; RR AXLE 4HK1-TCS ENG(RJS)	8-97250-319-3	01	1	0712-		●	●
49	05.387 CASE; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98022-461-5	01	1	0712-		●	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0712-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0712-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0712-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0712-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0712-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) M10X40 W/LK WASHER	0-50061-040-0	11	1	0712-0909	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> M10X40 W/LK WASHER	0-50061-040-0	11	1	0712-0909		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) M10X40 W/LK WASHER	0-50061-040-0	07	1	0712-0909		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) M10X50 W/LK WASHER	0-50061-050-0	04	1	0712-0909		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) M10X50 W/LK WASHER	0-50561-050-0	04	1	0910-		●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0712-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0712-	●	●	●
96	04.730 BRACKET; LSPV,AXLE CASE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-956-0	01	1	0712-	●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL ANTI LOCK BRAKE<JE5> 05.812	8-98021-780-0	10	1	0712-1308	●
159	05.822 BOLT; ROTOR TO HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.812	8-98021-780-0	10	1	0712-1308		●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	10	1	1311-	●
159	05.822 BOLT; ROTOR TO HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.812	8-98021-780-0	10	1	1311-		●
159	05.822 BOLT; ROTOR TO HUB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.812	8-98021-780-0	10	1	0712-1310	●
159	05.822 BOLT; ROTOR TO HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 05.812	8-98021-780-0	12	1	0712-		●	●

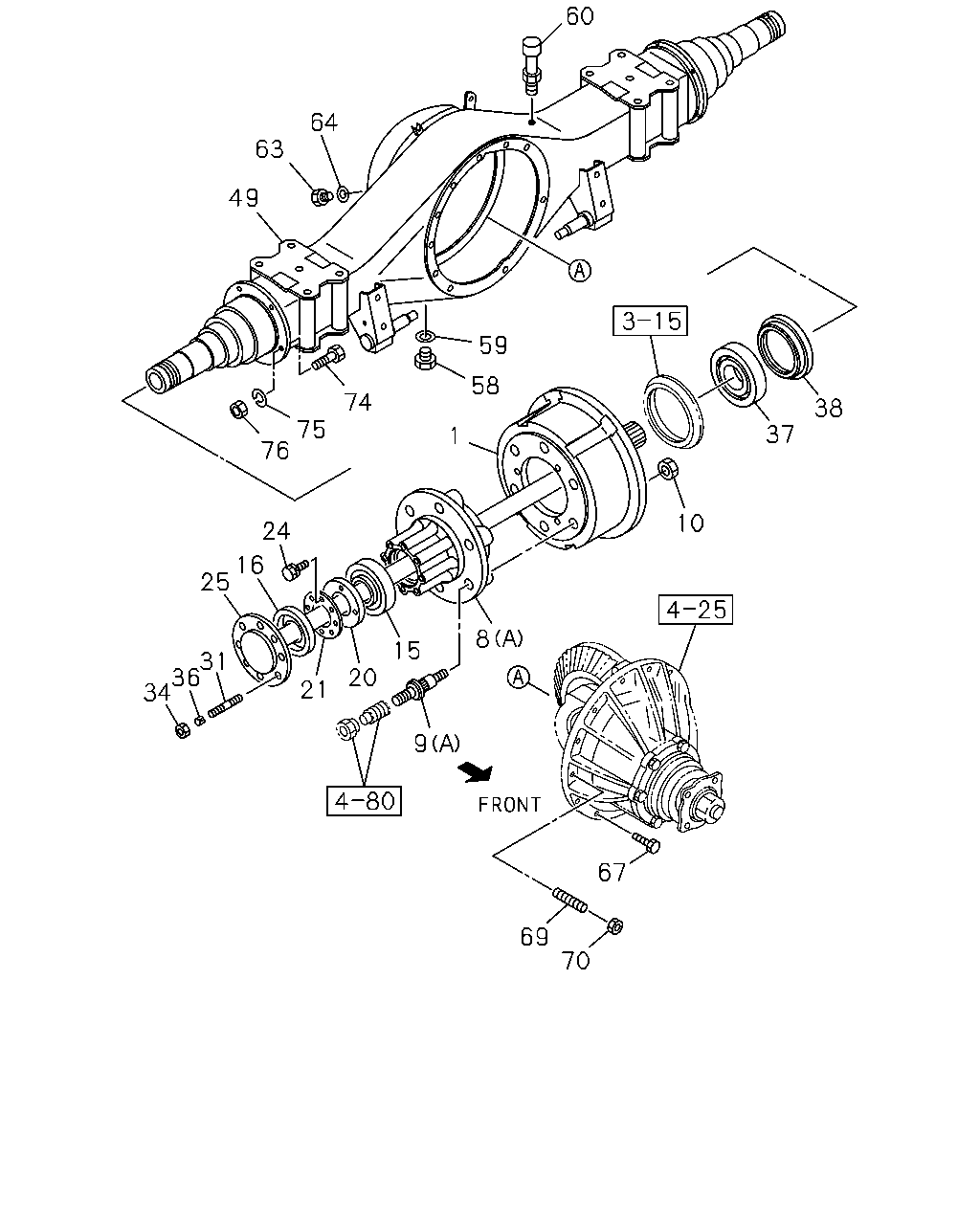

60 64 63 49 59 58 74 38 75 76 37 1 10 24 16 25 8 15 31 36 34 20 21 9 67 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.809 DRUM; BRK,RR 4HK1-TCS ENG(RJS)	8-97102-001-3	02	1	0712-		●	●
8	05.809 HUB; RR AXLE (B)	8-98022-462-0	02	1	0712-	●
8	05.809 HUB; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B)	8-98022-462-0	02	1	0712-		●
8	05.809 HUB; RR AXLE 4HK1-TCS ENG(RJS) (A)	8-97250-321-1	02	1	0712-		●	●
8	05.809 HUB; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B)	8-98022-463-0	02	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X46 LH THREAD	8-98028-533-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 LH THREAD	8-98028-533-1	05	1	0712-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X46 RH THREAD	8-98028-532-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 RH THREAD	8-98028-532-1	05	1	0712-		●
9	05.812 PIN; WHEEL,RR AXLE 4HK1-TCS ENG(RJS) (A) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4HK1-TCS ENG(RJS) (A) M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B) M20X53 LH THREAD	8-97168-457-2	06	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B) M20X53 RH THREAD	8-97168-456-2	06	1	0712-		●	●
10	05.813 NUT; WHEEL PIN,RR AXLE 4HK1-TCS ENG(RJS) 07.172 M22	0-91110-522-0	12	1	0712-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0712-	●
15	05.855 BEARING; HUB OUTER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK	9-00093-082-0	02	1	0712-		●
15	05.855 BEARING; HUB OUTER,RR AXLE 4HK1-TCS ENG(RJS) NSK	9-00093-607-0	02	1	0712-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NSK	9-00093-607-0	02	1	0712-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0712-1207	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) TKK	8-94336-315-2	02	1	0712-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK	8-98202-911-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0712-1106	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK	8-94367-961-1	02	1	0712-1106		●
16	05.822 SEAL; OIL,RR HUB,OUTER 4HK1-TCS ENG(RJS) TKK	8-94336-317-2	02	1	0712-1207		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) TKK	8-94336-317-2	02	1	0712-1207		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4HK1-TCS ENG(RJS) NOK	8-98202-912-0	02	1	1208-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NOK	8-98202-912-0	02	1	1208-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4HK1-TCS ENG(RJS) NOK	8-94367-960-1	02	1	0712-1106		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NOK	8-94367-960-1	02	1	0712-1106		●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0712-1303	●
20	05.830 NUT; BRG,RR HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52	8-97137-092-0	02	1	0712-1303		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●
20	05.830 NUT; BRG,RR HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52	8-98236-850-0	02	1	1304-		●
20	05.830 NUT; BRG,RR HUB 4HK1-TCS ENG(RJS) M55	8-97137-094-0	02	1	0712-		●	●
20	05.830 NUT; BRG,RR HUB 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) M55	8-97137-094-0	02	1	0712-		●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0712-	●
21	05.830 WASHER; LK,BRG NUT 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) ID=52	9-09853-214-0	02	1	0712-		●
21	05.830 WASHER; LK,BRG NUT 4HK1-TCS ENG(RJS) ID=55	9-09653-002-0	02	1	0712-		●	●
21	05.830 WASHER; LK,BRG NUT 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) ID=55	9-09653-002-0	02	1	0712-		●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0712-	●	●	●
25	05.420 SHAFT; AXLE,RR L=804.5	8-97032-497-0	02	1	0712-	●
25	05.420 SHAFT; AXLE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) L=804.5	8-97032-497-0	02	1	0712-		●
25	05.420 SHAFT; AXLE,RR 4HK1-TCS ENG(RJS) L=885	8-97134-439-0	02	1	0712-		●	●
25	05.420 SHAFT; AXLE,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) L=830	8-94341-974-1	02	1	0712-		●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0712-	●	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0712-	●	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0712-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0712-	●
37	05.855 BEARING; HUB INNER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK	9-00093-081-0	02	1	0712-		●
37	05.855 BEARING; HUB INNER,RR AXLE 4HK1-TCS ENG(RJS) NSK	8-97122-938-0	02	1	0712-		●	●
37	05.855 BEARING; HUB INNER,RR AXLE 4HK1-TCS ENG(RJS) KOYO	8-97123-119-0	02	1	0712-		●	●
37	05.855 BEARING; HUB INNER,RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) NSK	9-00093-624-0	02	1	0712-		●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	0712-	●
38	05.822 SEAL; OIL,RR HUB,INNER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK	8-98037-080-0	02	1	0712-		●
38	05.822 SEAL; OIL,RR HUB,INNER 4HK1-TCS ENG(RJS) NOK	8-97122-937-0	02	1	0712-		●	●
38	05.822 SEAL; OIL,RR HUB,INNER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98037-081-0	02	1	0712-		●	●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-460-6	01	1	0712-	●
49	05.387 CASE; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98022-460-6	01	1	0712-		●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-459-6	01	1	0712-	●
49	05.387 CASE; RR AXLE 4HK1-TCS ENG(RJS)	8-97250-319-3	01	1	0712-		●	●
49	05.387 CASE; RR AXLE 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98022-461-5	01	1	0712-		●	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0712-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0712-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0712-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0712-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0712-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) M10X40 W/LK WASHER	0-50061-040-0	11	1	0712-0909	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> M10X40 W/LK WASHER	0-50061-040-0	11	1	0712-0909		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●
67	05.387 BOLT; FINAL DRIVE SETTING 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) M10X40 W/LK WASHER	0-50061-040-0	07	1	0712-0909		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) M10X50 W/LK WASHER	0-50061-050-0	04	1	0712-0909		●	●
67	05.387 BOLT; FINAL DRIVE SETTING 4HK1-TCS ENG(RJS) M10X50 W/LK WASHER	0-50561-050-0	04	1	0910-		●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0712-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0712-	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING 4HK1-TCS ENG(RJS) M14X40	8-98007-879-0	12	1	0712-		●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 4HK1-TCS ENG(RJS) 06.174 ID=14.2	0-91510-814-0	12	1	0712-		●	●
76	05.002 NUT; RR BRK ASM SETTING 4HK1-TCS ENG(RJS) 07.833 M14	0-91110-514-0	12	1	0712-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
