3-55 — BRAKE PIPING; OIL,REAR (#52801) — 143 parça

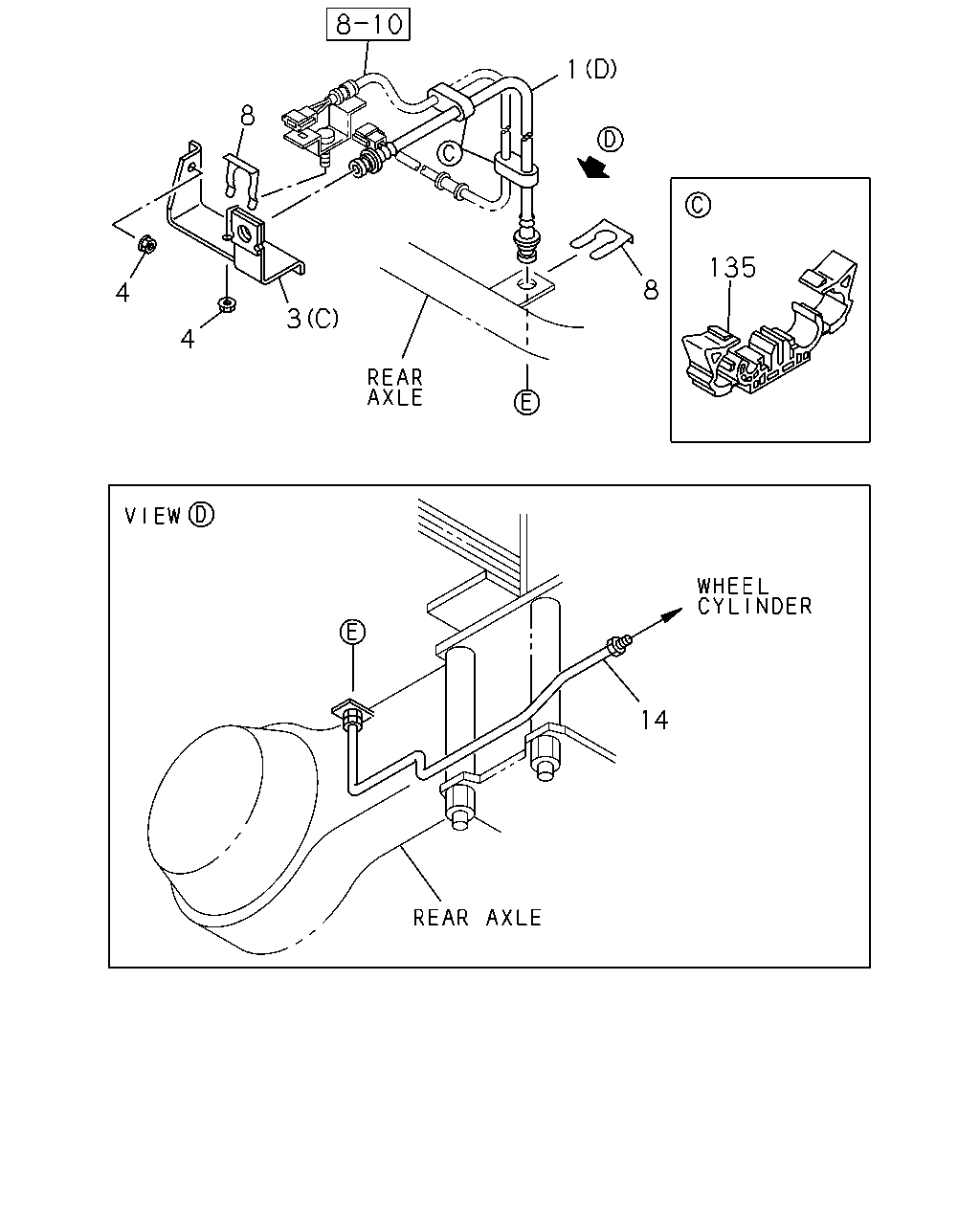

çizim 156403
1 8 135 8 4 4 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=310 		8-97035-063-1 01 1 0712- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL DISC BRAKE<JF9> (A) L=310 		8-97035-063-1 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345 		8-97230-284-1 01 1 0712- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98037-756-0 01 1 0712- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97253-569-0 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97253-570-0 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0712-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 04.845 (A) 		8-97205-199-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 0712- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98037-625-3 01 1 0712- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (E) 		8-98037-625-3 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98030-103-0 01 1 0712-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0712-0903 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98117-514-0 01 1 0904-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98117-514-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0712- ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 0712- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0712- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0712- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-462-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98027-462-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-040-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98026-040-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-039-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98026-045-0 01 1 0712- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98026-046-1 01 1 0712- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 0712-0802 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 0803- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 0712-0802 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 0803- ● ●
135 04.686 CLIP; FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0712- ● ●
çizim 156406
3 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0712-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 04.845 (A) 		8-97205-199-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 0712- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98037-625-3 01 1 0712- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (E) 		8-98037-625-3 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98030-103-0 01 1 0712-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0712-0903 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98117-514-0 01 1 0904-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98117-514-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0712-0906 ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0712-0906 ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0712-0906 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0712-0906 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0907-0907 ● ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0907-0907 ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0907-0907 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0907-0907 ● ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) M10 STRAIGHT 		0-92107-005-0 01 1 0908- ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0908- ●
25 04.686 CONNECTOR
4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0908- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0908- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0908- ● ●

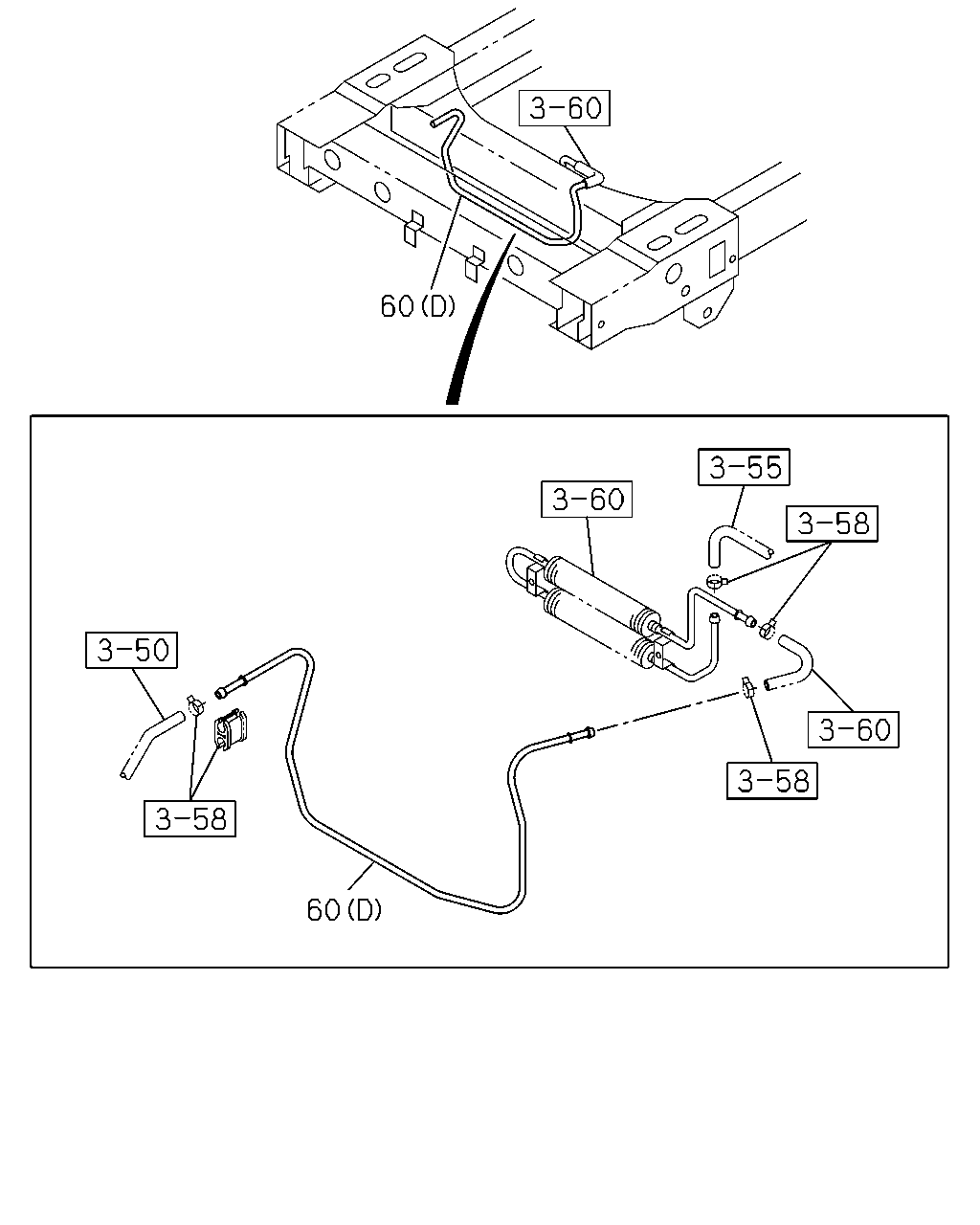

çizim 156407
60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0712-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0712-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0712-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0712-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0907- ●

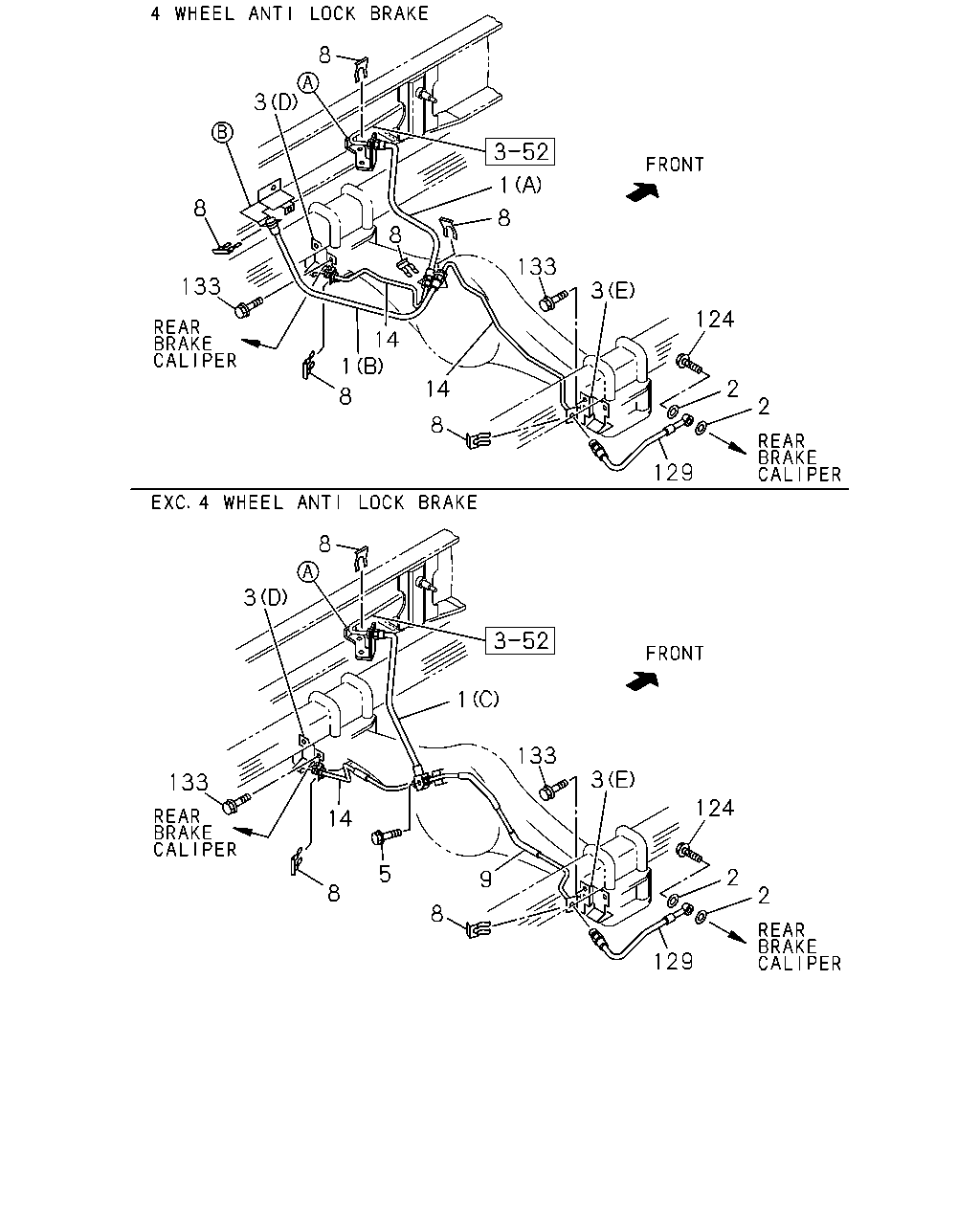

çizim 156410
8 3 1 8 8 8 133 133 3 124 14 1 2 14 8 2 8 129 8 3 1 133 3 133 124 14 5 2 9 8 2 8 129
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=310 		8-97035-063-1 01 1 0712- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL DISC BRAKE<JF9> (A) L=310 		8-97035-063-1 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345 		8-97230-284-1 01 1 0712- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98037-756-0 01 1 0712- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97253-569-0 01 1 0712- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97253-570-0 01 1 0712- ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0712- ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A) 		8-97205-199-1 01 1 0712-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 04.845 (A) 		8-97205-199-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (A) 		8-97205-199-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98037-626-3 01 1 0712- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98037-625-3 01 1 0712- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (E) 		8-98037-625-3 01 1 0712- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98030-103-0 01 1 0712-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98030-103-0 01 1 0712-0903 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-98117-514-0 01 1 0904-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98117-514-0 01 1 0904-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-98117-514-1 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98117-514-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0712-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 0907- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0712- ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 0712- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0712- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0712- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 01 1 0712- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-054-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-462-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98027-462-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-040-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98026-040-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-039-0 01 1 0712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98026-045-0 01 1 0712- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98026-046-1 01 1 0712- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 0712-0802 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 0803- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 0712-0802 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 0803- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4JJ1-TCS ENG(LFB) 04.681 M10X22 		8-98014-005-0 02 1 0712- ● ● ●
129 04.680 HOSE; FLEX,RR DISC
4JJ1-TCS ENG(LFB) 		8-98037-757-2 02 1 0712- ● ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 0712- ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 0712- ● ●
çizim 156411
60 118 60 60 118 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0712-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0712-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0712-0906 ● ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0907- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0712-0906 ●
60 04.685 PIPE ASM; BRK
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0907- ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0712-0906 ● ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0907-1001 ● ●
118 04.680 HOSE; PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
