Sayfa 3-75 - Isuzu EPC

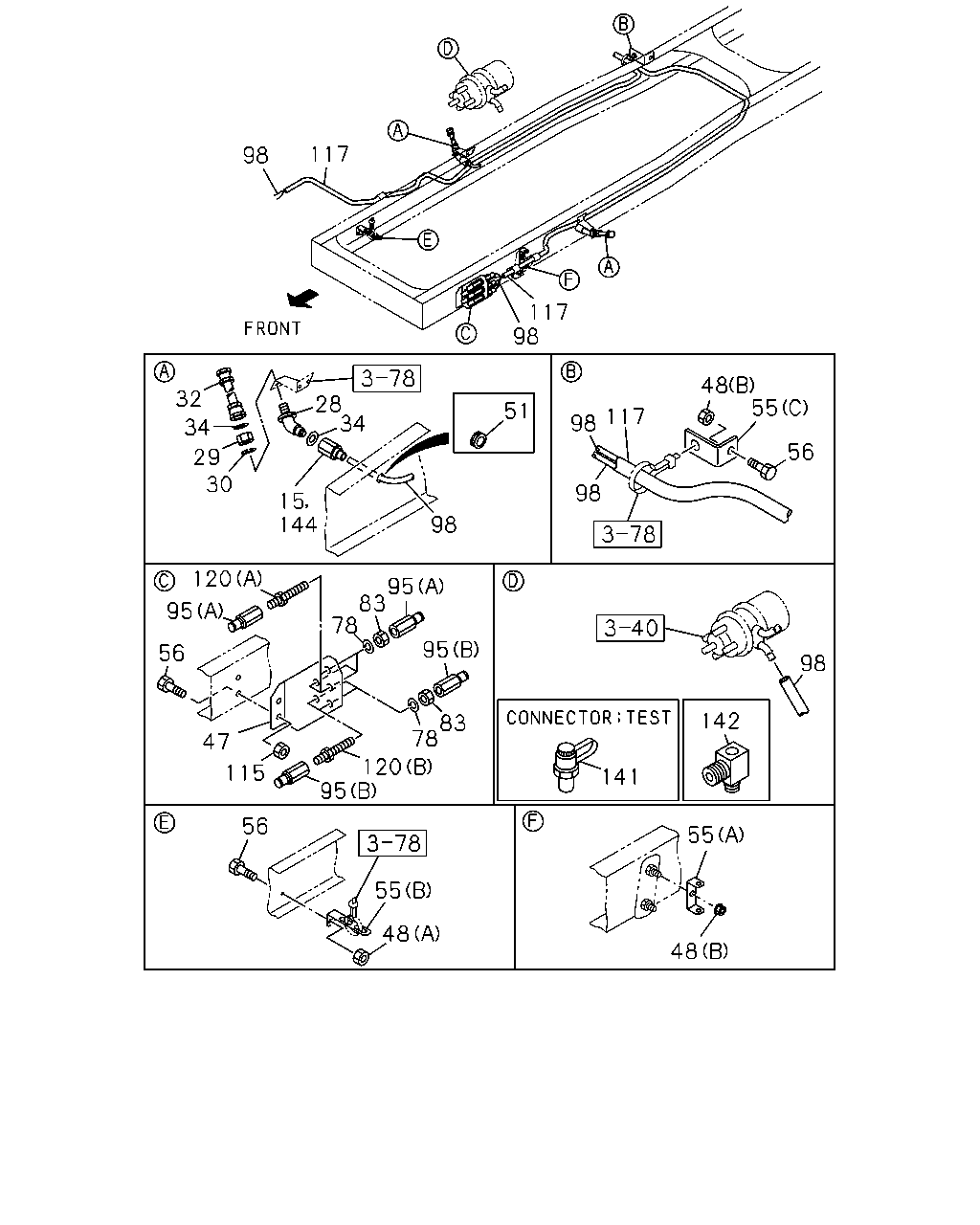

3-75 — BRAKE PIPING; AIR,FRONT (#5280) — 166 parça

117 98 117 98 48 55 32 28 34 51 117 98 34 56 29 30 98 15 144 98 120 95 83 78 95 95 56 98 142 83 78 47 115 120 95 141 56 55 55 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-9910	●	●
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9911-0007	●	●
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
15	CONNECTOR; AIR PIPE MUFFLER TWIN VERTICAL<NBS> DIN12 & M12 STRAIGHT	1-09661-098-0	02	1	9905-0007	●	●
15	CONNECTOR; AIR PIPE MUFFLER TWIN VERTICAL<NBS> DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	0008-	●	●
28	NIPPLE; AIR PIPE M20	1-09654-199-2	02	1	9603-9910	●	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	1-09654-199-2	02	1	9911-	●	●
29	NUT; NIPPLE M20	9-99111-420-0	02	1	9603-9910	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9911-	●	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9603-9910	●	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9911-	●	●
32	HOSE; FLEX,FRT L=500	0-07847-500-1	02	1	9603-9910	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	9911-	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9603-9910	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	04	1	9911-	●	●
47	BRACKET; PIPE UNION	1-47477-601-2	01	1	9603-9904	●	●
47	BRACKET; PIPE UNION	1-47477-601-2	01	1	9905-9910	●
47	BRACKET; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47477-601-2	01	1	9905-9910		●
47	BRACKET; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6>	1-47477-601-2	01	1	9905-9910		●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-601-2	01	1	9911-	●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47477-601-2	01	1	9911-		●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6>	1-47477-601-2	01	1	9911-		●
48	NUT; UNION BRKT (A),(B) M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> (A),(B) M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-0103	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	01	1	0104-	●	●
48	NUT; UNION BRKT (B) M8	9-09110-508-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT (B) M12 FLANGE	0-91150-212-0	01	1	9611-9910	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 FLANGE	0-91150-212-0	01	1	9911-	●	●
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	02	1	9607-9910	●	●
51	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9911-	●	●
55	BRACKET; TUBE UNION (C)	1-47477-694-0	01	1	9603-9910	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47477-694-0	01	1	9911-	●	●
55	BRACKET; TUBE UNION (A)	1-47477-895-1	01	1	9611-9910	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-895-1	01	1	9911-	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> (B) L=100 H=30	1-47477-645-2	01	1	9603-0103	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=100 H=30	1-47477-645-2	01	1	0104-	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> M8X35 FLANGE	0-28680-835-0	01	1	9607-0103	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	0104-	●	●
56	BOLT; UNION BRKT M10X35 FLANGE	0-28081-035-0	02	1	9603-9606	●	●
56	BOLT; UNION BRKT M10X40 FLANGE	0-28681-040-0	02	1	9607-9910	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE	0-28681-040-0	02	1	9911-	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9910	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9911-	●	●
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9905-9910	●
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=14.2	9-09150-514-0	01	1	9905-9910		●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9911-	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> ID=14.2	9-09150-514-0	01	1	9911-		●
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) ID=16.2	9-09150-516-0	01	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9905-9910	●
78	WASHER; LK,PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	01	1	9905-9910		●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	01	1	9911-	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	01	1	9911-		●
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5) ID=14.2	9-09150-514-0	03	1	9603-9904		●
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=14.2	9-09150-514-0	03	1	9905-9910		●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=14.2	9-09150-514-0	03	1	9911-		●
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5) ID=16.2	9-09150-516-0	02	1	9603-9904		●
78	WASHER; LK,PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=16.2	9-09150-516-0	02	1	9905-9910		●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ID=16.2	9-09150-516-0	02	1	9911-		●
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M14	9-99111-414-0	01	1	9603-9904	●	●
83	NUT; PIPE UNION M14	9-99111-414-0	01	1	9905-9910	●
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M14	9-99111-414-0	01	1	9905-9910		●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9911-	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> M14	9-99111-414-0	01	1	9911-		●
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M16	9-99111-416-0	01	1	9603-9904	●	●
83	NUT; PIPE UNION M16	9-99111-416-0	01	1	9905-9910	●
83	NUT; PIPE UNION EXC. FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	01	1	9905-9910		●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	01	1	9911-	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	01	1	9911-		●
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5) M14	9-99111-414-0	03	1	9603-9904		●
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M14	9-99111-414-0	03	1	9905-9910		●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M14	9-99111-414-0	03	1	9911-		●
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5) M16	9-99111-416-0	02	1	9603-9904		●
83	NUT; PIPE UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M16	9-99111-416-0	02	1	9905-9910		●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M16	9-99111-416-0	02	1	9911-		●
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9904	●	●
95	ADAPTER; BRKT (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9905-9910	●
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9905-9910		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-		●
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9603-9904	●	●
95	ADAPTER; BRKT (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9905-9910	●
95	ADAPTER; BRKT EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9905-9910		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9911-0007	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9911-0007		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-		●
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	9603-9904		●
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	06	1	9905-9910		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	06	1	9911-0007		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	0008-		●
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	9603-9904		●
95	ADAPTER; BRKT FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9905-9910		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9911-0007		●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-		●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9804-	●	●
115	NUT; TUBE UNION M10	9-09110-410-0	02	1	9603-9606	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9804-	●	●
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M14	9-09223-308-1	01	1	9603-9904	●	●
120	UNION; AIR PIPE (A) M14	9-09223-308-1	01	1	9905-9910	●
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	9905-9910		●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-09223-308-1	01	1	9911-	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	9911-		●
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 L=74	9-09233-310-1	01	1	9603-9904	●	●
120	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	9905-9910	●
120	UNION; AIR PIPE EXC. FULL TRACTOR TRUCK<RD6> (B) M16 L=74	9-09233-310-1	01	1	9905-9910		●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=74	9-09233-310-1	01	1	9911-	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) M16 L=74	9-09233-310-1	01	1	9911-		●
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (A) M14	9-09223-308-1	03	1	9603-9904		●
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	9905-9910		●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	9911-		●
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M16 L=74	9-09233-310-1	02	1	9603-9904		●
120	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	02	1	9905-9910		●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	02	1	9911-		●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LININGMATERIAL NON ASBESTOS<SKR>	1-47459-013-0	01	1	9603-9904		●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-013-0	01	1	9905-9910		●
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-013-0	01	1	9911-	●	●
142	UNION; 3-WAY INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,BRAKE LININGMATERIAL NON ASBESTOS<SKR>	1-09660-838-0	01	1	9603-9904		●
142	UNION; 3-WAY INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-09660-838-0	01	1	9905-9910		●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-09660-838-0	01	1	9911-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-9910	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9911-0007	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●

98 117 98 117 98 117 50 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29 OD=39 L=40	1-09337-013-0	02	1	9911-0103	●	●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=50	1-09337-014-0	02	1	0104-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9804-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
