Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#52799) — 211 parça

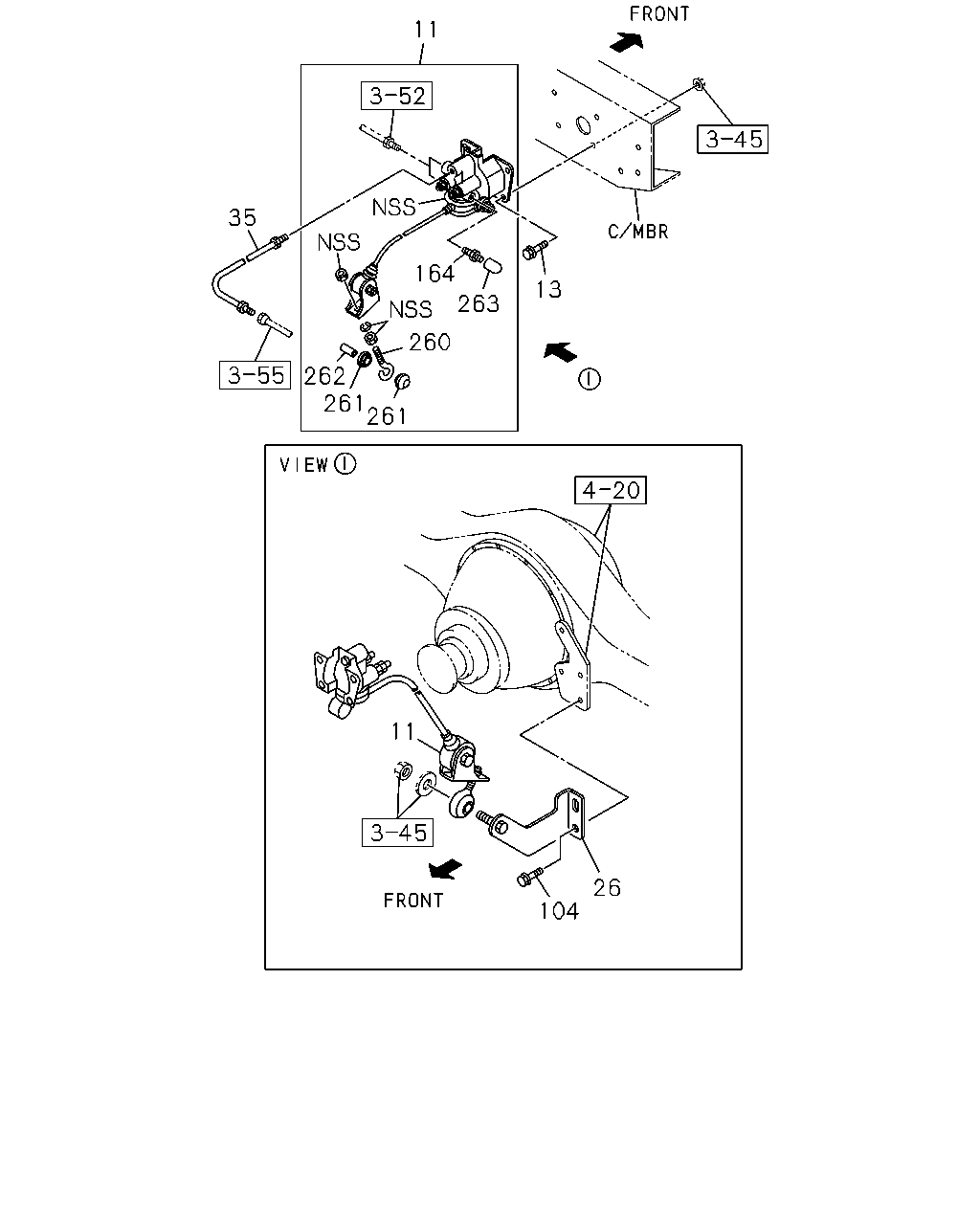

35 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> 04.730	8-94368-455-2	01	1	0712-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97389-541-2	01	1	0712-0906	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97389-541-2	01	1	0907-	●

11 35 164 13 263 260 262 261 261 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> 04.730	8-94368-455-2	01	1	0712-	●
13	04.686 BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-	●
26	04.730 BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH>	8-98029-822-0	01	1	0712-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97389-541-2	01	1	0712-0906	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97389-541-2	01	1	0907-	●
104	04.730 BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
164	04.730 SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	0712-	●
260	04.685 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97173-366-0	01	1	0712-	●
261	04.685 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97145-631-0	02	1	0712-	●
262	04.685 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97139-186-0	01	1	0712-	●
263	04.685 CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	0712-	●

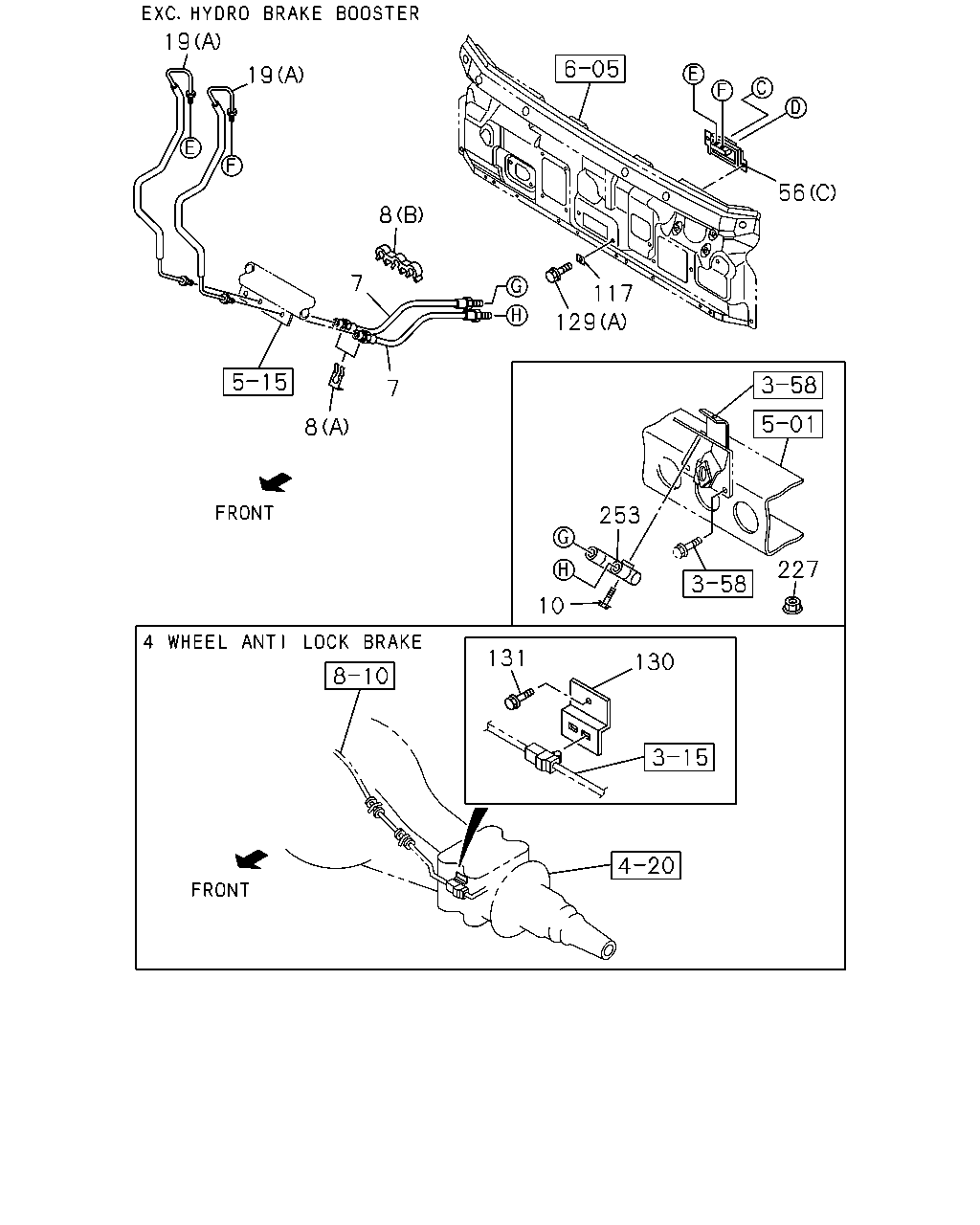

19 19 56 8 7 117 129 7 8 253 227 10 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0712-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0712-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0712-	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0712-0906	●	●	●
10	04.686 BOLT; JOINT 4JJ1-TCS ENG(LFB) 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0907-	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0712-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0712-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0712-0906	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0712-0906		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) (A)	8-97389-366-1	02	1	0907-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0712-0906		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0712-0812		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-		●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-282-1	01	1	0712-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-282-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-265-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1006-		●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0712-1005	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98077-185-2	01	1	0712-0812		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0901-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-		●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0712-	●	●	●
129	04.710 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-0809	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0712-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-0906		●	●
129	04.710 BOLT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0907-		●	●
130	04.686 BRACKET; SPEED SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97080-060-2	02	1	0712-		●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0712-	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0712-		●	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-0906	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-0906		●	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-0906		●	●
227	04.685 NUT; JOINT 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●
227	04.685 NUT; JOINT 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-		●	●
227	04.685 NUT; JOINT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-		●	●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	0712-0906	●
253	04.840 JOINT 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	0907-	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	0712-0906	●
253	04.840 JOINT	8-97038-940-1	01	1	0712-0906		●	●
253	04.840 JOINT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	0907-	●
253	04.840 JOINT	8-97038-940-1	01	1	0907-		●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0712-0906	●
253	04.840 JOINT 4JJ1-TCS ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0907-	●

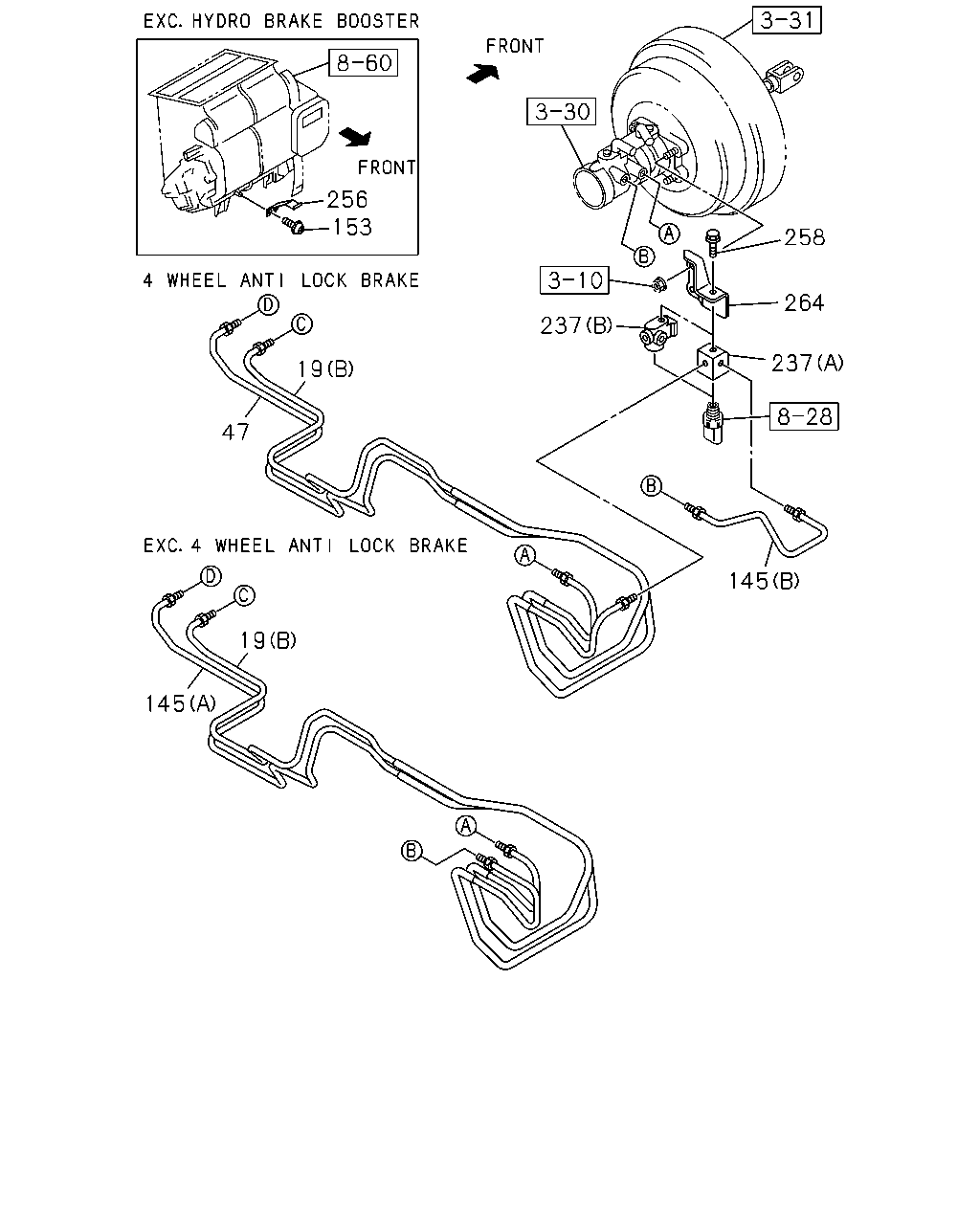

256 153 258 264 237 237 19 47 145 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0712-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0712-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0712-0906	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0712-0906		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) (A)	8-97389-366-1	02	1	0907-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0712-0906		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0712-0812		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-		●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98005-586-3	01	1	0712-0906	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98005-586-3	01	1	0712-0906		●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	0907-	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98070-480-2	01	1	0712-0812		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1150	8-98098-681-0	01	1	0901-0906		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98042-422-0	01	1	0712-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-422-0	01	1	0712-0906		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201	8-98133-407-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	0907-		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97389-295-3	01	1	0712-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98075-345-0	01	1	0712-0906		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	0907-		●	●
153	04.730 SCREW; BRKT FIX 04.681 M5X12 TAPPING	0-72180-512-0	01	1	0712-0808	●	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 M5X12 TAPPING	0-72180-512-0	01	1	0809-1001	●	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 M5X12 TAPPING	0-72180-512-0	01	1	1002-	●	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98007-865-3	01	1	0712-0906	●
237	04.840 CONNECTOR; MODULATOR (A)	8-98007-865-3	01	1	0712-0906		●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	0907-	●
237	04.840 CONNECTOR; MODULATOR (B)	8-98111-748-1	01	1	0907-		●	●
256	04.840 BRACKET; BRK PIPE	8-98034-784-1	01	1	0712-0808	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0809-1001	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-	●	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-		●	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0712-	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0712-		●	●

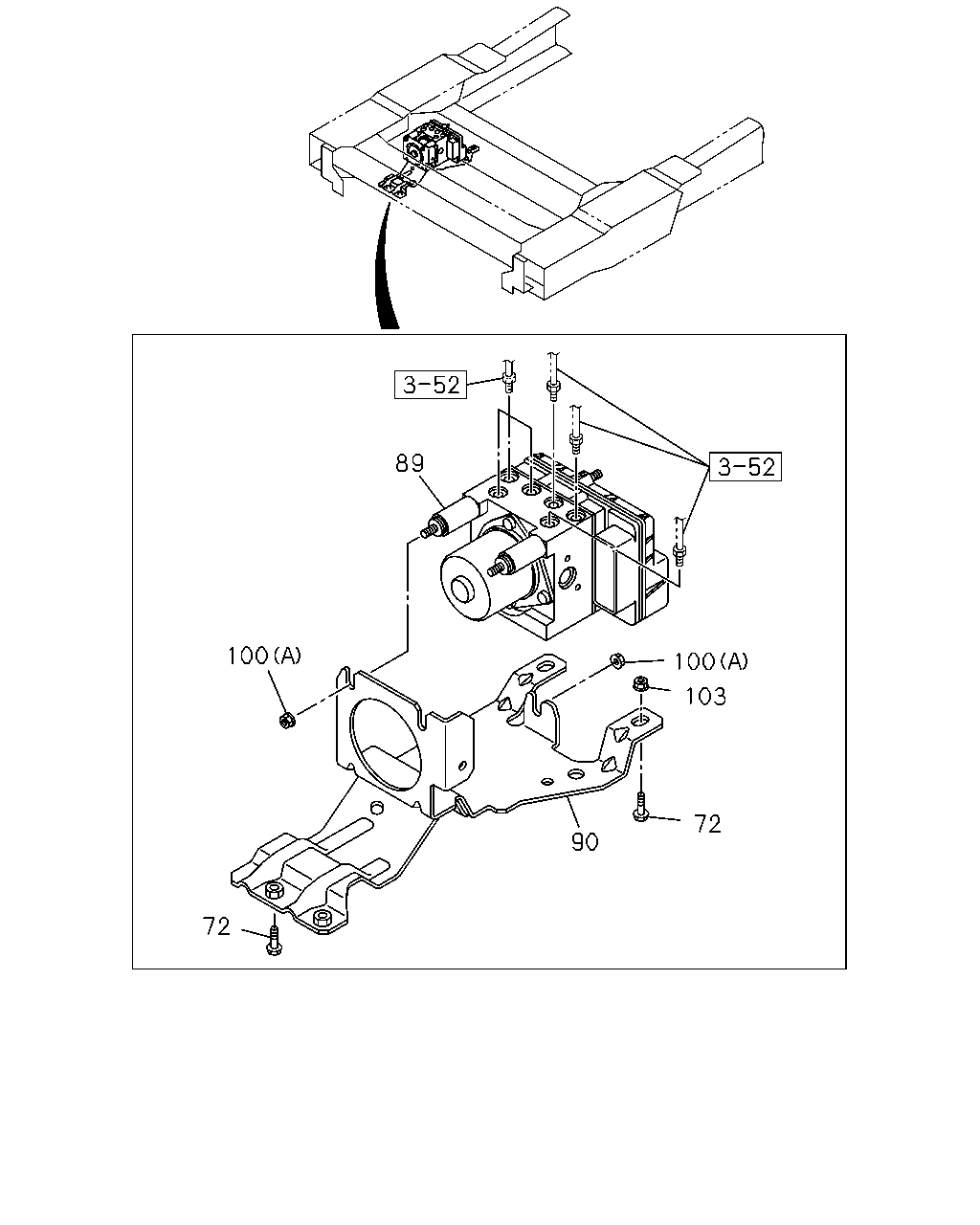

89 100 100 103 72 90 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0712-	●
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0712-		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98081-564-1	01	1	0712-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL DISC BRAKE<JF9>	8-98081-564-1	01	1	0712-1006		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-009-1	01	1	1007-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL DISC BRAKE<JF9>	8-98158-009-1	01	1	1007-		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98081-563-1	01	1	0712-1006		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-1	01	1	1007-		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98081-562-1	01	1	0712-1006		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-1	01	1	1007-		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98081-561-1	01	1	0712-1006		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1007-		●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	0712-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	0712-		●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0712-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0712-		●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0712-		●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●	●

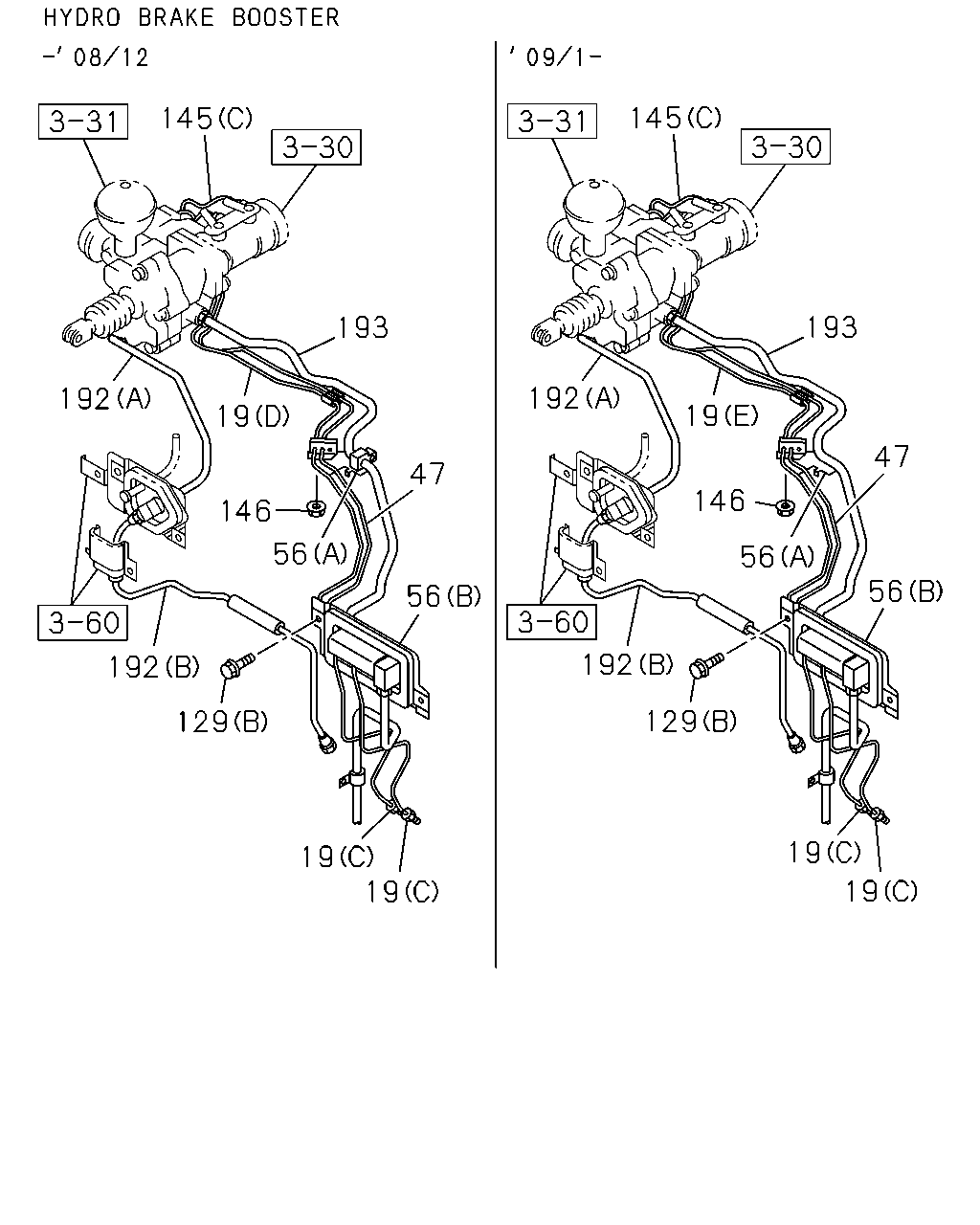

145 145 193 193 192 192 19 19 47 47 146 146 56 56 56 56 192 192 129 129 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0712-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0712-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0712-0906	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0712-0906		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) (A)	8-97389-366-1	02	1	0907-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0712-0906		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0907-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0712-0812		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-		●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98005-586-3	01	1	0712-0906	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98005-586-3	01	1	0712-0906		●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	0907-	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98070-480-2	01	1	0712-0812		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1150	8-98098-681-0	01	1	0901-0906		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-		●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-282-1	01	1	0712-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-282-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-265-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1006-		●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0712-1005	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98077-185-2	01	1	0712-0812		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0901-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0712-1005		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-		●	●
129	04.710 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-0809	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0712-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-0906		●	●
129	04.710 BOLT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0907-		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98042-422-0	01	1	0712-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-422-0	01	1	0712-0906		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201	8-98133-407-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	0907-		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97389-295-3	01	1	0712-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98075-345-0	01	1	0712-0906		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	0907-		●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0712-		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-052-1	01	1	0712-1103		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1104-		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98101-746-0	01	1	0712-0808		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	0809-		●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98067-717-1	01	1	0712-0812		●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	0901-		●	●

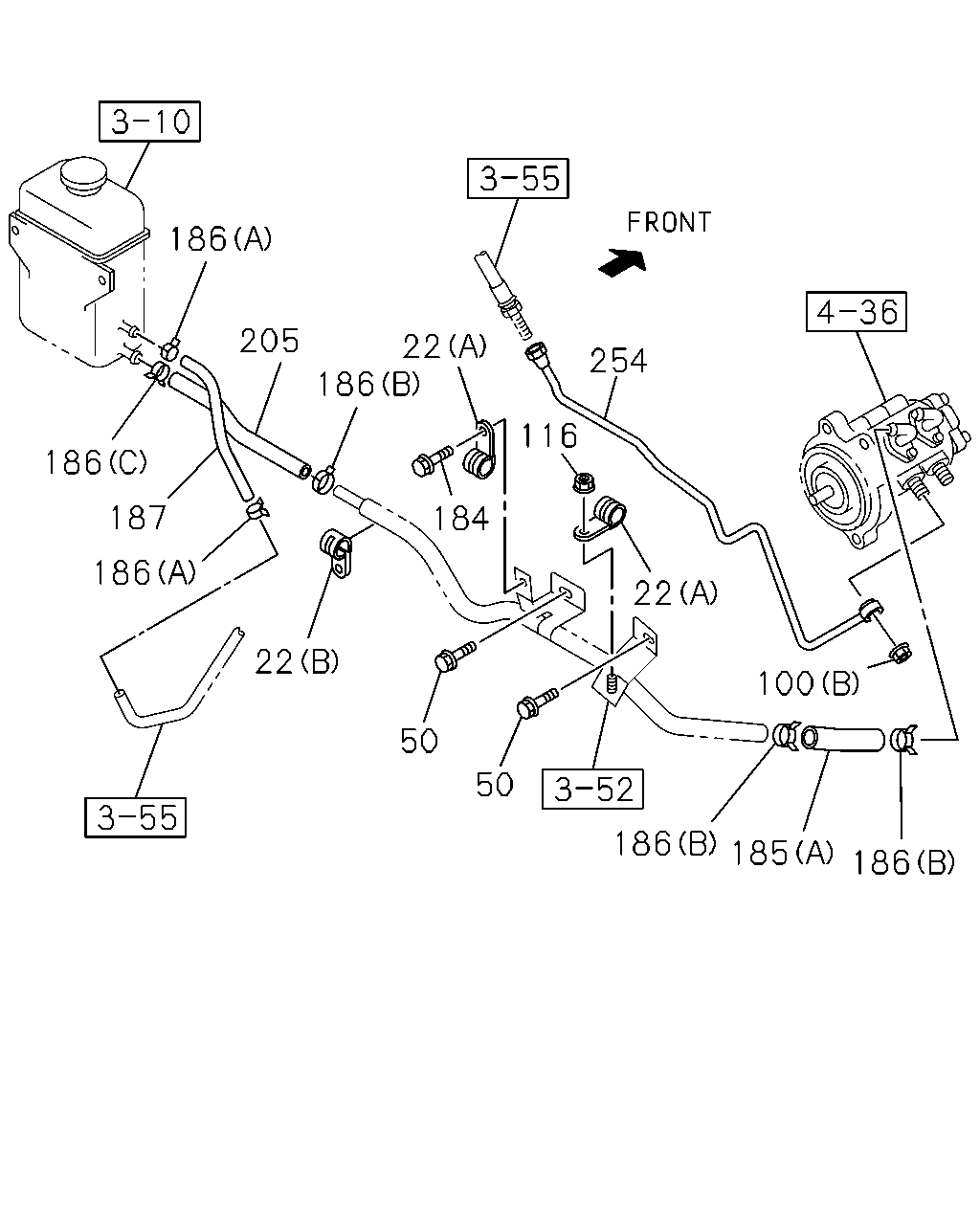

186 205 22 186 254 116 186 187 184 186 22 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.685 CLIP 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0712-		●	●
22	04.685 CLIP 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	0712-		●	●
50	04.710 BOLT; PIPE 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0712-		●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0712-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0712-		●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0712-		●	●
116	04.686 NUT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-0808		●	●
116	04.686 NUT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0809-		●	●
184	04.681 BOLT; CLIP 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0809-		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0712-0906		●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0907-		●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0712-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16	8-94238-568-0	02	1	0712-0906		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	01	1	0712-0906		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	01	1	0907-0911		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	01	1	0912-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22	8-94382-401-0	01	1	0712-0906		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22	8-94382-401-0	01	1	0907-1003		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22	8-97359-141-0	01	1	1004-		●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	02	1	0712-		●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0712-0906		●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0907-		●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0712-0906			●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0907-			●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0712-0906		●
205	04.681 HOSE; TANK TO PIPE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0907-		●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 L=200 SERVICED BY L=300	0-09814-300-0	01	1	0712-0906			●
205	04.681 HOSE; TANK TO PIPE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 L=200 SERVICED BY L=300	0-09814-300-0	01	1	0907-			●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	0712-		●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-98053-548-0	01	1	0712-			●

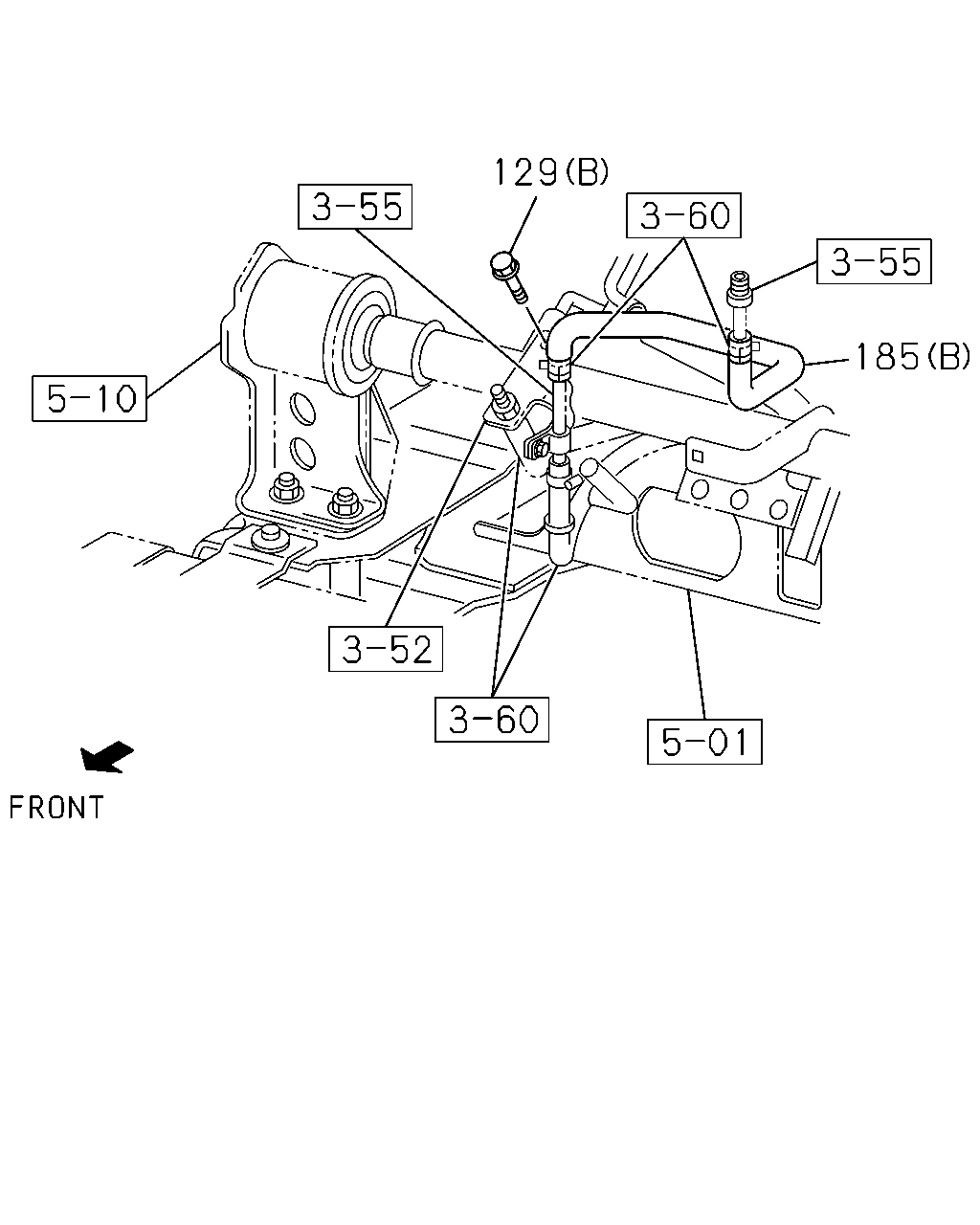

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	04.710 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-0809	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0712-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-0906		●	●
129	04.710 BOLT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0907-		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0712-0906		●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0907-		●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0712-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
