3-11 — PARKING BRAKE CONTROL (#52793) — 254 parça

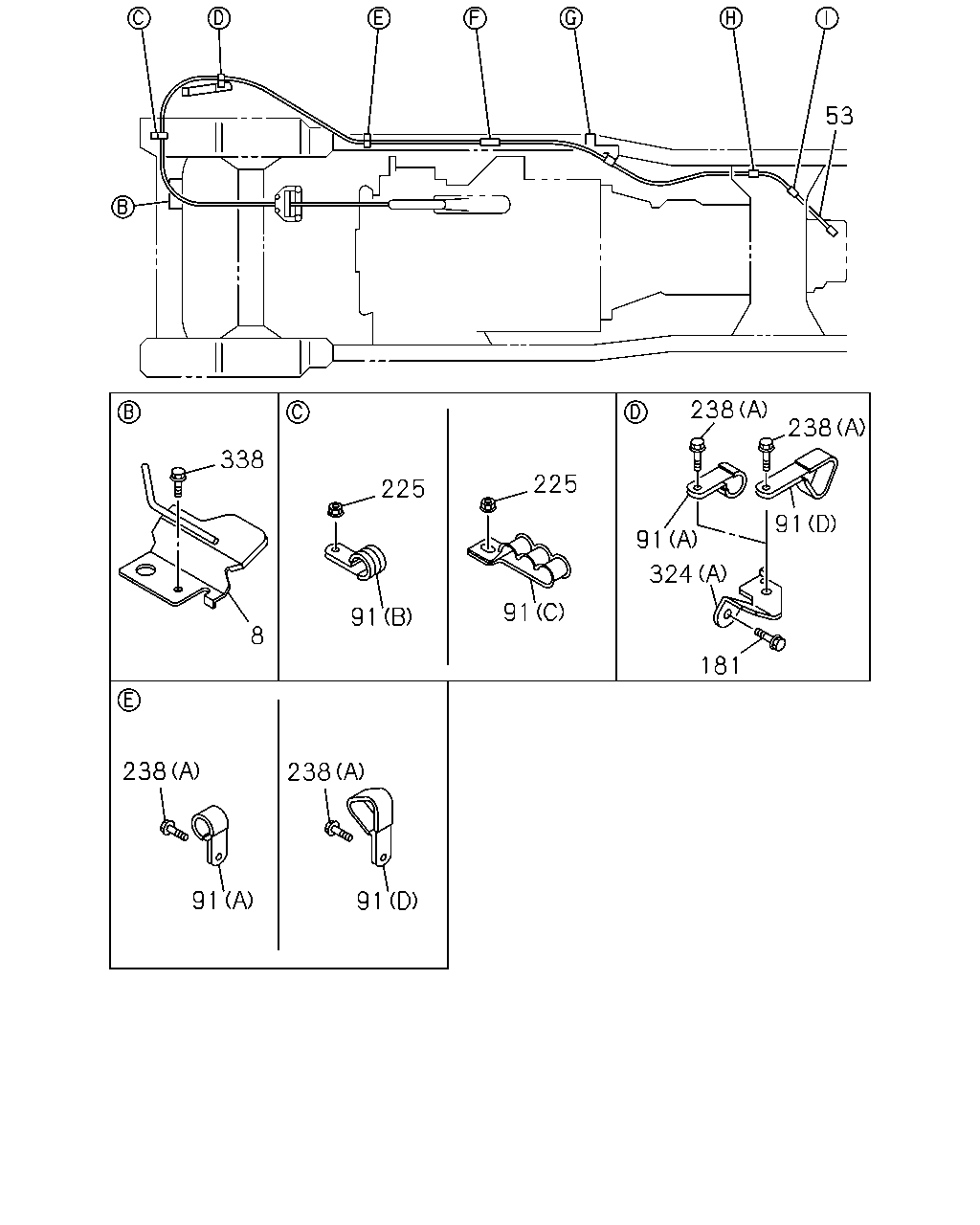

çizim 156759
53 238 238 338 225 225 91 91 324 91 91 8 181 238 238 91 91
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK 8-98096-374-0 01 1 0712- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-120-2 01 1 0712-0802 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 0712- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 0712-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 0712-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-316-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-232-3 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98023-698-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-98023-697-0 01 1 0712- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 0712- ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 0712- ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 0712- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98087-330-1 01 1 0712- ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98014-921-0 01 1 0712-0909 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98014-921-0 01 1 0910- ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 0712- ● ● ●

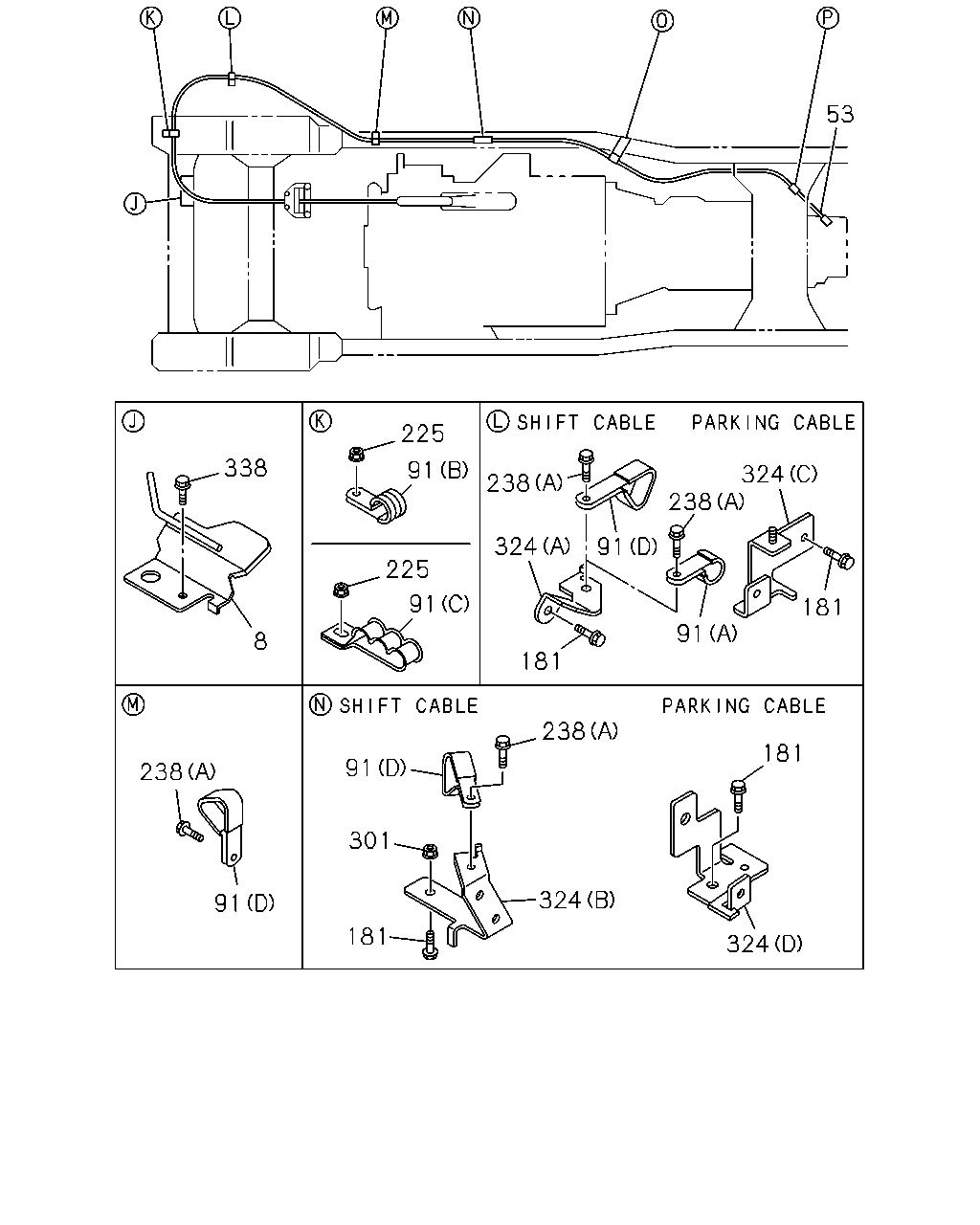

çizim 156761
53 225 338 91 324 238 238 324 91 225 91 181 91 8 181 238 181 91 238 301 324 91 181 324
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK 8-98096-374-0 01 1 0712- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-120-2 01 1 0712-0802 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 0712- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 0712-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 0712-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-316-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-232-3 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98023-698-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-98023-697-0 01 1 0712- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 0712- ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 0712- ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 0712- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98087-330-1 01 1 0712- ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98014-921-0 01 1 0712-0909 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98014-921-0 01 1 0910- ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 0712- ● ● ●

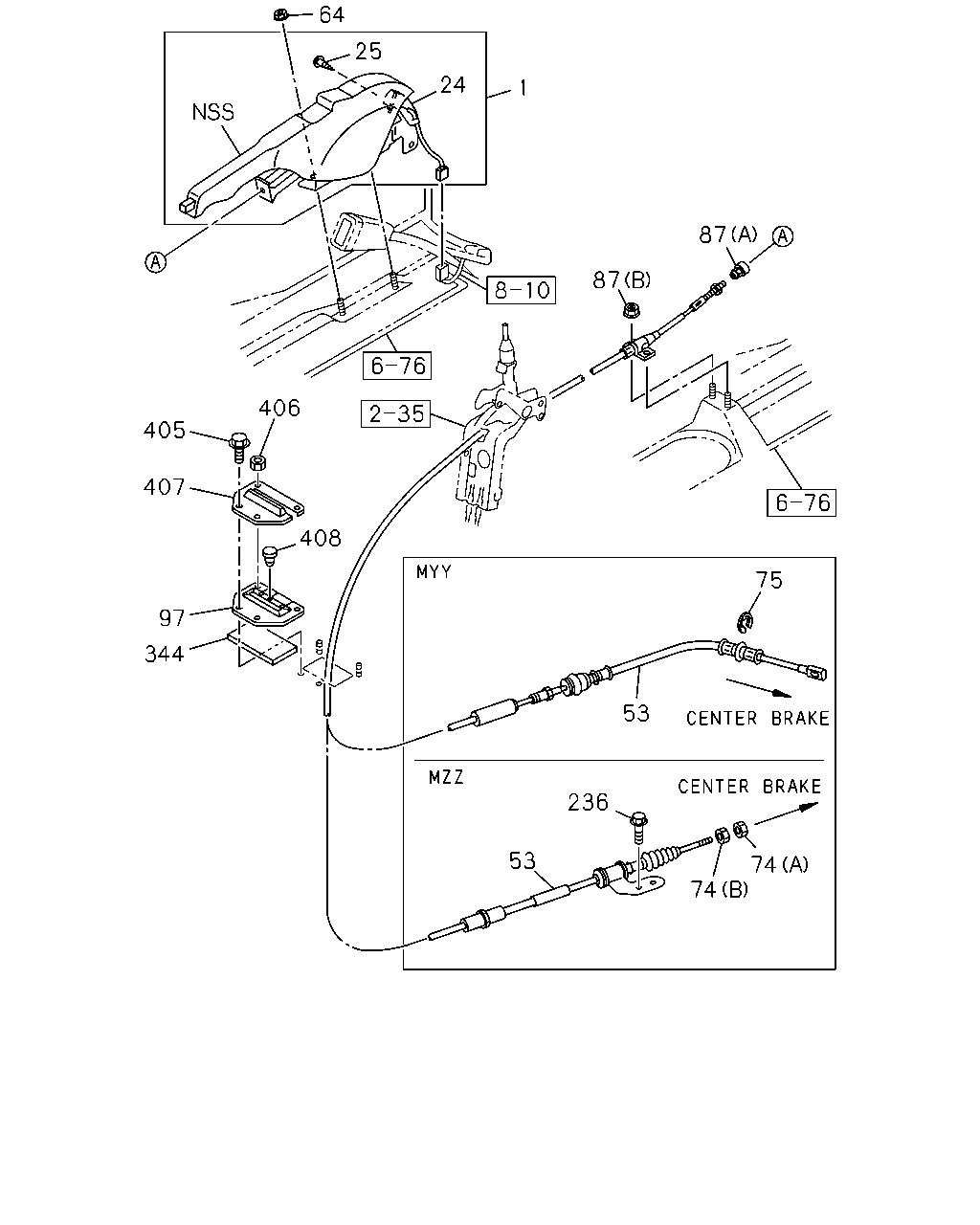

çizim 156762
64 25 24 1 87 87 406 405 407 408 75 97 344 53 236 53 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 0712-1303 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0712-1303 ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0712- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0712-0906 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-120-2 01 1 0712-0802 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 0712- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 0712-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 0712-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-316-3 01 1 0712- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-232-3 01 1 0712- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0712- ● ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 0712- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 0712- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5T(RSM),M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 0712- ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0712- ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0712- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 0712- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0712- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0712- ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0712- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0712- ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 0712- ● ● ●

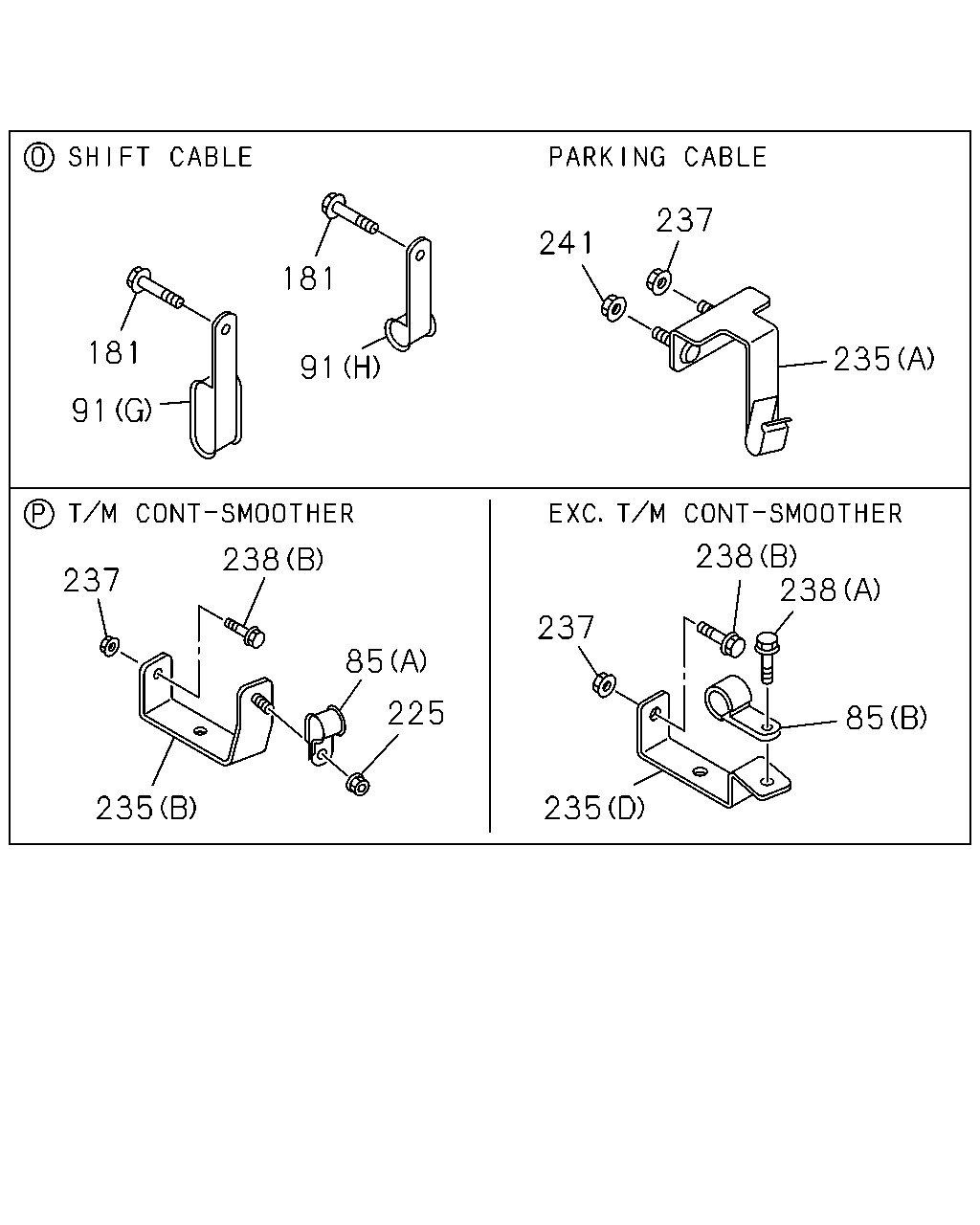

çizim 156765
237 241 181 181 235 91 91 238 238 238 237 237 85 225 85 235 235
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 0712- ● ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 		1-09701-012-0 01 1 0712- ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=20 		0-95235-236-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98023-698-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-98023-697-0 01 1 0712- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98034-410-3 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98034-410-3 01 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98033-907-0 01 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98033-907-0 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98033-907-0 01 1 0712- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
çizim 156766
238 91 181 324 238 91 241 87 237 85 225 235 368 223
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 0712- ● ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 		1-09701-012-0 01 1 0712- ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=20 		0-95235-236-0 01 1 0712- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0712- ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97036-332-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 0712- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-98023-698-0 01 1 0712- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-98023-697-0 01 1 0712- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0712- ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 0712- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98034-410-3 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98034-410-3 01 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98033-907-0 01 1 0712- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98033-907-0 01 1 0712- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98033-907-0 01 1 0712- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 0712- ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 0712- ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 0712- ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98087-330-1 01 1 0712- ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98014-921-0 01 1 0712-0909 ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98014-921-0 01 1 0910- ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 0712- ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
