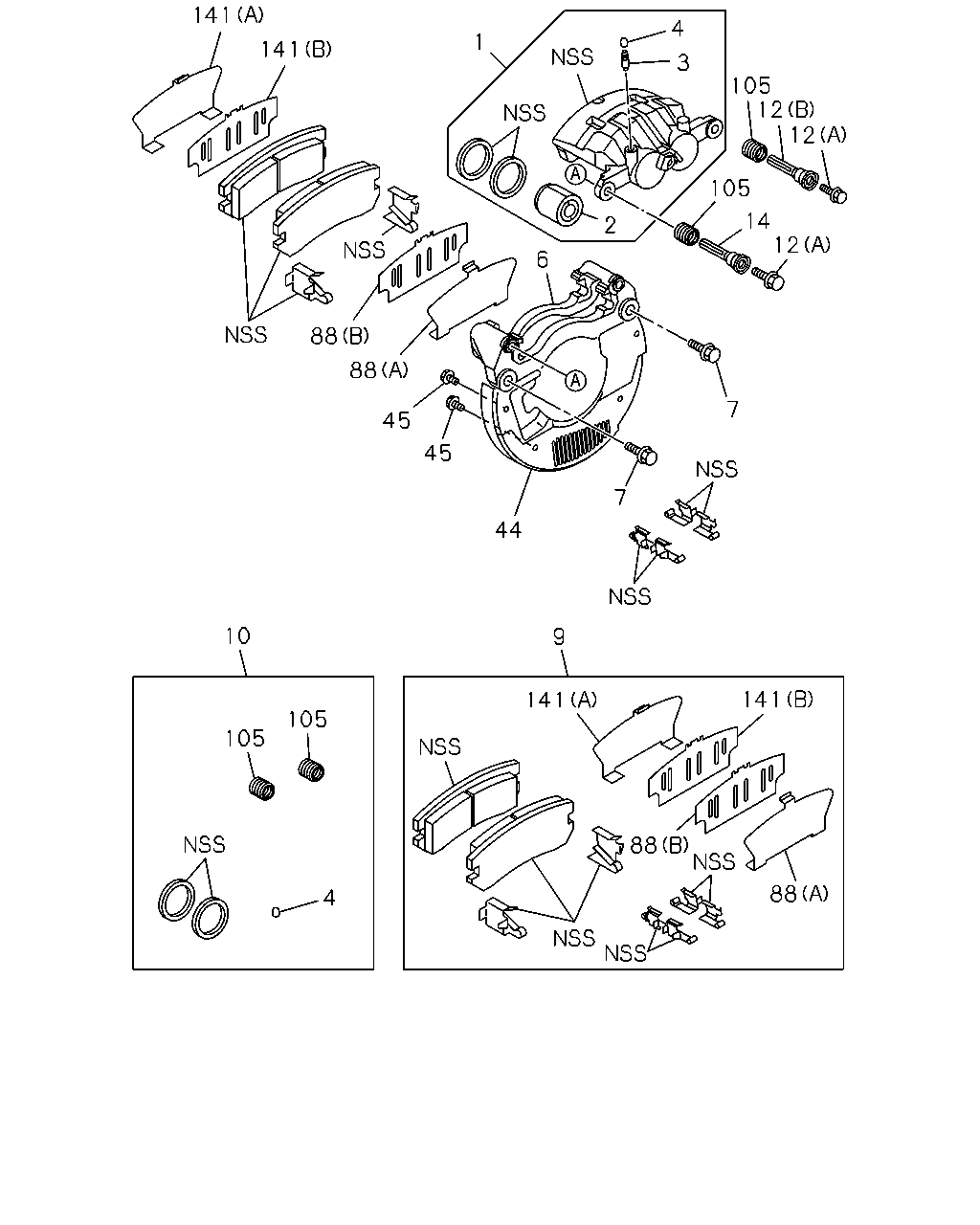

3-06 — REAR DISC BRAKE CALIPER (#52790) — 61 parça

141 4 1 141 3 105 12 12 105 14 12 2 6 88 88 7 45 45 7 44 10 9 141 141 105 105 88 88 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.665 CALIPER; RR DISC BRK	8-98082-926-0	01	1	0712-	●
1	04.665 CALIPER; RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98082-926-0	01	1	0712-		●
1	04.665 CALIPER; RR DISC BRK	8-98082-925-0	01	1	0712-	●
1	04.665 CALIPER; RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98082-925-0	01	1	0712-		●
1	04.665 CALIPER; RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98089-671-0	01	1	0712-1310		●	●
1	04.665 CALIPER; RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98251-565-0	01	1	1311-		●	●
1	04.665 CALIPER; RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98089-670-0	01	1	0712-1310		●	●
1	04.665 CALIPER; RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98251-564-0	01	1	1311-		●	●
2	04.665 PISTON; CALIPER,RR	8-98082-934-0	04	1	0712-	●
2	04.665 PISTON; CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98082-934-0	04	1	0712-		●
2	04.665 PISTON; CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 04.668	8-97365-269-0	04	1	0712-		●	●
3	04.665 SCREW; BLEEDER,CALIPER,RR 4JJ1-TCS ENG(LFB) 04.666	8-98050-476-0	02	1	0712-	●
3	04.665 SCREW; BLEEDER,CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-476-0	02	1	0712-		●	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4JJ1-TCS ENG(LFB) 04.666	8-98050-479-0	02	1	0712-	●
4	04.665 CAP; BLEEDER SCREW,CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> 04.666	8-98050-479-0	02	1	0712-		●	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK	8-98082-935-0	02	1	0712-	●
6	04.665 BRACKET; SUPPORT,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98082-935-0	02	1	0712-		●
6	04.665 BRACKET; SUPPORT,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98089-674-0	02	1	0712-		●	●
7	04.665 BOLT; DISC BRK 4JJ1-TCS ENG(LFB) 04.681 M16X48 FLANGE	8-98033-656-0	04	1	0712-	●
7	04.665 BOLT; DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE	8-98033-656-0	04	1	0712-		●	●
9	04.667 PAD KIT; CALIPER,RR 05.017	8-98091-271-0	01	1	0712-1212	●
9	04.667 PAD KIT; CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.017	8-98091-271-0	01	1	0712-1212		●
9	04.667 PAD KIT; CALIPER,RR 05.017	8-98216-921-0	01	1	1301-	●
9	04.667 PAD KIT; CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.017	8-98216-921-0	01	1	1301-		●
9	04.667 PAD KIT; CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 05.017	8-97329-266-0	01	1	0712-1212		●	●
9	04.667 PAD KIT; CALIPER,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 05.017	8-98216-922-0	01	1	1301-		●	●
10	04.665 REPAIR KIT; DISC BRK,RR	8-98120-359-0	01	1	0712-	●
10	04.665 REPAIR KIT; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98120-359-0	01	1	0712-		●
10	04.665 REPAIR KIT; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 04.667	8-98120-357-0	01	1	0712-1310		●	●
10	04.665 REPAIR KIT; DISC BRK,RR 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) 04.667	8-98248-904-0	01	1	1311-		●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4JJ1-TCS ENG(LFB) (A)	8-97365-264-0	04	1	0712-	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> (A)	8-97365-264-0	04	1	0712-		●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK (B)	8-98047-532-0	02	1	0712-	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B)	8-98047-532-0	02	1	0712-		●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B)	8-98047-531-0	02	1	0712-1310		●	●
12	04.665 PIN; RET,CALIPER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B)	8-98248-005-0	02	1	1311-		●	●
14	04.665 PIN; GUIDE,CALIPER	8-98047-530-0	02	1	0712-	●
14	04.665 PIN; GUIDE,CALIPER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT)	8-98047-530-0	02	1	0712-		●
14	04.665 PIN; GUIDE,CALIPER 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6)	8-98047-529-0	02	1	0712-		●	●
44	04.665 COVER; DUST 4JJ1-TCS ENG(LFB)	8-98083-525-0	01	1	0712-	●
44	04.665 COVER; DUST 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>	8-98083-525-0	01	1	0712-		●	●
44	04.665 COVER; DUST 4JJ1-TCS ENG(LFB)	8-98083-524-0	01	1	0712-	●
44	04.665 COVER; DUST 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>	8-98083-524-0	01	1	0712-		●	●
45	04.665 BOLT; DUST COVER SET 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0712-	●
45	04.665 BOLT; DUST COVER SET 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	0712-		●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK (A)	8-98092-330-0	02	1	0712-	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (A)	8-98092-330-0	02	1	0712-		●
88	04.665 SHIM; PAD INNER,RR DISC BRK (B)	8-98092-331-0	02	1	0712-	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B)	8-98092-331-0	02	1	0712-		●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (A)	8-97321-116-0	02	1	0712-		●	●
88	04.665 SHIM; PAD INNER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B)	8-97321-117-0	02	1	0712-		●	●
105	04.665 BOOT; PIN 4JJ1-TCS ENG(LFB)	8-97365-265-0	04	1	0712-0901	●
105	04.665 BOOT; PIN 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>	8-97365-265-0	04	1	0712-0901		●	●
105	04.665 BOOT; PIN 4JJ1-TCS ENG(LFB)	8-98120-354-0	04	1	0902-	●
105	04.665 BOOT; PIN 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9>	8-98120-354-0	04	1	0902-		●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK (A)	8-98092-330-0	02	1	0712-	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (A)	8-98092-330-0	02	1	0712-		●
141	04.665 SHIM; PAD OUTER,RR DISC BRK (B)	8-98092-331-0	02	1	0712-	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B)	8-98092-331-0	02	1	0712-		●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (A)	8-97321-116-0	02	1	0712-		●	●
141	04.665 SHIM; PAD OUTER,RR DISC BRK 4JJ1-TCS ENG(LFB) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/9(HC6) (B)	8-97321-117-0	02	1	0712-		●	●
