3-05 — REAR WHEEL BRAKE (#52789) — 34 parça

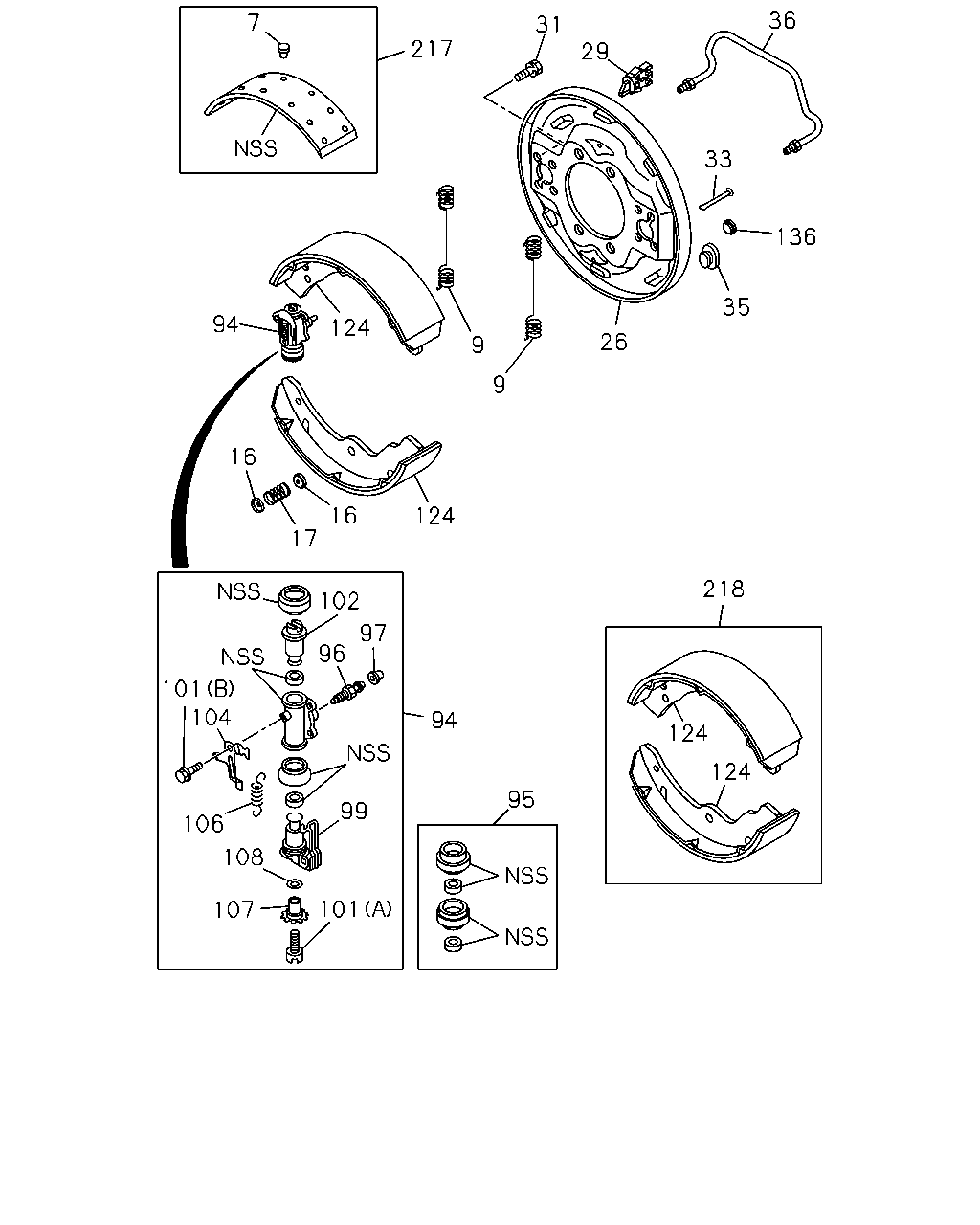

çizim 156755
36 7 31 217 29 33 136 35 94 124 26 9 9 16 16 124 17 218 102 97 96 101 104 94 124 124 95 99 106 108 101 107
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK
4HK1-TCS ENG(RJS) 		1-09732-029-0 64 1 0712- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HK1-TCS ENG(RJS) 		8-97122-869-0 04 1 0712- ● ●
16 05.043 CUP; SHOE HOLDING
4HK1-TCS ENG(RJS) 		9-47165-096-0 08 1 0712- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
4HK1-TCS ENG(RJS) 05.043 		5-09580-101-1 04 1 0712- ● ●
26 05.001 PLATE; BACK,RR BRK
4HK1-TCS ENG(RJS) 		8-97207-158-0 01 1 0712- ● ●
26 05.001 PLATE; BACK,RR BRK
4HK1-TCS ENG(RJS) 		8-97207-157-0 01 1 0712- ● ●
29 04.685 CLIP; PIPE,BRK
4HK1-TCS ENG(RJS) 		8-97022-086-0 02 1 0712- ● ●
31 04.665 BOLT; RR WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97081-305-0 16 1 0712- ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HK1-TCS ENG(RJS) 		8-97122-870-0 04 1 0712- ● ●
35 05.002 GROMMET; CHECK HOLE
4HK1-TCS ENG(RJS) 		8-97017-507-0 06 1 0712- ● ●
36 04.685 PIPE; OIL,RR BRK
4HK1-TCS ENG(RJS) 		8-97192-215-0 02 1 0712- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCS ENG(RJS) REAR 		8-97358-878-0 01 1 0712- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCS ENG(RJS) FRONT 		8-97358-880-0 01 1 0712- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCS ENG(RJS) REAR 		8-97358-879-0 01 1 0712- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCS ENG(RJS) FRONT 		8-97358-881-0 01 1 0712- ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HK1-TCS ENG(RJS) 		5-87832-051-0 02 1 0712- ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4HK1-TCS ENG(RJS) 		8-98050-477-0 02 1 0712- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4HK1-TCS ENG(RJS) 		8-98050-479-0 02 1 0712- ● ●
99 04.668 PISTON; RR WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97349-731-0 02 1 0712- ● ●
99 04.668 PISTON; RR WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97349-732-0 02 1 0712- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HK1-TCS ENG(RJS) (B) 		8-97349-747-0 04 1 0712- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HK1-TCS ENG(RJS) (A) 		8-97349-741-0 02 1 0712- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HK1-TCS ENG(RJS) (A) 		8-97349-742-0 02 1 0712- ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97332-043-0 04 1 0712- ● ●
104 05.103 LEVER; ADJ
4HK1-TCS ENG(RJS) 		8-97349-743-0 02 1 0712- ● ●
104 05.103 LEVER; ADJ
4HK1-TCS ENG(RJS) 		8-97349-744-0 02 1 0712- ● ●
106 05.107 SPRING; ADJ LEVER
4HK1-TCS ENG(RJS) 		8-97349-745-0 04 1 0712- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HK1-TCS ENG(RJS) 04.665 		8-97358-894-0 02 1 0712- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HK1-TCS ENG(RJS) 04.665 		8-97358-895-0 02 1 0712- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4HK1-TCS ENG(RJS) 		8-97349-736-0 04 1 0712- ● ●
124 05.017 SHOE ASM; BRK,RR
4HK1-TCS ENG(RJS) 		8-97188-455-0 04 1 0712- ● ●
136 05.002 GROMMET
4HK1-TCS ENG(RJS) 04.670 		1-47154-008-0 04 1 0712- ● ●
217 05.018 LINING KIT; RR BRK
4HK1-TCS ENG(RJS) 		5-87831-692-0 01 1 0712- ● ●
218 05.017 SHOE KIT; BRK,RR
4HK1-TCS ENG(RJS) 		5-87831-693-0 01 1 0712- ● ●
