3-01 — FRONT WHEEL BRAKE (#52787) — 92 parça
çizim 156750
66 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0806- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0712- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0712- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0712- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0712- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0712-0805 ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0806- ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0712- ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 0712- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0712-0805 ● ●

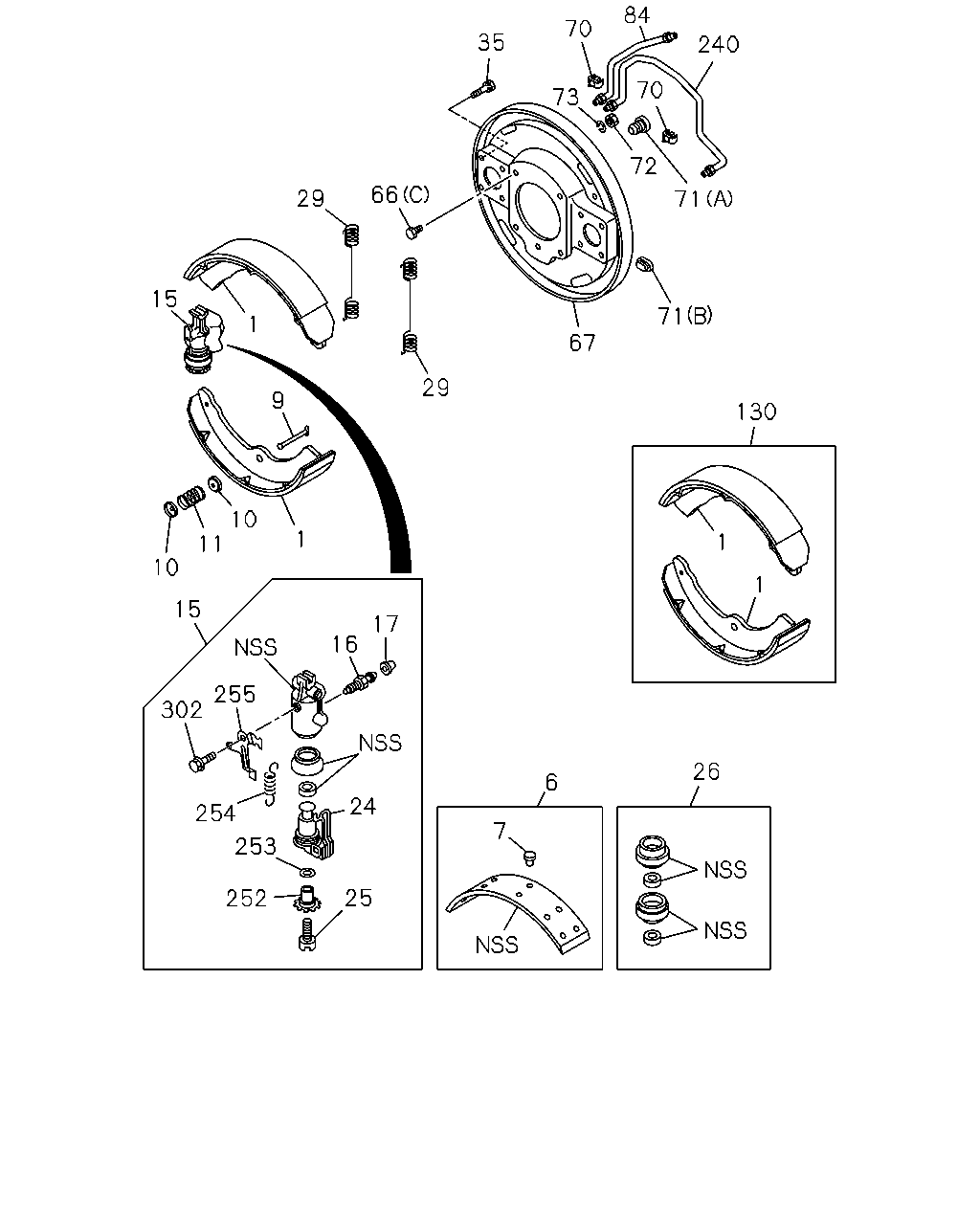

çizim 156752
84 70 35 240 70 73 72 66 29 71 15 71 1 67 29 9 130 10 1 1 11 10 1 15 17 16 255 302 26 6 24 254 7 253 25 252
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97188-455-0 04 1 0806- ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97188-455-0 04 1 0712-0805 ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87831-692-0 01 1 0806- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87831-692-0 01 1 0712-0805 ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		1-09732-029-0 64 1 0806- ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		1-09732-029-0 64 1 0712-0805 ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		8-97122-870-0 04 1 0806- ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		8-97122-870-0 04 1 0712-0805 ● ●
10 05.043 CUP; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		9-47165-096-0 08 1 0806- ● ●
10 05.043 CUP; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		9-47165-096-0 08 1 0712-0805 ● ●
11 05.027 SPRING; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		5-09580-101-1 04 1 0806- ● ●
11 05.027 SPRING; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.043 		5-09580-101-1 04 1 0712-0805 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-98081-290-0 01 1 0806- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-98081-291-0 01 1 0806- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-98081-292-0 01 1 0806- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-98081-293-0 01 1 0806- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-98081-290-0 01 1 0712-0805 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRONT 		8-98081-291-0 01 1 0712-0805 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-98081-292-0 01 1 0712-0805 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> REAR 		8-98081-293-0 01 1 0712-0805 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0806- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0712-0805 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0806- ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0712-0805 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97349-731-0 02 1 0806- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97349-732-0 02 1 0806- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97349-731-0 02 1 0712-0805 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97349-732-0 02 1 0712-0805 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-97349-741-0 02 1 0806- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-97349-742-0 02 1 0806- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-97349-741-0 02 1 0712-0805 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-97349-742-0 02 1 0712-0805 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.665 		5-87832-051-0 01 1 0806- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.665 		5-87832-051-0 01 1 0712-0805 ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97122-869-0 04 1 0806- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97122-869-0 04 1 0712-0805 ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0806- ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0712-0805 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0806- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0712- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0712- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0712- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0712- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0712-0805 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-868-0 01 1 0806- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-869-0 01 1 0806- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-869-0 01 1 0712-0805 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-868-0 01 1 0712-0805 ● ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0806- ● ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0712-0805 ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.670 (A) 		1-47154-008-0 04 1 0806- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97017-507-0 06 1 0806- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.670 (A) 		1-47154-008-0 04 1 0712-0805 ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97017-507-0 06 1 0712-0805 ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0806- ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0712- ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 0712- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0712-0805 ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0806- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0712-0805 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0806- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0806- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0712-0805 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0712-0805 ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87831-693-0 01 1 0806- ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		5-87831-693-0 01 1 0712-0805 ● ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0806- ● ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0712-0805 ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-894-0 02 1 0806- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-895-0 02 1 0806- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-894-0 02 1 0712-0805 ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97358-895-0 02 1 0712-0805 ● ●
253 04.665 WASHER; THRUST
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.110 		8-97349-736-0 04 1 0806- ● ●
253 04.665 WASHER; THRUST
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.110 		8-97349-736-0 04 1 0712-0805 ● ●
254 04.665 SPRING; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.107 		8-97349-745-0 04 1 0806- ● ●
254 04.665 SPRING; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.107 		8-97349-745-0 04 1 0712-0805 ● ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.103 		8-97349-743-0 02 1 0806- ● ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.103 		8-97349-744-0 02 1 0806- ● ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.103 		8-97349-743-0 02 1 0712-0805 ● ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.103 		8-97349-744-0 02 1 0712-0805 ● ●
302 04.665 SCREW; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-97349-747-0 04 1 0806- ● ●
302 04.665 SCREW; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-97349-747-0 04 1 0712-0805 ● ●
