3-58 — FIXING PARTS; OIL PIPING (#5278) — 98 parça

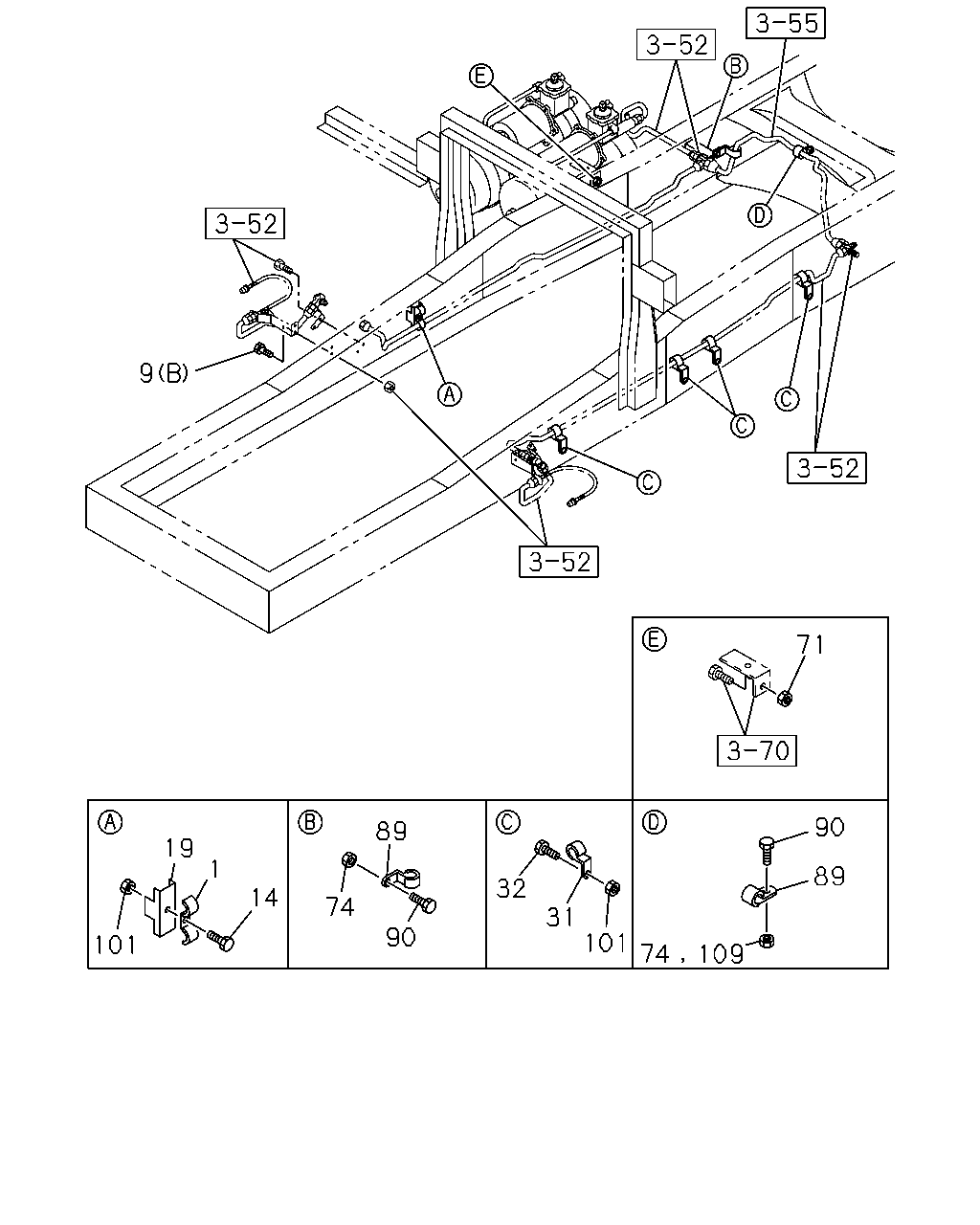

9 71 90 89 19 1 89 32 14 74 31 90 101 101 74 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9911-0004	●	●
1	CLIP; OIL PIPE TO BODY L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0005-	●	●
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	02	1	9911-0003	●
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X35 FLANGE	0-28680-835-0	02	1	9911-0003	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X35 FLANGE	0-28680-835-0	02	1	9911-0003		●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0004-		●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●	●
9	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28080-816-0	04	1	9905-9910	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28080-816-0	04	1	9911-	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9911-0004	●	●
14	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	0005-	●	●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	9911-0004	●	●
19	BRACKET; OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	0005-	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	9911-0001	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	0002-	●	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	03	1	9911-0001	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	04	1	0002-0003	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X30 FLANGE	0-28680-830-0	04	1	0004-	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	03	1	9911-0001	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	03	1	9911-0001		●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	04	1	0002-0003	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	04	1	0002-0003		●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X35 FLANGE	0-28680-835-0	04	1	0004-	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X35 FLANGE	0-28680-835-0	04	1	0004-		●
71	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-0004	●	●
74	NUT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0005-	●	●
89	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8 H=20 L=20	1-09700-604-0	01	1	9911-	●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	9911-0004	●	●
89	CLIP; OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	0005-	●	●
89	CLIP; OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-	●	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	9911-0003	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X30 FLANGE	0-28680-830-0	02	1	0004-0004	●
90	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X30 FLANGE	0-28680-830-0	02	1	0005-	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	02	1	9911-0003	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	02	1	9911-0003		●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X35 FLANGE	0-28680-835-0	02	1	0004-0004	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X35 FLANGE	0-28680-835-0	02	1	0004-0004		●
90	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X35 FLANGE	0-28680-835-0	02	1	0005-	●
90	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> M8X35 FLANGE	0-28680-835-0	02	1	0005-		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9911-	●	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	9911-	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9911-0001	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	0002-0004	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0005-	●	●
101	NUT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0005-	●	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-	●	●

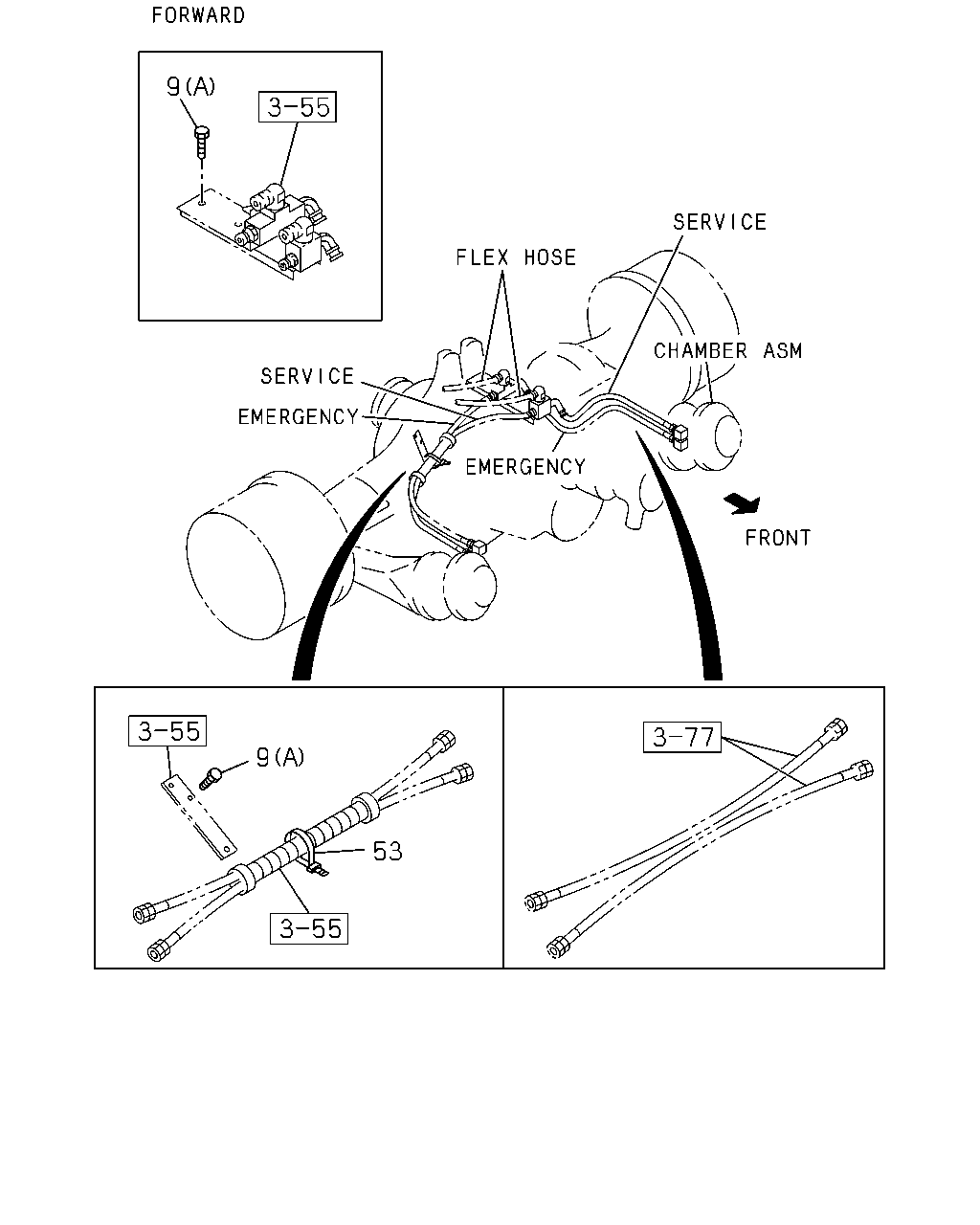

9 9 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	02	1	9911-0003	●
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X35 FLANGE	0-28680-835-0	02	1	9911-0003	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X35 FLANGE	0-28680-835-0	02	1	9911-0003		●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0004-	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0004-		●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●	●
9	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28080-816-0	04	1	9905-9910	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28080-816-0	04	1	9911-	●	●
53	CLIP; UNION L=250	1-09707-126-0	01	1	9603-9904	●	●
53	CLIP; UNION EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> L=250	1-09707-126-0	01	1	9905-9910	●	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> L=250	1-09707-126-0	01	1	9911-	●	●

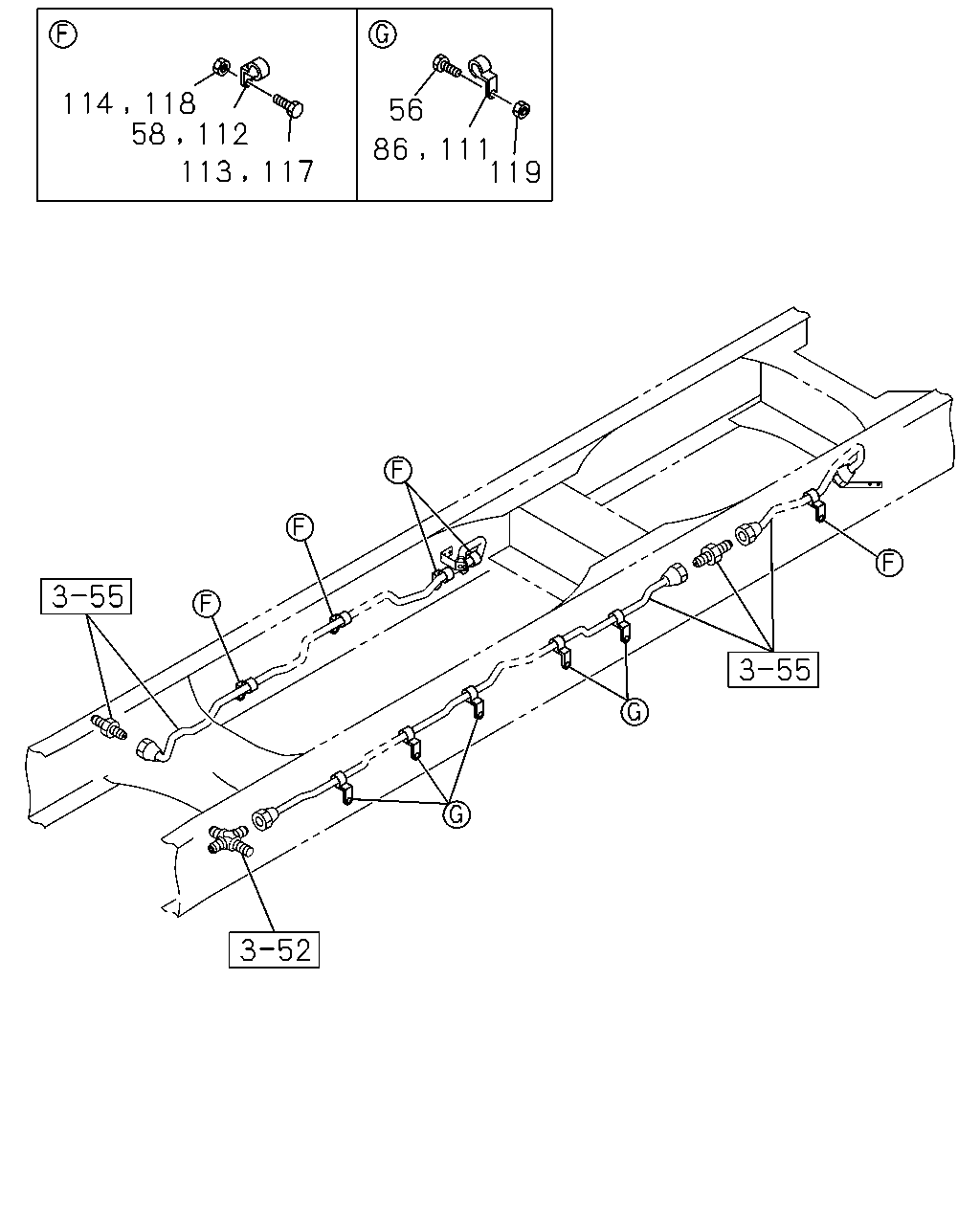

58 112 56 86 111 119 113 117 114 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	BOLT; CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	05	1	9911-	●	●
56	BOLT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	9911-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9911-9911	●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=6 H=20 L=20	1-09700-603-0	04	1	9911-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9911-	●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-9911	●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> ID=6 H=20 L=20	1-09700-603-0	01	1	9911-	●
58	CLIP; OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	07	1	9911-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	11	1	9911-		●
86	CLIP; OIL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	9911-	●	●
86	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9911-		●
111	CLIP; OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	9911-	●	●
112	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	9911-		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	9911-		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9911-	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	04	1	9911-	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9911-9911	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	01	1	9911-	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	07	1	9911-	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28680-840-0	11	1	9911-		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9911-9911	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	04	1	9911-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9911-	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-9911	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	01	1	9911-	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	07	1	9911-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	11	1	9911-		●
119	NUT; CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	9911-	●	●
119	NUT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9911-		●

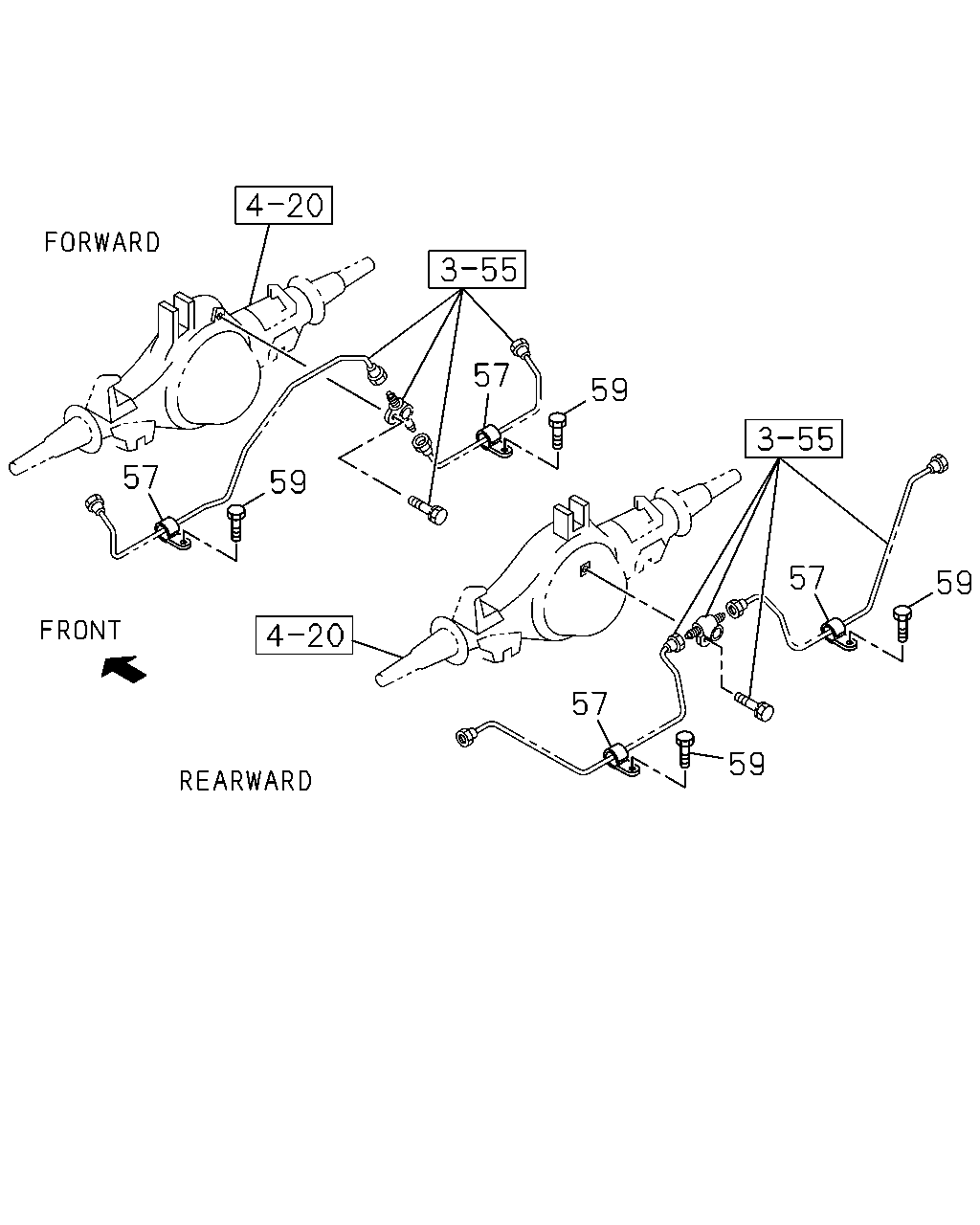

57 59 57 59 57 59 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	9911-	●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9911-	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	03	1	9911-9911	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	03	1	9912-	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9911-9911	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	04	1	9912-	●	●
