Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#52777) — 160 parça

1 8 5 5 1 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	0803-0803	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	0804-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	0804-0804	●	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	0805-0809	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	0810-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-97384-098-2	01	1	0803-1012	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98167-677-1	01	1	1101-1310	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98258-268-0	01	1	1311-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98068-178-1	01	1	0803-1212	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98227-170-0	01	1	1301-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0803-0803	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0804-0804	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0804-0804	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0805-0809	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0805-0809	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0810-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0810-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0803-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0803-0803	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0804-0804	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0804-0804	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0804-0804			●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0805-0809	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0805-0809	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0805-0809			●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0810-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0810-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0810-			●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0803-1203	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-	●	●

1 8 5 5 8 5 1 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	0803-0803	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	0804-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	0804-0804	●	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	0805-0809	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	0810-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-97384-098-2	01	1	0803-1012	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98167-677-1	01	1	1101-1310	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98258-268-0	01	1	1311-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98068-178-1	01	1	0803-1212	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98227-170-0	01	1	1301-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0803-0803	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0804-0804	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0804-0804	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0805-0809	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0805-0809	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	0810-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0810-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0803-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0803-0803	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0804-0804	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0804-0804	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0804-0804			●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0805-0809	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0805-0809	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0805-0809			●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0810-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0810-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0810-			●	●

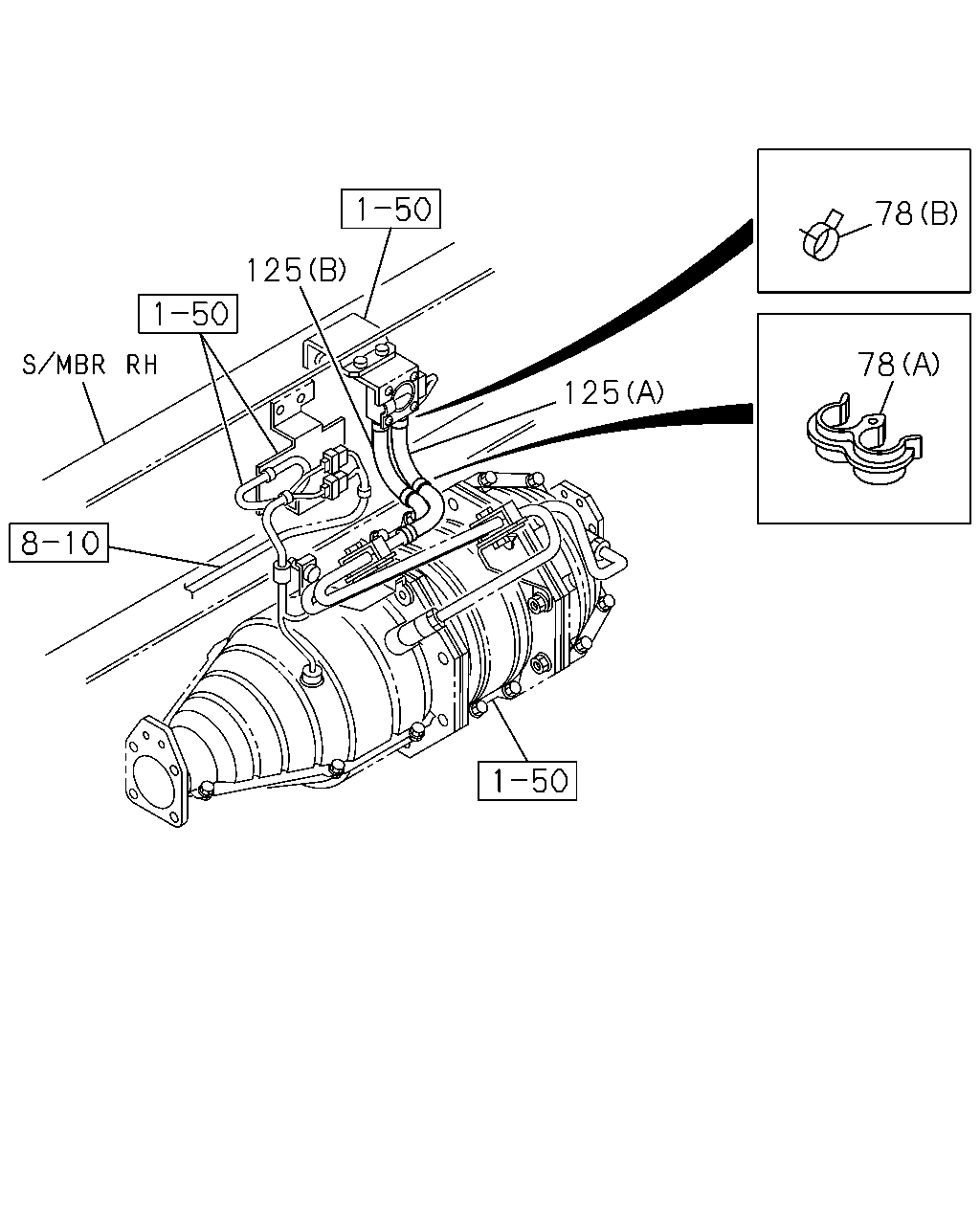

78 125 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A)	8-97173-119-0	01	1	0803-	●	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13	8-97329-627-0	04	1	0803-	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT L=90	8-98029-399-0	01	1	0803-	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (B) REAR L=110	8-98029-400-0	01	1	0803-	●	●

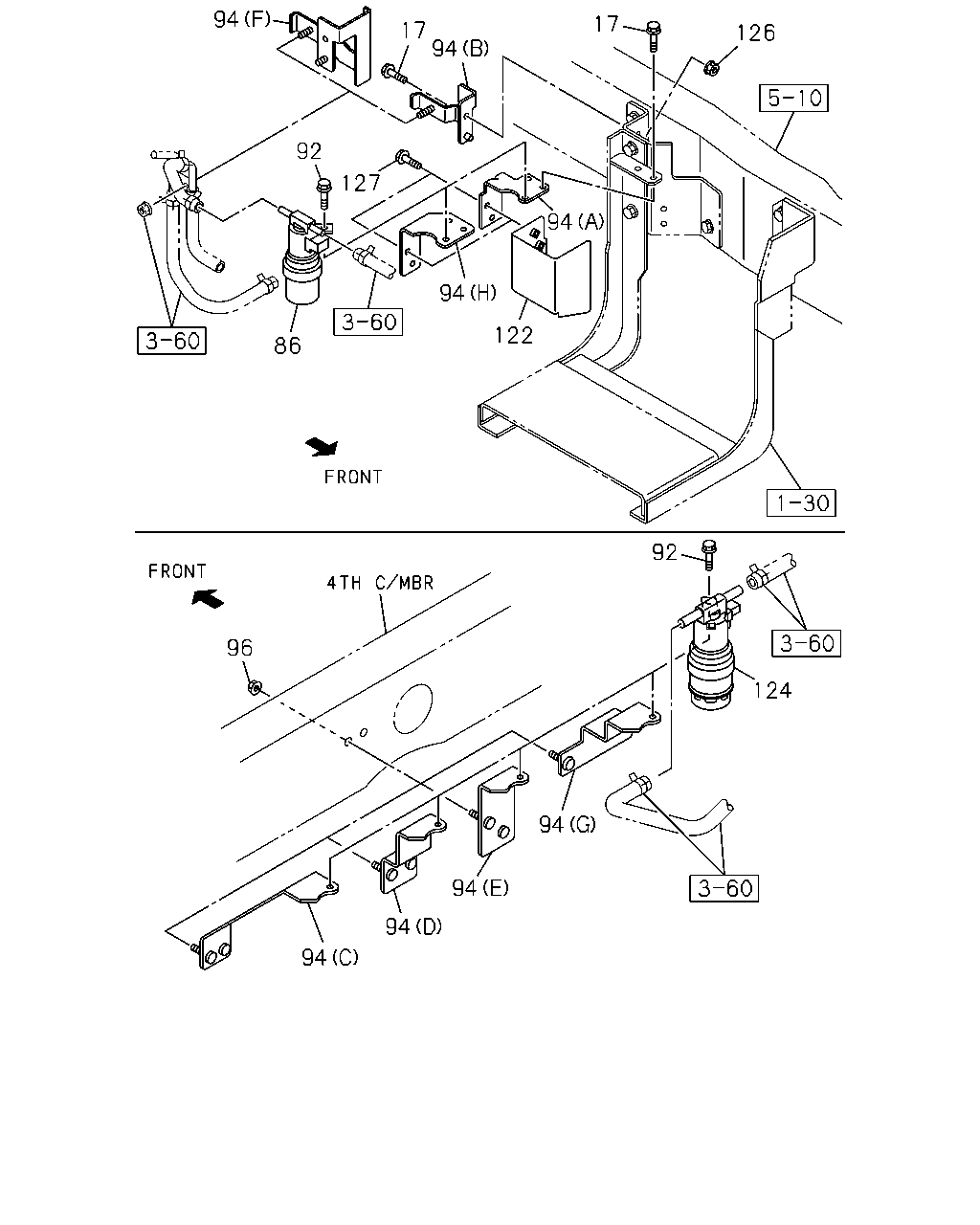

94 17 17 94 126 92 127 94 94 122 86 92 96 124 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809		●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809		●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-1009	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-1009	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0803-0803	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	0804-0804	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0804-0804			●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	0805-0809	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0805-0809		●	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	0810-0912	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0810-0912			●	●
86	03.636 VALVE; MAG,EXH BRK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	1001-	●	●
86	03.636 VALVE; MAG,EXH BRK 4JJ1-TCC ENG(RDU)	8-98043-344-0	01	1	1001-			●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>	8-97328-577-0	01	1	0804-0804	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>	8-97328-577-0	01	1	0805-0809	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>	8-97328-577-0	01	1	0810-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0804			●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809	●	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-0809		●	●	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98094-951-0	01	1	0803-0803	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98094-951-0	01	1	0804-0804		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98094-951-0	01	1	0805-0809	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98094-951-0	01	1	0810-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98039-762-1	01	1	0803-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98064-722-0	01	1	0803-0803	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98064-722-0	01	1	0804-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-761-2	01	1	0803-0903	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-761-2	01	1	0904-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-761-2	01	1	0904-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98042-145-2	01	1	0803-0803	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-98042-145-2	01	1	0804-0804	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-98042-145-2	01	1	0805-0809	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98042-145-2	01	1	0805-0809		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-98042-145-2	01	1	0810-1206	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> (H)	8-98211-757-1	01	1	1207-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-694-2	01	1	0803-0803	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-694-2	01	1	0803-0803	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	0803-0803		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	0803-0803		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B)	8-98042-694-2	01	1	0804-0804	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-694-2	01	1	0804-0804	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	0804-0804		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	0804-0804		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	0805-1009	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	0805-1009	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	1010-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	1010-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	1010-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98039-764-1	01	1	0803-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-		●
122	03.640 PROTECTOR; MAG VLV	8-98098-564-0	01	1	0803-0803	●	●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98098-564-0	01	1	0804-0804	●	●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98098-564-0	01	1	0805-0809	●
122	03.640 PROTECTOR; MAG VLV	8-98098-564-0	01	1	0805-0809		●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98098-564-0	01	1	0810-	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	0803-0803	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	0804-0804	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	0805-0809	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	0805-0809		●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	0810-	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0804	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0804	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-0809	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-0809	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-0809		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-0809		●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-1009	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-1009	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
127	04.902 BOLT; PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0803-0803	●	●
127	04.902 BOLT; PROTECTOR EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0804-0804	●	●
127	04.902 BOLT; PROTECTOR EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0805-0809	●
127	04.902 BOLT; PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0805-0809		●
127	04.902 BOLT; PROTECTOR EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0810-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
