Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#5277) — 227 parça

100 106 100 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	TUBE ASM; NYLON,RWD AXLE NEW ZEALAND EQUIPMENT(PK5) L=580 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9606-9904	●
100	TUBE ASM; NYLON,RWD AXLE POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> L=580 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9905-9910	●	●
100	TUBE ASM; NYLON,RWD AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> L=580 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9911-	●	●
106	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-9605	●	●
106	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9606-9904	●	●
106	TUBE; NYLON POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9905-9910	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9911-	●	●
106	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9605	●	●
106	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9606-9904	●	●
106	TUBE; NYLON POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-	●	●

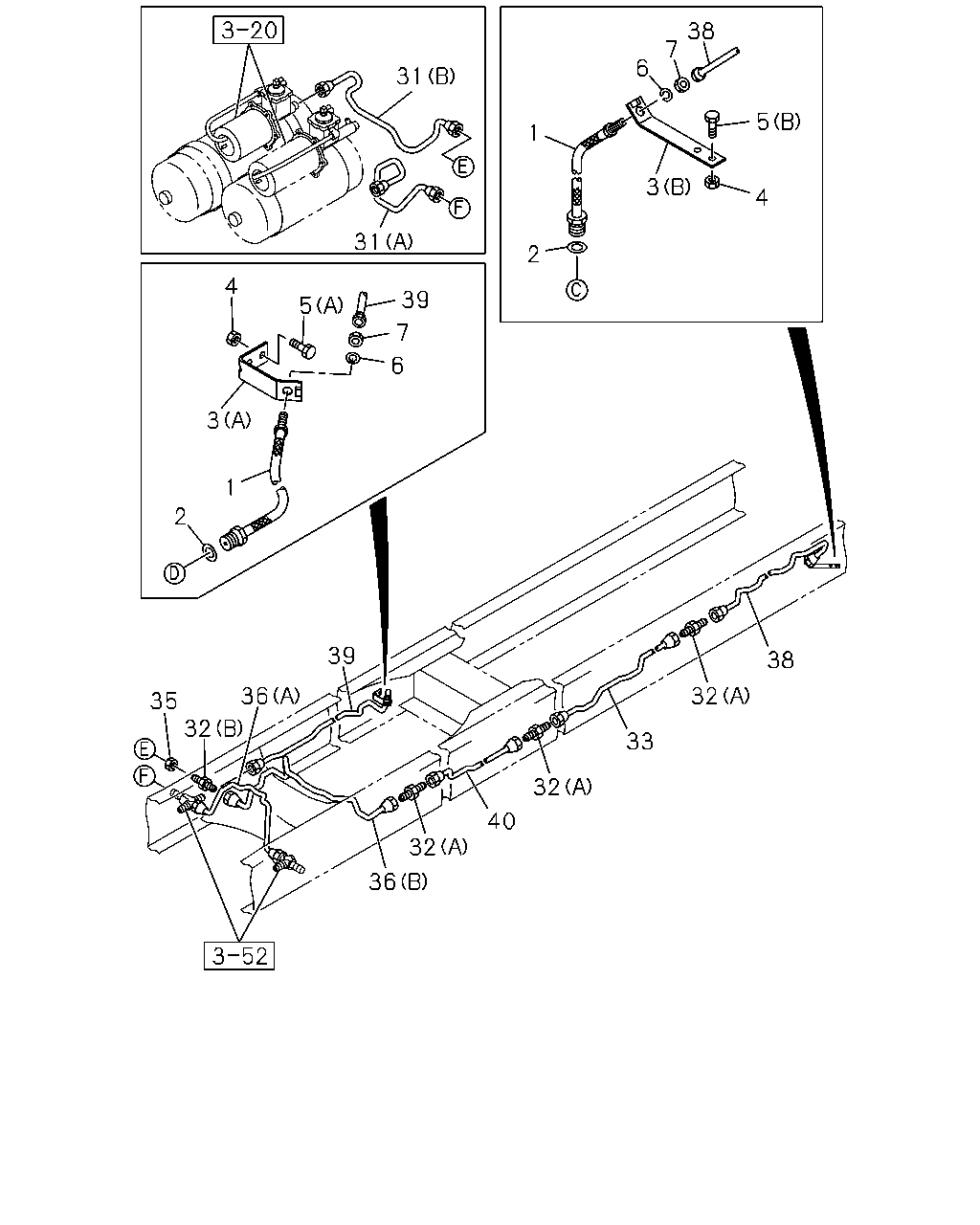

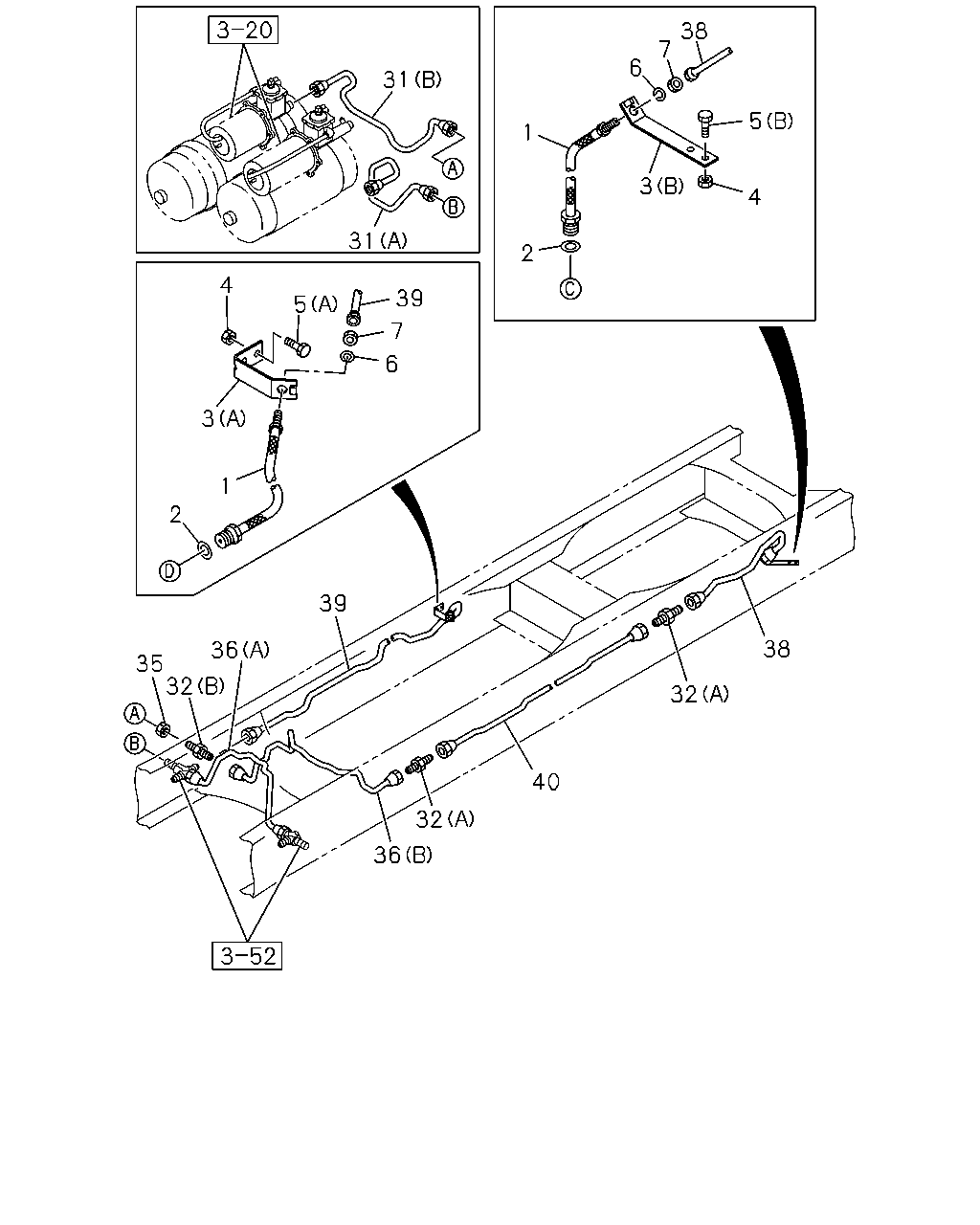

38 7 6 31 5 1 3 4 31 2 4 39 5 7 6 3 1 2 39 38 36 35 32 32 40 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=500	1-09364-190-0	01	1	9911-		●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9911-9911	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=450	1-09364-188-0	01	1	9911-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47476-570-1	01	1	9911-		●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-357-2	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9911-9911	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47476-573-1	01	1	9911-		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9911-		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9911-	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X25 FLANGE	0-28680-825-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-9911	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9911-	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9911-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9911-	●	●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47426-964-0	01	1	9911-0003		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B)	1-47426-964-0	01	1	0004-		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=656	1-47429-259-0	01	1	9911-0003		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=656	1-47429-259-0	01	1	9911-0003	●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=656	1-47429-259-0	01	1	0004-		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=656	1-47429-259-0	01	1	0004-	●
31	PIPE; OIL,AIR MASTER TO UNION V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-49165-311-0	01	1	0002-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	9911-	●	●
32	UNION; OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	9911-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	9911-	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=66.5	9-09223-306-1	01	1	9911-	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9911-	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	9911-0003		●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	0004-		●
36	PIPE; OIL,UNION TO UNION V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=767	1-49165-312-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	9911-0003	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0004-		●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0004-	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1777 SERVICED BY L=1820	1-47426-358-0	01	1	9911-9912	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1769	1-49165-226-0	01	1	0001-	●	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9911-9911		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE V TYPE ENG<91L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49164-963-0	01	1	9911-9912		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-231-0	01	1	0001-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> L=2597	1-49164-965-0	01	1	9911-0003	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=2597	1-49164-965-0	01	1	0004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE V TYPE ENG<91L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9911-0001		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2356 SERVICED BY L=2500	1-47426-362-0	01	1	9911-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	9911-0003	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0004-	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	9911-9912		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	0001-0001		●
40	PIPE; BRK,UNION TO UNION L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	0002-		●
40	PIPE; BRK,UNION TO UNION V TYPE ENG<91L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-384-0	01	1	0002-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49162-905-0	01	1	9911-9912	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-224-0	01	1	0001-	●

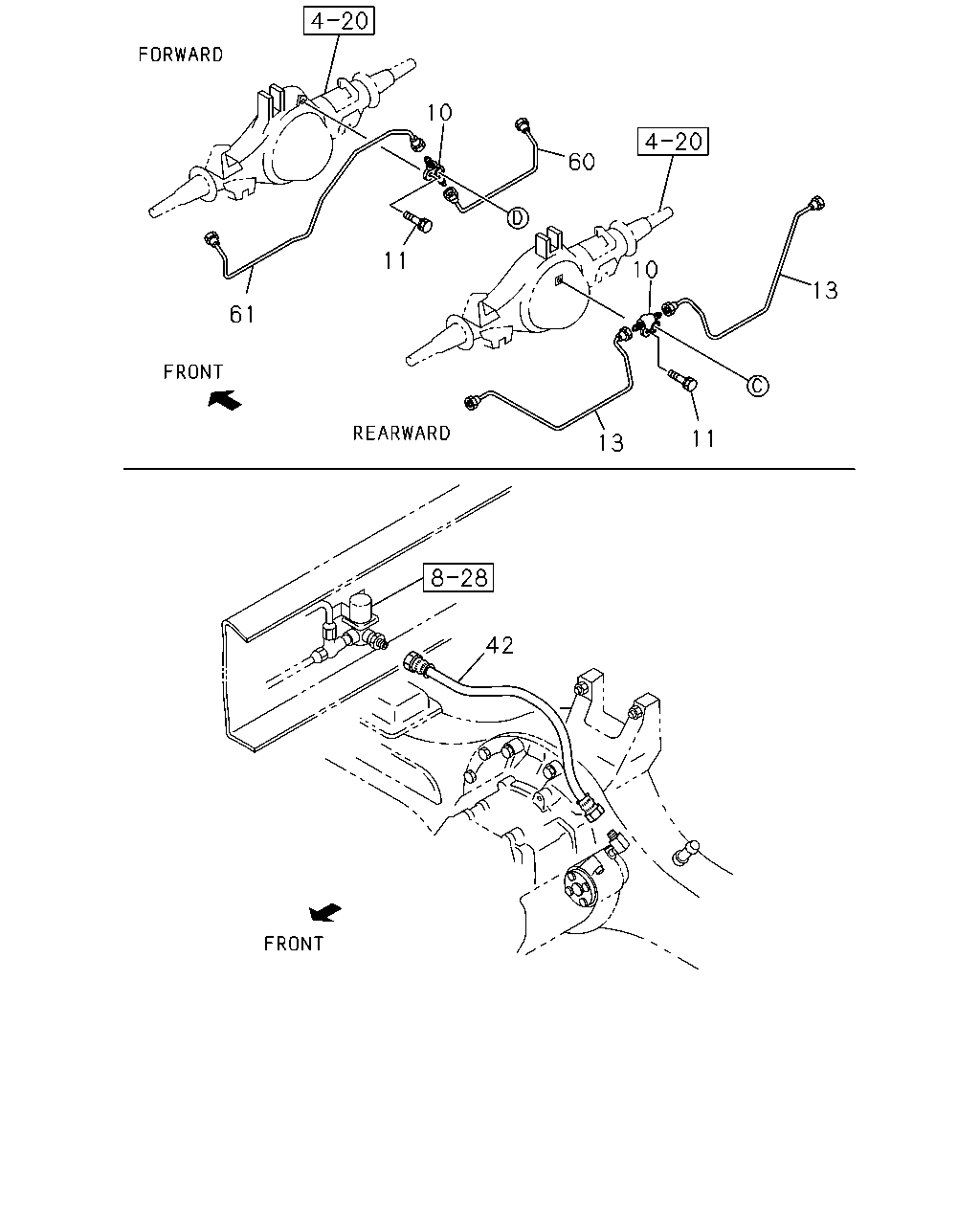

10 60 11 10 13 61 11 13 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9911-	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9911-	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9911-	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9911-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) BRAKE SYSTEM HEAVY DUTY(J55) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, INTERNATIONAL STANDARD ISO 10STUD<B3V>,POWER CHAMBERBRAKE UPPERWARD<C1T>,REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7> L=988	1-47426-901-0	01	1	9911-		●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A) BRAKE SYSTEM HEAVY DUTY(J55) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, INTERNATIONAL STANDARD ISO 10STUD<B3V>,POWER CHAMBERBRAKE UPPERWARD<C1T>,REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7> L=857	1-47426-902-0	01	1	9911-		●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/617.5"(W4W) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, INTERNATIONAL STANDARD ISO 10STUD<B3V>,POWER CHAMBERBRAKE UPPERWARD<C1T>,REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM HEAVY DUTY(J55) L=1002	1-47426-906-0	01	1	9911-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/617.5"(W4W) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, INTERNATIONAL STANDARD ISO 10STUD<B3V>,POWER CHAMBERBRAKE UPPERWARD<C1T>,REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM HEAVY DUTY(J55) L=871	1-47426-907-0	01	1	9911-	●	●
42	HOSE; FLEX,DIFF LOCK THAILAND EQUIPMENT(PM9) L=560	0-07151-560-0	01	1	9603-9702	●	●
42	HOSE; FLEX,DIFF LOCK THAILAND EQUIPMENT(PM9) L=580	1-09363-641-0	01	1	9703-9708	●	●
42	HOSE; FLEX,DIFF LOCK TAIL PIPE SINGLE HORIZONTAL<NC2> L=580	1-09363-641-0	01	1	9709-9904	●	●
42	HOSE; FLEX,DIFF LOCK TAIL PIPE SINGLE HORIZONTAL<NC2> L=580	1-09363-641-0	01	1	9905-9910	●
42	HOSE; FLEX,DIFF LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=580	1-09363-641-0	01	1	9911-	●	●
42	HOSE; FLEX,DIFF LOCK TAIL PIPE SINGLE HORIZONTAL<NC2> L=580	1-09363-641-0	01	1	9911-	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=779	1-47427-915-0	01	1	9911-		●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=793	1-47427-916-0	01	1	9911-	●	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1193	1-47426-899-0	01	1	9911-		●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1207	1-47426-905-0	01	1	9911-	●	●

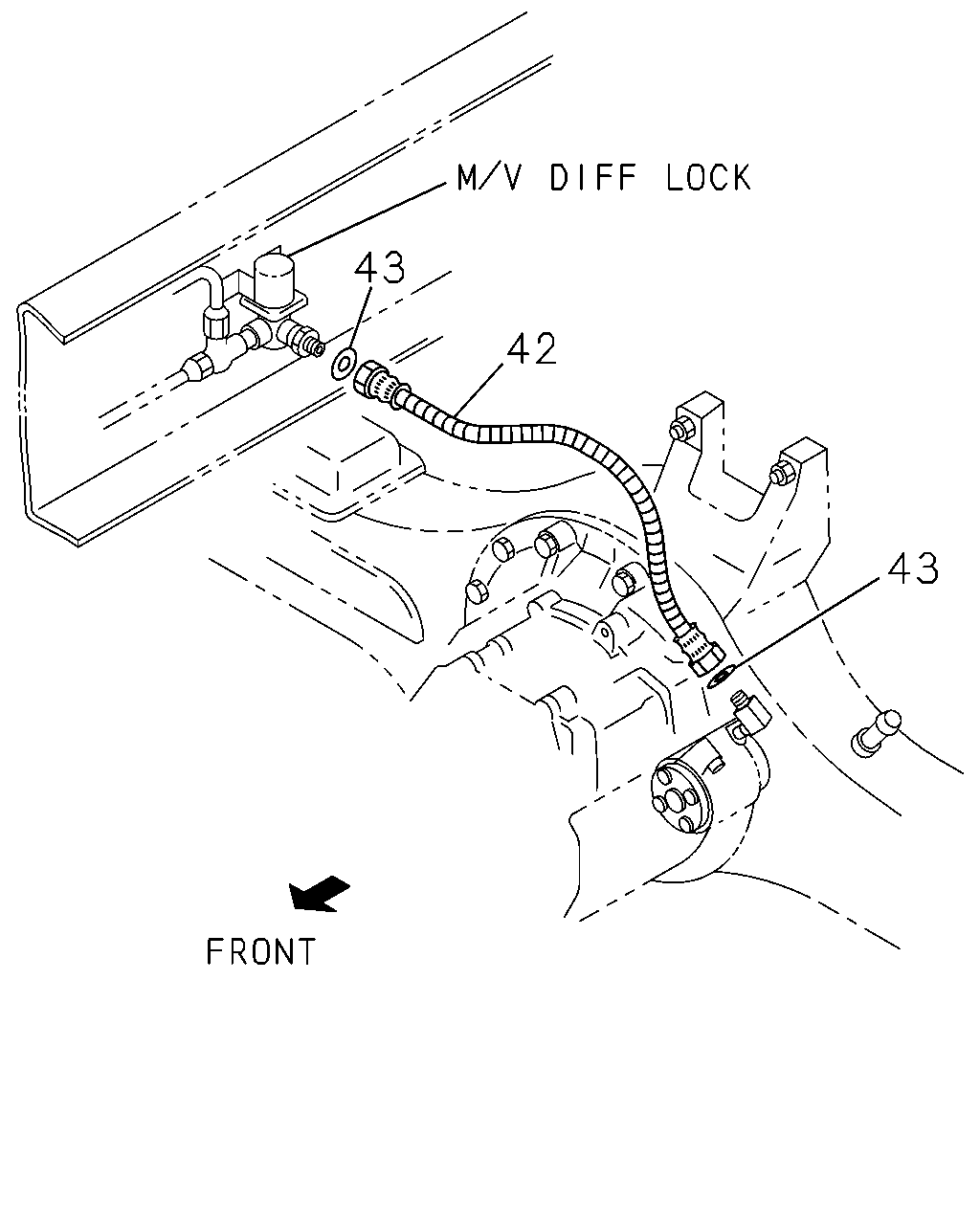

43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,DIFF LOCK THAILAND EQUIPMENT(PM9) L=560	0-07151-560-0	01	1	9603-9702	●	●
42	HOSE; FLEX,DIFF LOCK THAILAND EQUIPMENT(PM9) L=580	1-09363-641-0	01	1	9703-9708	●	●
42	HOSE; FLEX,DIFF LOCK TAIL PIPE SINGLE HORIZONTAL<NC2> L=580	1-09363-641-0	01	1	9709-9904	●	●
42	HOSE; FLEX,DIFF LOCK TAIL PIPE SINGLE HORIZONTAL<NC2> L=580	1-09363-641-0	01	1	9905-9910	●
42	HOSE; FLEX,DIFF LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=580	1-09363-641-0	01	1	9911-	●	●
42	HOSE; FLEX,DIFF LOCK TAIL PIPE SINGLE HORIZONTAL<NC2> L=580	1-09363-641-0	01	1	9911-	●
43	GASKET; FLEX TUBE THAILAND EQUIPMENT(PM9) ID=11 OD=18	9-09572-510-0	02	1	9603-9702	●	●

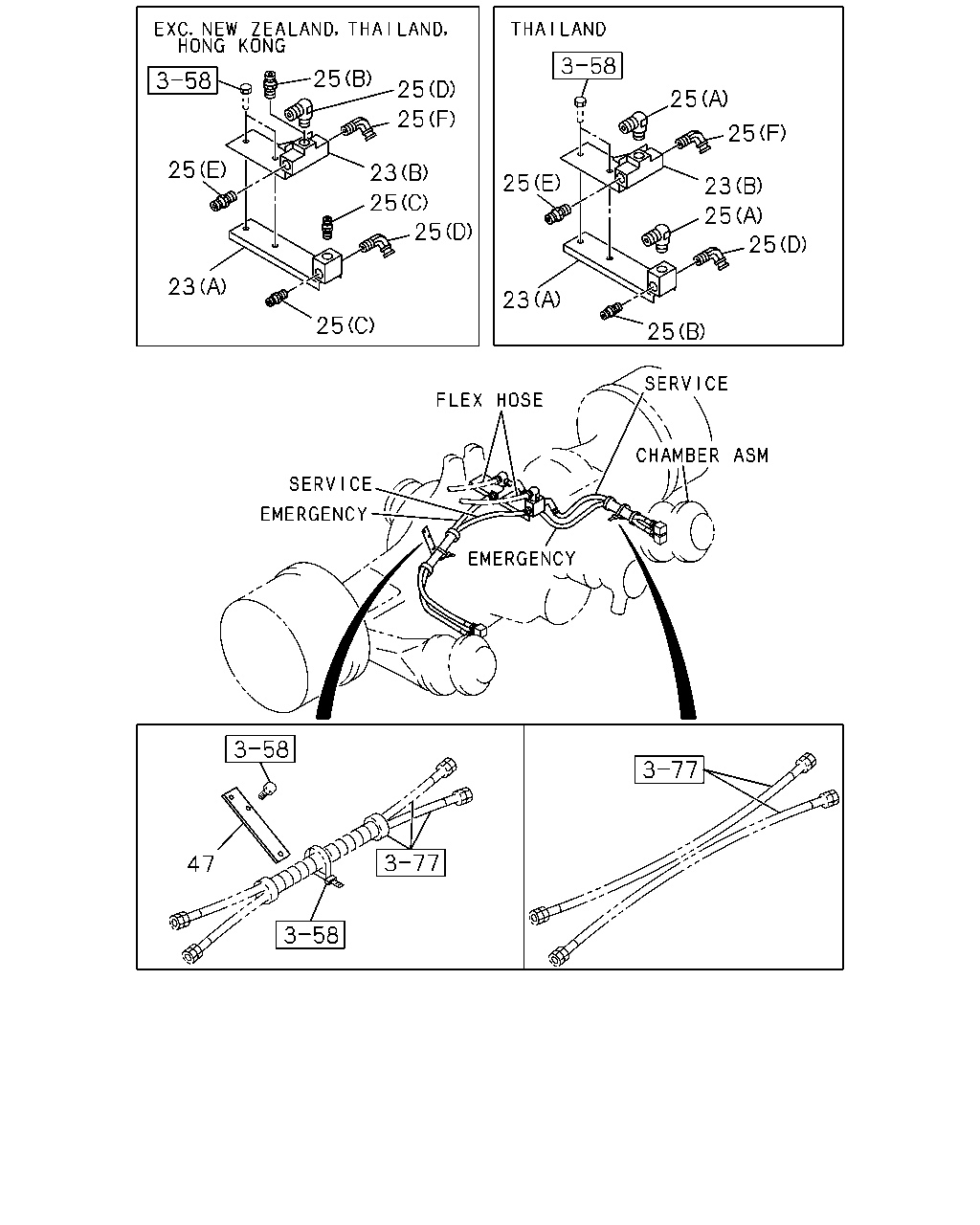

2 25 25 25 25 25 23 25 23 25 25 25 25 23 23 25 25 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9911-	●	●
23	NIPPLE; W/BRKT (A)	1-47470-373-1	01	1	9603-9904	●	●
23	NIPPLE; W/BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-47470-373-1	01	1	9905-9910	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-47470-373-1	01	1	9911-	●	●
23	NIPPLE; W/BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-47475-536-0	01	1	9603-9904	●	●
23	NIPPLE; W/BRKT WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-47475-536-1	01	1	9905-9910	●	●
23	NIPPLE; W/BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	9905-9910	●	●
23	NIPPLE; W/BRKT WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-47475-536-1	01	1	9911-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	9911-	●	●
25	CONNECTOR (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9604	●	●
25	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9604	●	●
25	CONNECTOR (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9605-9904	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9905-9905	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9911-	●	●
25	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9904	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (E) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9905-9905	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9905-9905	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-9910	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-9910	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●	●
25	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9905	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9905	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9910	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9910	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
25	CONNECTOR THAILAND EQUIPMENT(PM9) (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9603-9708	●	●
25	CONNECTOR THAILAND EQUIPMENT(PM9) (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9603-9708	●	●
25	CONNECTOR EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9709-9904	●	●
25	CONNECTOR EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9709-9904	●	●
25	CONNECTOR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9905-	●	●
25	CONNECTOR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9905-	●	●
25	CONNECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9905-	●
25	CONNECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9905-	●
25	CONNECTOR THAILAND EQUIPMENT(PM9) (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9603-9604	●	●
25	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9605-9904	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9905-9905	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9906-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9911-	●	●
25	CONNECTOR EXC. THAILAND EQUIPMENT(PM9) (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9603-9708	●	●
25	CONNECTOR EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9709-9904	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9905-9905	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9905-9905	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-9910	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-9910	●	●
25	CONNECTOR WEST MALAYSIA EQUIPMENT(SEQ) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9911-	●	●
47	BRACKET	1-42119-065-0	01	1	9603-9708	●	●
47	BRACKET	1-42119-065-0	01	1	9709-9904		●
47	BRACKET EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-065-0	01	1	9709-9904	●
47	BRACKET EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-42119-065-0	01	1	9905-9910		●
47	BRACKET EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-065-0	01	1	9905-9910	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-065-0	01	1	9911-	●	●
47	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-123-0	01	1	9709-9910	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-123-0	01	1	9911-	●

38 7 6 31 5 1 3 4 31 2 4 39 5 7 6 3 1 2 39 38 32 36 35 32 33 32 40 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=500	1-09364-190-0	01	1	9911-		●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9911-9911	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=450	1-09364-188-0	01	1	9911-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47476-570-1	01	1	9911-		●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-357-2	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9911-9911	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47476-573-1	01	1	9911-		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9911-		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9911-	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X25 FLANGE	0-28680-825-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-9911	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9911-	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9911-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9911-	●	●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47426-964-0	01	1	9911-0003		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (B)	1-47426-964-0	01	1	0004-		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=656	1-47429-259-0	01	1	9911-0003		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=656	1-47429-259-0	01	1	9911-0003	●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=656	1-47429-259-0	01	1	0004-		●
31	PIPE; OIL,AIR MASTER TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=656	1-47429-259-0	01	1	0004-	●
31	PIPE; OIL,AIR MASTER TO UNION V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-49165-311-0	01	1	0002-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	9911-	●	●
32	UNION; OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	9911-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	9911-	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=66.5	9-09223-306-1	01	1	9911-	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1338 SERVICED BY L=1370	1-47426-354-0	01	1	9911-	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9911-	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	9911-0003		●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	0004-		●
36	PIPE; OIL,UNION TO UNION V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=767	1-49165-312-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	9911-0003	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0004-		●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> (A) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0004-	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1777 SERVICED BY L=1820	1-47426-358-0	01	1	9911-9912	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1769	1-49165-226-0	01	1	0001-	●	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9911-9911		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE V TYPE ENG<91L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49164-963-0	01	1	9911-9912		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-231-0	01	1	0001-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> L=2597	1-49164-965-0	01	1	9911-0003	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=2597	1-49164-965-0	01	1	0004-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE V TYPE ENG<91L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9911-0001		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2356 SERVICED BY L=2500	1-47426-362-0	01	1	9911-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LIGHT DUTY PACKAGE TRUCK<Y21> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	9911-0003	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0004-	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	9911-9912		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	0001-0001		●
40	PIPE; BRK,UNION TO UNION L TYPE ENG<90L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	0002-		●
40	PIPE; BRK,UNION TO UNION V TYPE ENG<91L> WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-384-0	01	1	0002-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49162-905-0	01	1	9911-9912	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-224-0	01	1	0001-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
