Sayfa 1-11 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶

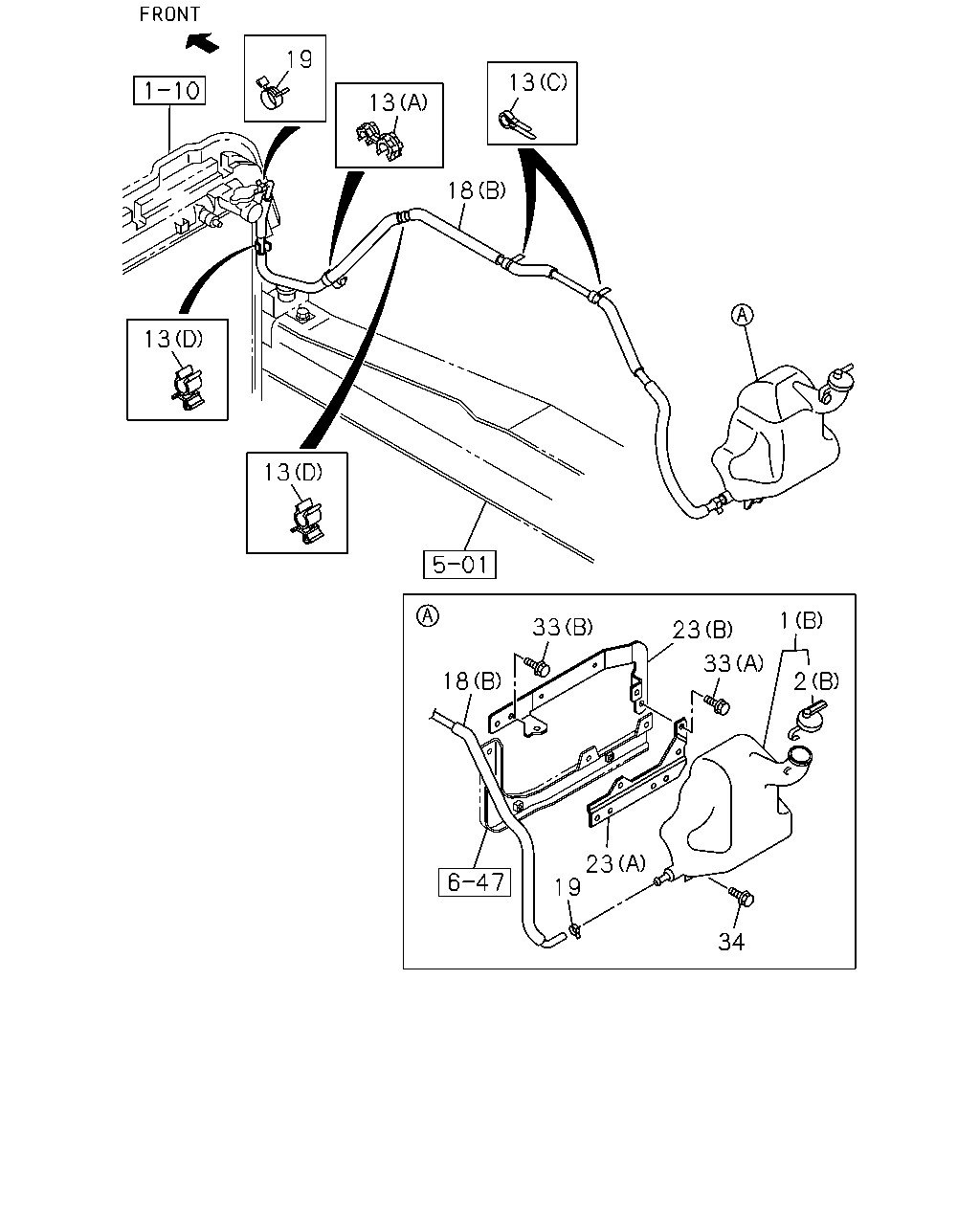

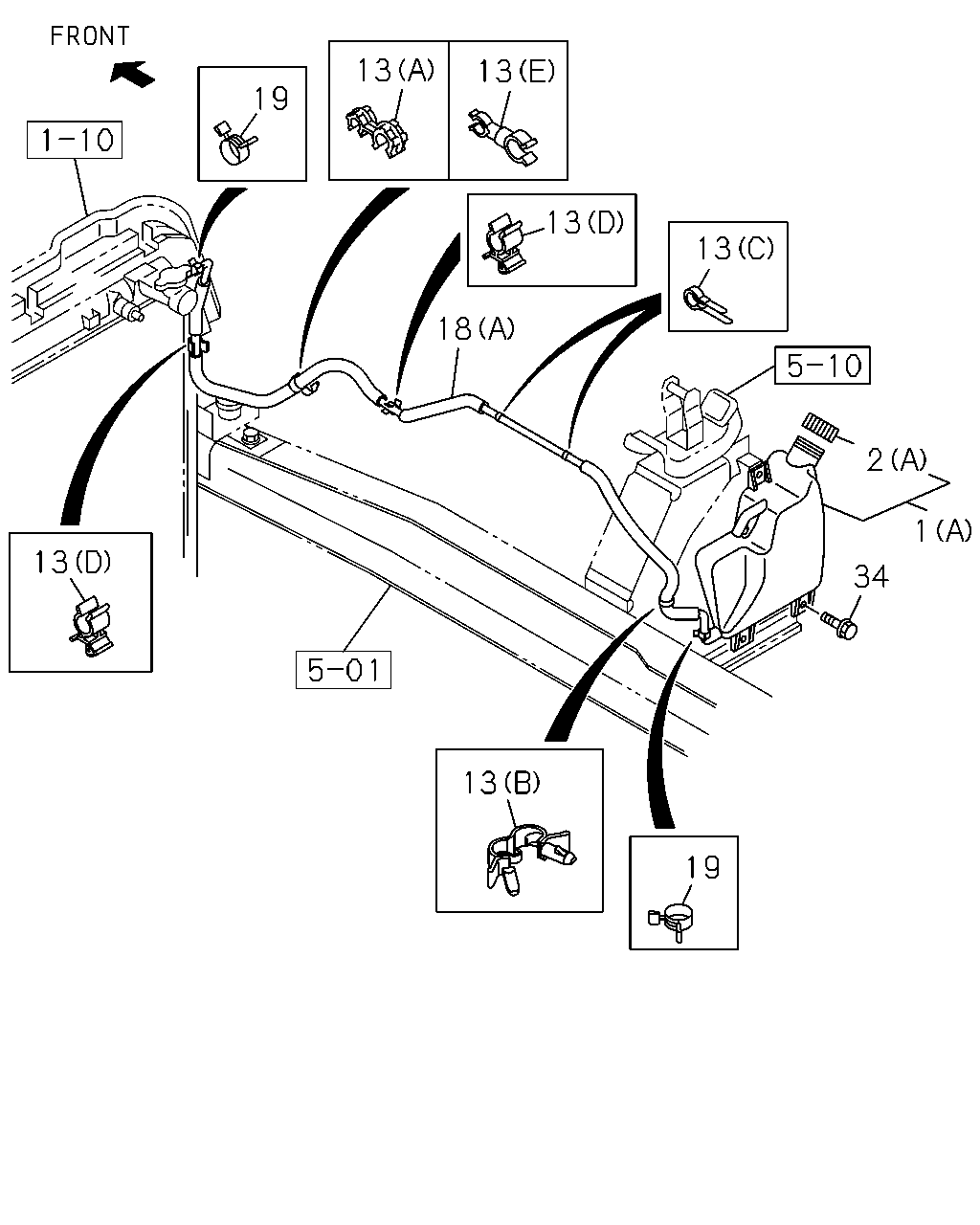

1-11 — RADIATOR HOSE AND SUB TANK (#52769) — 154 parça

19 13 13 18 13 13 1 33 23 33 18 2 23 19 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD (A)	8-97387-632-1	01	1	0803-1010	●	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	0804-			●	●
2	01.203 CAP; SURGE TANK (A)	8-97217-796-0	01	1	0803-1010	●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	0804-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0804-0804	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0805-0809	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0810-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (D) ID=12	8-98029-256-0	01	1	0804-0804	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (D) ID=12	8-98029-256-0	01	1	0805-0809	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (D) ID=12	8-98029-256-0	01	1	0810-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0804-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0804-0804	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0804-0804			●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0805-0809	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0805-0809		●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0805-0809			●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0810-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0810-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	0804-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	0804-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	02	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	02	1	0804-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	02	1	0804-			●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) (A)	8-98039-402-1	01	1	0804-0804	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) (A)	8-98039-402-1	01	1	0805-0809	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) (A)	8-98039-402-1	01	1	0810-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98023-219-1	01	1	0803-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-98023-220-1	01	1	0804-			●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0803-0803	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0804-0911	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	0912-	●	●	●	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	0804-			●	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	0804-			●	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0804-			●	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0804-			●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0803-0803	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0804-	●	●	●	●

56 55 56 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) (B)	8-98039-391-1	01	1	0804-0804	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) (B)	8-98039-391-1	01	1	0805-0809	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) (B)	8-98039-391-1	01	1	0810-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	0803-0803	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	0804-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	0804-			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	5-09704-047-1	01	1	0804-0804	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	5-09704-047-1	01	1	0805-0809	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	5-09704-047-1	01	1	0810-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	8-98133-958-0	01	1	0902-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	01	1	0803-0803	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	01	1	0804-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	01	1	0804-0901			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0902-0906	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0902-0906			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0907-	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	01	1	0907-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0907-			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0907-			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0803-0803	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0804-0804	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0804-0804			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0805-0809	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0805-0809		●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0805-0809			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0810-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0810-0901			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	03	1	0902-0906	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	03	1	0902-0906			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	0907-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	0907-			●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) (B)	8-98039-390-0	01	1	0804-0804	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) (B)	8-98039-390-0	01	1	0805-0809	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) (B)	8-98039-390-0	01	1	0810-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	0803-0803	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	0804-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	0804-			●	●

56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) (B)	8-98039-391-1	01	1	0804-0804	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) (B)	8-98039-391-1	01	1	0805-0809	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) (B)	8-98039-391-1	01	1	0810-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	0803-0803	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	0804-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	0804-			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	5-09704-047-1	01	1	0804-0804	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	5-09704-047-1	01	1	0805-0809	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	5-09704-047-1	01	1	0810-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (B) ID=42	8-98133-958-0	01	1	0902-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	01	1	0803-0803	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	01	1	0804-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	01	1	0804-0901			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0902-0906	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0902-0906			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0907-	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	01	1	0907-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0907-			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	01	1	0907-			●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0803-0803	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0804-0804	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0804-0804			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0805-0809	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0805-0809		●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0805-0809			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98036-282-0	03	1	0810-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98036-282-0	03	1	0810-0901			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	03	1	0902-0906	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	03	1	0902-0906			●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	0907-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	0907-			●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) (B)	8-98039-390-0	01	1	0804-0804	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) (B)	8-98039-390-0	01	1	0805-0809	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) (B)	8-98039-390-0	01	1	0810-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	0803-0803	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	0804-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	0804-			●	●

13 13 19 13 13 18 2 1 13 34 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD (A)	8-97387-632-1	01	1	0803-1010	●	●
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	0804-			●	●
2	01.203 CAP; SURGE TANK (A)	8-97217-796-0	01	1	0803-1010	●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	0804-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0804-0804	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0805-0809	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0810-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (D) ID=12	8-98029-256-0	01	1	0804-0804	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (D) ID=12	8-98029-256-0	01	1	0805-0809	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (D) ID=12	8-98029-256-0	01	1	0810-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0804-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0804-0804	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0804-0804			●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0805-0809	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0805-0809		●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0805-0809			●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	0810-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (C) ID=14 L=47	5-09700-319-0	02	1	0810-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	0804-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	0804-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	02	1	0803-0803	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	02	1	0804-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	02	1	0804-			●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) (A)	8-98039-402-1	01	1	0804-0804	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) (A)	8-98039-402-1	01	1	0805-0809	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) (A)	8-98039-402-1	01	1	0810-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98023-219-1	01	1	0803-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-98023-220-1	01	1	0804-			●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0803-0803	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0804-0911	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	0912-	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0803-0803	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0804-	●	●	●	●
