Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#52767) — 159 parça

384 314 54 175 659 384 792 863 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-457-3	01	1	0804-0804	●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-457-3	01	1	0805-0809	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-457-3	01	1	0810-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-0804	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0805-0809	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT)	8-98106-754-1	01	1	0804-0804	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT)	8-98106-754-1	01	1	0805-0809	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT)	8-98106-754-1	01	1	0810-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0804-0804	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0805-0809	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0810-	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.559 L=250	5-09707-030-1	01	1	0805-0809	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.559 L=250	5-09707-030-1	01	1	0810-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 ID=16 L=28	0-95235-552-0	01	1	0804-0804	●	●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 ID=16 L=28	0-95235-552-0	01	1	0805-0809	●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 ID=16 L=28	0-95235-552-0	01	1	0810-	●	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	1101-	●	●
792	03.483 RESISTOR; IDLE 4JB1-TC ENG(RDT)	8-98013-906-0	01	1	0804-0804	●	●
792	03.483 RESISTOR; IDLE 4JB1-TC ENG(RDT)	8-98013-906-0	01	1	0805-0806	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	0804-0804	●	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	0805-0809	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	0810-1012	●	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	1101-	●	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	1101-	●	●

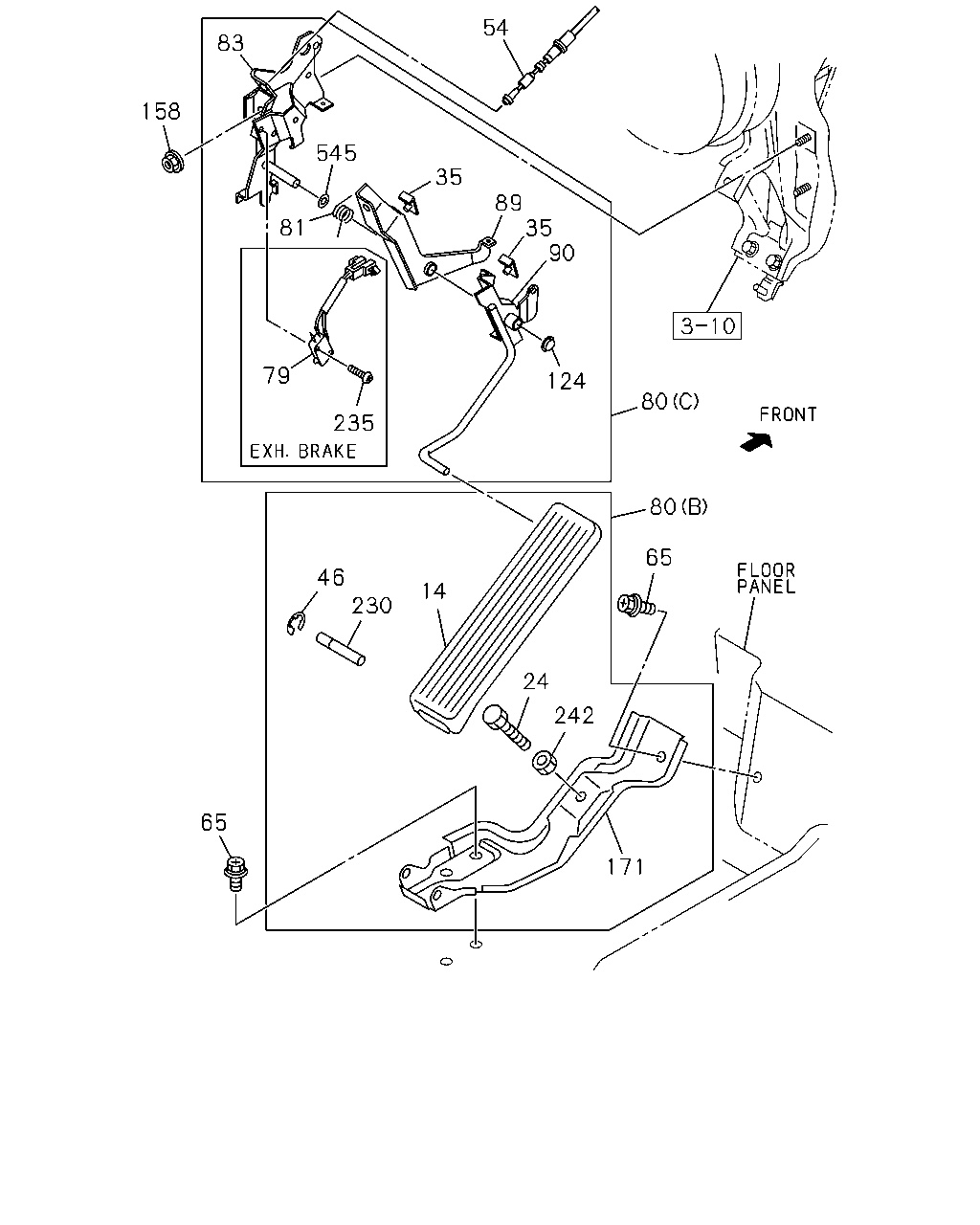

54 83 158 545 35 89 35 90 81 79 124 80 235 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0803-0803	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0804-	●	●	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	0803-0803	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	0804-	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT)	8-97302-305-0	01	1	0804-0804	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT)	8-97302-305-0	01	1	0805-0809	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT)	8-97302-305-0	01	1	0810-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0803-0803	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0804-	●	●	●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-457-3	01	1	0804-0804	●	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-457-3	01	1	0805-0809	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-457-3	01	1	0810-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0803-0803	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0804-	●	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JB1-TC ENG(RDT) 03.636	8-97855-192-0	01	1	0806-0806	●
79	03.451 SWITCH; ACCEL PEDAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.636	8-97855-192-0	01	1	0807-0809	●
79	03.451 SWITCH; ACCEL PEDAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.636	8-97855-192-0	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C)	8-98128-704-1	01	1	0807-0809	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C)	8-98128-704-1	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	0803-0803	●	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) (C)	8-98038-417-1	01	1	0804-0804	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) (C)	8-98038-417-1	01	1	0805-0806	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-98038-417-2	01	1	0807-0809	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-98038-417-2	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97387-358-1	01	1	0803-0803	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	0804-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	0804-			●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT)	8-98031-665-0	01	1	0804-0804	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT)	8-98031-665-0	01	1	0805-0809	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT)	8-98031-665-0	01	1	0810-	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-897-0	01	1	0804-0804	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-897-0	01	1	0805-0809	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-897-0	01	1	0810-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0803-0803	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0804-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0804-			●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT)	8-97857-617-4	01	1	0804-0804	●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT)	8-97857-617-4	01	1	0805-0809	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT)	8-97857-617-4	01	1	0810-	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT)	8-98093-899-0	01	1	0804-0804	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT)	8-98093-899-1	01	1	0805-0809	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT)	8-98093-899-1	01	1	0810-	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0804-0804	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0805-0809	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0810-	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0803-0803	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-	●	●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-			●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0803-0803	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0804-	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	0803-0803	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	0804-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	0803-0803	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	0804-	●	●	●	●
235	03.452 SCREW; PEDAL TO SW 4JB1-TC ENG(RDT) 03.425 M3X16 TAPPING	0-71340-316-0	02	1	0806-0806	●
235	03.452 SCREW; PEDAL TO SW 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING	0-71340-316-0	02	1	0807-0809	●
235	03.452 SCREW; PEDAL TO SW 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING	0-71340-316-0	02	1	0810-	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8 FLANGE	8-98040-024-0	01	1	0803-0803	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●	●
545	03.463 WASHER; NYLON 4JB1-TC ENG(RDT) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0804-0804	●	●
545	03.463 WASHER; NYLON 4JB1-TC ENG(RDT) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0805-0809	●
545	03.463 WASHER; NYLON 4JB1-TC ENG(RDT) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0810-	●	●

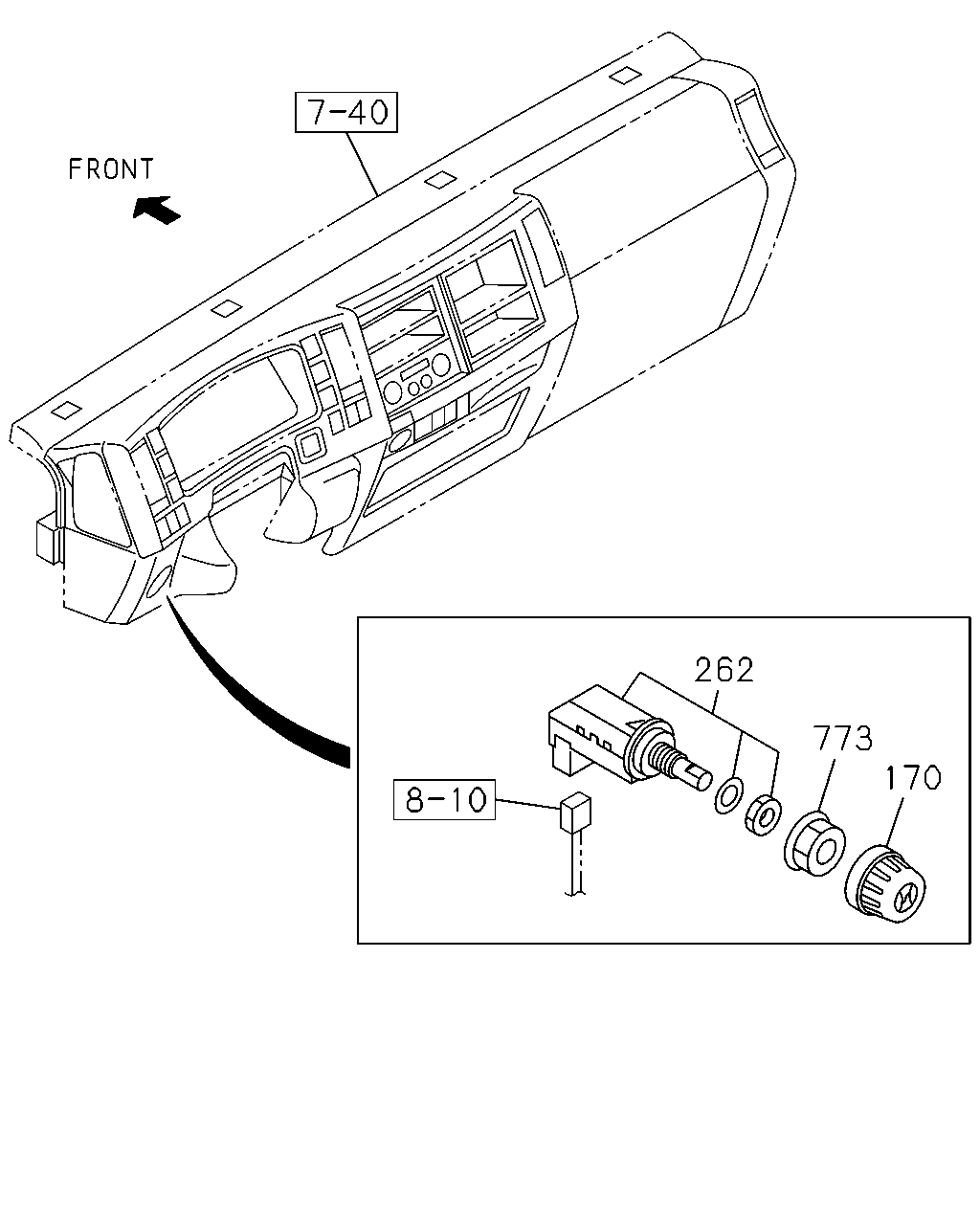

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
170	03.480 KNOB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	0803-0803	●	●
170	03.480 KNOB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	0804-1012	●	●
170	03.480 KNOB 4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	0804-1012			●	●
170	03.480 KNOB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-420-0	01	1	1101-	●	●
170	03.480 KNOB 4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	1101-			●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	0803-0803	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	0804-1012	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	0804-1012			●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-418-0	01	1	1101-	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	1101-			●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	0803-0803	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	0804-1012	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	0804-1012			●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-97352-127-0	01	1	1101-	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	1101-			●	●

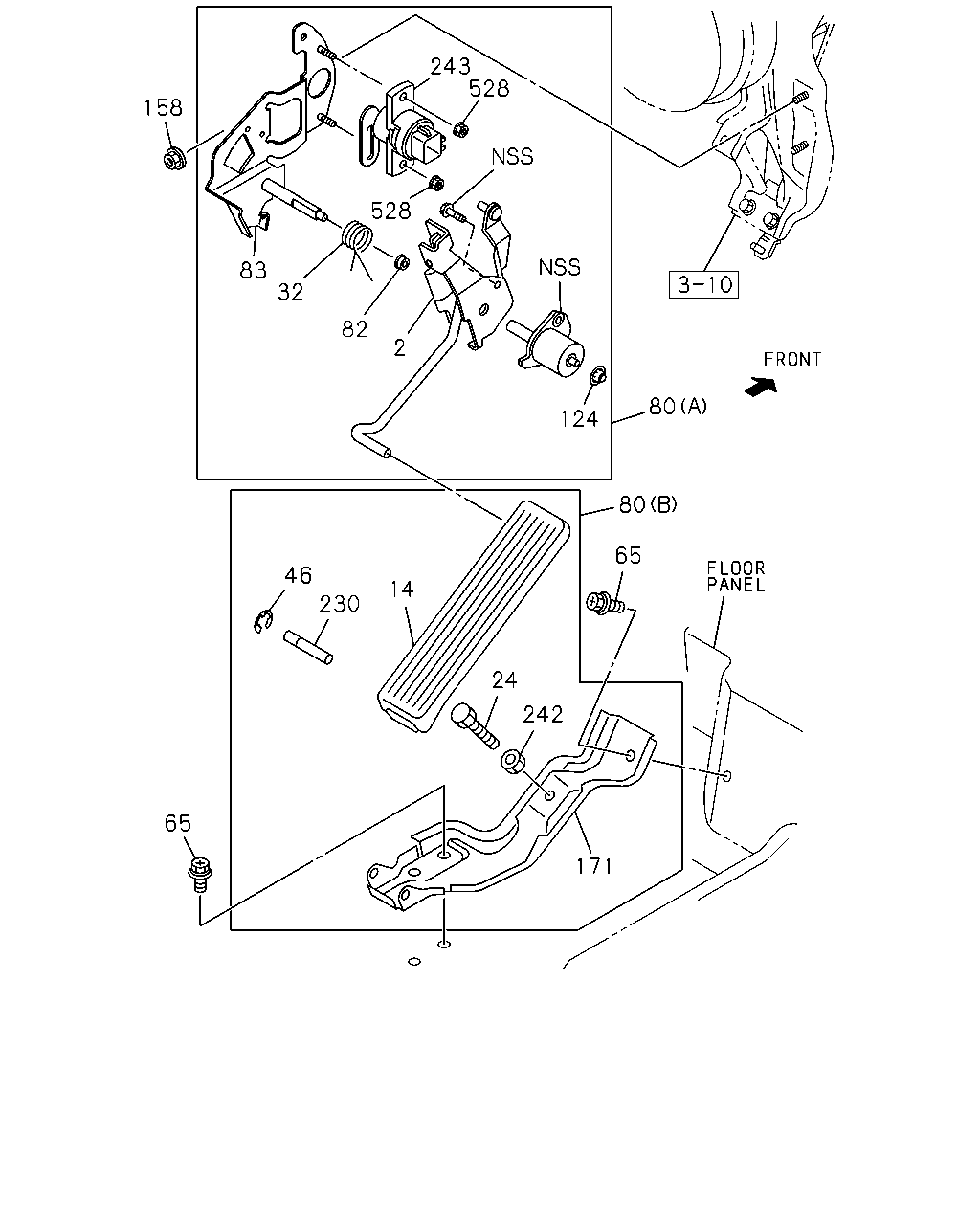

243 528 158 528 83 32 82 2 80 124 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.454 LEVER; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	0803-0803	●	●
2	03.454 LEVER; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	0804-	●	●
2	03.454 LEVER; ENG CONT 4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	0804-			●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0803-0803	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0804-	●	●	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	0803-0803	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	0804-	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	0803-0803	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	0804-	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	0804-			●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0803-0803	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0804-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0803-0803	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C)	8-98128-704-1	01	1	0807-0809	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C)	8-98128-704-1	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	0803-0803	●	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) (C)	8-98038-417-1	01	1	0804-0804	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) (C)	8-98038-417-1	01	1	0805-0806	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-98038-417-2	01	1	0807-0809	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-98038-417-2	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97387-358-1	01	1	0803-0803	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	0804-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	0804-			●	●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	0803-0803	●	●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	0804-	●	●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	0804-			●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-897-0	01	1	0804-0804	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-897-0	01	1	0805-0809	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-897-0	01	1	0810-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0803-0803	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0804-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0804-			●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0804-0804	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0805-0809	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0810-	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0803-0803	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-	●	●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-			●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0803-0803	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0804-	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	0803-0803	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	0804-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	0803-0803	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	0804-	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8 FLANGE	8-98040-024-0	01	1	0803-0803	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97602-416-0	01	1	0803-0803	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97602-416-0	01	1	0804-0910	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCC ENG(RDU)	8-97602-416-0	01	1	0804-0910			●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98131-263-0	01	1	0911-	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCC ENG(RDU)	8-98131-263-0	01	1	0911-			●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 12.183 M5	8-94169-022-0	02	1	0803-0803	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 12.183 M5	8-94169-022-0	02	1	0804-	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCC ENG(RDU) 12.183 M5	8-94169-022-0	02	1	0804-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
