0-81 — GOVERNOR; INJECTION PUMP (#52763) — 110 parça

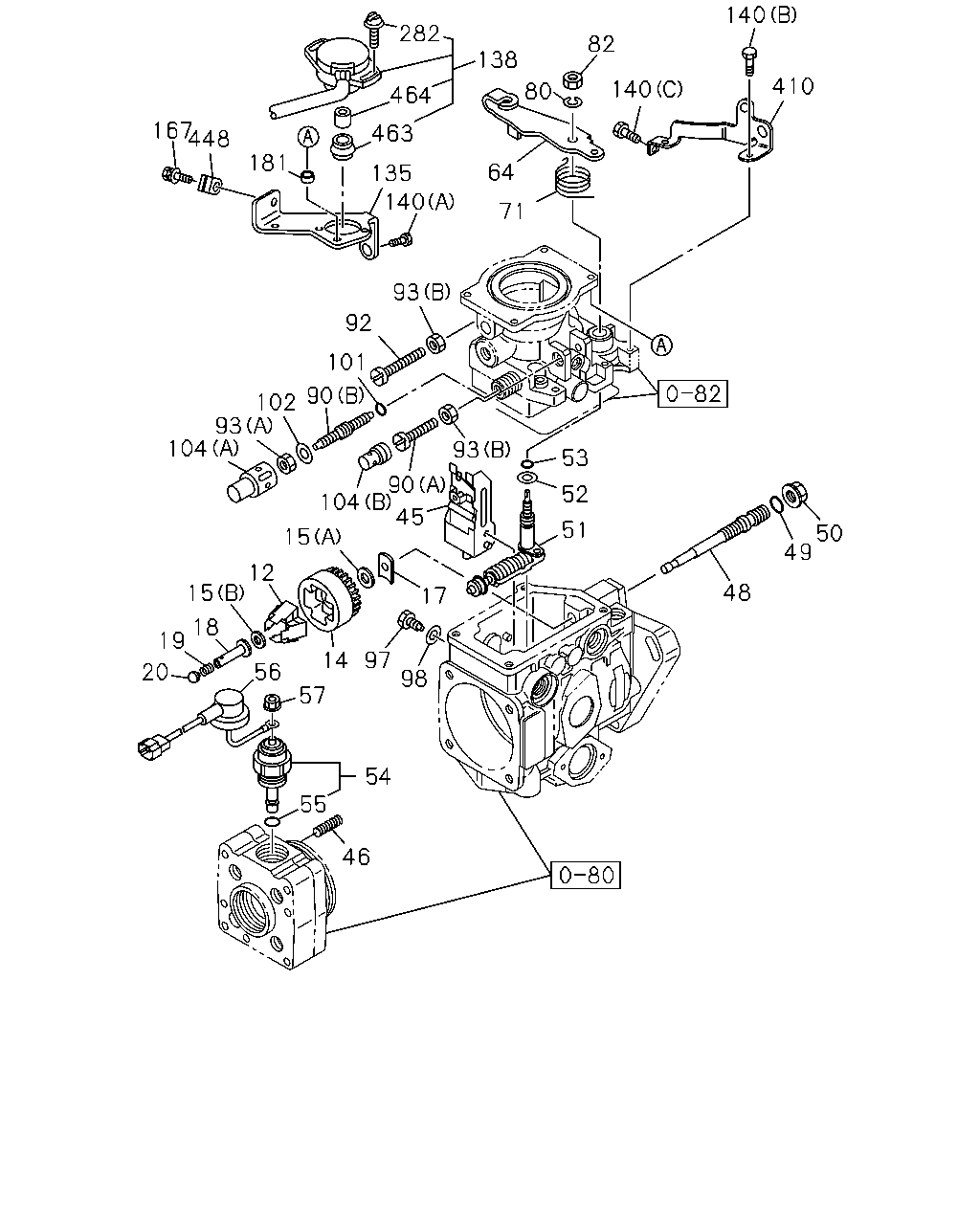

çizim 153869
140 282 82 138 410 140 80 464 167 448 463 181 64 135 140 71 93 92 101 90 102 93 104 93 53 90 104 45 52 51 50 49 15 12 15 48 17 18 19 97 14 20 56 98 57 54 55 46
BalonParca AdiParca NoAdetTipApplied Date
12 03.308 FLYWEIGHT ASM; GOV
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94228-403-0 01 1 -
14 03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-613-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
03.318, (A) ASM PART: A = 8-97263-086-3, 97263086 		8-94227-612-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
03.318, (B) ASM PART: A = 8-97263-086-3, 97263086 		8-94227-614-0 01 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.05 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-607-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.25 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-608-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.45 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-609-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.65 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-610-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.85 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-611-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.15 ASM PART: A = 8-97263-086-3, 97263086 		8-94231-123-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.35 ASM PART: A = 8-97263-086-3, 97263086 		8-94231-124-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.55 ASM PART: A = 8-97263-086-3, 97263086 		8-94231-125-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.75 ASM PART: A = 8-97263-086-3, 97263086 		8-94231-126-0 AR 1 -
18 03.308 SLEEVE; GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-475-0 01 1 -
19 03.308 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94408-519-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94372-499-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94372-500-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94372-501-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94372-502-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-520-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-521-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-522-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-523-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-524-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-525-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-526-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-527-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-528-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-529-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-530-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-531-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-532-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-533-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-534-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94408-535-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-868-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-869-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-870-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-871-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-872-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-873-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-874-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-875-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-876-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-877-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-878-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-879-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-880-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-881-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94428-882-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: A = 8-97263-086-3, 97263086 		8-97163-167-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: A = 8-97263-086-3, 97263086 		8-97163-168-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: A = 8-97263-086-3, 97263086 		8-97163-169-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: A = 8-97263-086-3, 97263086 		8-97163-170-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-97302-244-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94473-128-0 02 1 -
48 03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94248-002-0 01 1 -
49 03.308 GASKET; GOV SHAFT,INJ PUMP
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-606-0 01 1 -
50 03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94473-129-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-97231-938-0 01 1 -
52 03.308 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-94227-590-0 01 1 -
53 03.308 GASKET; CONT SHAFT,GOV
03.306 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-585-0 01 1 -
54 03.308 VALVE; MAG,ENG STOP,INJ PUMP
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94242-275-0 01 1 -
55 03.308 GASKET; MAG VLV,INJ PUMP
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94239-373-0 01 1 -
56 03.308 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94470-582-0 01 1 -
57 03.318 NUT; VLV
ASM PART: A = 8-97263-086-3, 97263086 		8-97138-042-1 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 042 ASM PART: A = 8-97263-086-3, 97263086 		8-97086-120-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 043 ASM PART: A = 8-97263-086-3, 97263086 		8-97086-121-0 01 1 -
71 03.306 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-511-0 01 1 -
80 03.308 WASHER; LK,CONT LEVER,GOV
00.206, ID=6.1 ASM PART: A = 8-97263-086-3, 97263086 		9-09150-506-0 01 1 -
82 03.308 NUT; CONT LEVER FIX,GOV
03.318 ASM PART: A = 8-97263-086-3, 97263086 		1-15729-006-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
01.531, (A) ASM PART: A = 8-97263-086-3, 97263086 		8-94313-253-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=53.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-274-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=55.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-275-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=57.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-276-0 01 1 -
92 03.308 BOLT; FULL LOAD STOPPER,GOV
01.531 ASM PART: A = 8-97263-086-3, 97263086 		8-94313-253-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (A) ASM PART: A = 8-97263-086-3, 97263086 		8-94316-277-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97263-086-3, 97263086 		8-94426-047-1 02 1 -
97 03.308 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97263-086-3, 97263086 		8-94227-601-0 02 1 -
98 03.308 GASKET; PIVOT BOLT,GOV LEVER
03.306 ASM PART: A = 8-97263-086-3, 97263086 		8-94227-602-0 02 1 -
101 03.308 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-94227-598-0 01 1 -
102 03.308 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-94227-593-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-262-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-263-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-264-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-265-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-97263-086-3, 97263086 		8-94316-266-0 01 1 -
135 03.330 BRACKET; POTENTIO METER
ASM PART: A = 8-97263-086-3, 97263086 		8-97231-937-0 01 1 -
138 03.330 POTENTIO METER
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-513-0 01 1 -
140 03.330 BOLT; BRKT,INJ PUMP
03.306, (A) ASM PART: A = 8-97263-086-3, 97263086 		8-94313-203-0 01 1 -
140 03.330 BOLT; BRKT,INJ PUMP
03.308, (B) ASM PART: A = 8-97263-086-3, 97263086 		8-94313-267-0 01 1 -
140 03.330 BOLT; BRKT,INJ PUMP
(C) ASM PART: A = 8-97263-086-3, 97263086 		8-97218-971-0 01 1 -
167 03.308 BOLT; PLATE
ASM PART: A = 8-97263-086-3, 97263086 		8-94174-987-0 01 1 -
181 03.308 SPACER; BRKT
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-506-0 02 1 -
282 03.308 SCREW; POTENTIO METER
ASM PART: A = 8-97263-086-3, 97263086 		8-97148-143-0 02 1 -
410 03.308 BRACKET; GOV
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-97231-936-0 01 1 -
448 03.308 PLATE; BRKT
ASM PART: A = 8-97263-086-3, 97263086 		8-97182-233-0 01 1 -
463 03.308 BOOT; POTENTIO METER
ASM PART: A = 8-97263-086-3, 97263086 		8-97148-144-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=15 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97168-229-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=30 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97168-230-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=45 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97168-231-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=60 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97168-232-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=75 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97168-233-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=90 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-514-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=105 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-515-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=120 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-516-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=135 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-517-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=150 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-518-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=165 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-519-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=0 DEGREES ASM PART: A = 8-97263-086-3, 97263086 		8-97214-520-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
