0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#52759) — 114 parça

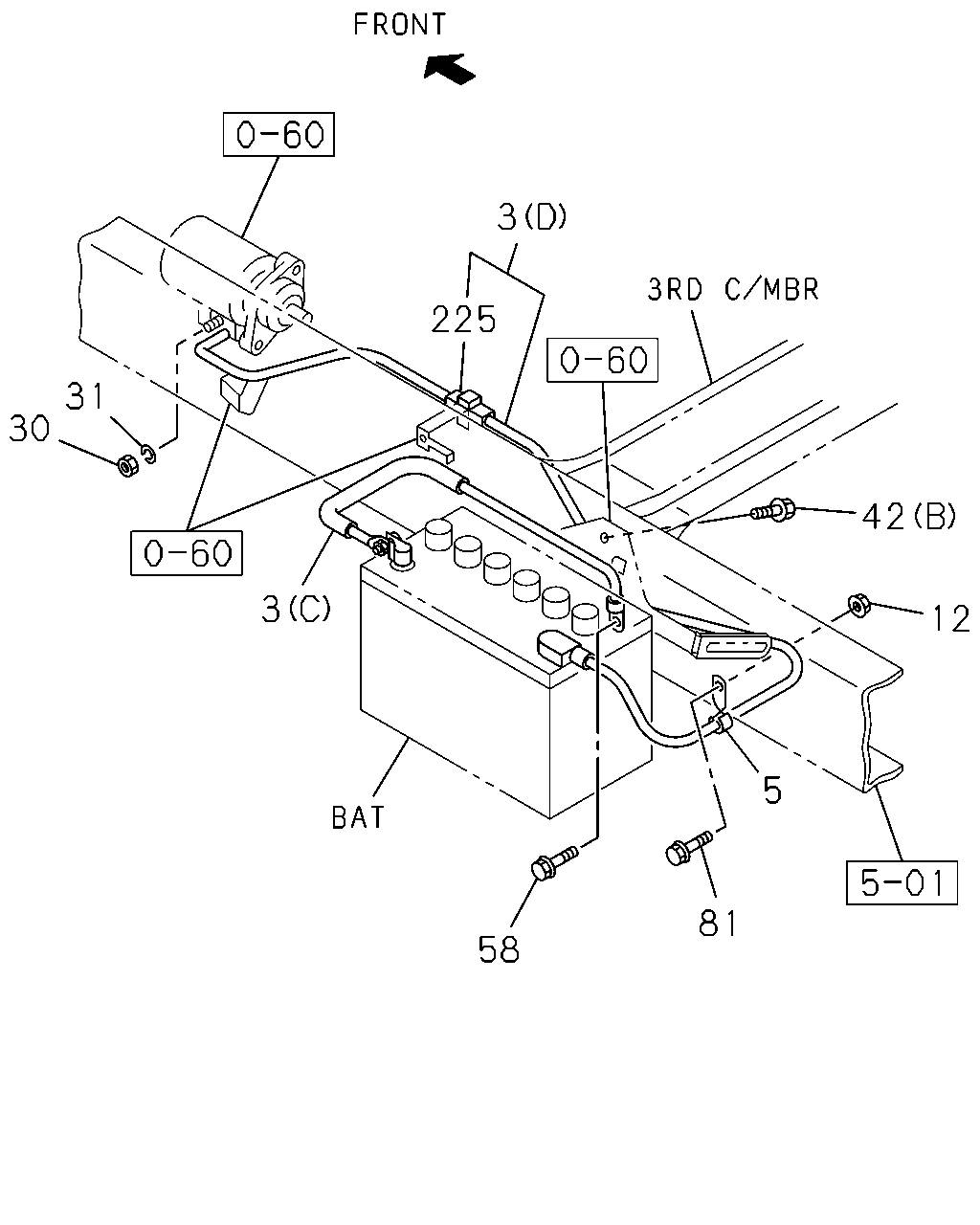

çizim 153849
3 225 31 30 42 3 12 5 81 58
BalonParca AdiParca NoAdetTipApplied Date A B C
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98131-620-0 01 1 0902-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98131-620-0 01 1 1302-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98294-685-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> DUMP CHASSIS(V4D) (A) 		8-98048-442-3 01 1 0803-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (A) 		8-98048-442-3 01 1 0803-0909 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (A) 		8-98137-055-0 01 1 0910-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (A) 		8-98294-686-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 0803- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-439-3 01 1 0803-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 0803-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR/NMR DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. DUMP CHASSIS(V4D) (A) 		8-98293-886-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR/NMR DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-441-2 01 1 0803-0901 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-441-2 01 1 0902-0903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-441-3 01 1 0904-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (C) 		8-98072-081-3 01 1 0804-0804 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (C) 		8-98072-081-3 01 1 0805-0809 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (C) 		8-98072-081-3 01 1 0810- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (D) 		8-98108-626-1 01 1 0804-0804 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (D) 		8-98108-626-1 01 1 0805-0809 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (D) 		8-98108-626-1 01 1 0810-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (D) 		8-98294-683-0 01 1 1410- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 03.162 L=140 		5-09707-031-1 01 1 0810-0811 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> L=250 		5-09707-030-1 01 1 0812-0909 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> ID=19 L=58 		1-09700-733-1 01 1 0804- ●
12 02.343 NUT; BATTERY CABLE CLIP
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0803-0803 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0804- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0803-0803 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0804- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0803-0901 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0902-0906 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR DBL CAB(NM**WE) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0902-0906 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0902-0906 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR/NMR DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0907-1301 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0907-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0907-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR/NMR DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR SGL CAB(NM**SE) 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0804-0804 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0805-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR SGL CAB(NMR6SE) NLR DBL CAB(NMR6WE) NMR DBL CAB(NMR6WN) 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0805-0809 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR SGL CAB(NM**SE) 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0805-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0810- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0803-0803 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1004 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ●
81 02.559 BOLT; BATTERY CABLE
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0803-0803 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●

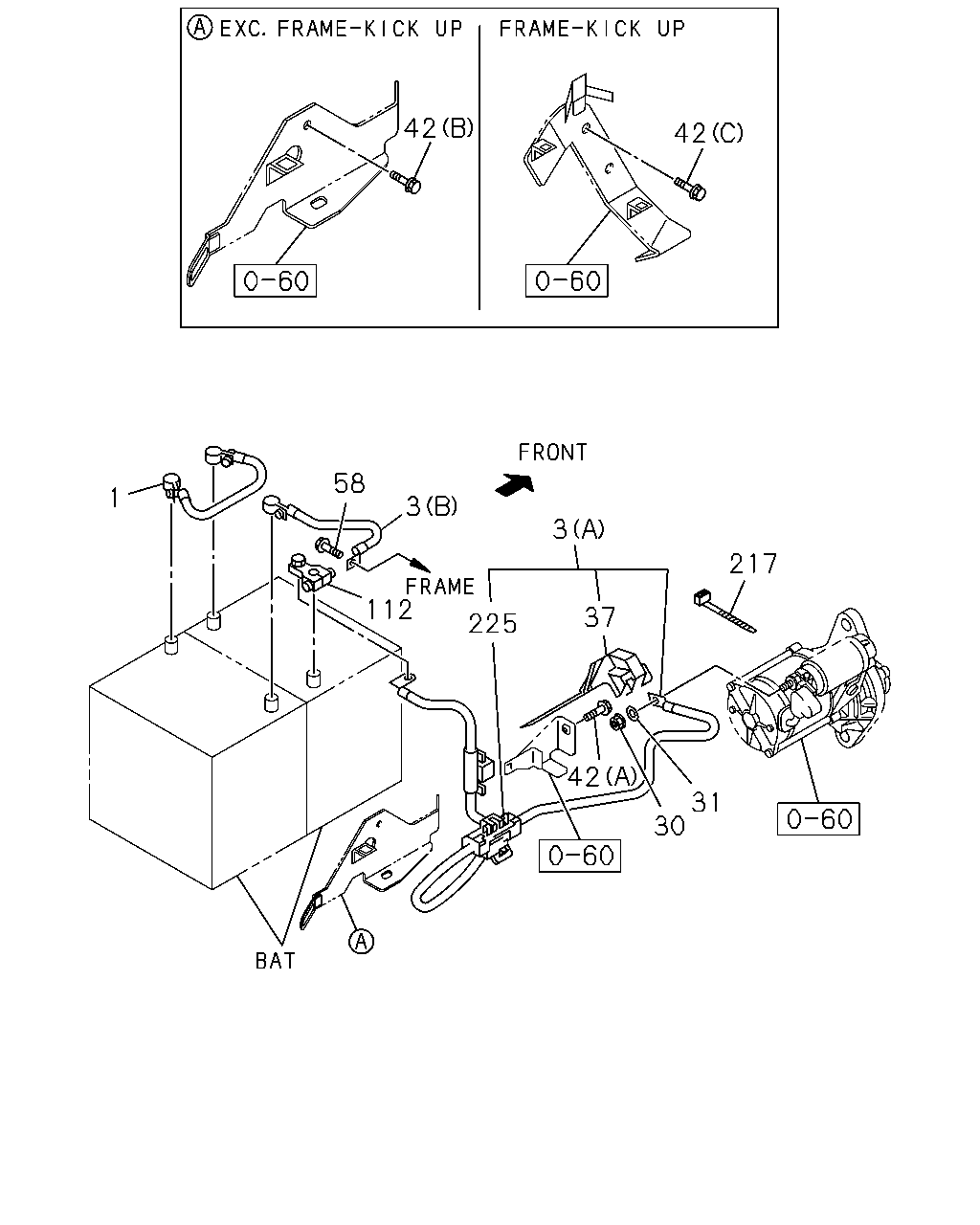

çizim 153856
42 42 58 1 3 3 217 112 37 225 42 31 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0803- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98131-620-0 01 1 0902-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98131-620-0 01 1 1302-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98294-685-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> DUMP CHASSIS(V4D) (A) 		8-98048-442-3 01 1 0803-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (A) 		8-98048-442-3 01 1 0803-0909 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (A) 		8-98137-055-0 01 1 0910-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (A) 		8-98294-686-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 0803- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-439-3 01 1 0803-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 0803-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR/NMR DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. DUMP CHASSIS(V4D) (A) 		8-98293-886-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR/NMR DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-441-2 01 1 0803-0901 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-441-2 01 1 0902-0903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-98048-441-3 01 1 0904-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (C) 		8-98072-081-3 01 1 0804-0804 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (C) 		8-98072-081-3 01 1 0805-0809 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (C) 		8-98072-081-3 01 1 0810- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (D) 		8-98108-626-1 01 1 0804-0804 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (D) 		8-98108-626-1 01 1 0805-0809 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (D) 		8-98108-626-1 01 1 0810-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> EXC. FRAME-KICK UP<7EW> (D) 		8-98294-683-0 01 1 1410- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0803-0803 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0804- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0803-0803 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0804- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0803-1301 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1302- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0803-0901 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0902-0906 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR DBL CAB(NM**WE) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0902-0906 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0902-0906 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR/NMR DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0907-1301 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0907-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0907-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR/NMR DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR SGL CAB(NM**SE) 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0803-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0804-0804 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0805-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR SGL CAB(NMR6SE) NLR DBL CAB(NMR6WE) NMR DBL CAB(NMR6WN) 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0805-0809 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NLR SGL CAB(NM**SE) 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0805-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 0810- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
SGL CAB(NM**S*) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0803-0803 ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1004 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0803- ● ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1101- ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0803-0803 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
