◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#52758) — 186 parça

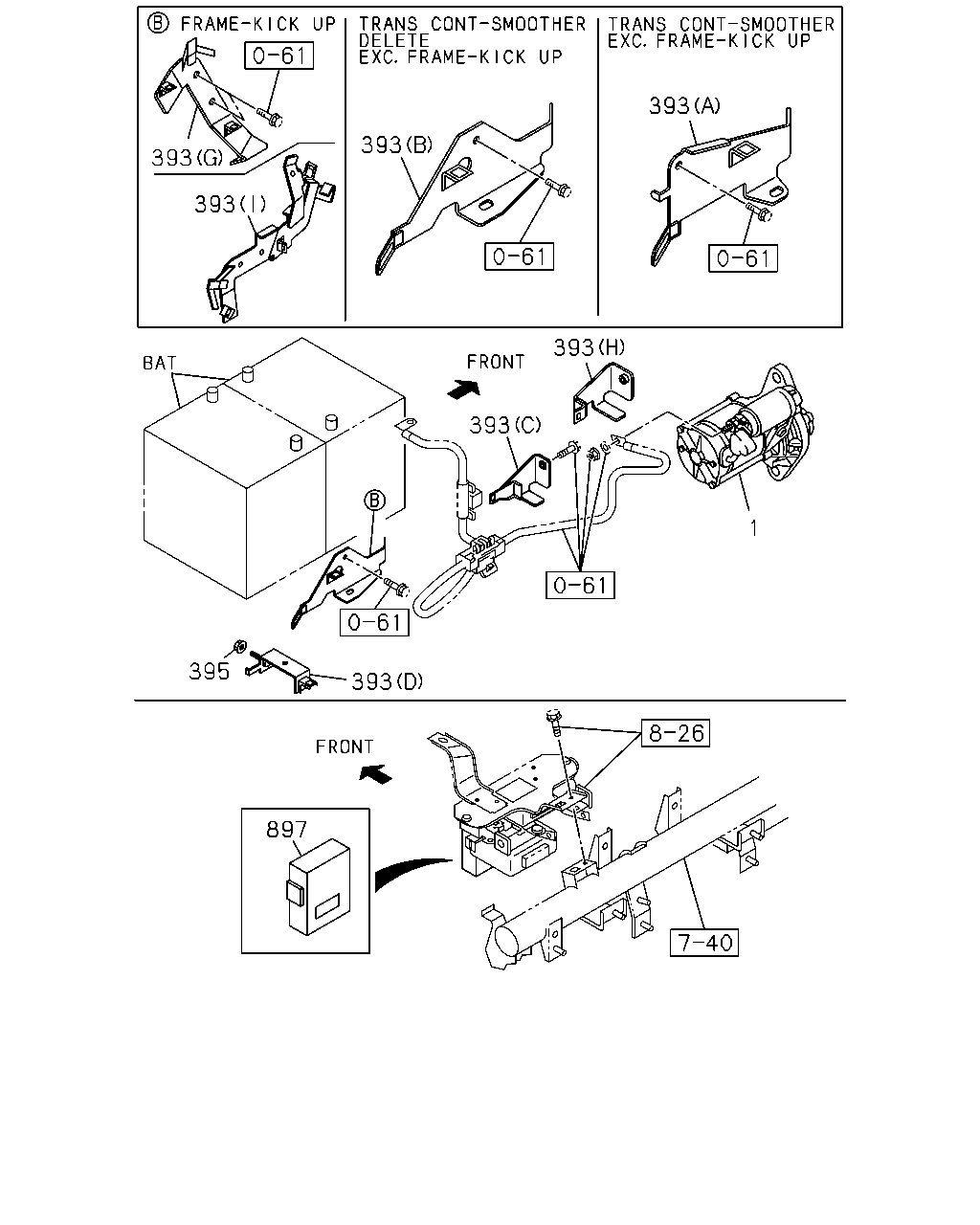

çizim 153833
393 393 395 393
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (G) 		8-98052-993-1 01 1 0803-0808 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (I) 		8-98131-967-0 01 1 0809-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (I) 		8-98137-320-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-903-0 01 1 0803-0901 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 0902-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR DBL CAB(NM**WE) (C) 		8-98018-903-0 01 1 0902-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) (C) 		8-98018-903-0 01 1 0902-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (C) 		8-98018-903-0 01 1 0907-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1104-1301 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1302- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1302- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98028-600-3 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> (A) 		8-98028-600-3 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98028-601-3 01 1 0803-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> (B) 		8-98028-601-3 01 1 0803-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> (B) 		8-98028-601-3 01 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (B) 		8-98028-601-3 01 1 0804- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0803-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0804-0804 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 02.483 (D) 		8-98018-251-1 01 1 0804-0804 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0805-0809 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) 02.483 (D) 		8-98018-251-1 01 1 0805-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0810-0903 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 02.483 (D) 		8-98018-251-1 01 1 0810-0903 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0904-1311 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 02.483 (D) 		8-98018-251-1 01 1 0904-1311 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 1312- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) 02.483 (D) 		8-98018-251-1 01 1 1312- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98111-453-0 01 1 0804- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> (F) 		8-98092-304-2 01 1 0804- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ● ●
395 02.343 NUT; BRKT FIX
NLR SGL CAB(NM**SE) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-0903 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-0903 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0904-1311 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0904-1311 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1312- ●

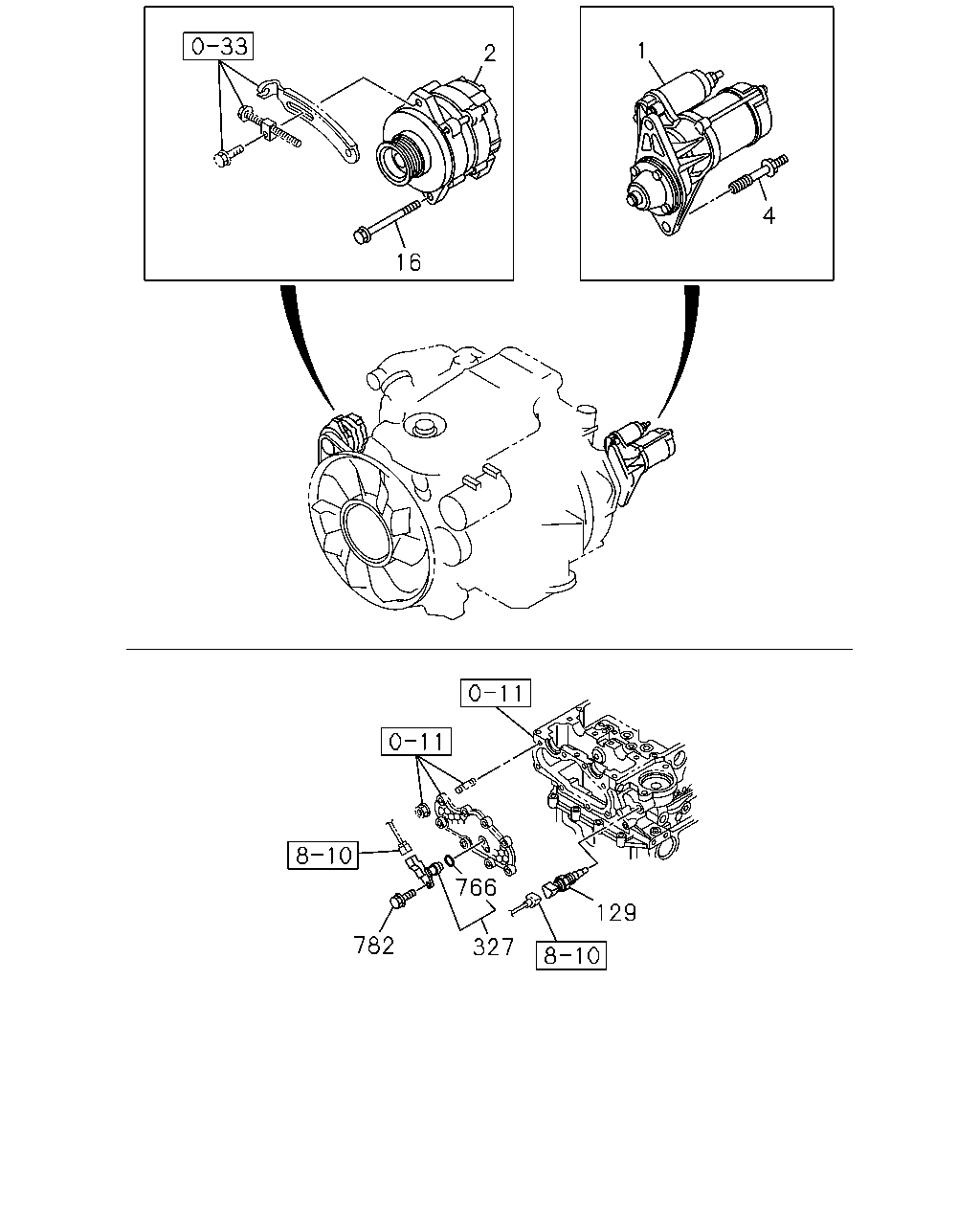

çizim 153834
1 2 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0803-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SGL CAB(NM**S*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0803-0803 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0804-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0804- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. SGL CAB(NM**S*) GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 0803-0803 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 0804- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-1 01 1 0804-0804 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0804-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0803- ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0804- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0803- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0804- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0803- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0803- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0803- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0803- ● ●

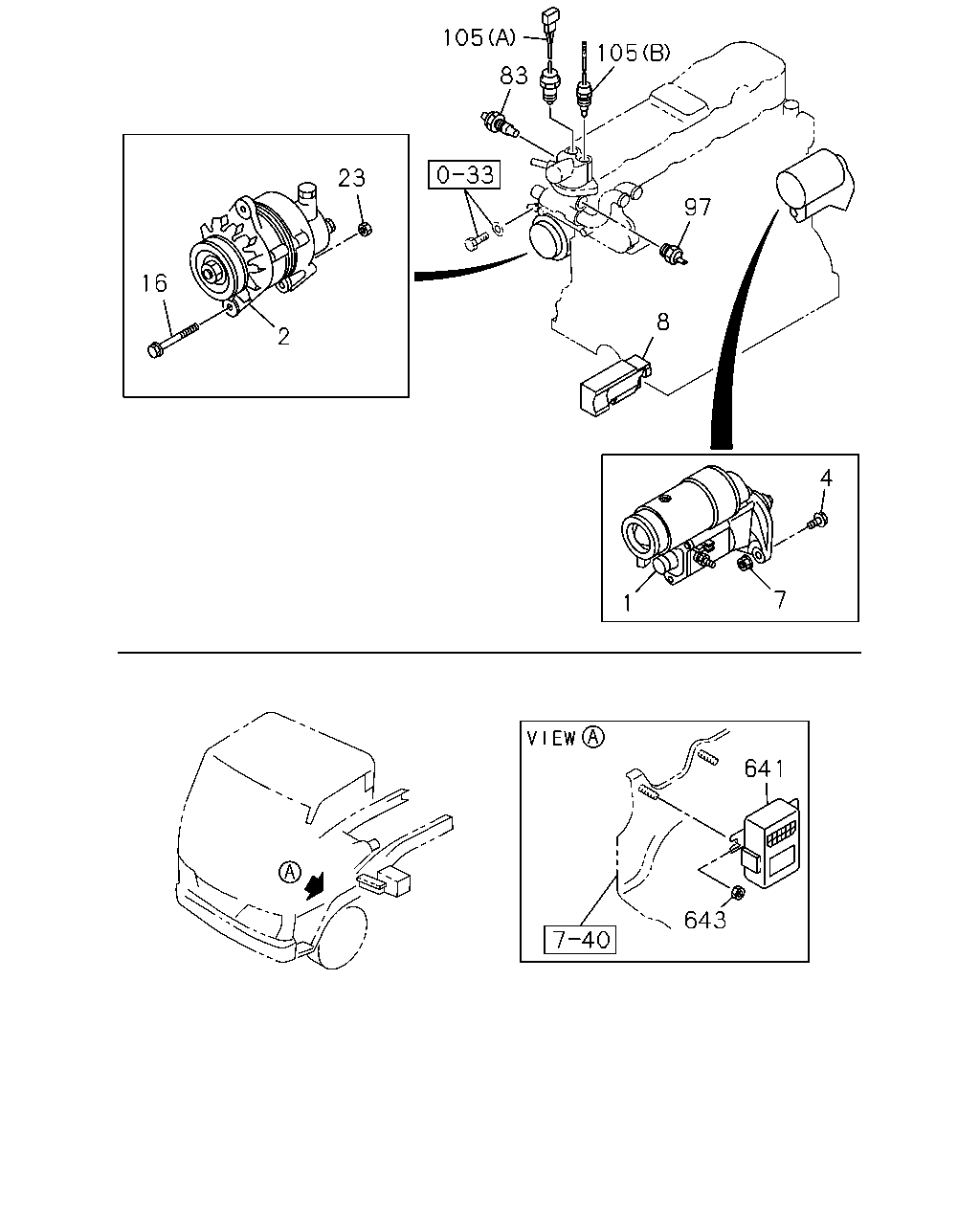

çizim 153836
641 643 8 4 7 1 2 16 23 105 105 83 97
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0803-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SGL CAB(NM**S*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0803-0803 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0804-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0804- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. SGL CAB(NM**S*) GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 0803-0803 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 0804- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-1 01 1 0804-0804 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 0804-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0803- ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0804- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0804- ●
8 02.042 SPACER; STARTER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97210-762-0 01 1 0804- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0803- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0804- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0804- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0804- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0804- ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0804- ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 0804- ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 0804- ●
641 02.510 TIMER; QOS 8-97361-317-3 01 1 0804- ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 01 1 0804-1509 ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 1510- ●

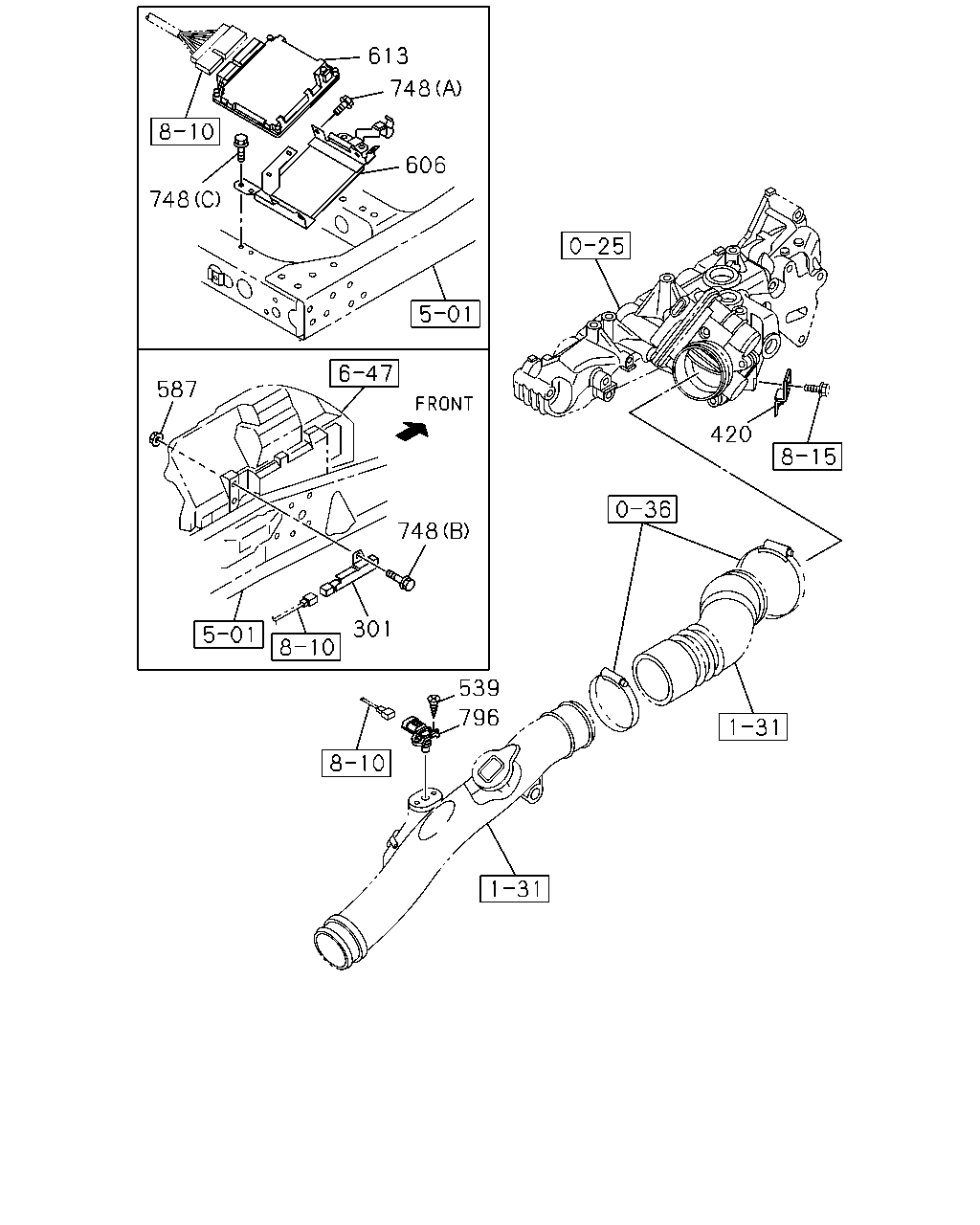

çizim 153838
613 748 606 748 587 420 748 301 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0803- ●
420 02.183 BRACKET; HARNESS 8-98009-094-0 01 1 0803- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0803- ● ●
587 03.671 NUT; RESISTOR & RELAY
04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 0803-1301 ● ●
587 03.671 NUT; RESISTOR & RELAY
04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 1302- ●
606 03.680 BRACKET; CONT UNIT
NLR/NMR DBL CAB(NM**W*) 		8-98038-714-3 01 1 0804- ●
606 03.680 BRACKET; CONT UNIT
SGL CAB(NM**S*) 		8-98011-948-3 01 1 0803- ● ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-756-0 01 1 1510-1510 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-756-0 01 1 1510- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98132-944-2 01 1 0809-1111 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-759-0 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-435-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-431-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98070-436-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-432-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL-S MOOTHER(8GF) 		8-98066-046-6 01 1 0803-1111 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL-S MOOTHER(8GF) 		8-98191-758-1 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL-S MOOTHER(8GF) 		8-98066-050-5 01 1 0804-1111 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL-S MOOTHER(8GF) 		8-98191-757-0 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-048-5 01 1 0804-1111 ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-755-0 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM) EURO4 SPECIFICATION(NT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL-S MOOTHER(8GF) 		8-98070-434-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NM**S*) M/T MYY5T(RSM),M/T MYY6S(RST) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98070-438-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5T(RSM) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98070-437-9 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
NLR SGL CAB(NM**SE) M/T MYY5T(RSM) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-433-9 01 1 0803- ●
748 02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 04 1 0803- ● ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 0803-1301 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 1302- ●
748 02.500 BOLT; CONT UNIT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0803- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0803- ● ●
çizim 153839
393 393 393 393 393 393 1 393 395 897
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0803-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. SGL CAB(NM**S*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0803-0803 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0804-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0804- ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (G) 		8-98052-993-1 01 1 0803-0808 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (I) 		8-98131-967-0 01 1 0809-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME-KICK UP<7EW> (I) 		8-98137-320-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-903-0 01 1 0803-0901 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 0902-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR DBL CAB(NM**WE) (C) 		8-98018-903-0 01 1 0902-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) (C) 		8-98018-903-0 01 1 0902-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (C) 		8-98018-903-0 01 1 0907-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1104-1301 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1302- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1302- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98028-600-3 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME-KICK UP<7EW> (A) 		8-98028-600-3 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98028-601-3 01 1 0803-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NMR SGL CAB(NM**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> (B) 		8-98028-601-3 01 1 0803-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> (B) 		8-98028-601-3 01 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR/NMR DBL CAB(NM**W*) (B) 		8-98028-601-3 01 1 0804- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0803-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0804-0804 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 02.483 (D) 		8-98018-251-1 01 1 0804-0804 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0805-0809 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NLR SGL CAB(NM**SE) 02.483 (D) 		8-98018-251-1 01 1 0805-0809 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0810-0903 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 02.483 (D) 		8-98018-251-1 01 1 0810-0903 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 0904-1311 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 02.483 (D) 		8-98018-251-1 01 1 0904-1311 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.483 (D) 		8-98018-251-1 01 1 1312- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) 02.483 (D) 		8-98018-251-1 01 1 1312- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98111-453-0 01 1 0804- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> (F) 		8-98092-304-2 01 1 0804- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ● ●
395 02.343 NUT; BRKT FIX
NLR SGL CAB(NM**SE) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805-0809 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-0903 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-0903 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0904-1311 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0904-1311 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1312- ●
897 02.510 DRM 8-98082-814-7 01 1 0803- ● ●
çizim 153850
718 10 46 718
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0803- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 12V<TRQ> 24V 50A 		8-97264-947-0 01 1 0803- ●
10 02.100 RELAY; STARTER
VOLTAGE 12V<TRQ> 02.510 12V 80A 		8-97173-951-0 01 1 0804- ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0803- ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 12V<TRQ> 24V 50A 		8-97173-947-0 01 1 0803- ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 12V<TRQ> 12V 80A 		8-97173-951-0 01 1 0804- ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0908-1402 ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 0804- ●

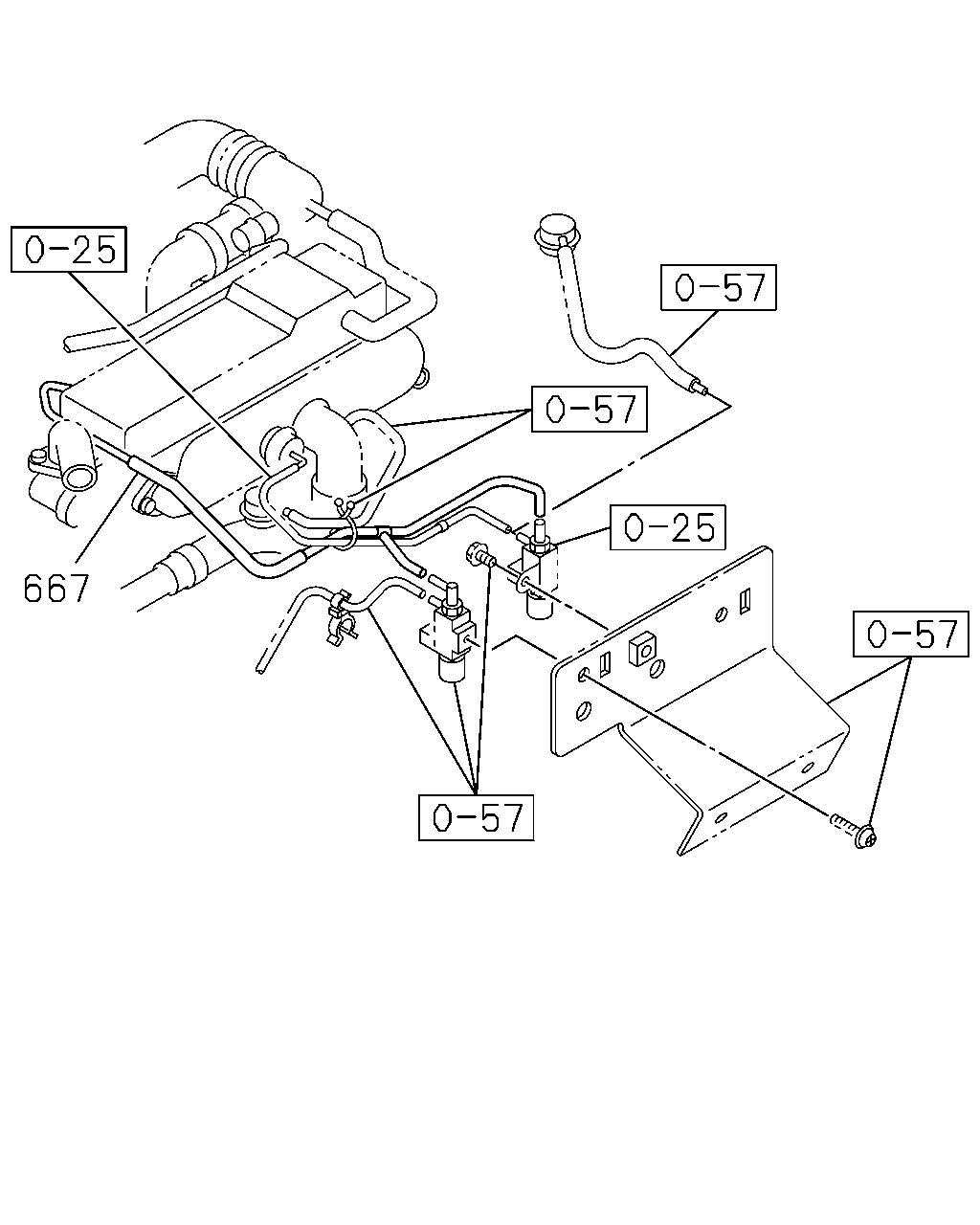

çizim 153863
667
BalonParca AdiParca NoAdetTipApplied Date A B C
667 03.280 HOSE; VAC,PUMP TO VSV 8-98088-020-2 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
