Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#52757) — 163 parça

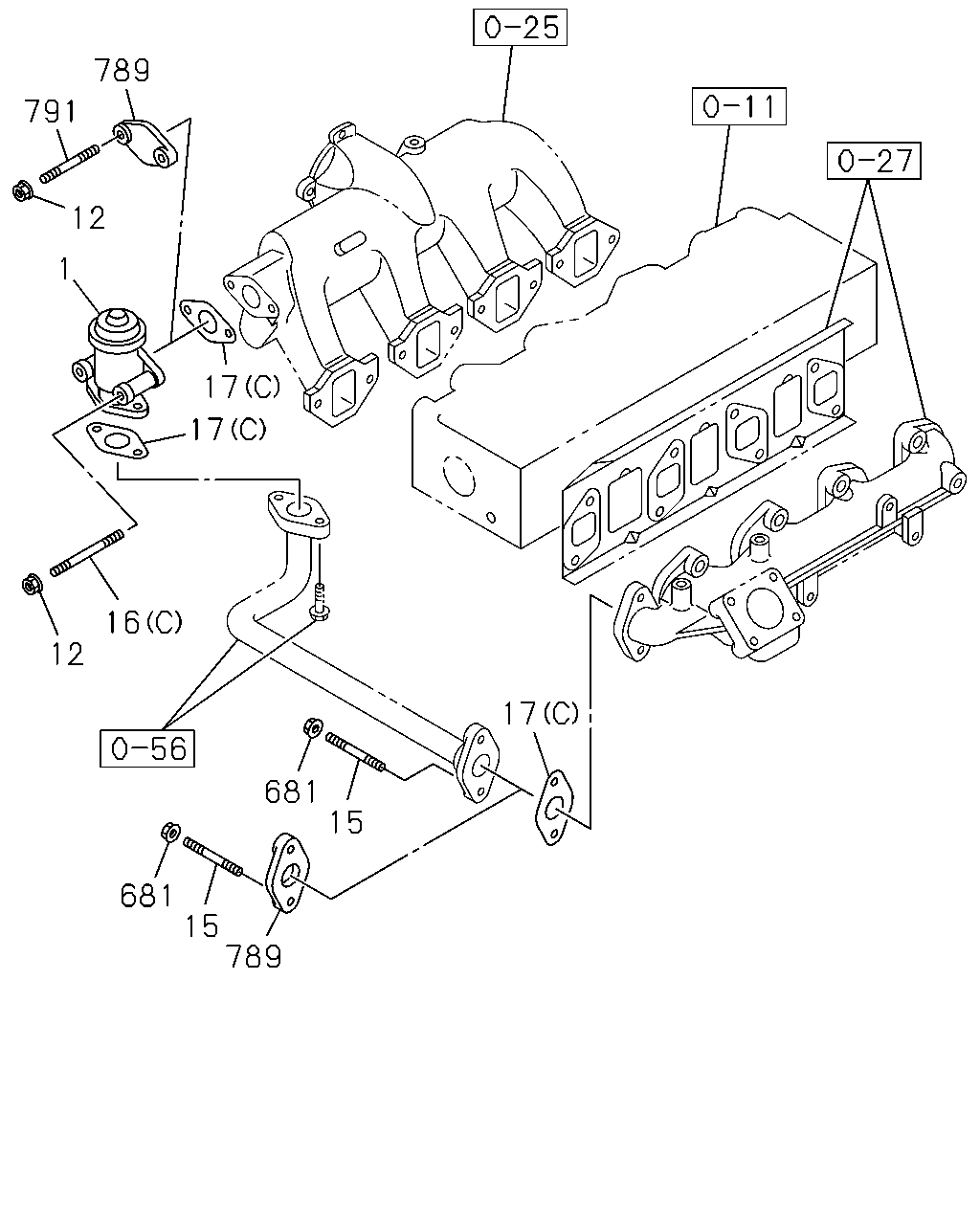

789 791 12 1 17 17 16 12 17 681 15 681 15 789

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97381-560-3	01	1	0803-0807	●	●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97381-560-7	01	1	0808-1403		●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-97381-560-7	01	1	0808-1403	●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98238-259-1	01	1	1404-		●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-98238-259-1	01	1	1404-	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0804-0804			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0803-0807	●	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	04	1	0808-		●
12	03.671 NUT; EGR VLV EURO4 SPECIFICATION(NT4) 01.540 M8 FLANGE	0-91180-208-0	04	1	0808-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-1006			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-		●
15	03.670 STUD; EGR PIPE EURO4 SPECIFICATION(NT4) 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0803-0803	●	●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0804		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0804	●		●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0809	●		●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-1006		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-1006	●		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1007-			●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	0803-0807	●	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 L=41	0-40210-825-0	02	1	0808-		●
16	03.275 STUD; EGR VLV EURO4 SPECIFICATION(NT4) (A) M8X25 L=41	0-40210-825-0	02	1	0808-	●
16	03.275 STUD; EGR VLV (B) M8X50 L=62	0-40210-850-0	02	1	0803-0807	●	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X50 L=62	0-40210-850-0	02	1	0808-		●
16	03.275 STUD; EGR VLV EURO4 SPECIFICATION(NT4) (B) M8X50 L=62	0-40210-850-0	02	1	0808-	●
16	03.275 STUD; EGR VLV 01.097 (C) M8X55 L=67	0-41010-855-0	02	1	0804-0804			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	0803-0807	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97357-684-3	01	1	0808-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (A)	8-97357-684-3	01	1	0808-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	0803-0807	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98017-551-0	01	1	0808-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (B)	8-98017-551-0	01	1	0808-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97192-765-0	03	1	0804-0804			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97192-765-0	02	1	0804-1006			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97192-765-0	01	1	1007-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-0803	●	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0804		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0804	●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0809		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0809	●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-	●		●
789	03.670 COVER; COOLER,EGR	8-98118-248-0	02	1	0804-1006			●
789	03.670 COVER; COOLER,EGR	8-98118-248-0	01	1	1007-			●
791	03.670 STUD; COVER 00.206	0-40210-820-0	02	1	0804-1006			●

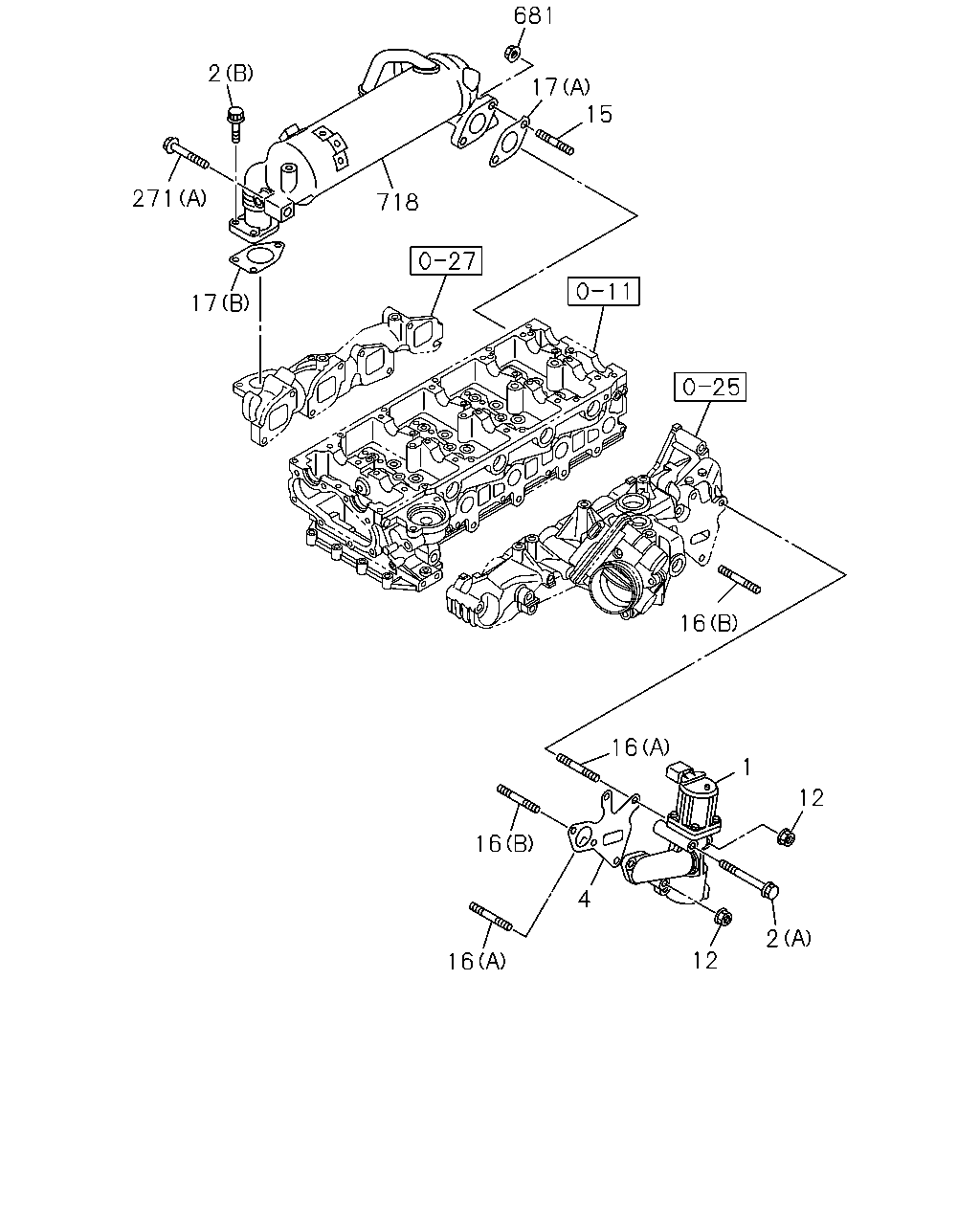

681 2 17 15 271 718 17 16 16 1 12 16 4 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97381-560-3	01	1	0803-0807	●	●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97381-560-7	01	1	0808-1403		●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-97381-560-7	01	1	0808-1403	●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98238-259-1	01	1	1404-		●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-98238-259-1	01	1	1404-	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0804-0804			●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0803-0807	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0808-		●
2	03.670 BOLT; EGR VLV EURO4 SPECIFICATION(NT4) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0808-	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0803-0807	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0808-		●
2	03.670 BOLT; EGR VLV EURO4 SPECIFICATION(NT4) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0808-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	01	1	0803-0807	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98094-528-0	01	1	0808-1008		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4)	8-98094-528-0	01	1	0808-1008	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98094-528-0	02	1	1009-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4)	8-98094-528-0	02	1	1009-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0803-0807	●	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	04	1	0808-		●
12	03.671 NUT; EGR VLV EURO4 SPECIFICATION(NT4) 01.540 M8 FLANGE	0-91180-208-0	04	1	0808-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-1006			●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-		●
15	03.670 STUD; EGR PIPE EURO4 SPECIFICATION(NT4) 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0803-0803	●	●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0804		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0804	●		●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0809		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-0809	●		●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-1006		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0810-1006	●		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1007-			●
16	03.275 STUD; EGR VLV (A) M8X25 L=41	0-40210-825-0	02	1	0803-0807	●	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 L=41	0-40210-825-0	02	1	0808-		●
16	03.275 STUD; EGR VLV EURO4 SPECIFICATION(NT4) (A) M8X25 L=41	0-40210-825-0	02	1	0808-	●
16	03.275 STUD; EGR VLV (B) M8X50 L=62	0-40210-850-0	02	1	0803-0807	●	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X50 L=62	0-40210-850-0	02	1	0808-		●
16	03.275 STUD; EGR VLV EURO4 SPECIFICATION(NT4) (B) M8X50 L=62	0-40210-850-0	02	1	0808-	●
16	03.275 STUD; EGR VLV 01.097 (C) M8X55 L=67	0-41010-855-0	02	1	0804-0804			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	0803-0807	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97357-684-3	01	1	0808-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (A)	8-97357-684-3	01	1	0808-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	0803-0807	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98017-551-0	01	1	0808-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (B)	8-98017-551-0	01	1	0808-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97192-765-0	03	1	0804-0804			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97192-765-0	02	1	0804-1006			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97192-765-0	01	1	1007-			●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●
271	03.675 BOLT; BRKT 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0803-0807	●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0808-1002		●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0808-1002	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-0803	●	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0804		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0804	●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0809		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0809	●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-	●		●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0803-0807	●	●
718	03.337 COOLER; EGR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98011-524-3	01	1	0808-1002		●
718	03.337 COOLER; EGR EURO4 SPECIFICATION(NT4)	8-98011-524-3	01	1	0808-1002	●
718	03.337 COOLER; EGR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98164-570-1	01	1	1003-		●
718	03.337 COOLER; EGR EURO4 SPECIFICATION(NT4)	8-98164-570-1	01	1	1003-	●

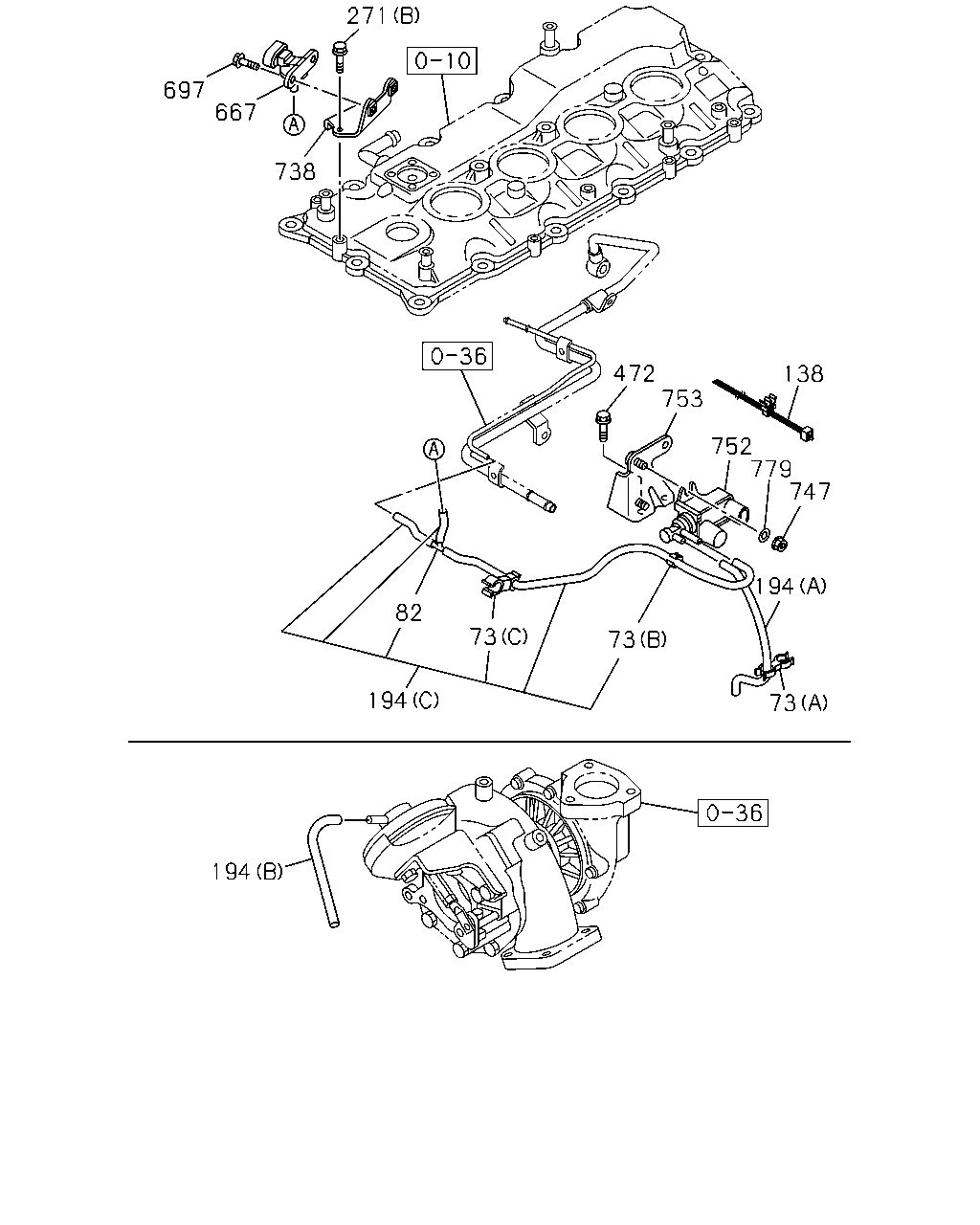

271 697 667 738 472 753 138 752 779 747 194 82 73 73 194 73 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE EURO4 SPECIFICATION(NT4) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0803-	●
73	03.680 CLIP; VAC HOSE EURO4 SPECIFICATION(NT4) 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	0803-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0803-0803	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0804-	●		●
73	03.680 CLIP; VAC HOSE 01.540 (D) ID=30	8-94315-423-0	02	1	0804-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	0804-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	0804-			●
82	03.680 JOINT; 3 WAY EURO4 SPECIFICATION(NT4) 3WAY	8-98045-385-0	01	1	0803-	●
138	03.675 CLIP; BAND,VAC HOSE	8-98090-689-0	01	1	0804-			●
194	03.675 HOSE; VAC EURO4 SPECIFICATION(NT4) (A)	0-04420-270-0	01	1	0803-	●
194	03.675 HOSE; VAC EURO4 SPECIFICATION(NT4) (B)	8-98036-856-0	01	1	0803-	●
194	03.675 HOSE; VAC EURO4 SPECIFICATION(NT4) (C)	8-98085-688-0	01	1	0803-	●
194	03.675 HOSE; VAC (D)	8-97208-495-0	01	1	0804-			●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●
271	03.675 BOLT; BRKT 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0803-0807	●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0808-1002		●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0808-1002	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
667	03.670 SENSOR; VAC EURO4 SPECIFICATION(NT4)	8-98044-520-0	01	1	0803-	●
697	03.680 BOLT; SENSOR EURO4 SPECIFICATION(NT4) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0803-	●
738	03.675 BRACKET; SENSOR,VAC EURO4 SPECIFICATION(NT4)	8-98044-607-0	01	1	0803-	●
747	03.671 NUT; VAC REG VALVE EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
752	03.670 VALVE; EVRV	8-97184-183-0	01	1	0803-0803	●
752	03.670 VALVE; EVRV EURO4 SPECIFICATION(NT4)	8-98116-259-0	01	1	0804-	●
752	03.670 VALVE; EVRV	8-94384-335-0	01	1	0804-			●
753	03.670 BRACKET; VALVE EURO4 SPECIFICATION(NT4)	8-97381-571-1	01	1	0803-	●
779	03.671 WASHER; VALVE EURO4 SPECIFICATION(NT4) 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	0803-	●

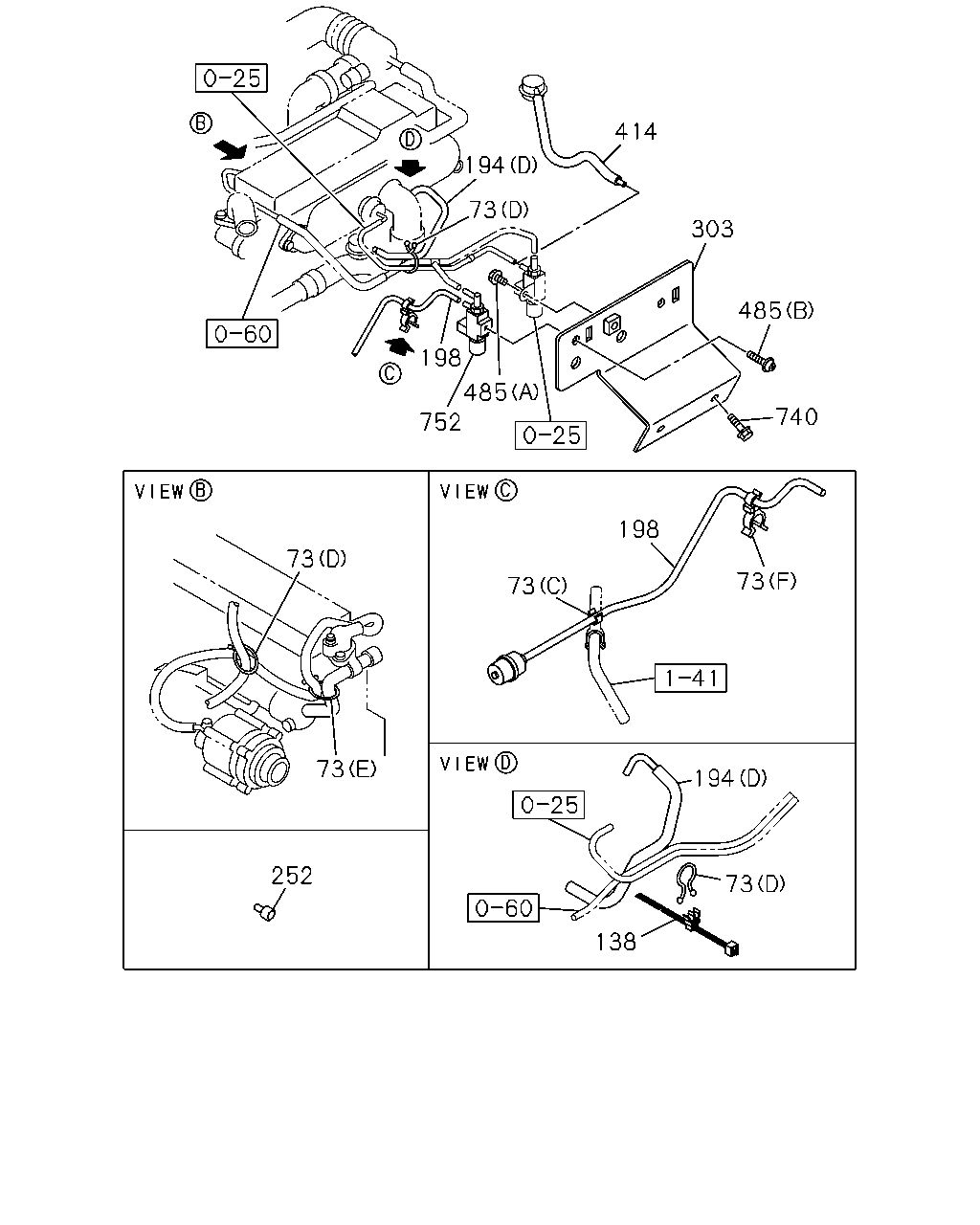

414 194 73 198 752 485 303 485 740 73 198 73 194 73 138 252 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE EURO4 SPECIFICATION(NT4) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0803-	●
73	03.680 CLIP; VAC HOSE EURO4 SPECIFICATION(NT4) 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	0803-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0803-0803	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0804-	●		●
73	03.680 CLIP; VAC HOSE 01.540 (D) ID=30	8-94315-423-0	02	1	0804-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	0804-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	0804-			●
138	03.675 CLIP; BAND,VAC HOSE	8-98090-689-0	01	1	0804-			●
194	03.675 HOSE; VAC EURO4 SPECIFICATION(NT4) (A)	0-04420-270-0	01	1	0803-	●
194	03.675 HOSE; VAC EURO4 SPECIFICATION(NT4) (B)	8-98036-856-0	01	1	0803-	●
194	03.675 HOSE; VAC EURO4 SPECIFICATION(NT4) (C)	8-98085-688-0	01	1	0803-	●
194	03.675 HOSE; VAC (D)	8-97208-495-0	01	1	0804-			●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0804-			●
252	03.670 CAP; RUBBER,EGR VLV EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) 04.931	8-97108-680-0	02	1	0805-0805			●
252	03.670 CAP; RUBBER,EGR VLV EURO2 SPECIFICATION(NT2) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT (SGX) 04.931	8-97108-680-0	02	1	0805-			●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	0804-			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-98090-624-1	01	1	0804-0804			●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT (SGX) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0808-			●
485	03.671 BOLT; VSV 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-			●
485	03.671 BOLT; VSV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0804-0807			●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0808-0809	●	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0810-			●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0810-			●
740	03.680 BOLT; VAC REG VALVE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-			●
752	03.670 VALVE; EVRV	8-97184-183-0	01	1	0803-0803	●
752	03.670 VALVE; EVRV EURO4 SPECIFICATION(NT4)	8-98116-259-0	01	1	0804-	●
752	03.670 VALVE; EVRV	8-94384-335-0	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
