Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#52755) — 235 parça

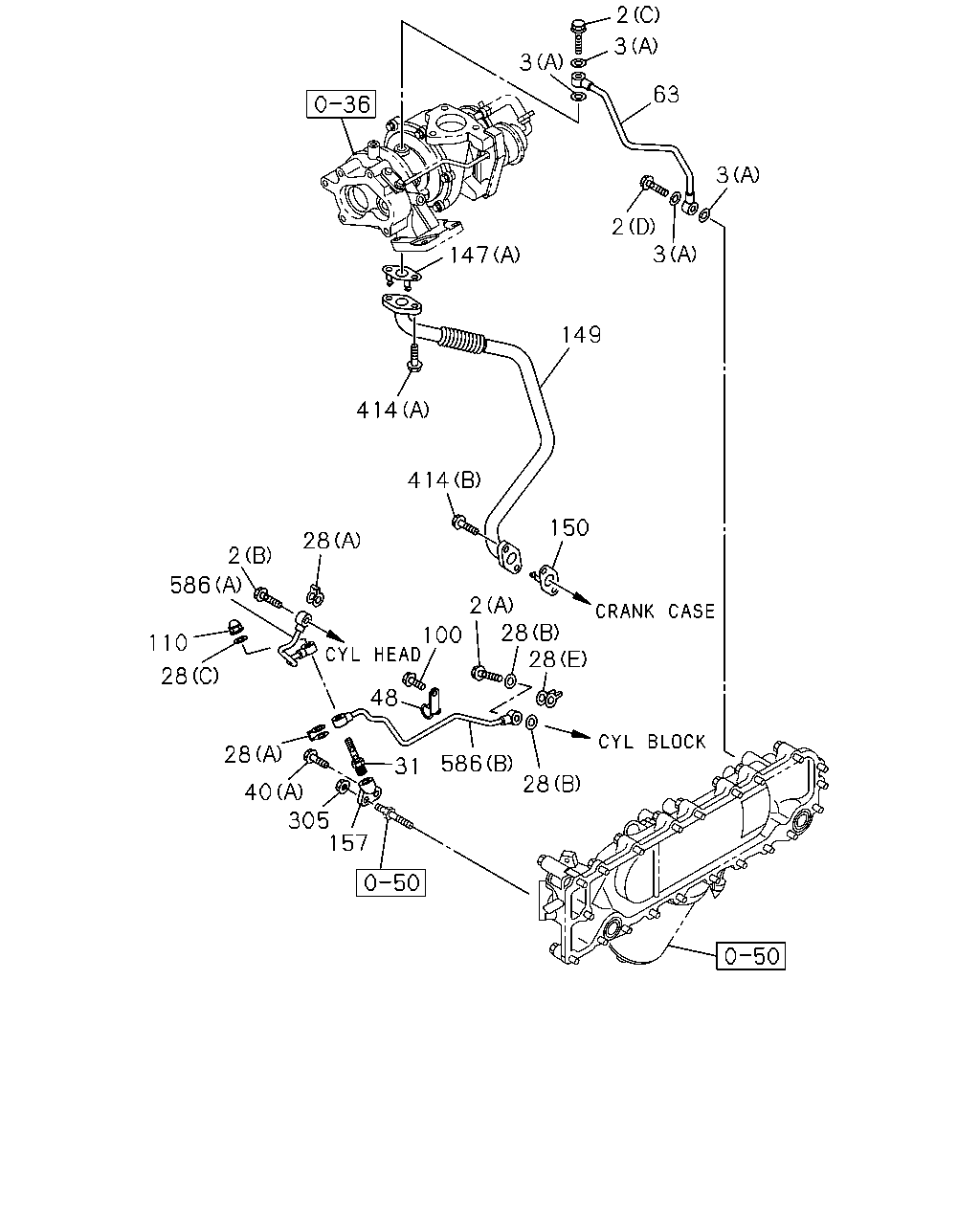

2 3 3 63 3 2 3 147 149 414 414 150 28 2 586 2 28 28 100 110 28 48 28 586 28 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT	8-97910-296-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT(CL0) (D) M10X24	8-97944-505-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0803-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0803-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111		●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	0803-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0803-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) 03.280 (D) M10X24	9-09906-205-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1105-		●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (E) M10X23 FLANGE	8-94332-831-1	01	1	0804-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	0803-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0804-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0803-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0803-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0902	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11	5-09623-002-0	02	1	0804-			●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	0803-	●	●
40	01.531 BOLT; OIL PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
40	01.531 BOLT; OIL PIPE 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0804-			●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98068-212-0	01	1	0803-0903	●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	0904-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0803-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	0804-			●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	0803-1309	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) (A)	8-98132-017-0	01	1	1105-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16	8-98029-475-0	01	1	0803-1104	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). (A) ID=16	8-98029-475-0	01	1	1105-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16	8-98029-475-0	01	1	1105-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (B)	8-94362-672-1	01	1	0804-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0803-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	0804-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0)	8-98132-018-1	01	1	1105-1111	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0803-1104	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0).	8-98029-476-0	01	1	1105-1111	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1105-1111		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1112-	●	●
157	01.519 BRACKET; OIL PIPE	8-98043-093-0	01	1	0803-	●	●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-	●	●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0803-1107	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-	●	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0803-	●	●
414	01.531 BOLT; OIL PIPE 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	0804-			●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0803-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0803-	●	●

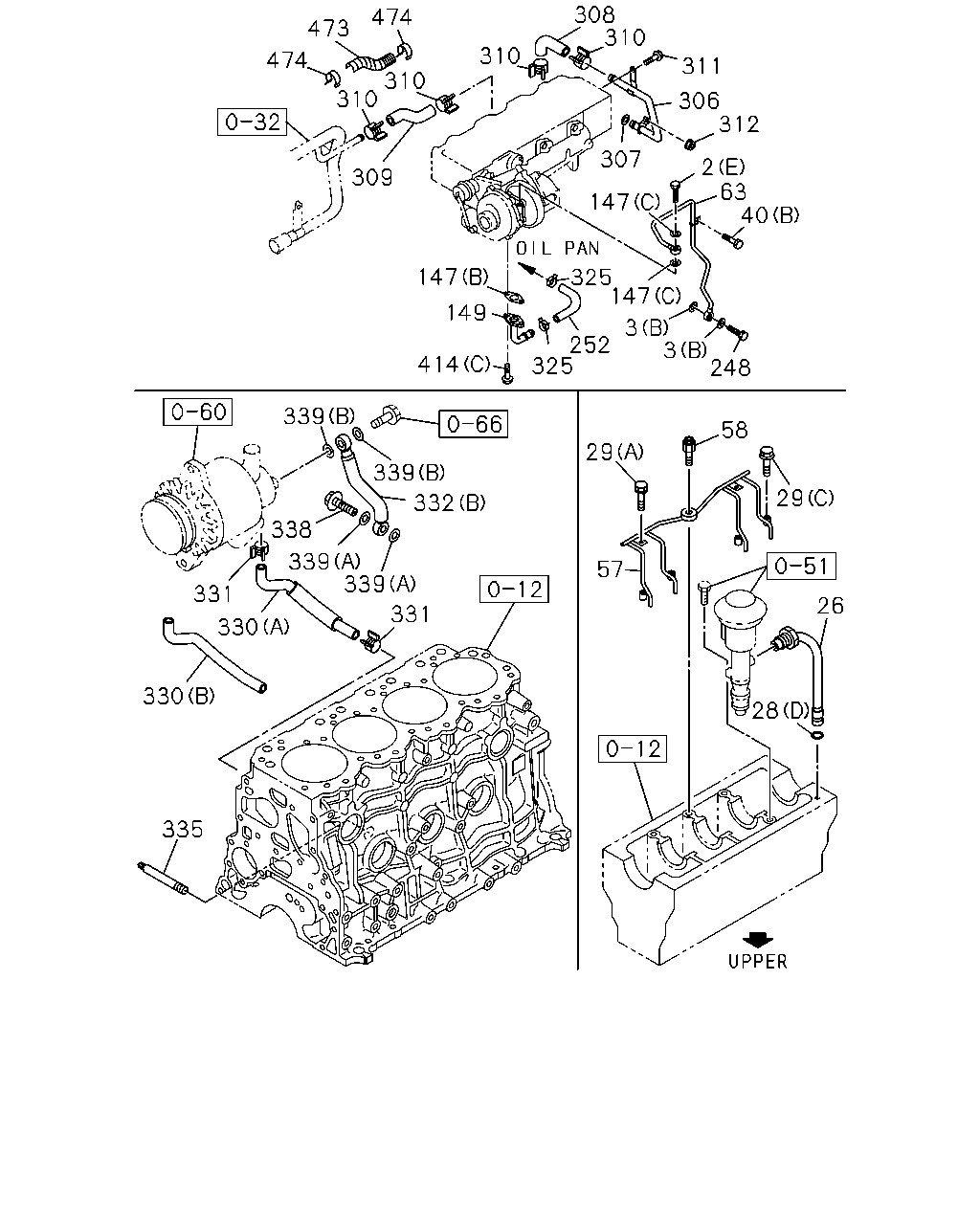

473 474 310 310 310 309 308 311 312 306 307 147 63 2 40 147 414 325 252 325 3 248 3 147 474 339 339 338 332 339 339 331 331 330 330 335 57 29 58 29 26 28 149 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT	8-97910-296-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT(CL0) (D) M10X24	8-97944-505-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0803-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0803-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111		●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	0803-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0803-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) 03.280 (D) M10X24	9-09906-205-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1105-		●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (E) M10X23 FLANGE	8-94332-831-1	01	1	0804-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	0803-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0804-			●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0804-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0803-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0803-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0902	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11	5-09623-002-0	02	1	0804-			●
29	01.531 BOLT; OIL PIPE,OIL JET VIETNAM EQUIPMENT(CL0) (B) M6X20 FLANGE	8-97380-673-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0803-0803	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0804-			●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0803-1104	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. VIETNAM EQUIPMENT(CL0) (B) M6X20	8-97117-298-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1105-		●
40	01.531 BOLT; OIL PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
40	01.531 BOLT; OIL PIPE 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0804-			●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0803-	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	0804-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO VIETNAM EQUIPMENT(CL0)	8-97379-464-0	01	1	1105-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0803-1104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT(CL0)	8-97239-048-1	01	1	1105-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1105-1407		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT(CL0)	8-98285-334-0	01	1	1408-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	0804-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0803-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	0804-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) (A)	8-98132-017-0	01	1	1105-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16	8-98029-475-0	01	1	0803-1104	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). (A) ID=16	8-98029-475-0	01	1	1105-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16	8-98029-475-0	01	1	1105-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (B)	8-94362-672-1	01	1	0804-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0803-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	0804-			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	0804-			●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	0804-			●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	0804-			●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0804-			●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-1	01	1	0804-			●
309	01.540 HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	0804-			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	0804-			●
311	01.531 BOLT; PIPE FIX EURO4 SPECIFICATION(NT4) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0803-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0804-			●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	0804-0805			●
312	01.531 NUT; PIPE FIX 04.634 M8 FLANGE	8-97581-233-0	01	1	0806-			●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	0804-			●
330	03.278 HOSE; VAC PUMP,RETURN (A)	8-97073-920-2	01	1	0804-1111			●
330	03.278 HOSE; VAC PUMP,RETURN (B)	8-98204-694-0	01	1	1112-			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0804-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. VIETNAM EQUIPMENT(CL0) (C)	8-98201-785-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (C)	8-98201-785-0	01	1	1301-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0803-0901	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0902-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP VIETNAM EQUIPMENT(CL0) (A)	8-98038-929-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-94443-644-1	01	1	0804-			●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	0804-			●
338	01.531 BOLT; JOINT,OIL PIPE VIETNAM EQUIPMENT(CL0) M8X20 EYE-BOLT	8-97910-296-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0803-0901	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-1104	●	●
338	01.531 BOLT; JOINT,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0804-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1303-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0803-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1301-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0804-1212			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0803-1107	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-	●	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0803-	●	●
414	01.531 BOLT; OIL PIPE 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	0804-			●
473	01.540 INSULATOR; HOSE	8-97101-331-0	02	1	0804-			●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	0804-			●

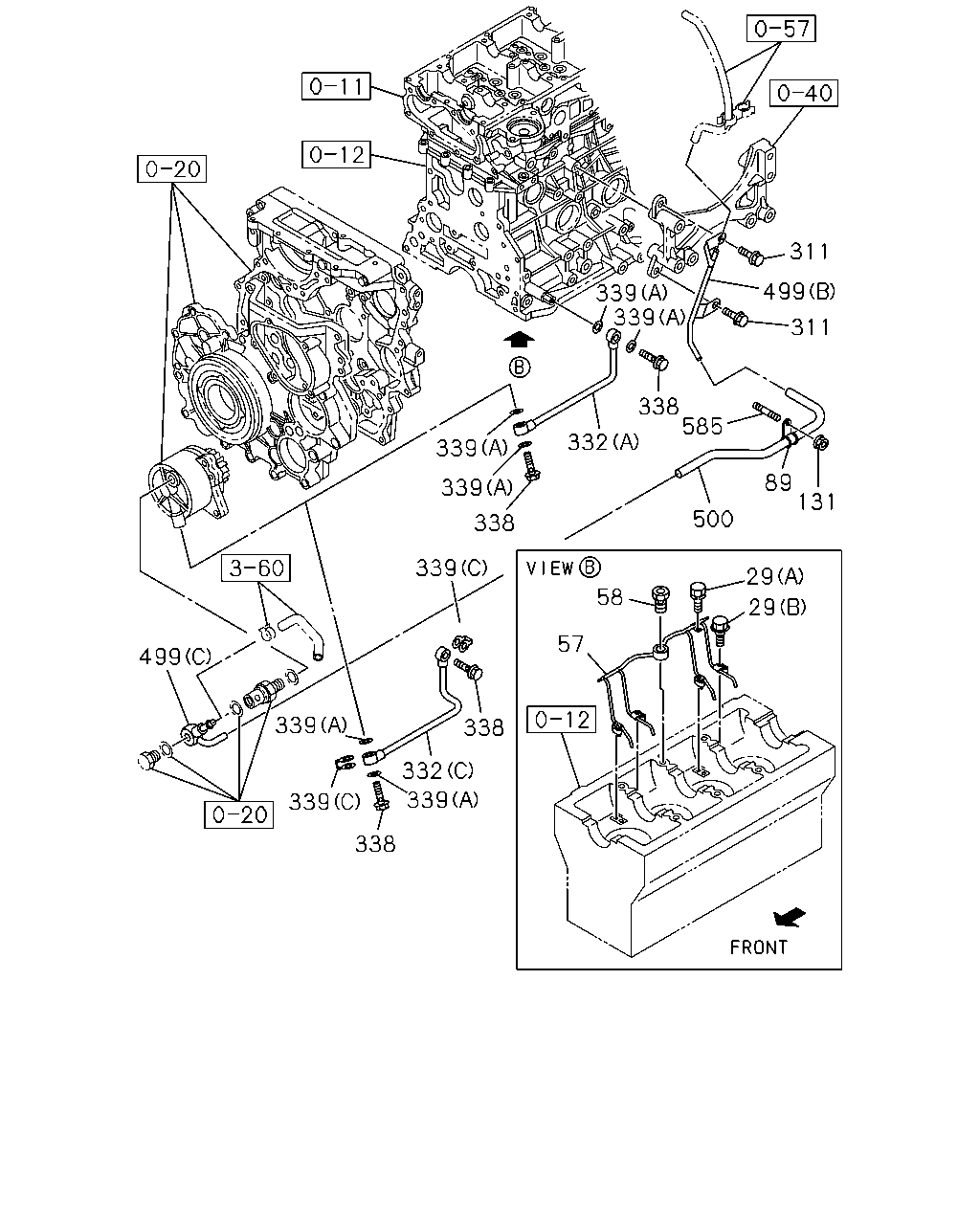

339 339 339 339 339 339 339 339 338 332 338 585 131 29 29 58 57 338 332 338 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	01.531 BOLT; OIL PIPE,OIL JET VIETNAM EQUIPMENT(CL0) (B) M6X20 FLANGE	8-97380-673-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0803-0803	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0804-			●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0803-1104	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. VIETNAM EQUIPMENT(CL0) (B) M6X20	8-97117-298-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1105-		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0803-	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	0804-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO VIETNAM EQUIPMENT(CL0)	8-97379-464-0	01	1	1105-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0803-1104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT(CL0)	8-97239-048-1	01	1	1105-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1105-1407		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT(CL0)	8-98285-334-0	01	1	1408-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	0804-			●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0803-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. VIETNAM EQUIPMENT(CL0) (C)	8-98201-785-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (C)	8-98201-785-0	01	1	1301-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0803-0901	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0902-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP VIETNAM EQUIPMENT(CL0) (A)	8-98038-929-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-94443-644-1	01	1	0804-			●
338	01.531 BOLT; JOINT,OIL PIPE VIETNAM EQUIPMENT(CL0) M8X20 EYE-BOLT	8-97910-296-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0803-0901	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-1104	●	●
338	01.531 BOLT; JOINT,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0804-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1303-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0803-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1301-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0804-1212			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●
499	04.681 PIPE; VACUUM (A)	8-98027-553-0	01	1	0803-	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (C)	8-97381-661-3	01	1	0803-		●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-97385-434-1	01	1	0803-		●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0803-	●	●

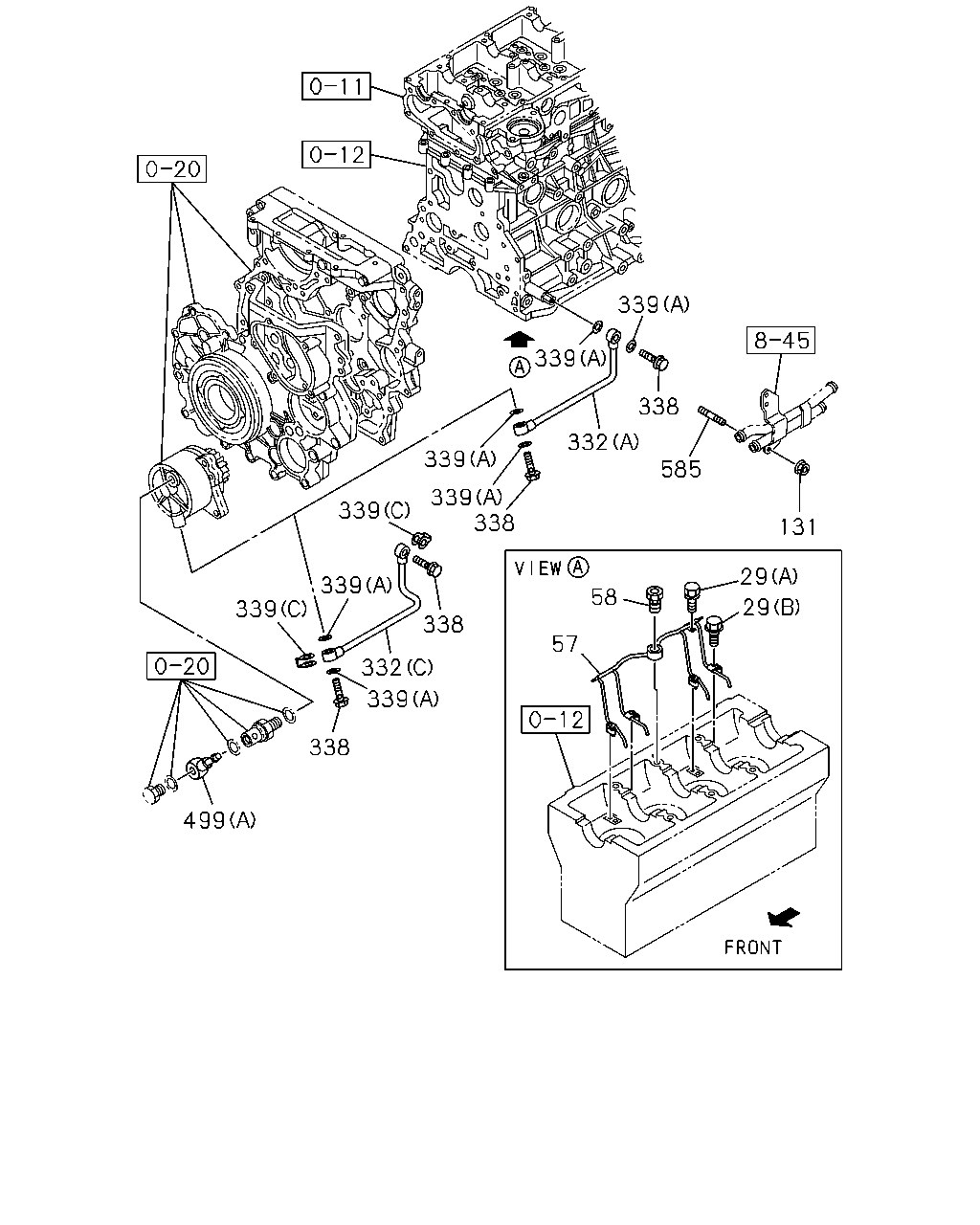

311 499 311 339 339 338 332 585 89 131 500 339 339 338 339 499 339 339 332 339 338 57 58 29 29 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	01.531 BOLT; OIL PIPE,OIL JET VIETNAM EQUIPMENT(CL0) (B) M6X20 FLANGE	8-97380-673-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0803-0803	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0804-			●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0803-1104	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. VIETNAM EQUIPMENT(CL0) (B) M6X20	8-97117-298-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1105-		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0803-	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	0804-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO VIETNAM EQUIPMENT(CL0)	8-97379-464-0	01	1	1105-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0803-1104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT(CL0)	8-97239-048-1	01	1	1105-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1105-1407		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT(CL0)	8-98285-334-0	01	1	1408-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	0804-			●
89	04.681 CLIP; VAC HOSE EURO4 SPECIFICATION(NT4)	9-09520-835-0	01	1	0803-		●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0803-	●	●
311	01.531 BOLT; PIPE FIX EURO4 SPECIFICATION(NT4) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0803-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0804-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. VIETNAM EQUIPMENT(CL0) (C)	8-98201-785-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (C)	8-98201-785-0	01	1	1301-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0803-0901	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0902-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP VIETNAM EQUIPMENT(CL0) (A)	8-98038-929-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-94443-644-1	01	1	0804-			●
338	01.531 BOLT; JOINT,OIL PIPE VIETNAM EQUIPMENT(CL0) M8X20 EYE-BOLT	8-97910-296-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0803-0901	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-1104	●	●
338	01.531 BOLT; JOINT,OIL PIPE EXC. VIETNAM EQUIPMENT(CL0) M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0804-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302		●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1303-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0803-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1301-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0804-1212			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●
499	04.681 PIPE; VACUUM (A)	8-98027-553-0	01	1	0803-	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (C)	8-97381-661-3	01	1	0803-		●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-97385-434-1	01	1	0803-		●
500	04.681 HOSE; VACUUM EURO4 SPECIFICATION(NT4)	8-97369-587-1	01	1	0803-		●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
