0-51 — OIL PUMP AND OIL STRAINER (#52754) — 31 parça

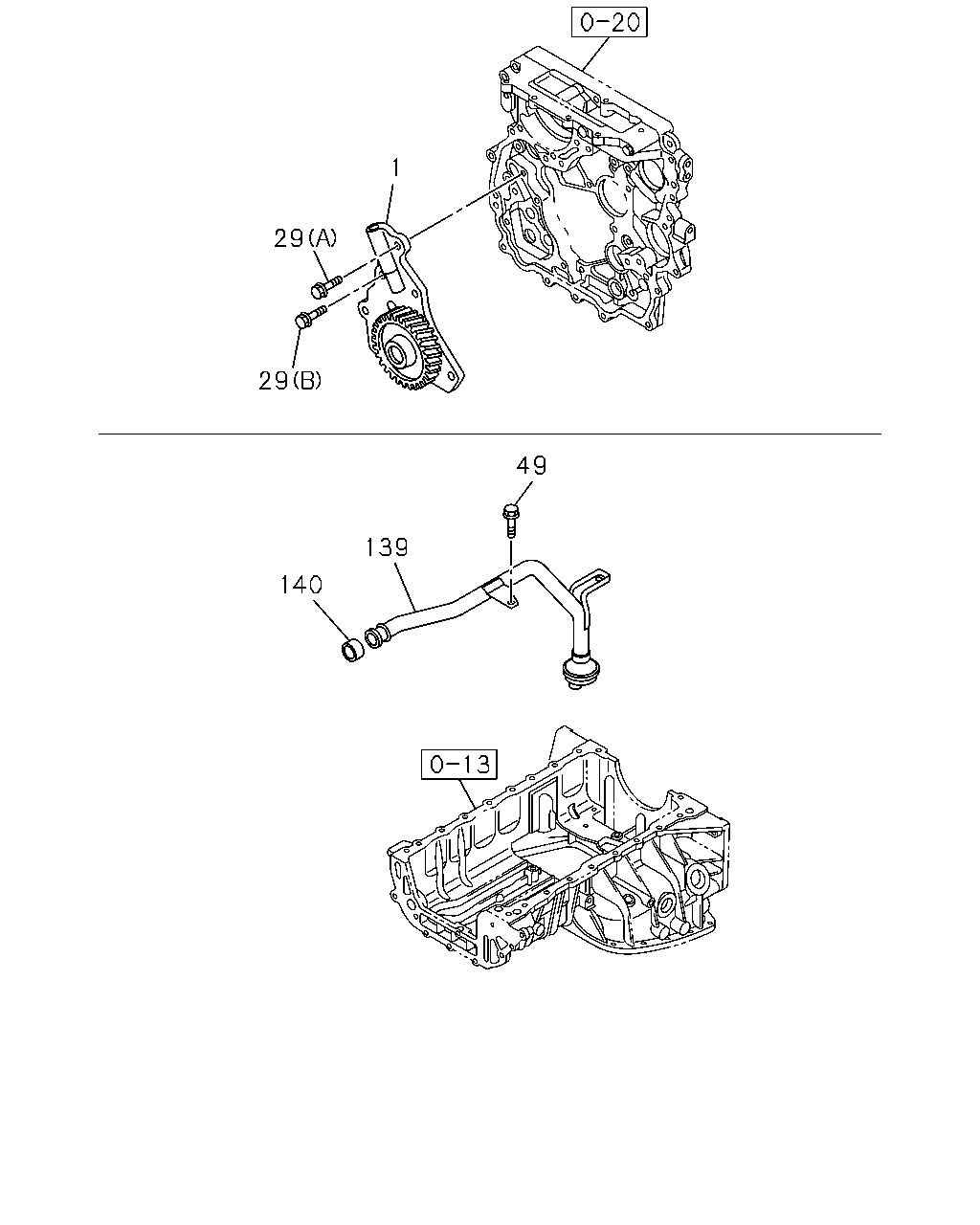

çizim 153825
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97381-553-3 01 1 0803-0907 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1303 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ●
1 01.652 PUMP ASM; OIL 8-97385-984-0 01 1 0804- ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0803- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 0803- ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0804- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0803-1403 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1404- ● ●
139 01.639 PIPE; OIL STRAINER
VIETNAM EQUIPMENT(CL0) 		8-98127-247-0 01 1 1503- ●
139 01.639 PIPE; OIL STRAINER 8-98016-890-0 01 1 0803-1010 ● ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1011-1502 ● ●
139 01.639 PIPE; OIL STRAINER
EXC. VIETNAM EQUIPMENT(CL0) 		8-98149-035-0 01 1 1503- ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1503- ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 0803- ● ●

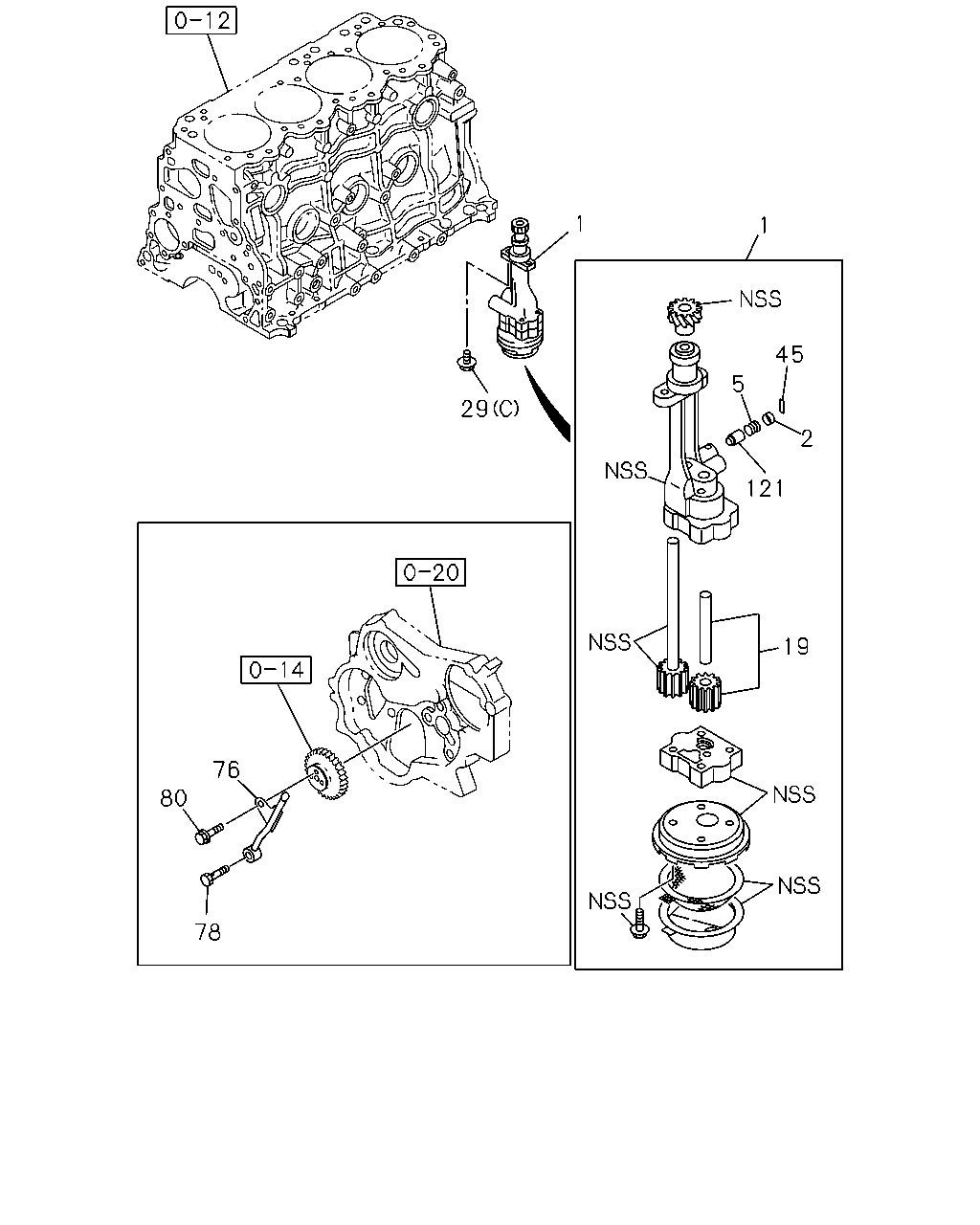

çizim 153826
1 1 45 5 29 2 121 19 76 80 78
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97381-553-3 01 1 0803-0907 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1303 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ●
1 01.652 PUMP ASM; OIL 8-97385-984-0 01 1 0804- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0804- ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0804- ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0804- ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0803- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 0803- ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0804- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0804- ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 0804- ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 0804- ●
80 01.531 BOLT; OIL PIPE FIX
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 0804-0909 ●
80 01.531 BOLT; OIL PIPE FIX
01.153 M8X22 W/LK WASHER 		0-50540-822-0 01 1 0910- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0804- ●
