0-31 — THERMOSTAT AND HOUSING (#52745) — 33 parça

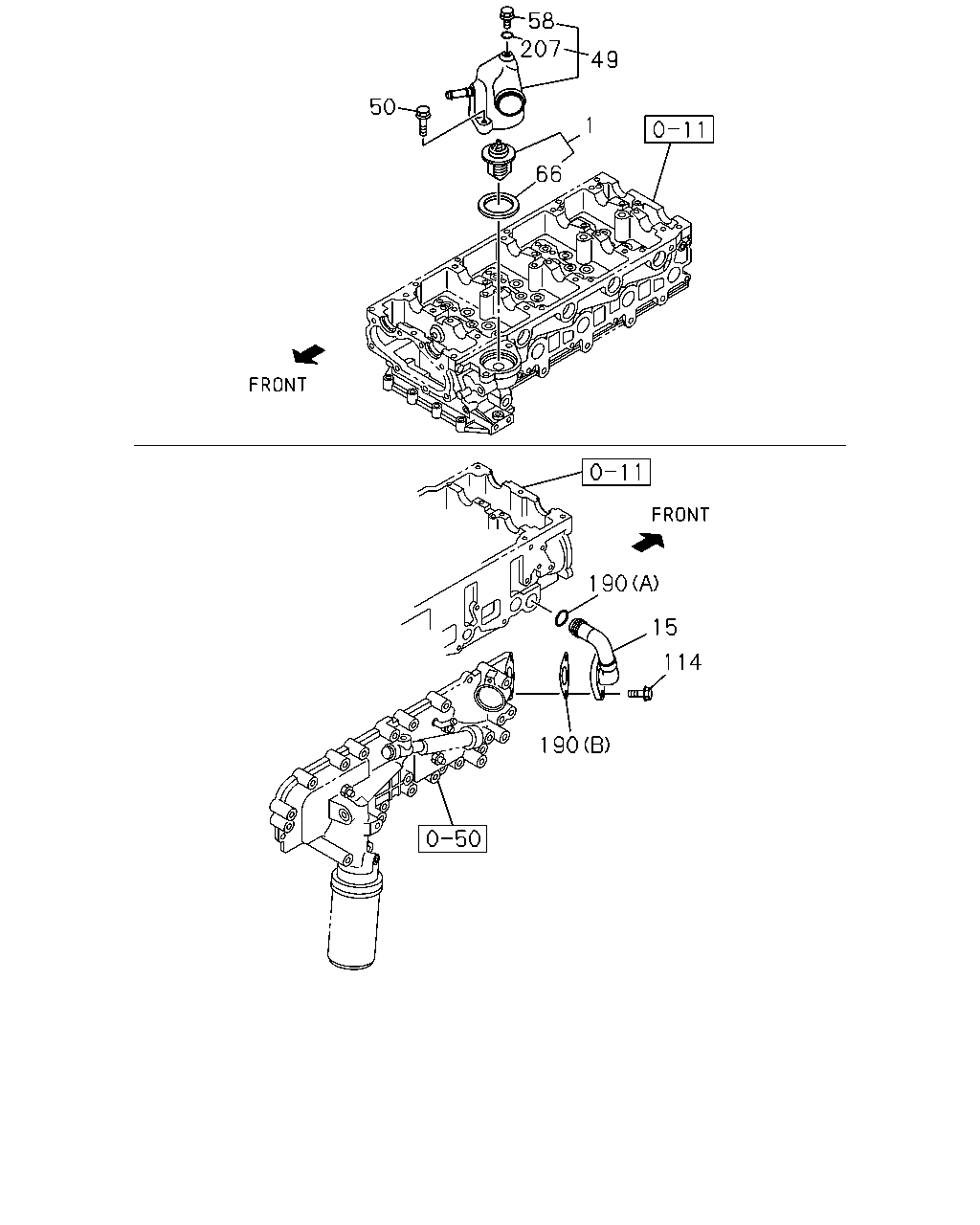

çizim 153796
58 207 49 50 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 0803- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97254-816-1 01 1 0804- ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0803- ● ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 0803- ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0804- ●
50 01.252 BOLT; OUTLET PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0803- ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0804- ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0803- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0804- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0804-0905 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906- ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) (B) 		8-97318-494-2 01 1 1105- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 0803- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 0803-1104 ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). (B) 		8-98009-322-0 01 1 1105- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 1105- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0803- ● ●

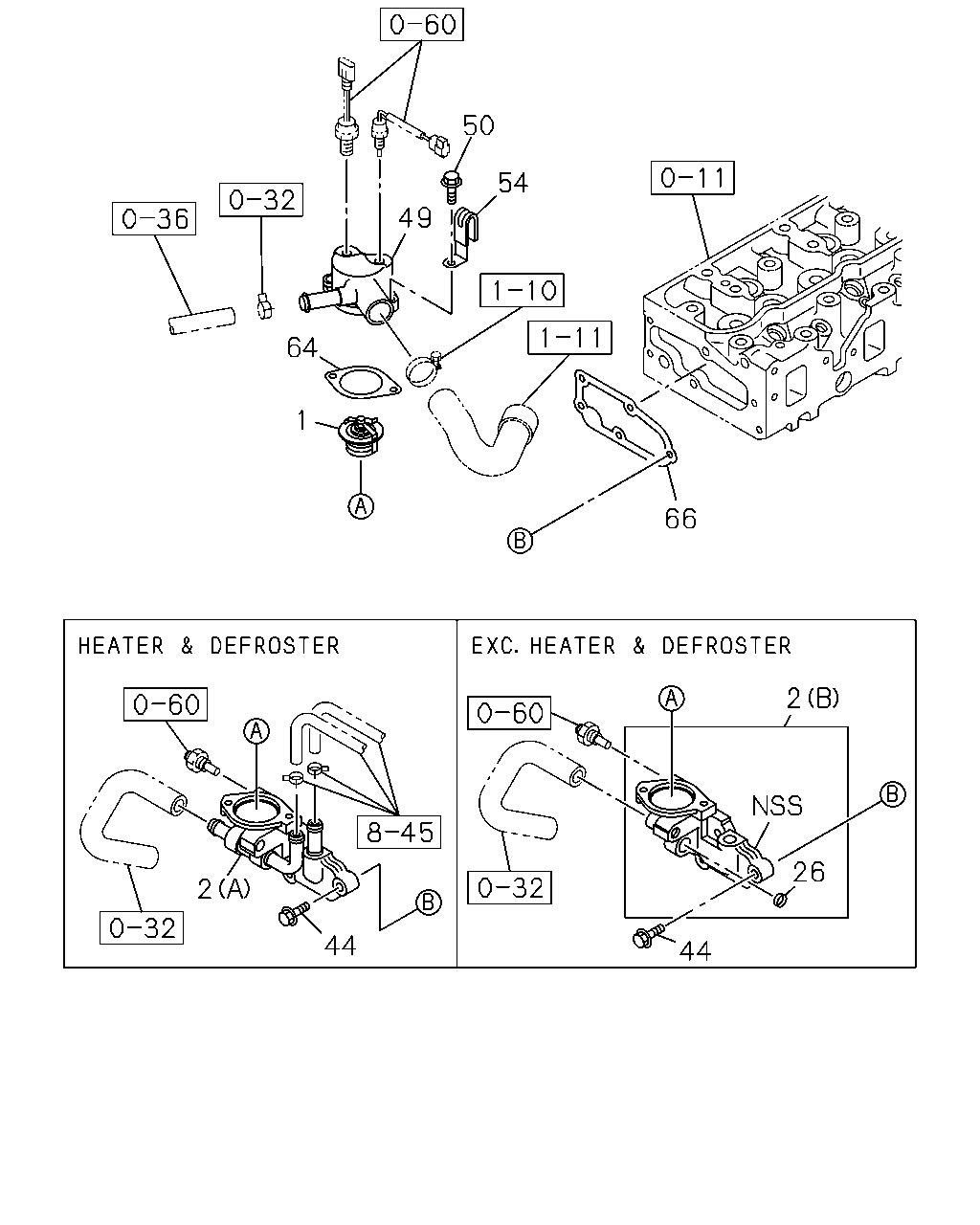

çizim 153798
50 54 49 64 1 66 2 26 2 44 44
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.246 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 0803- ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97254-816-1 01 1 0804- ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 0804- ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 		8-97139-604-3 01 1 0804- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 00.253 OD=18 		5-11219-008-0 01 1 0804- ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 0804- ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 0803- ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 0804- ●
50 01.252 BOLT; OUTLET PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0803- ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0804- ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0804- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0804- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0804- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0804-0905 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906- ●
