0-27 — EXHAUST MANIFOLD (#52742) — 73 parça

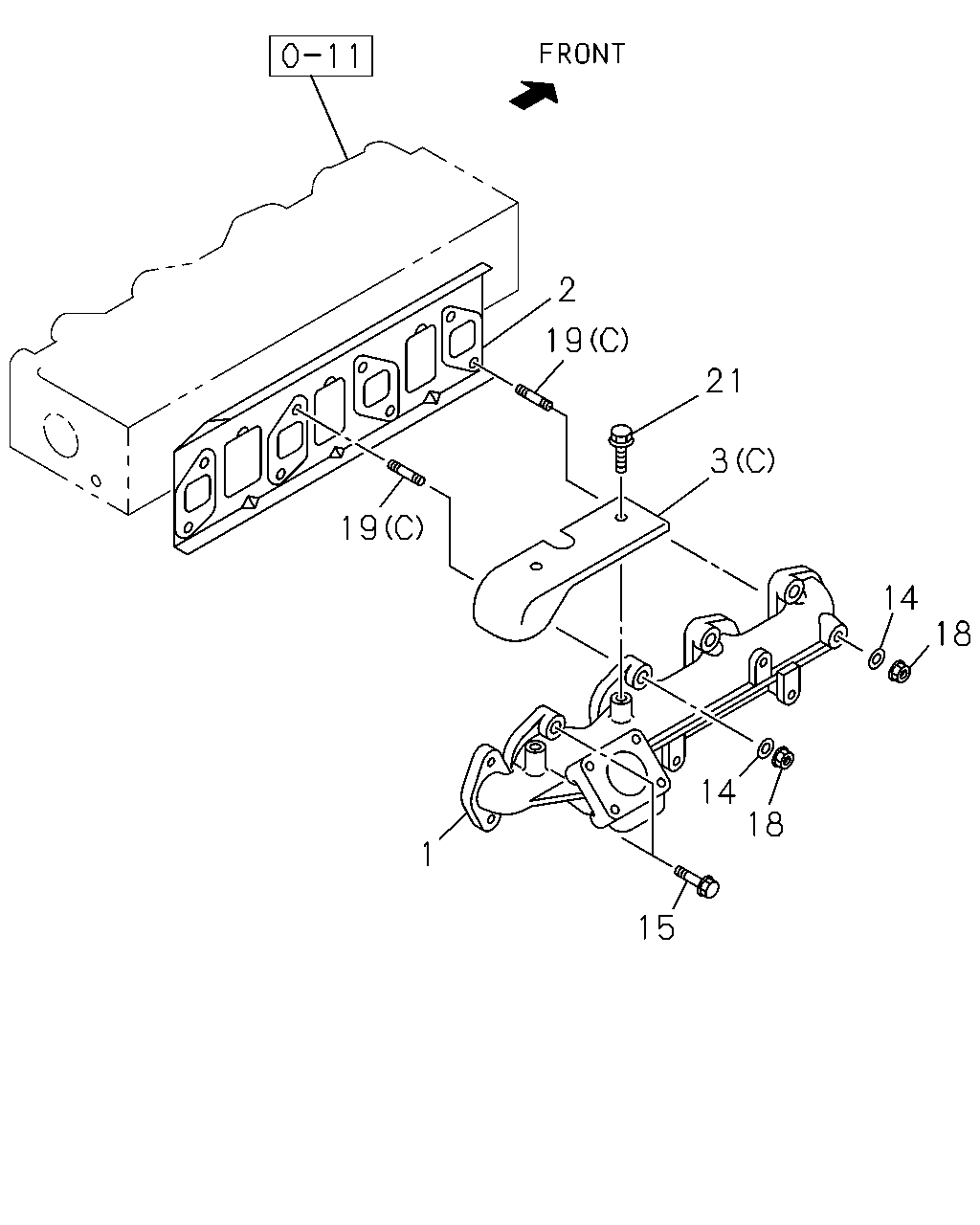

2 19 21 3 19 14 18 14 18 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	0803-	●	●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	0804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98215-752-0	01	1	1205-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98215-752-0	01	1	1205-1312	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98229-782-0	01	1	1401-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98229-782-0	01	1	1401-1404	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98229-782-0	01	1	1405-	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97356-028-2	01	1	0803-1204	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIETNAM EQUIPMENT(CL0)	8-97356-028-2	01	1	1205-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97350-317-2	01	1	0804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97381-503-4	01	1	0803-	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	0803-0807	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98011-523-0	01	1	0808-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION(NT4) (B)	8-98011-523-0	01	1	0808-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97214-580-0	01	1	0804-			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0804-			●
15	03.604 BOLT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10X30 FLANGE	8-98032-158-0	04	1	1304-		●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	04	1	1304-	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0804-			●
18	03.604 NUT; EXH MANIF VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	08	1	1304-		●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0803-1303	●	●
18	03.604 NUT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	04	1	1304-		●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	04	1	1304-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-			●
19	03.604 STUD; MANIF TO CYL HD VIETNAM EQUIPMENT(CL0) (B) M10X33 L=48	8-97379-383-0	04	1	1105-		●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	0803-1104	●	●
19	03.604 STUD; MANIF TO CYL HD EXC. VIETNAM EQUIPMENT(CL0) 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303		●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303	●
19	03.604 STUD; MANIF TO CYL HD (A) M10X70 L=83	8-98048-446-0	04	1	0803-	●	●
19	03.604 STUD; MANIF TO CYL HD (C) M8X35 L=46	8-97378-065-0	02	1	0804-			●
21	03.604 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0804-		●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0803-0807	●	●
21	03.604 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0808-		●
21	03.604 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0808-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0804-			●

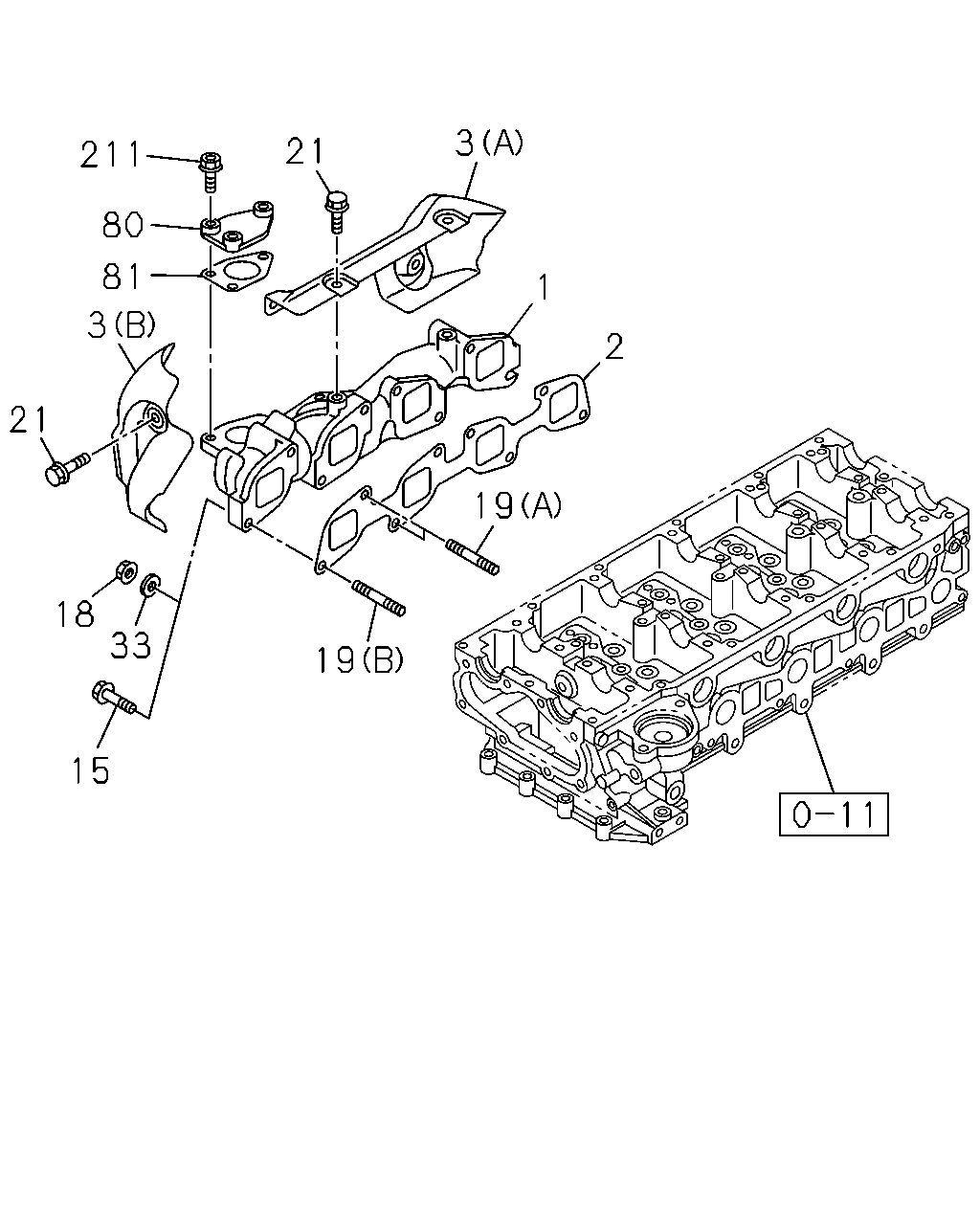

1 2 19 19 15 33 18 21 3 81 80 211 21 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	0803-	●	●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	0804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98215-752-0	01	1	1205-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98215-752-0	01	1	1205-1312	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98229-782-0	01	1	1401-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98229-782-0	01	1	1401-1404	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98229-782-0	01	1	1405-	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97356-028-2	01	1	0803-1204	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIETNAM EQUIPMENT(CL0)	8-97356-028-2	01	1	1205-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97350-317-2	01	1	0804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97381-503-4	01	1	0803-	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	0803-0807	●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98011-523-0	01	1	0808-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION(NT4) (B)	8-98011-523-0	01	1	0808-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97214-580-0	01	1	0804-			●
15	03.604 BOLT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10X30 FLANGE	8-98032-158-0	04	1	1304-		●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	04	1	1304-	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0804-			●
18	03.604 NUT; EXH MANIF VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	08	1	1304-		●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0803-1303	●	●
18	03.604 NUT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	04	1	1304-		●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	04	1	1304-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-			●
19	03.604 STUD; MANIF TO CYL HD VIETNAM EQUIPMENT(CL0) (B) M10X33 L=48	8-97379-383-0	04	1	1105-		●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	0803-1104	●	●
19	03.604 STUD; MANIF TO CYL HD EXC. VIETNAM EQUIPMENT(CL0) 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303		●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303	●
19	03.604 STUD; MANIF TO CYL HD (A) M10X70 L=83	8-98048-446-0	04	1	0803-	●	●
19	03.604 STUD; MANIF TO CYL HD (C) M8X35 L=46	8-97378-065-0	02	1	0804-			●
21	03.604 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0804-		●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0803-0807	●	●
21	03.604 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0808-		●
21	03.604 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0808-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0804-			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	0803-	●	●
80	03.417 COVER; EXH MANIF EURO2 SPECIFICATION(NT2)	8-98056-984-0	01	1	0804-		●
81	03.270 GASKET; COVER EURO2 SPECIFICATION(NT2) 03.665	8-98017-551-0	01	1	0804-		●
211	03.604 BOLT; COVER EURO2 SPECIFICATION(NT2) 03.417 M8X23 FLANGE	8-97378-077-0	03	1	0804-		●
