0-22 — ENGINE MOUNTING (#52740) — 114 parça

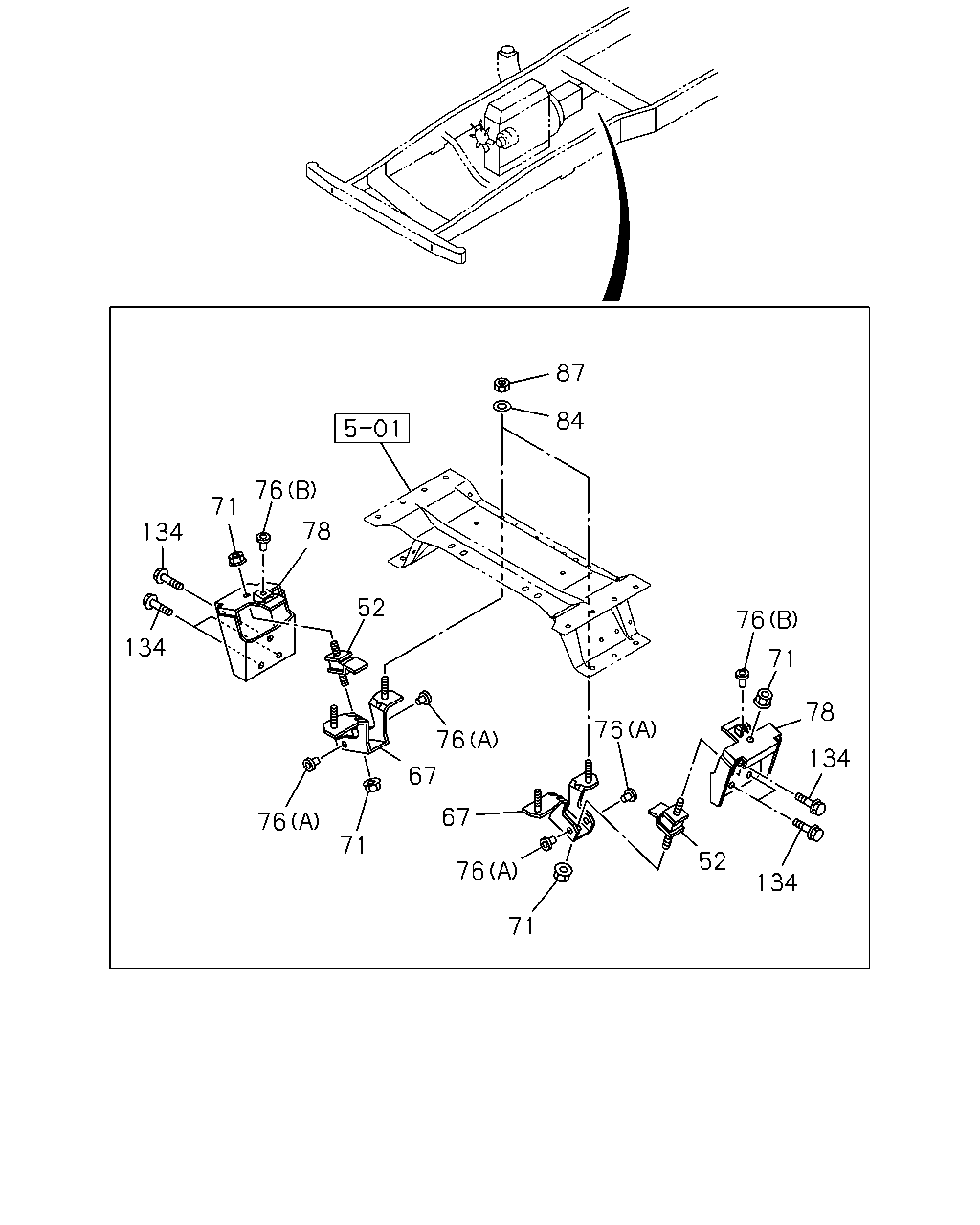

çizim 153779
87 84 76 71 78 134 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B C
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0803-0803 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0804- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-876-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-877-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-324-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-325-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97182-199-1 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97182-198-1 01 1 0804- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0803-0803 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0804- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 0803- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 02 1 0804- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98053-902-1 02 1 0803- ● ●
78 00.029 BRACKET; ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 02 1 0803-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 02 1 1408- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97182-197-2 01 1 0804- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0803-0803 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0804- ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0803- ● ●

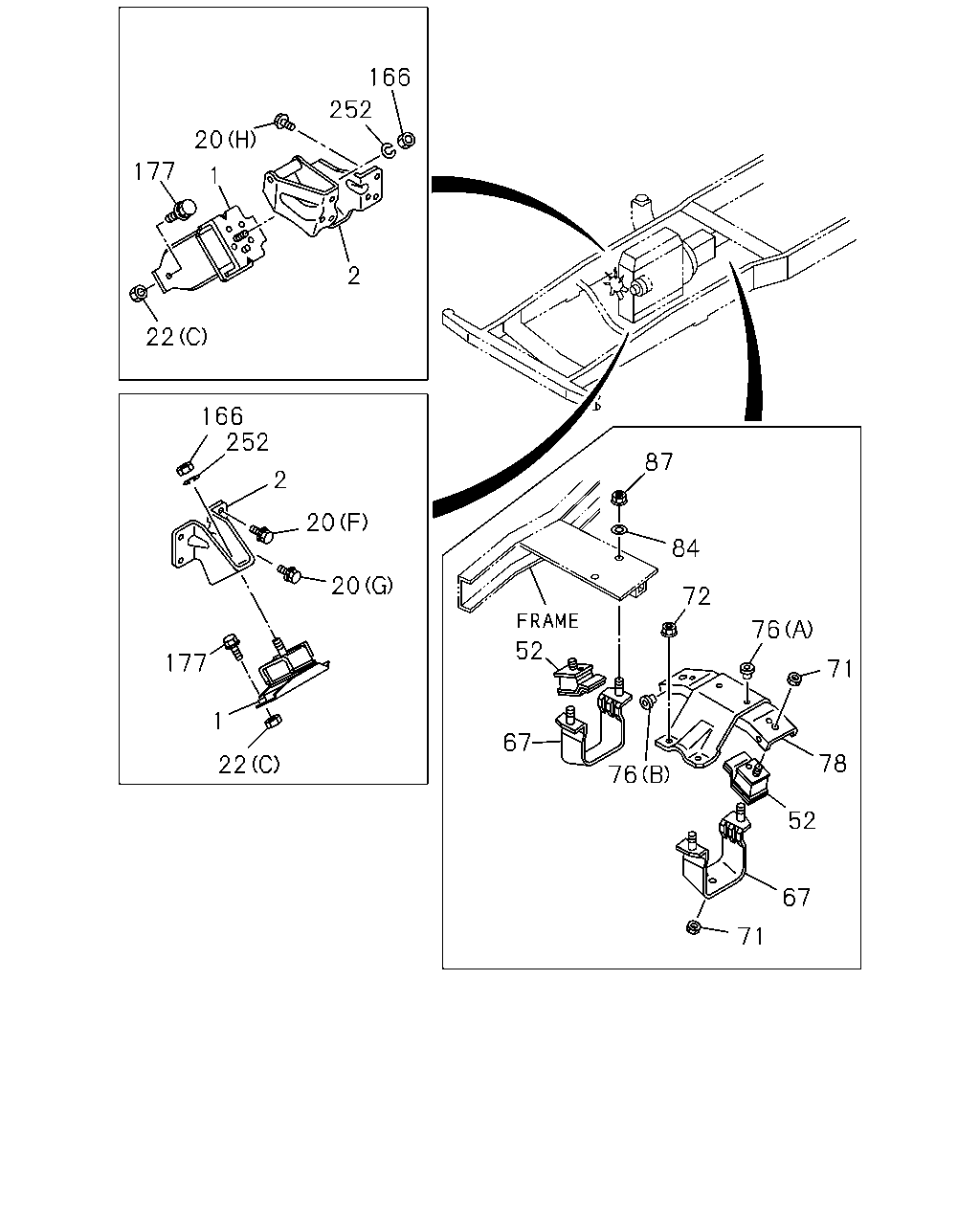

çizim 153783
166 252 20 177 2 1 22 166 2 252 20 20 22 1 177 87 84 52 67 76 72 76 71 78 52 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-831-0 01 1 0803- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-832-0 01 1 0803- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-001-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NMR SGL CAB(NM**SN) 		8-98043-001-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-001-0 01 1 0804- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-000-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NMR SGL CAB(NM**SN) 		8-98043-000-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-000-0 01 1 0804- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0804-0804 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0804- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0804-0804 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0804- ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 0803- ● ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 0803- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0804- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0804- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (F) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0804-0909 ●
20 00.029 BOLT; ENG FOOT
(F) M10X22 W/LK WASHER 		0-50541-022-0 05 1 0910- ●
20 00.029 BOLT; ENG FOOT
(G) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0804- ●
20 00.029 BOLT; ENG FOOT
00.034 (H) M10X28 		8-94329-952-1 02 1 0804- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 05.002 (A) M12 		0-91110-512-0 02 1 0803- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 0803- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
NLR SGL CAB(NM**SE) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M12 FLANGE 		8-98046-987-0 02 1 0803-0803 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
NMR SGL CAB(NM**SN) (A) M12 FLANGE 		8-98046-987-0 02 1 0803-0803 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M12 FLANGE 		8-98046-987-0 02 1 0804- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (C) M10 FLANGE 		0-91180-210-0 04 1 0804- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0803-0803 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0804- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-876-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-877-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-324-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-325-1 01 1 0803- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97182-199-1 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97182-198-1 01 1 0804- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0803-0803 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0804- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 0803- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 02 1 0804- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98053-902-1 02 1 0803- ● ●
78 00.029 BRACKET; ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 02 1 0803-1407 ● ●
78 00.029 BRACKET; ENG MTG,RR
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 02 1 1408- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97182-197-2 01 1 0804- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0803-0803 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0804- ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 0804- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0804- ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0804- ●

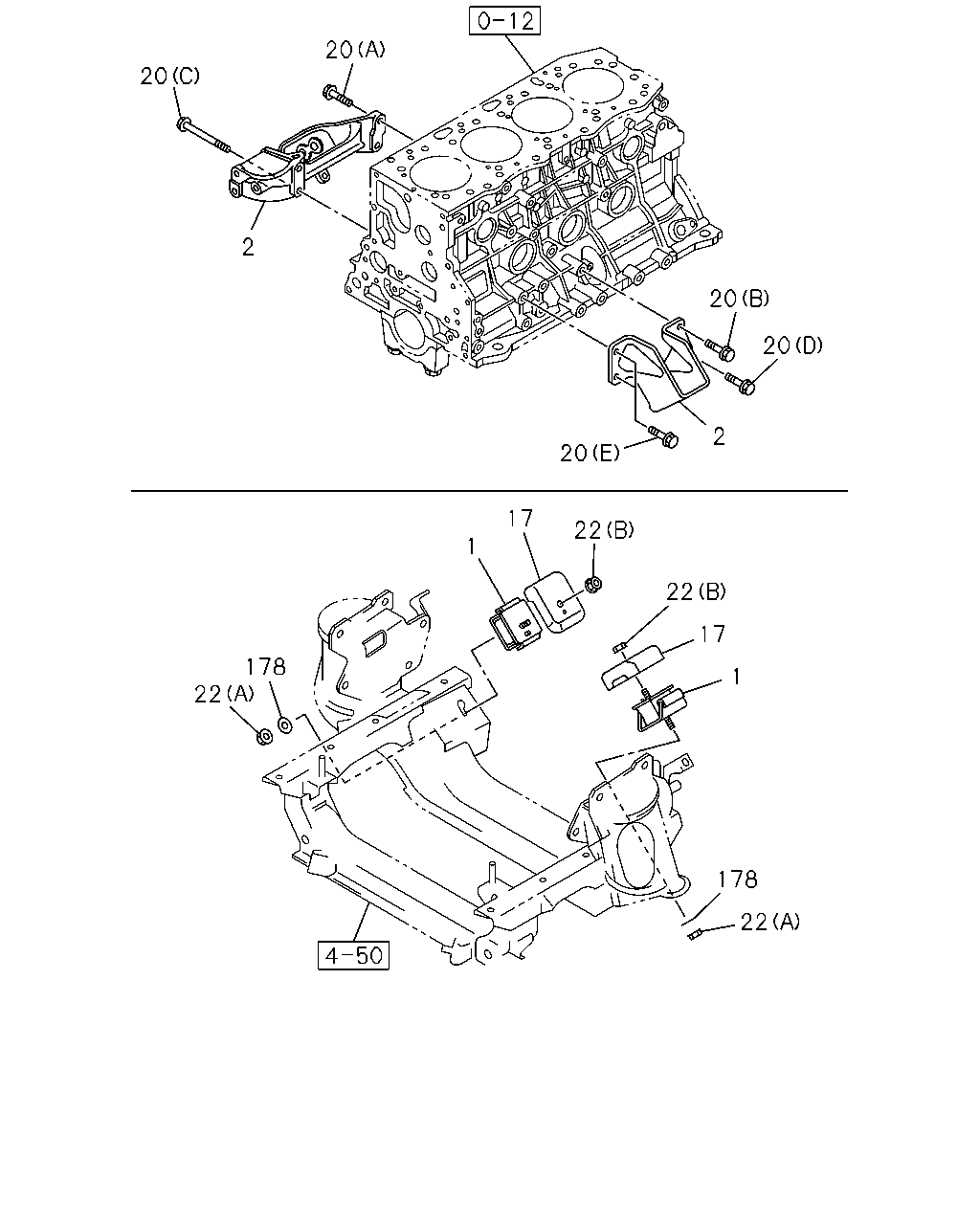

çizim 153789
20 20 2 20 20 2 20 17 22 1 22 17 178 1 22 178 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-831-0 01 1 0803- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-832-0 01 1 0803- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-001-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NMR SGL CAB(NM**SN) 		8-98043-001-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-001-0 01 1 0804- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NLR SGL CAB(NM**SE) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-000-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
NMR SGL CAB(NM**SN) 		8-98043-000-0 01 1 0803-0803 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-000-0 01 1 0804- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0804-0804 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0804- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0804-0804 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0804- ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 0803- ● ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 0803- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0804- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0804- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 0803- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (F) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0804-0909 ●
20 00.029 BOLT; ENG FOOT
(F) M10X22 W/LK WASHER 		0-50541-022-0 05 1 0910- ●
20 00.029 BOLT; ENG FOOT
(G) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0804- ●
20 00.029 BOLT; ENG FOOT
00.034 (H) M10X28 		8-94329-952-1 02 1 0804- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 05.002 (A) M12 		0-91110-512-0 02 1 0803- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 0803- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
NLR SGL CAB(NM**SE) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M12 FLANGE 		8-98046-987-0 02 1 0803-0803 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
NMR SGL CAB(NM**SN) (A) M12 FLANGE 		8-98046-987-0 02 1 0803-0803 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M12 FLANGE 		8-98046-987-0 02 1 0804- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (C) M10 FLANGE 		0-91180-210-0 04 1 0804- ●
178 00.002 WASHER; PL,CUSHION RUBBER TO BRK
NLR SGL CAB(NM**SE) FRT INDEPENDENT SUSPENSION(FF0) 07.529 ID=12.5 OD=32 		0-91614-712-0 02 1 0803- ● ●
