3-45 — LOAD SENSING PROPORTIONING VALVE (#5274) — 144 parça

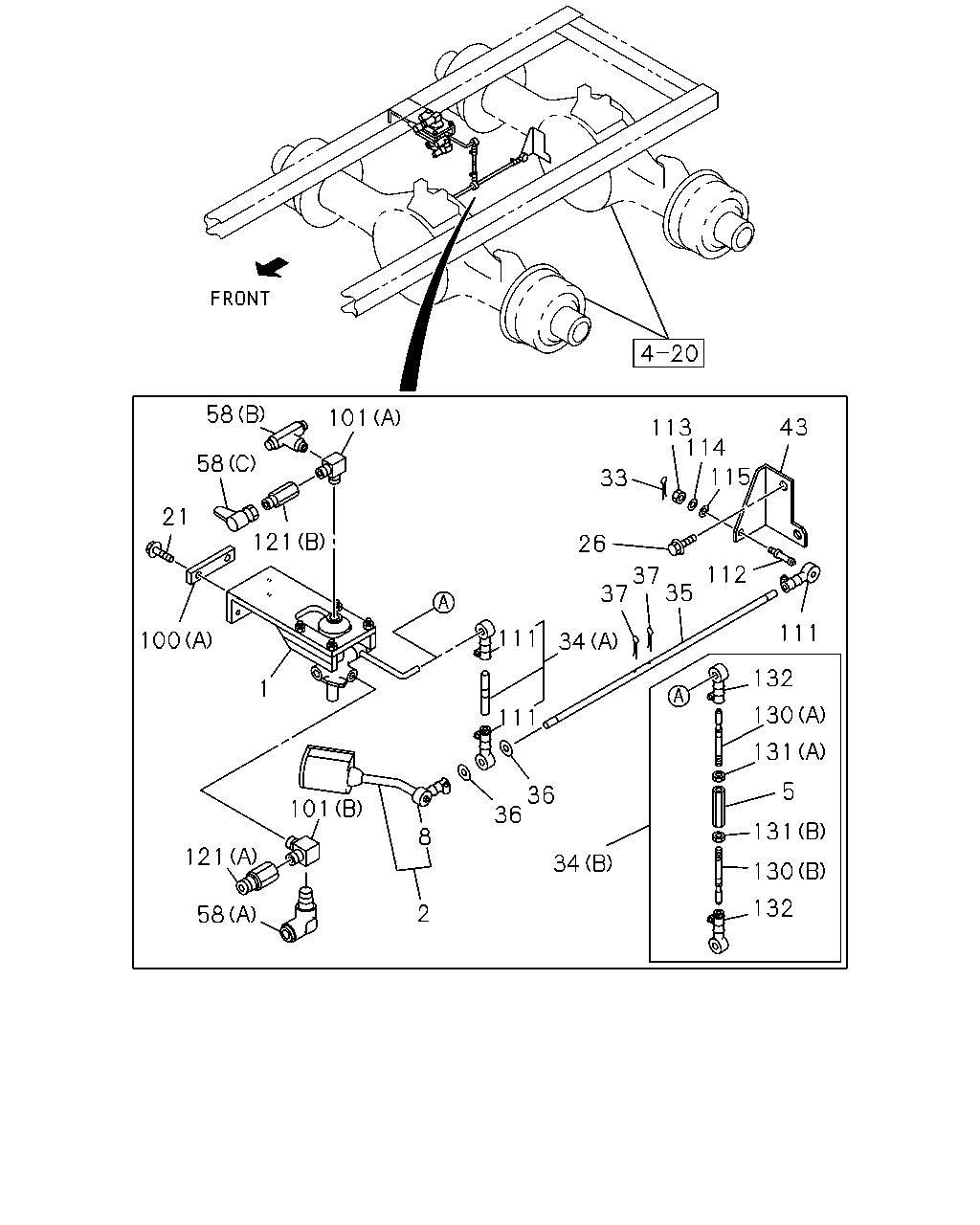

58 101 43 113 114 58 115 33 21 121 26 112 37 111 111 100 34 132 1 130 111 131 5 36 36 101 131 8 121 34 130 132 2 58 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	9603-9904	●
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-061-0	01	1	9905-	●	●
2	DAMPER NEW ZEALAND EQUIPMENT(PK5)	1-47725-016-0	01	1	9603-9904	●
2	DAMPER BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	9905-	●	●
5	JOINT NEW ZEALAND EQUIPMENT(PK5)	1-09768-004-0	01	1	9605-9704	●
5	JOINT NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	9705-9904	●
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	9905-	●	●
8	ROD END NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	9603-9904	●
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9905-	●	●
21	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	04	1	9603-9606	●
21	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	04	1	9607-9904	●
21	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	04	1	9905-	●	●
26	BOLT; DAMPER NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE	0-28080-812-0	02	1	9603-9904	●
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	9905-	●	●
33	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	01	1	9603-9904	●
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	9905-	●	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-09740-048-0	01	1	9603-9604	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47725-023-0	01	1	9605-9611	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47725-024-1	01	1	9612-9704	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47725-025-0	01	1	9705-9904	●
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV> (B)	1-47725-025-0	01	1	9905-	●	●
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-049-0	01	1	9603-9610	●
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-086-0	01	1	9611-9904	●
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV>	1-09740-086-0	01	1	9905-	●	●
36	WASHER; PL,ROD NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	02	1	9603-9904	●
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9905-	●	●
37	PIN; SPLIT,ROD NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	02	1	9603-9904	●
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	9905-	●	●
43	BRACKET; DAMPER TO AXLE NEW ZEALAND EQUIPMENT(PK5)	1-42129-185-0	01	1	9603-9904	●
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	9905-	●	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9712	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9801-9904	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8X2 & R1/4 3WAY	1-09660-659-1	01	1	9603-9904	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-	●	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (C)	1-47459-013-0	01	1	9603-9904	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47459-013-0	01	1	9905-	●	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-204-0	01	1	9603-9702	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	9703-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (A)	1-42129-245-0	01	1	9905-	●	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	9603-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-147-0	01	1	9905-	●	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A),(B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-9606	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9607-9612	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-09656-557-1	01	1	9701-9904	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B)	1-09656-557-1	01	1	9905-	●	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9607-9904	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9905-	●	●
111	RUBBER; JOINT,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	03	1	9603-9604	●
111	RUBBER; JOINT,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	9605-9904	●
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9905-	●	●
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-052-0	01	1	9603-9611	●
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-123-0	01	1	9612-9904	●
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	9905-	●	●
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9603-9611	●
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	9612-9904	●
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9905-	●	●
114	WASHER; PL,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	01	1	9603-9611	●
115	WASHER; LK,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.2	9-09150-508-0	01	1	9603-9611	●
121	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9603-9904	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007	●	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
121	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9603-9904	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9905-	●	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-071-0	01	1	9605-9611	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-280-1	01	1	9612-9704	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-282-0	01	1	9705-9904	●
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	9905-	●	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-212-0	01	1	9605-9611	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-281-1	01	1	9612-9704	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-283-0	01	1	9705-9904	●
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	9905-	●	●
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) (A) LH THREAD	1-09409-002-0	01	1	9605-9904	●
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	9905-	●	●
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48119-089-0	01	1	9605-9904	●
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	9905-	●	●
132	RUBBER ASM; CONN NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	9605-9904	●
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9905-	●	●

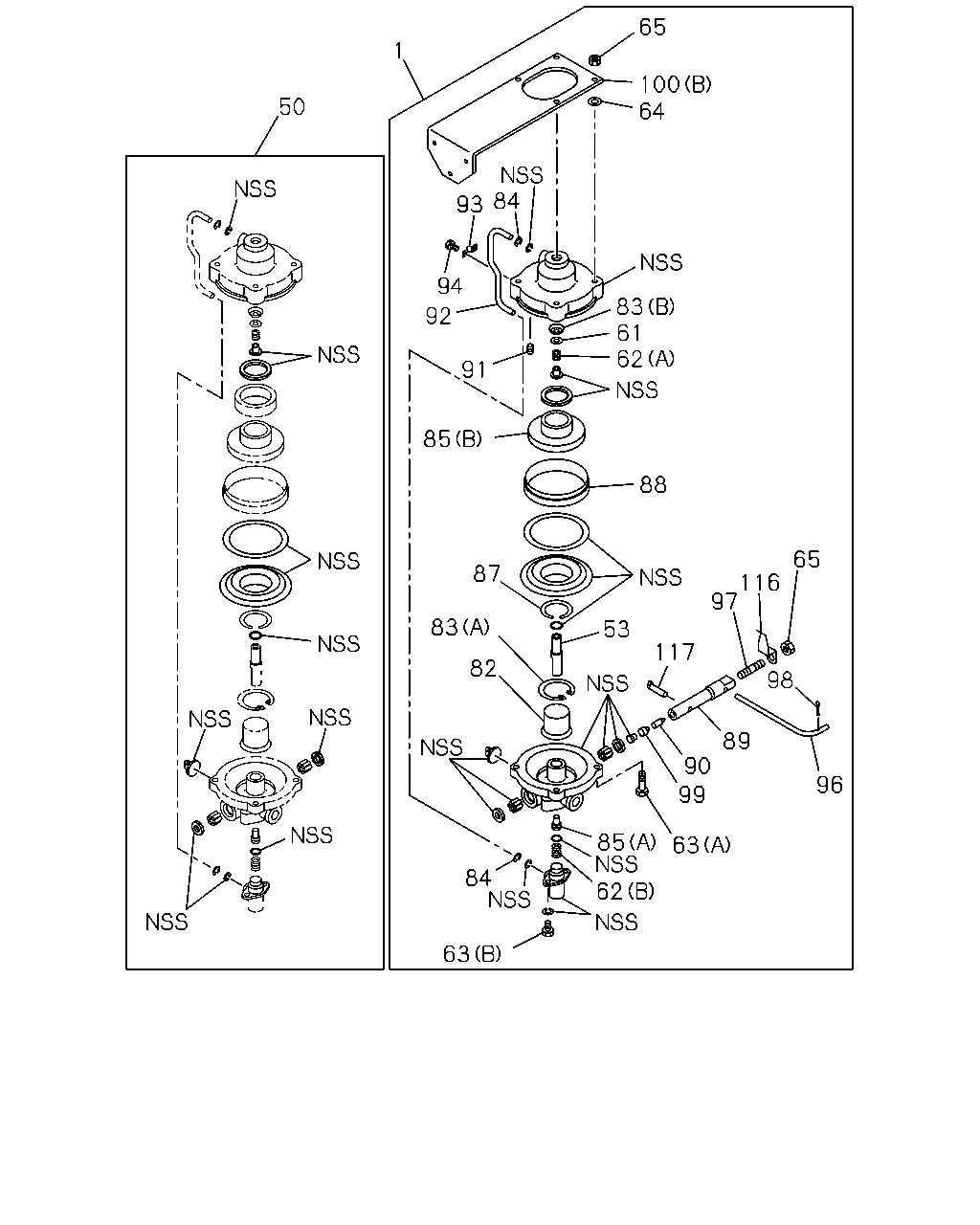

65 1 100 64 50 84 93 94 83 61 62 92 91 85 88 65 87 116 97 83 53 117 82 98 89 90 96 99 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	9603-9904	●
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-061-0	01	1	9905-	●	●
50	REPAIR KIT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-088-0	01	1	9603-9904	●
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-088-0	01	1	9905-	●	●
53	PLUNGER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	9603-9904	●
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	9905-	●	●
61	RETAINER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-47769-026-0	01	1	9603-9904	●
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-026-0	01	1	9905-	●	●
62	SPRING; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-025-0	01	1	9603-9904	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	9905-	●	●
62	SPRING; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-042-0	01	1	9603-9904	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	9905-	●	●
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	9603-9904	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	9905-	●	●
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-094-0	04	1	9603-9904	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	9905-	●	●
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-079-0	04	1	9603-9904	●
64	WASHER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-079-0	04	1	9905-	●	●
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	9603-9904	●
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	9905-	●	●
82	GUIDE; PISTON,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	9603-9904	●
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	9905-	●	●
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	9603-9904	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	9905-	●	●
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-027-0	01	1	9603-9904	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-027-0	01	1	9905-	●	●
84	RETAINER; GASKET NEW ZEALAND EQUIPMENT(PK5)	1-47769-021-0	02	1	9603-9904	●
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	9905-	●	●
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-023-0	01	1	9603-9904	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-023-0	01	1	9905-	●	●
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-043-0	01	1	9603-9904	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	9905-	●	●
87	RETAINER; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	9603-9904	●
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	9905-	●	●
88	GUIDE; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	9603-9904	●
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	9905-	●	●
89	ROD; CONN,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	9603-9904	●
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	9905-	●	●
90	SCREW; CAM NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	9603-9904	●
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	9905-	●	●
91	FILTER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	9603-9904	●
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	9905-	●	●
92	PIPE; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	9603-9904	●
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	9905-	●	●
93	CLIP; PIPE NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	9603-9904	●
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	9905-	●	●
94	SCREW; CLIP NEW ZEALAND EQUIPMENT(PK5)	1-47769-144-0	02	1	9603-9904	●
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-144-0	02	1	9905-	●	●
96	ARM; OPERATING NEW ZEALAND EQUIPMENT(PK5)	1-47769-143-0	01	1	9603-9904	●
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-143-0	01	1	9905-	●	●
97	BOLT; OPERATING ARM NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	9603-9904	●
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	9905-	●	●
98	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	9603-9904	●
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	9905-	●	●
99	CAP; SCREW NEW ZEALAND EQUIPMENT(PK5)	1-47769-055-0	01	1	9603-9904	●
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	9905-	●	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-204-0	01	1	9603-9702	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	9703-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (A)	1-42129-245-0	01	1	9905-	●	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	9603-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-147-0	01	1	9905-	●	●
116	INDICATOR; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-078-0	01	1	9603-9904	●
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	9905-	●	●
117	CAM; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-038-0	01	1	9603-9904	●
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	9905-	●	●
