0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#52739) — 163 parça

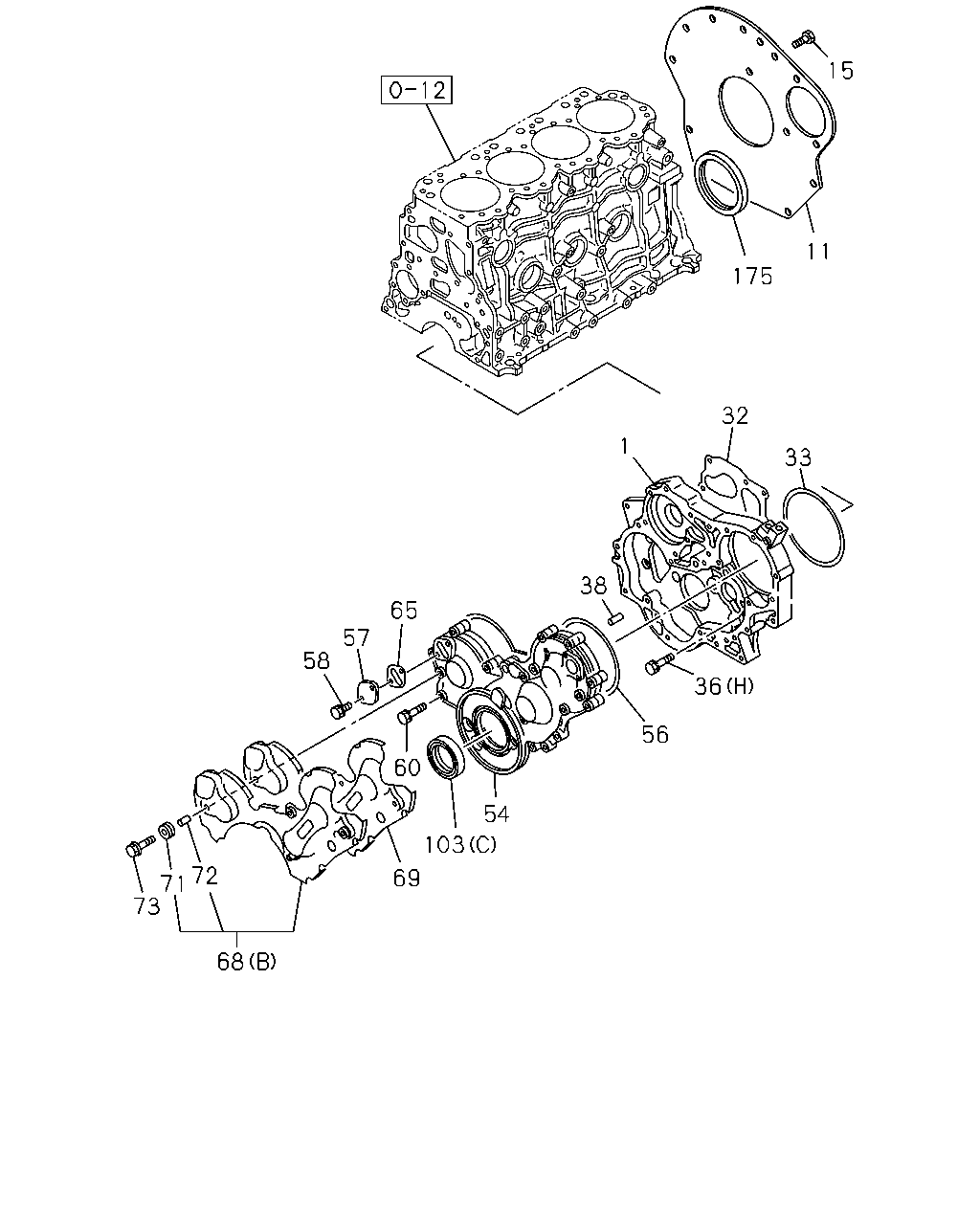

15 11 175 32 1 33 38 65 57 58 36 56 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0803-1203	●	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1204-	●	●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0804-			●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0804-			●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0804-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0803-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0804-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	0804-			●
36	00.206 BOLT; GEAR CASE VIETNAM EQUIPMENT(CL0) 04.338 (A) M8X20 FLANGE	0-28050-820-0	13	1	1105-		●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	0803-1104	●	●
36	00.206 BOLT; GEAR CASE EXC. VIETNAM EQUIPMENT(CL0) 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1105-		●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1105-	●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 08.900 (H) M8X20 W/LK WASHER	0-50040-820-0	06	1	0804-0909			●
36	00.206 BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-			●
36	00.206 BOLT; GEAR CASE 01.252 (H) M8X45 W/LK WASHER	0-50040-845-0	02	1	0804-0909			●
36	00.206 BOLT; GEAR CASE 03.704 (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-			●
38	00.685 PIN; GEAR CASE COVER VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20	9-08151-020-0	02	1	1105-		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0803-0803	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0804-1104	●	●	●
38	00.685 PIN; GEAR CASE COVER EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-	●		●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0803-1007	●	●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-1405	●	●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-	●	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0804-			●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0804-			●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	0804-			●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0804-			●
60	00.206 BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	0804-			●
60	00.206 BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	0804-			●
60	00.206 BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	0804-			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0804-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	02	1	0804-			●
68	00.206 COVER ASM; GEAR CASE COVER EURO4 SPECIFICATION(NT4) (A)	8-98009-466-3	01	1	0803-1409	●
68	00.206 COVER ASM; GEAR CASE COVER EURO4 SPECIFICATION(NT4) (A)	8-98245-226-0	01	1	1410-	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-94155-721-1	01	1	0804-			●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	0804-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0804-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0804-			●
73	00.206 BOLT; COVER FIX EURO4 SPECIFICATION(NT4) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0803-1006	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0804-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97382-606-0	01	1	0803-1007	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98158-110-0	01	1	1008-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0803-1007	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97351-704-0	01	1	0804-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0803-0803	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0804-	●	●	●

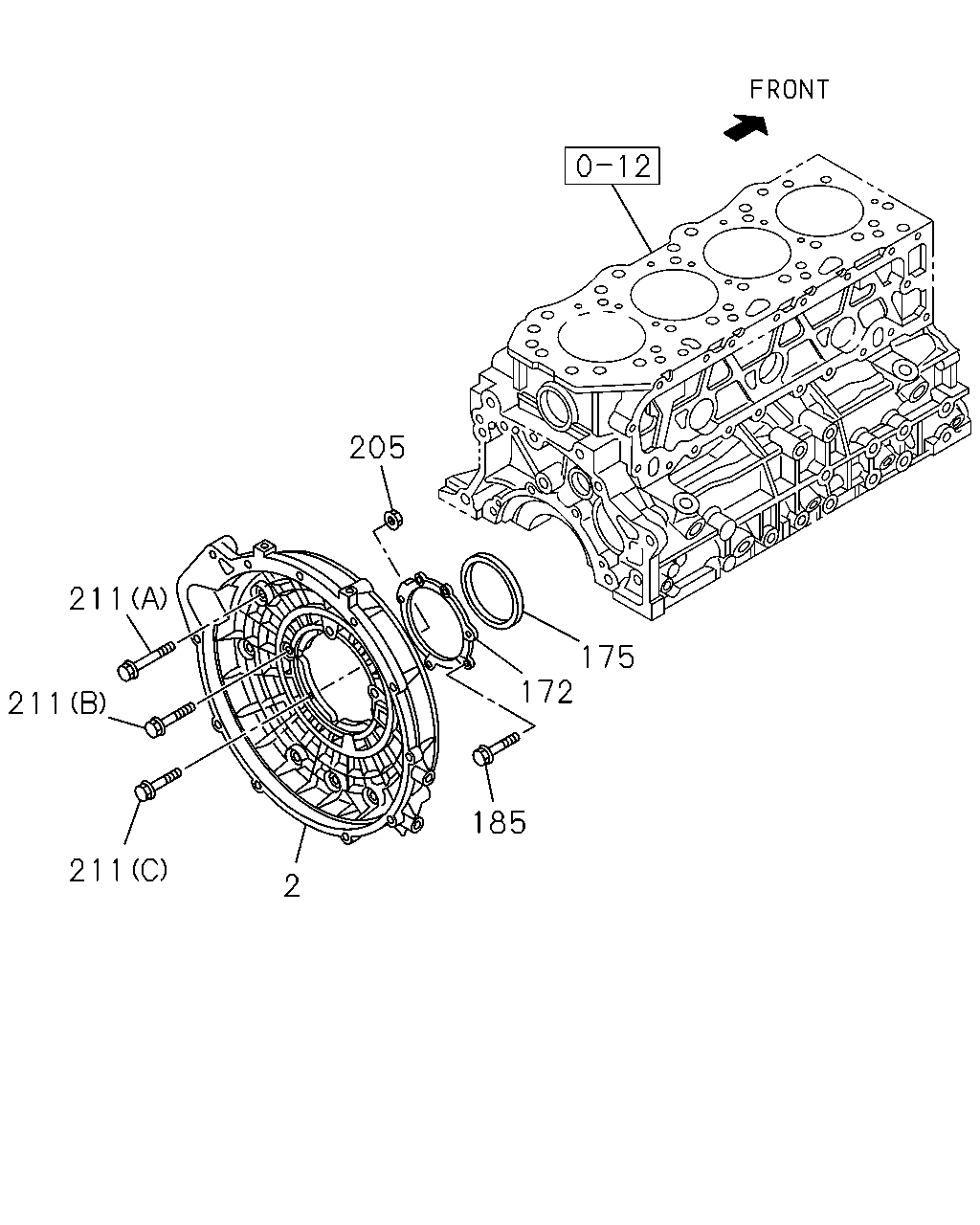

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0803-1310	●	●
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-	●	●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0803-1012	●	●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0803-0803	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0804-	●	●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0803-	●	●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0803-	●	●
211	00.669 BOLT; HSG VIETNAM EQUIPMENT(CL0) 00.683 (B) M12X25	8-97916-324-1	03	1	1201-		●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0803-	●	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0803-1112	●	●
211	00.669 BOLT; HSG EXC. VIETNAM EQUIPMENT(CL0) 00.683 (B) M12X25	5-09000-227-0	03	1	1201-		●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	1201-	●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0803-	●	●

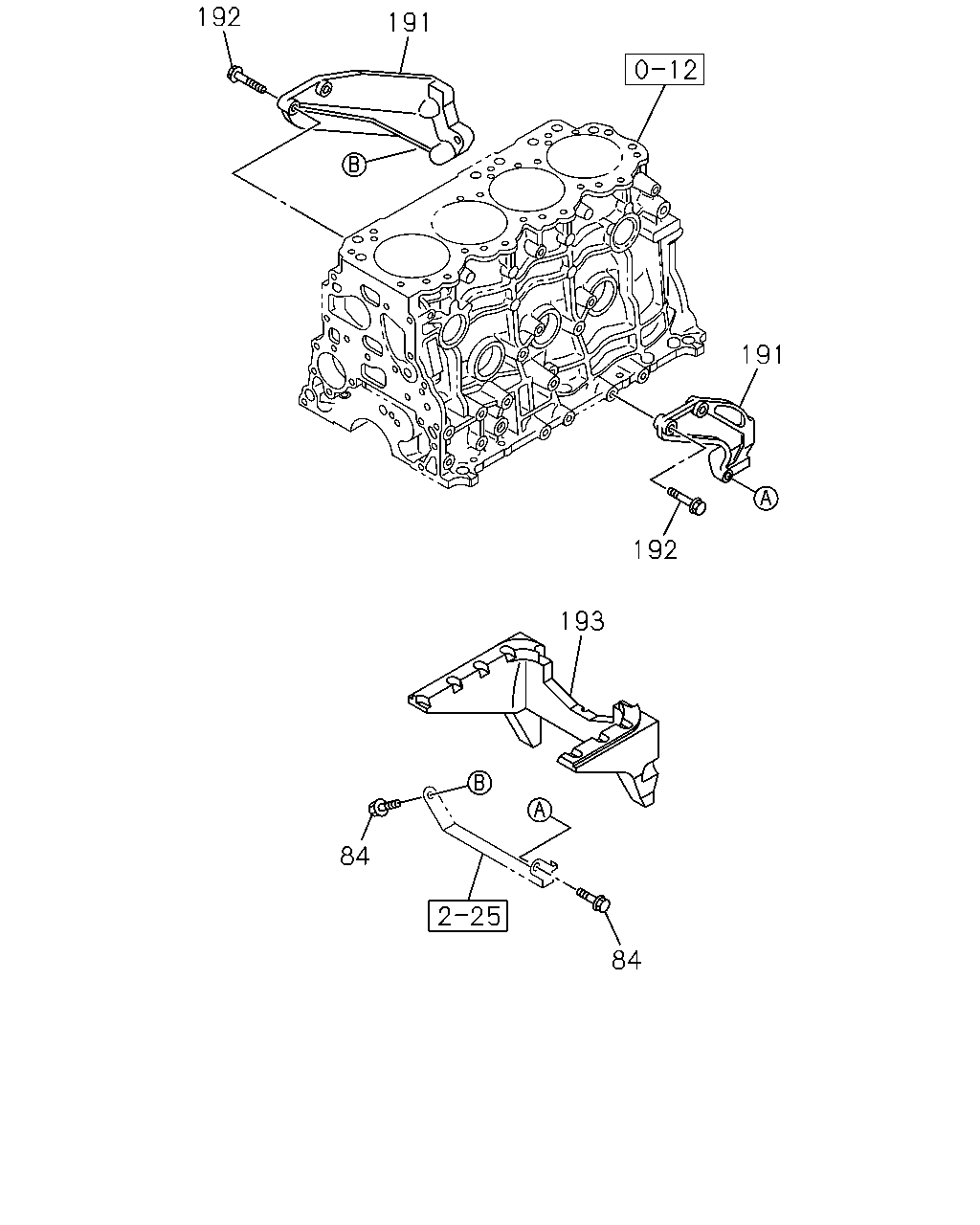

192 191 191 192 193 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
84	00.206 BOLT; SPACER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0804-1204	●
191	00.669 STAY; FLYWHEEL HSG 04.083	8-97074-108-3	01	1	0804-	●
191	00.669 STAY; FLYWHEEL HSG 04.083	8-97084-390-2	01	1	0804-	●
192	00.206 BOLT; STAY TO HSG 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0804-	●
193	01.428 SPACER; STAY TO OIL,PAN 00.137	8-97286-992-0	01	1	0804-1204	●

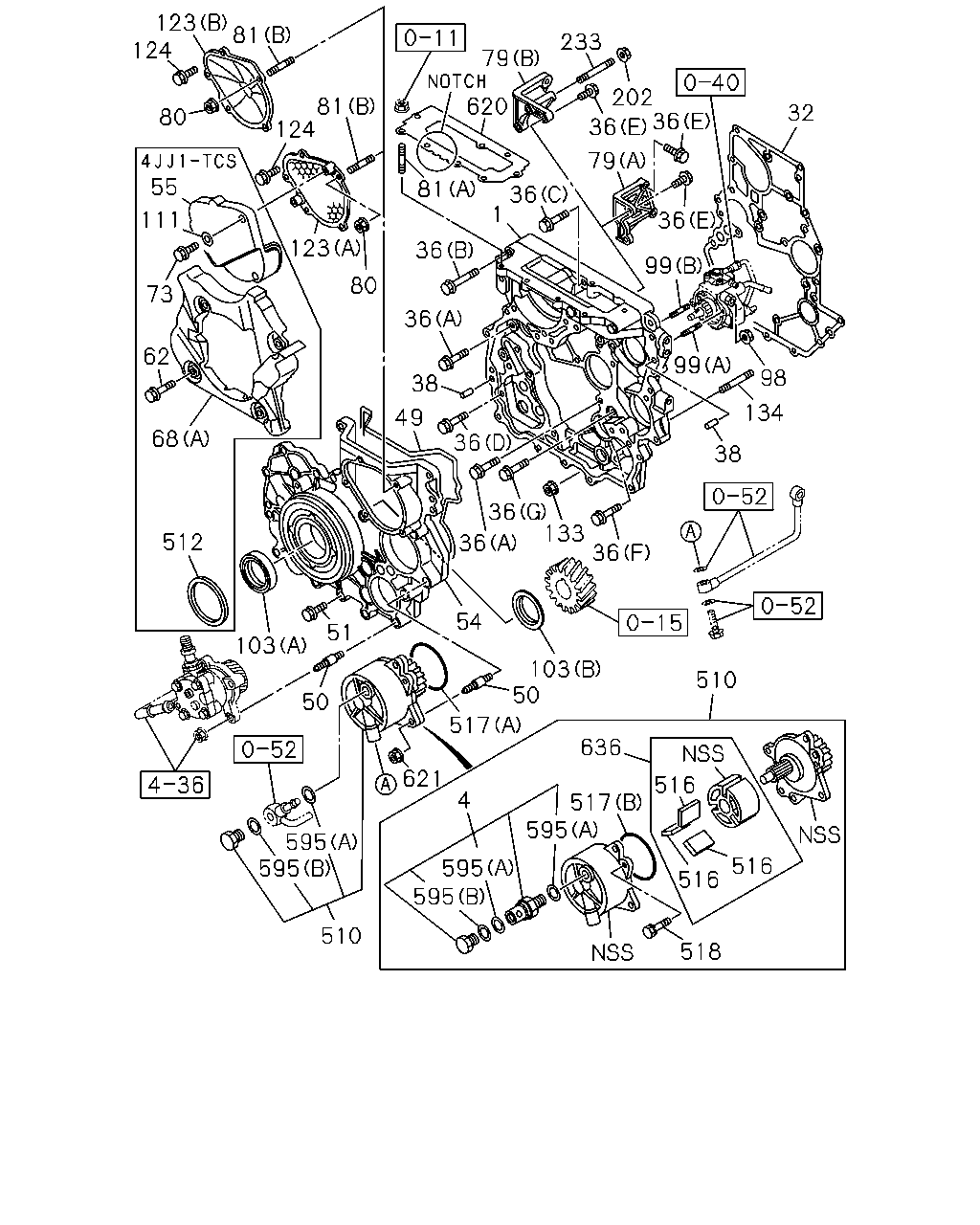

123 124 81 80 55 111 73 62 68 512 103 50 51 595 595 621 517 50 103 54 36 36 36 49 80 123 124 81 81 36 36 38 1 36 620 79 233 202 36 79 36 32 36 99 98 99 134 38 36 133 510 636 516 517 4 510 595 595 595 516 516 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0803-1203	●	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1204-	●	●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0804-			●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0803-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0803-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0804-			●
36	00.206 BOLT; GEAR CASE VIETNAM EQUIPMENT(CL0) 04.338 (A) M8X20 FLANGE	0-28050-820-0	13	1	1105-		●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	0803-1104	●	●
36	00.206 BOLT; GEAR CASE EXC. VIETNAM EQUIPMENT(CL0) 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1105-		●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1105-	●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0803-	●	●
36	00.206 BOLT; GEAR CASE 08.900 (H) M8X20 W/LK WASHER	0-50040-820-0	06	1	0804-0909			●
36	00.206 BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-			●
36	00.206 BOLT; GEAR CASE 01.252 (H) M8X45 W/LK WASHER	0-50040-845-0	02	1	0804-0909			●
36	00.206 BOLT; GEAR CASE 03.704 (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-			●
38	00.685 PIN; GEAR CASE COVER VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20	9-08151-020-0	02	1	1105-		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0803-0803	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0804-1104	●	●	●
38	00.685 PIN; GEAR CASE COVER EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-	●		●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0803-	●	●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0803-	●	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0803-	●	●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0803-1007	●	●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-1405	●	●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-	●	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0804-			●
55	00.206 COVER; NOISE SHIELD EURO4 SPECIFICATION(NT4)	8-97375-190-1	01	1	0803-1006	●
62	00.206 BOLT; COVER EURO4 SPECIFICATION(NT4) 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0803-	●
68	00.206 COVER ASM; GEAR CASE COVER EURO4 SPECIFICATION(NT4) (A)	8-98009-466-3	01	1	0803-1409	●
68	00.206 COVER ASM; GEAR CASE COVER EURO4 SPECIFICATION(NT4) (A)	8-98245-226-0	01	1	1410-	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-94155-721-1	01	1	0804-			●
73	00.206 BOLT; COVER FIX EURO4 SPECIFICATION(NT4) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0803-1006	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0804-			●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	0803-1203	●	●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1204-	●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0803-	●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0803-	●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0803-	●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-	●	●
99	00.206 STUD; INJ PUMP VIETNAM EQUIPMENT(CL0) 00.413 (A) M8X30 L=48	0-49140-830-0	01	1	1105-1203		●
99	00.206 STUD; INJ PUMP VIETNAM EQUIPMENT(CL0) 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1204-		●
99	00.206 STUD; INJ PUMP VIETNAM EQUIPMENT(CL0) (B) M8X45 L=63	0-49140-845-0	01	1	1105-1203		●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0803-1104	●	●
99	00.206 STUD; INJ PUMP EXC. VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41	8-97369-449-0	01	1	1105-1203		●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	1105-1203	●
99	00.206 STUD; INJ PUMP EXC. VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41	8-97369-449-0	02	1	1204-		●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	02	1	1204-	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0803-1104	●	●
99	00.206 STUD; INJ PUMP EXC. VIETNAM EQUIPMENT(CL0) (B) M8X45 L=56	8-97369-450-0	01	1	1105-1203		●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	1105-1203	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97382-606-0	01	1	0803-1007	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98158-110-0	01	1	1008-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0803-1007	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97351-704-0	01	1	0804-			●
111	00.206 WASHER; PL EURO4 SPECIFICATION(NT4) 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0803-1006	●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0803-1006	●	●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-	●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0803-	●	●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-	●	●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0803-	●	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-	●	●
233	00.669 STUD; BRKT EXC. VIETNAM EQUIPMENT(CL0) 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-		●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-	●
233	00.669 STUD; BRKT VIETNAM EQUIPMENT(CL0) 03.275 M8X71 L=83	8-97367-083-0	01	1	1204-		●
510	04.895 PUMP ASM; VACUUM EURO4 SPECIFICATION(NT4)	8-98241-234-0	01	1	1306-1311	●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-	●	●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0803-1005	●	●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-1305	●	●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1306-1311		●
512	04.895 RUBBER; SPACE EURO4 SPECIFICATION(NT4)	8-97322-675-0	01	1	0803-1007	●
512	04.895 RUBBER; SPACE EURO4 SPECIFICATION(NT4)	8-98165-120-0	01	1	1008-1011	●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0803-	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (B)	8-98244-022-0	01	1	1306-1311	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0803-1305	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	1306-1311		●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98251-769-0	01	1	1312-	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0803-	●	●
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	0803-	●	●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0803-	●	●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0803-	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0803-	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0803-	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0803-	●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0803-	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
