Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#52738) — 326 parça

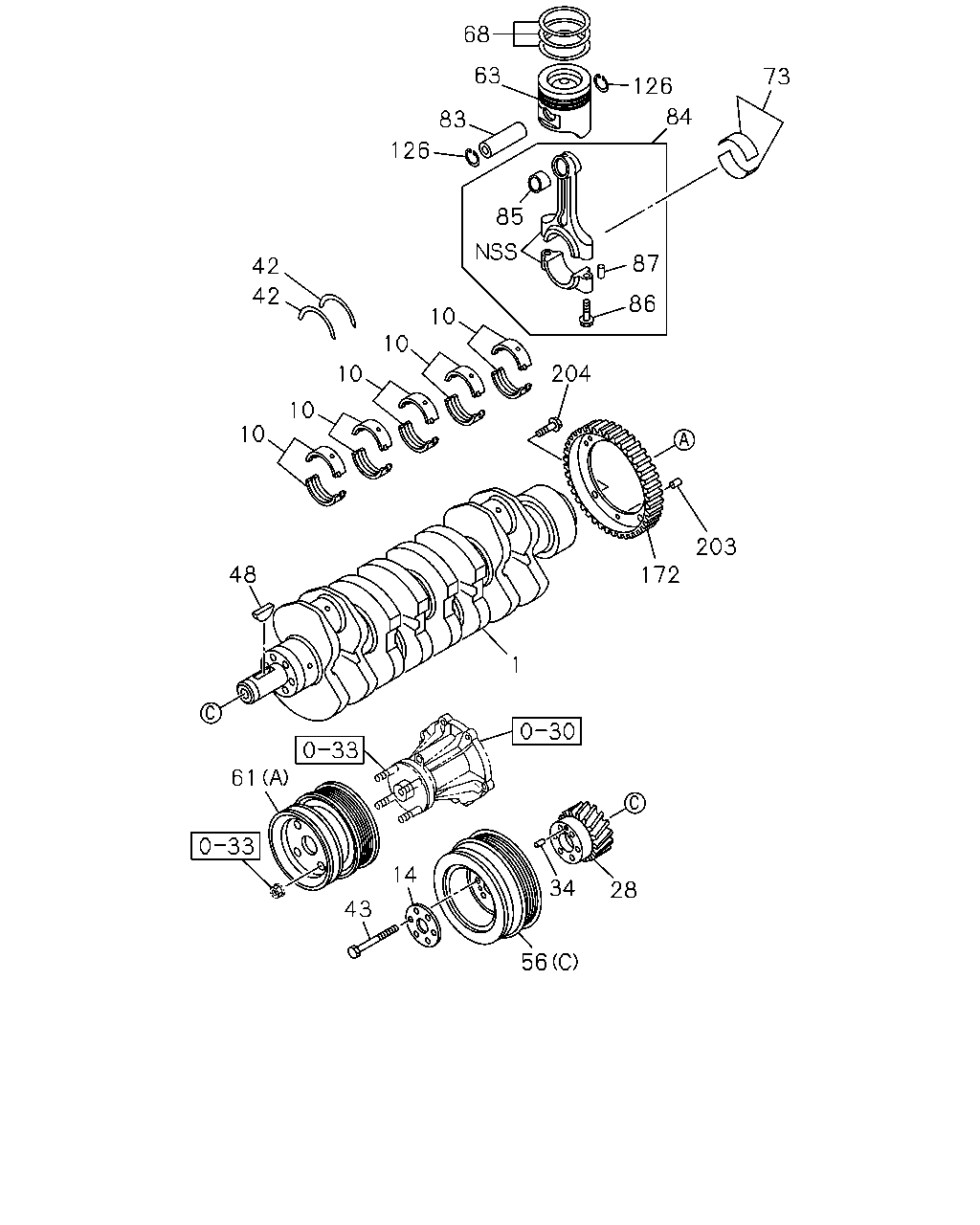

28 34 56 14 43 61 1 48 10 10 10 10 10 42 42 126 83 63 68 126 84 73 85 87 86 204 203 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT VIETNAM EQUIPMENT(CL0)	8-98182-878-1	01	1	1105-	●
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0803-1007	●	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-1104	●	●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT(CL0)	8-98154-950-2	01	1	1105-1409	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1105-1409		●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT(CL0)	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-		●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	0804-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0804-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0804-			●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-0803	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0804-1007	●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1008-			●
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0803-1007	●	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0804-			●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1008-	●	●
42	00.095 WASHER; THRUST,CR/SHF VIETNAM EQUIPMENT(CL0)	8-97354-055-1	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	0803-1104	●	●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-98040-704-0	02	1	1105-1108	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1105-1108		●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-98040-704-0	02	1	1109-	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0804-1108			●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0803-0803	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0804-1007	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1008-			●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	0803-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-97361-562-1	01	1	0803-1007	●	●
56	00.659 PULLEY; CR/SHF DAMPER (C) 2-GROOVE	8-98154-943-1	01	1	1008-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97204-204-0	01	1	0804-			●
61	00.659 PULLEY; FAN DRIVE (A) 2-GROOVE	8-97362-215-2	01	1	0803-	●	●
61	00.659 PULLEY; FAN DRIVE (B) 1-GROOVE OD=120	8-94459-815-4	01	1	0804-			●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-610-0	04	1	0804-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-611-0	04	1	0804-			●
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0803-1105	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0804-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0803-0803	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0804-	●	●	●
83	00.636 PIN; PISTON VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN LINER SET.	8-98150-333-0	04	1	1105-	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0803-1104	●	●
83	00.636 PIN; PISTON EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0804-			●
84	00.603 ROD ASM; CONN VIETNAM EQUIPMENT(CL0)	8-97357-716-3	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0803-1104	●	●
84	00.603 ROD ASM; CONN EXC. VIETNAM EQUIPMENT(CL0)	8-97388-921-2	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1105-		●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	0804-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0803-	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	0804-			●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0803-0803	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0804-	●	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0803-0803	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0804-	●	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0803-0803	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5 ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0804-	●	●	●
172	02.383 ROTOR; CRANK SENSOR VIETNAM EQUIPMENT(CL0)	8-97312-337-0	01	1	1105-	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0803-1101	●	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-1104	●	●
172	02.383 ROTOR; CRANK SENSOR EXC. VIETNAM EQUIPMENT(CL0)	8-98163-693-0	01	1	1105-	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1105-		●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0803-	●	●
204	01.150 BOLT; ROTOR VIETNAM EQUIPMENT(CL0)	8-97944-142-1	03	1	1105-	●
204	01.150 BOLT; ROTOR 02.383	8-97213-333-0	03	1	0803-0805	●	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	0806-1104	●	●
204	01.150 BOLT; ROTOR EXC. VIETNAM EQUIPMENT(CL0) 02.383 M6X10	8-98038-343-0	03	1	1105-	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1105-		●

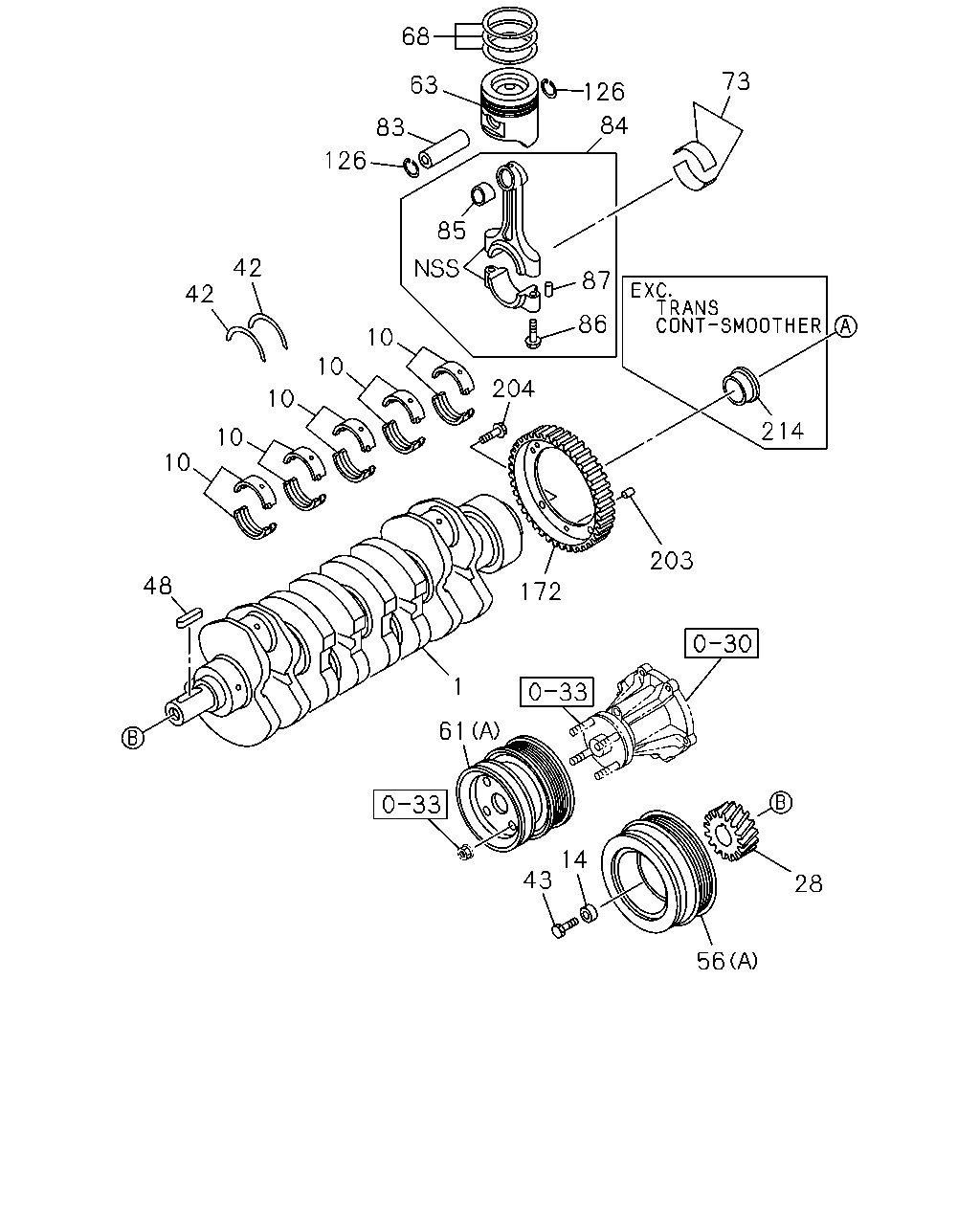

73 214 203 172 28 56 14 43 61 1 48 204 10 10 10 10 10 86 87 84 126 68 63 83 126 85 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT VIETNAM EQUIPMENT(CL0)	8-98182-878-1	01	1	1105-	●
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0803-1007	●	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-1104	●	●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT(CL0)	8-98154-950-2	01	1	1105-1409	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1105-1409		●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT(CL0)	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-		●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	0804-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0804-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0804-			●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-0803	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0804-1007	●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1008-			●
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0803-1007	●	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0804-			●
42	00.095 WASHER; THRUST,CR/SHF VIETNAM EQUIPMENT(CL0)	8-97354-055-1	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	0803-1104	●	●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-98040-704-0	02	1	1105-1108	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1105-1108		●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-98040-704-0	02	1	1109-	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0804-1108			●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0803-0803	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0804-1007	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1008-			●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	0803-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-97361-562-1	01	1	0803-1007	●	●
56	00.659 PULLEY; CR/SHF DAMPER (C) 2-GROOVE	8-98154-943-1	01	1	1008-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97204-204-0	01	1	0804-			●
61	00.659 PULLEY; FAN DRIVE (A) 2-GROOVE	8-97362-215-2	01	1	0803-	●	●
61	00.659 PULLEY; FAN DRIVE (B) 1-GROOVE OD=120	8-94459-815-4	01	1	0804-			●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-610-0	04	1	0804-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-611-0	04	1	0804-			●
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0803-1105	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0804-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0803-0803	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0804-	●	●	●
83	00.636 PIN; PISTON VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN LINER SET.	8-98150-333-0	04	1	1105-	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0803-1104	●	●
83	00.636 PIN; PISTON EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0804-			●
84	00.603 ROD ASM; CONN VIETNAM EQUIPMENT(CL0)	8-97357-716-3	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0803-1104	●	●
84	00.603 ROD ASM; CONN EXC. VIETNAM EQUIPMENT(CL0)	8-97388-921-2	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1105-		●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	0804-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0803-	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	0804-			●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0803-0803	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0804-	●	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0803-0803	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0804-	●	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0803-0803	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5 ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0804-	●	●	●
172	02.383 ROTOR; CRANK SENSOR VIETNAM EQUIPMENT(CL0)	8-97312-337-0	01	1	1105-	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0803-1101	●	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-1104	●	●
172	02.383 ROTOR; CRANK SENSOR EXC. VIETNAM EQUIPMENT(CL0)	8-98163-693-0	01	1	1105-	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1105-		●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0803-	●	●
204	01.150 BOLT; ROTOR VIETNAM EQUIPMENT(CL0)	8-97944-142-1	03	1	1105-	●
204	01.150 BOLT; ROTOR 02.383	8-97213-333-0	03	1	0803-0805	●	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	0806-1104	●	●
204	01.150 BOLT; ROTOR EXC. VIETNAM EQUIPMENT(CL0) 02.383 M6X10	8-98038-343-0	03	1	1105-	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1105-		●
214	00.724 STOPPER; BEARING SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-560-0	01	1	0803-0803	●
214	00.724 STOPPER; BEARING SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-560-0	01	1	0803-0803		●
214	00.724 STOPPER; BEARING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-560-0	01	1	0804-0911	●	●

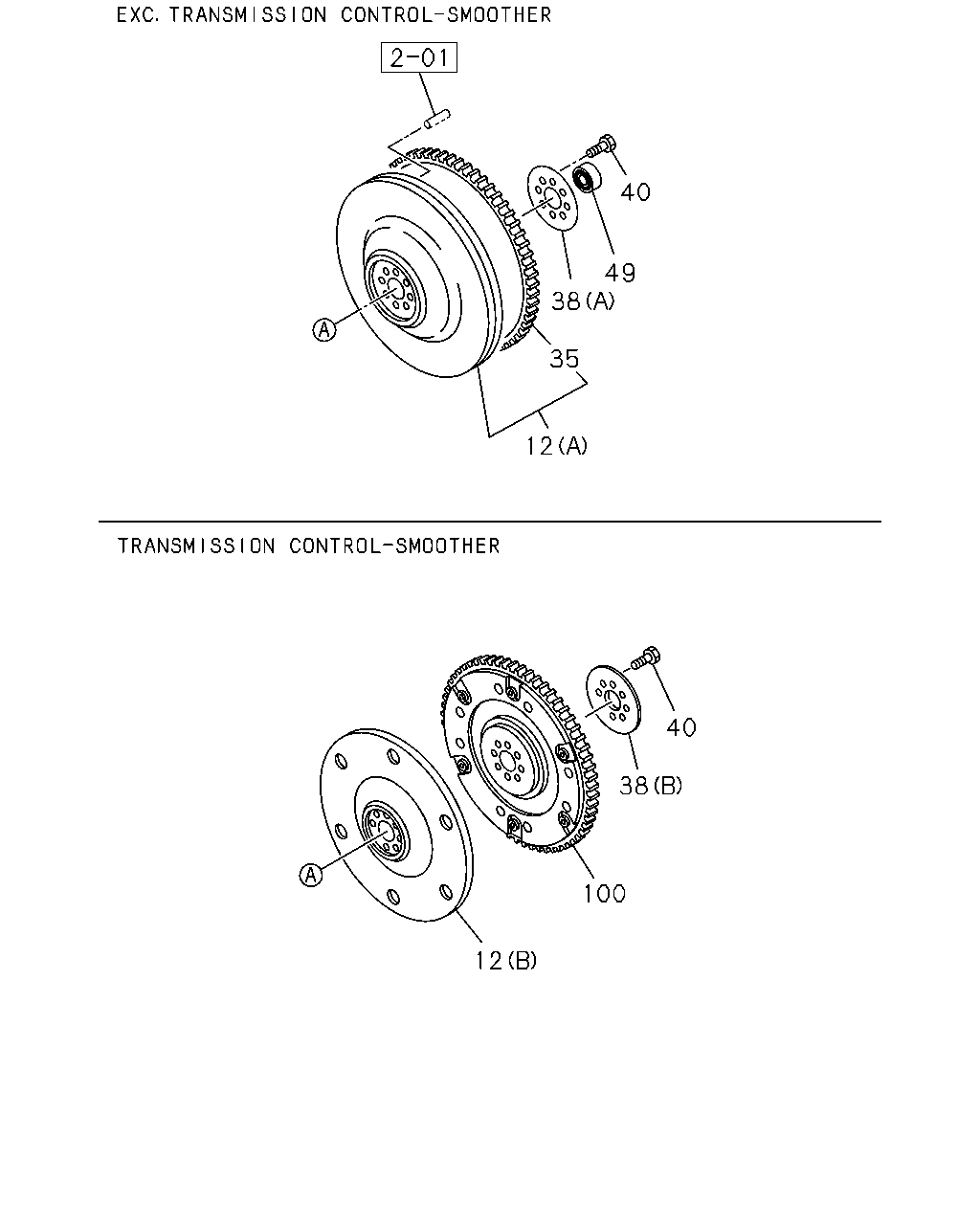

40 49 38 35 12 40 38 100 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0803-0807		●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0808-0809	●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0808-0809		●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0810-		●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98012-825-1	01	1	0803-0803	●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98012-825-1	01	1	0803-0803		●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98012-825-2	01	1	0804-0911	●	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-063-1	01	1	0912-	●	●
12	00.666 FLYWHEEL (C)	8-97034-430-2	01	1	0804-			●
35	00.673 GEAR; RING SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-0	01	1	0803-0803	●
35	00.673 GEAR; RING SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-0	01	1	0803-0803		●
35	00.673 GEAR; RING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-1	01	1	0804-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0804-			●
38	00.862 WASHER; FLYWHEEL VIETNAM EQUIPMENT(CL0) 00.669 (A)	8-94133-970-1	01	1	1105-	●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-1	01	1	0803-0807		●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-1	01	1	0808-0809	●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-1	01	1	0808-0809		●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-2	01	1	0810-		●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0803-0803	●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0803-0803		●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0804-0804	●	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0804-0809	●	●
38	00.862 WASHER; FLYWHEEL EURO2 SPECIFICATION(NT2) 00.669 (A)	8-94133-970-1	01	1	0804-0809			●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0810-1005	●	●
38	00.862 WASHER; FLYWHEEL 00.669 (A)	8-94133-970-1	01	1	0810-1005			●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98171-700-0	01	1	1006-1104	●	●
38	00.862 WASHER; FLYWHEEL (A)	8-98171-700-0	01	1	1006-1104			●
38	00.862 WASHER; FLYWHEEL EXC. VIETNAM EQUIPMENT(CL0), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A)	8-98171-700-0	01	1	1105-	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98171-700-0	01	1	1105-		●
38	00.862 WASHER; FLYWHEEL (A)	8-98171-700-0	01	1	1105-			●
40	00.669 BOLT; FLYWHEEL VIETNAM EQUIPMENT(CL0) M13X36	8-97941-069-0	08	1	1105-1202	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0803-1104	●	●
40	00.669 BOLT; FLYWHEEL EXC. VIETNAM EQUIPMENT(CL0) M13X45	8-94418-050-0	08	1	1105-1202	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1105-1202		●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1203-	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0804-			●
49	00.669 BEARING; PILOT SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	0803-0803	●
49	00.669 BEARING; PILOT SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	0803-0803		●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	0804-	●	●
49	00.669 BEARING; PILOT SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS	5-87610-166-0	01	1	0803-0803	●
49	00.669 BEARING; PILOT SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS	5-87610-166-0	01	1	0803-0803		●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS	5-87610-166-0	01	1	0804-	●	●
100	00.666 PLATE; FLEX SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-0	01	1	0803-0807		●
100	00.666 PLATE; FLEX SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-0	01	1	0808-0809	●
100	00.666 PLATE; FLEX SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-0	01	1	0808-0809		●
100	00.666 PLATE; FLEX SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	0810-		●

68 63 126 84 85 86 87 14 43 56 28 31 73 10 1 83 126 61 42 42 37 40 38 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT VIETNAM EQUIPMENT(CL0)	8-98182-878-1	01	1	1105-	●
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0803-1007	●	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-1104	●	●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT(CL0)	8-98154-950-2	01	1	1105-1409	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1105-1409		●
1	00.646 CRANKSHAFT EXC. VIETNAM EQUIPMENT(CL0)	8-98273-590-0	01	1	1410-	●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-		●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	0804-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0803-0803	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0804-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0804-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0804-			●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0803-0807		●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0808-0809	●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0808-0809		●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0810-		●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98012-825-1	01	1	0803-0803	●
12	00.666 FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98012-825-1	01	1	0803-0803		●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98012-825-2	01	1	0804-0911	●	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-063-1	01	1	0912-	●	●
12	00.666 FLYWHEEL (C)	8-97034-430-2	01	1	0804-			●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-0803	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0804-1007	●	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1008-			●
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0803-1007	●	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0804-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0804-			●
35	00.673 GEAR; RING SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-0	01	1	0803-0803	●
35	00.673 GEAR; RING SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-0	01	1	0803-0803		●
35	00.673 GEAR; RING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-1	01	1	0804-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0804-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0804-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	0804-			●
38	00.862 WASHER; FLYWHEEL VIETNAM EQUIPMENT(CL0) 00.669 (A)	8-94133-970-1	01	1	1105-	●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-1	01	1	0803-0807		●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-1	01	1	0808-0809	●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-1	01	1	0808-0809		●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97386-162-2	01	1	0810-		●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0803-0803	●
38	00.862 WASHER; FLYWHEEL SGL CAB(NM*S) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0803-0803		●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0804-0804	●	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0804-0809	●	●
38	00.862 WASHER; FLYWHEEL EURO2 SPECIFICATION(NT2) 00.669 (A)	8-94133-970-1	01	1	0804-0809			●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669 (A)	8-94133-970-1	01	1	0810-1005	●	●
38	00.862 WASHER; FLYWHEEL 00.669 (A)	8-94133-970-1	01	1	0810-1005			●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98171-700-0	01	1	1006-1104	●	●
38	00.862 WASHER; FLYWHEEL (A)	8-98171-700-0	01	1	1006-1104			●
38	00.862 WASHER; FLYWHEEL EXC. VIETNAM EQUIPMENT(CL0), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A)	8-98171-700-0	01	1	1105-	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98171-700-0	01	1	1105-		●
38	00.862 WASHER; FLYWHEEL (A)	8-98171-700-0	01	1	1105-			●
40	00.669 BOLT; FLYWHEEL VIETNAM EQUIPMENT(CL0) M13X36	8-97941-069-0	08	1	1105-1202	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0803-1104	●	●
40	00.669 BOLT; FLYWHEEL EXC. VIETNAM EQUIPMENT(CL0) M13X45	8-94418-050-0	08	1	1105-1202	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1105-1202		●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1203-	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0804-			●
42	00.095 WASHER; THRUST,CR/SHF VIETNAM EQUIPMENT(CL0)	8-97354-055-1	02	1	1105-	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	0803-1104	●	●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-98040-704-0	02	1	1105-1108	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1105-1108		●
42	00.095 WASHER; THRUST,CR/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-98040-704-0	02	1	1109-	●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1109-		●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0804-1108			●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0803-0803	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0804-1007	●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1008-			●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-97361-562-1	01	1	0803-1007	●	●
56	00.659 PULLEY; CR/SHF DAMPER (C) 2-GROOVE	8-98154-943-1	01	1	1008-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97204-204-0	01	1	0804-			●
61	00.659 PULLEY; FAN DRIVE (A) 2-GROOVE	8-97362-215-2	01	1	0803-	●	●
61	00.659 PULLEY; FAN DRIVE (B) 1-GROOVE OD=120	8-94459-815-4	01	1	0804-			●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0803-	●	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-610-0	04	1	0804-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-611-0	04	1	0804-			●
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0803-1105	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0804-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0803-0803	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0804-	●	●	●
83	00.636 PIN; PISTON VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN LINER SET.	8-98150-333-0	04	1	1105-	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0803-1104	●	●
83	00.636 PIN; PISTON EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1105-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0804-			●
84	00.603 ROD ASM; CONN VIETNAM EQUIPMENT(CL0)	8-97357-716-3	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0803-1104	●	●
84	00.603 ROD ASM; CONN EXC. VIETNAM EQUIPMENT(CL0)	8-97388-921-2	04	1	1105-	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1105-		●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	0804-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0803-	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	0804-			●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0803-0803	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0804-	●	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0803-0803	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0804-	●	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0803-0803	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5 ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
