Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#52735) — 233 parça

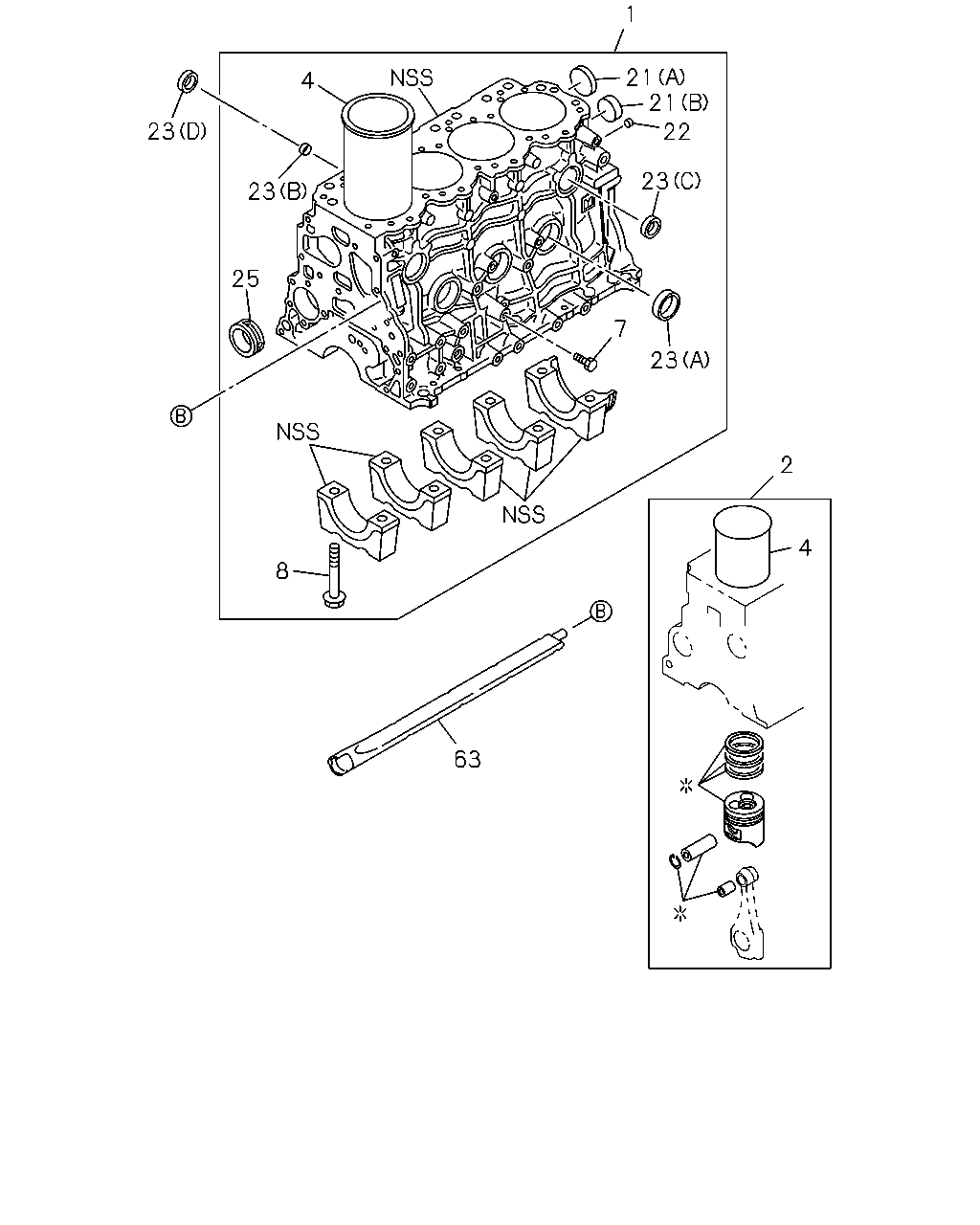

23 23 25 4 1 21 22 21 23 23 2 4 7 8 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0804-	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0803-1210		●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-0	01	1	1210-		●	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	0804-	●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	0804-	●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	0804-	●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	0804-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	0804-	●
7	00.034 PLUG; WATER DRAIN VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1508			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0803-1405		●	●
7	00.034 PLUG; WATER DRAIN EXC. VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1508			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-1508		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	02	1	1509-		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0804-	●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	10	1	1509-			●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-97941-068-0	10	1	1406-			●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-97941-068-0	10	1	1105-1209			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0803-1104		●	●
8	00.056 BOLT; BRG CAP EXC. VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	10	1	1105-1209			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1105-1209		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1210-1508		●	●
8	00.056 BOLT; BRG CAP EXC. VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	20	1	1509-			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	20	1	1509-		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0804-	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0803-1405		●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1508			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1508		●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1509-		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0803-1405		●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=38	5-11219-017-0	01	1	1406-1508			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-1508		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1509-		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0803-1405		●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) (B) OD=36	5-11219-018-0	01	1	1406-1508			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-1508		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1509-		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0804-	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0804-	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) 00.253 (B) OD=18	5-11219-008-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (C) OD=32	5-11219-015-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (B) OD=18	5-11219-008-0	02	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (C) OD=32	5-11219-015-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0803-0803		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0804-	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0804-	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0804-	●
25	00.539 METAL; CM/SHF FRONT	8-97378-148-0	01	1	0804-	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0804-	●

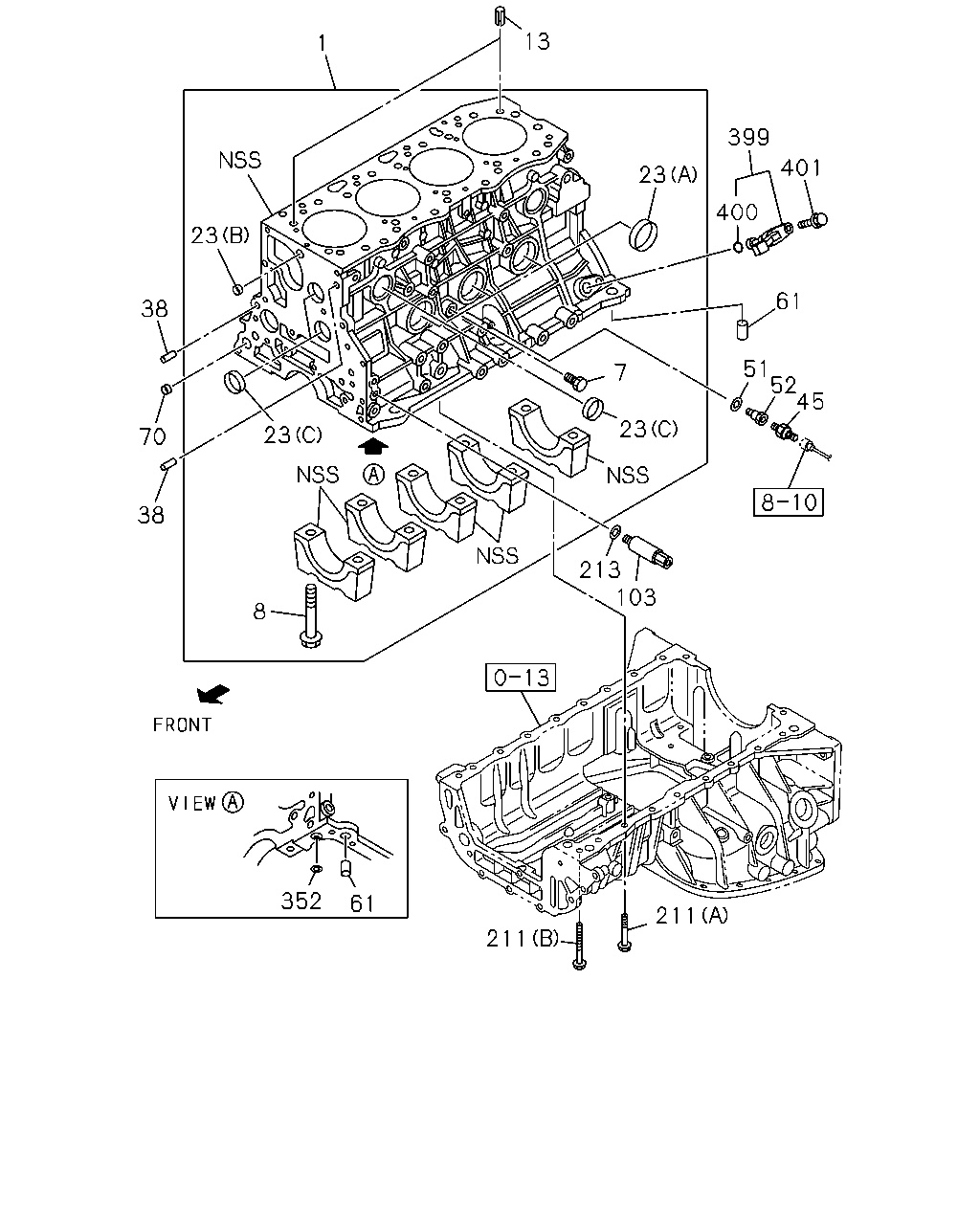

13 1 399 401 23 400 23 61 38 51 52 45 7 23 23 70 38 213 103 8 352 61 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0804-	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0803-1210		●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-0	01	1	1210-		●	●
7	00.034 PLUG; WATER DRAIN VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1508			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0803-1405		●	●
7	00.034 PLUG; WATER DRAIN EXC. VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1508			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-1508		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	02	1	1509-		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0804-	●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	10	1	1509-			●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-97941-068-0	10	1	1406-			●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-97941-068-0	10	1	1105-1209			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0803-1104		●	●
8	00.056 BOLT; BRG CAP EXC. VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	10	1	1105-1209			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1105-1209		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1210-1508		●	●
8	00.056 BOLT; BRG CAP EXC. VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	20	1	1509-			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	20	1	1509-		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0804-	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0803-0803		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0804-	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) 00.253 (B) OD=18	5-11219-008-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (C) OD=32	5-11219-015-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (B) OD=18	5-11219-008-0	02	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (C) OD=32	5-11219-015-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0803-0803		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0804-	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0804-	●
38	00.206 PIN; TIMING GEAR CASE VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20	9-08151-020-0	02	1	1105-			●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0803-1104		●	●
38	00.206 PIN; TIMING GEAR CASE EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-			●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-		●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0803-		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0)	8-97912-498-0	01	1	1105-			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0803-0803		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0804-1104	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0).	8-94336-292-0	01	1	1105-			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1105-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0803-0803		●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0804-1501	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-	●	●	●
61	00.206 PIN; STRAIGHT VIETNAM EQUIPMENT(CL0) 01.453 L=31	8-97920-964-1	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0803-1104		●	●
61	00.206 PIN; STRAIGHT EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31	9-09878-597-0	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1105-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0804-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0803-		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0804-	●
103	01.531 NIPPLE; OIL FEED EXC. VIETNAM EQUIPMENT(CL0) 00.293	8-94469-596-0	01	1	1301-			●
103	01.531 NIPPLE; OIL FEED 00.293	8-94469-596-0	01	1	1301-		●
103	01.531 NIPPLE; OIL FEED	8-97316-983-4	01	1	0803-1212		●	●
103	01.531 NIPPLE; OIL FEED VIETNAM EQUIPMENT(CL0)	8-97316-983-4	01	1	1301-			●
211	01.428 BOLT; CRANKCASE 06.216 (A) M8X25 FLANGE	0-28650-825-0	19	1	0803-		●	●
211	01.428 BOLT; CRANKCASE 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	0803-		●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0803-		●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0803-		●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0803-		●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0803-		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0803-		●	●

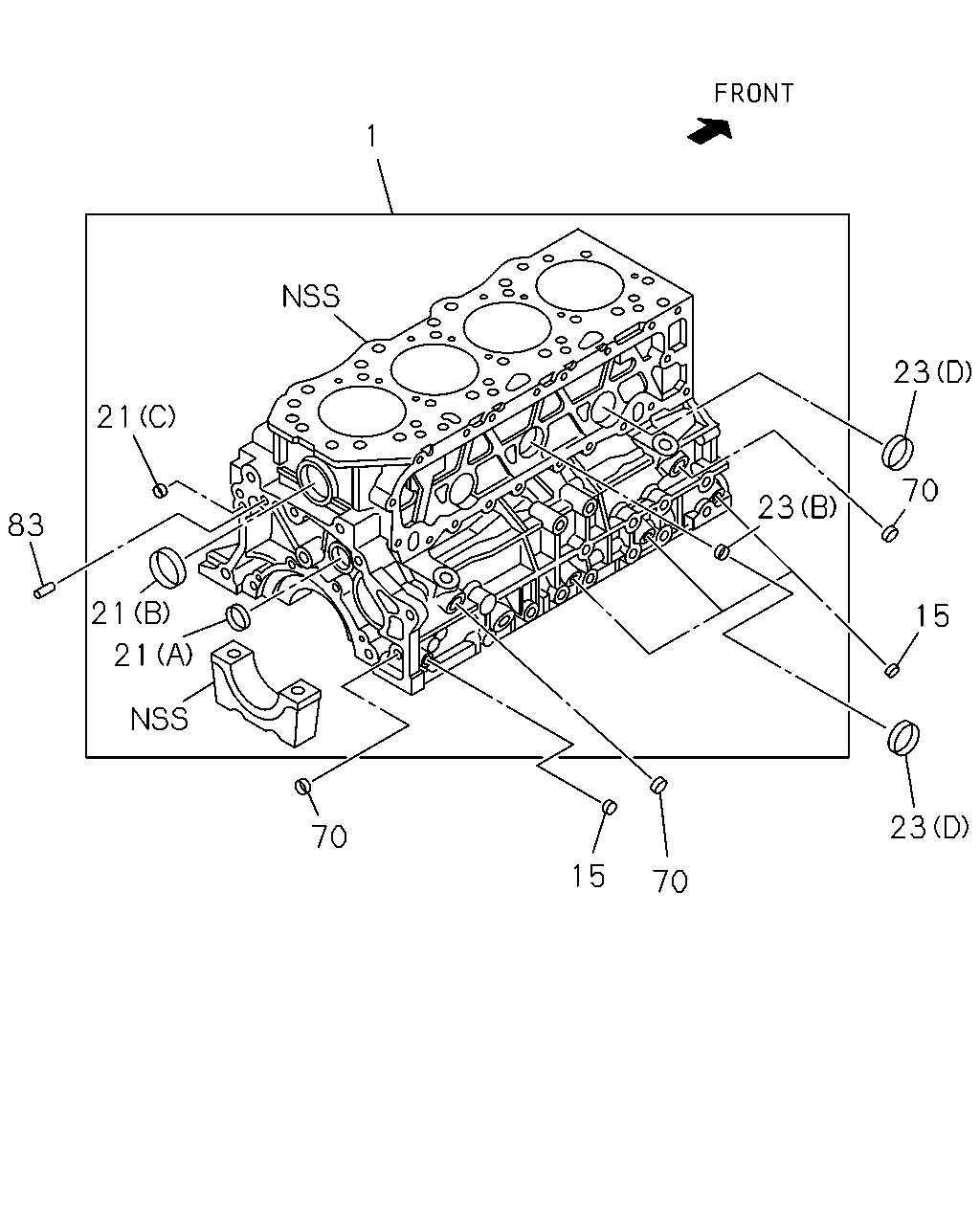

1 23 21 70 23 83 21 15 21 23 70 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0804-	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0803-1210		●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-0	01	1	1210-		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0803-		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	0804-	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0803-1405		●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1508			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1508		●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1509-		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0803-1405		●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=38	5-11219-017-0	01	1	1406-1508			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-1508		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1509-		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0803-1405		●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) (B) OD=36	5-11219-018-0	01	1	1406-1508			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-1508		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1509-		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0804-	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) 00.253 (B) OD=18	5-11219-008-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (C) OD=32	5-11219-015-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (B) OD=18	5-11219-008-0	02	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (C) OD=32	5-11219-015-0	04	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0803-0803		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0804-	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0803-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1508			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1508		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1509-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0804-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0804-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0803-		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0804-	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	0803-		●	●

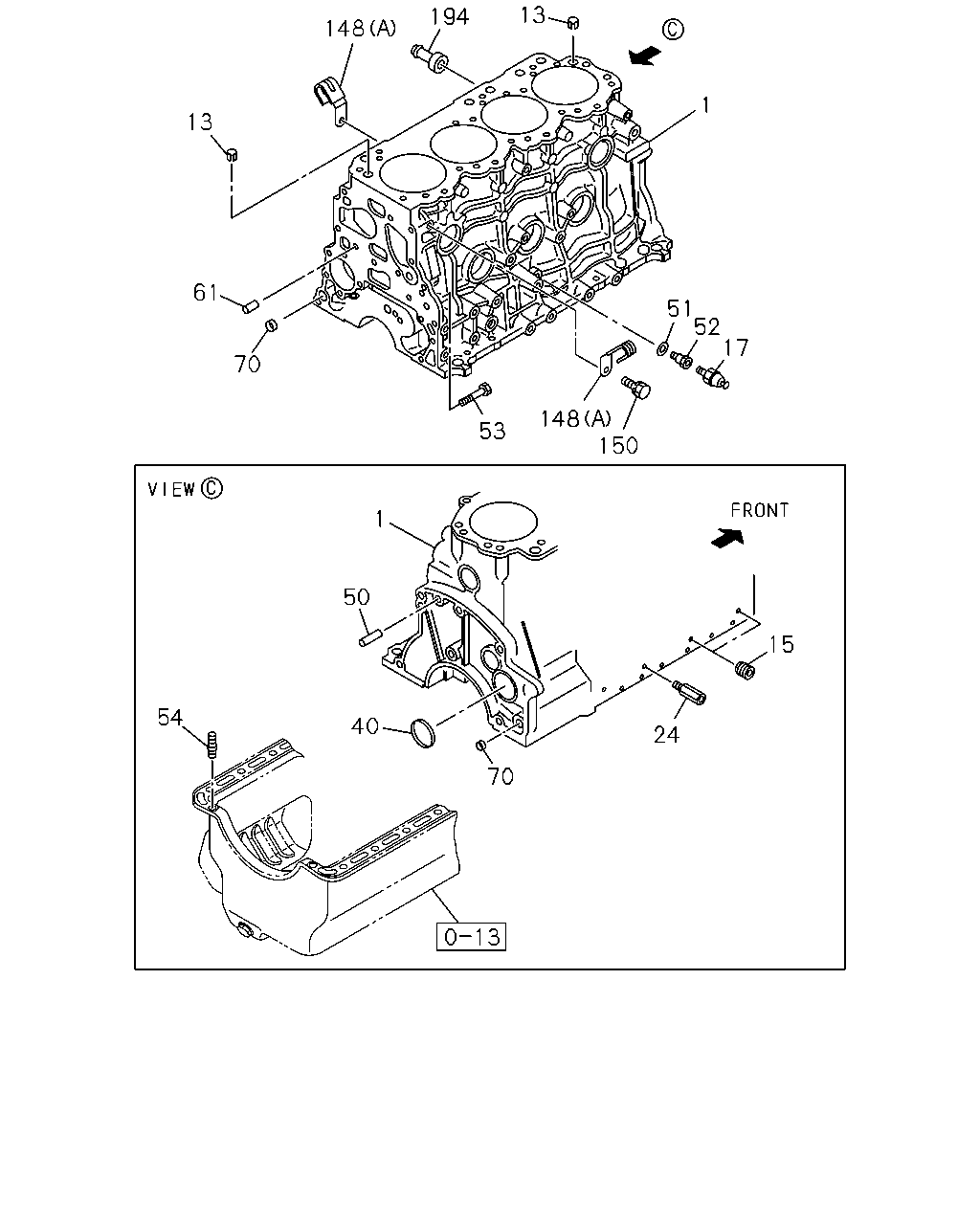

13 194 148 1 13 61 51 52 17 70 148 150 53 1 50 15 54 40 24 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0804-	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0803-1210		●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-0	01	1	1210-		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0803-0803		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0804-	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0803-		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	0804-	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0804-	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0804-	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0804-	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0804-	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0)	8-97912-498-0	01	1	1105-			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0803-0803		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0804-1104	●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0).	8-94336-292-0	01	1	1105-			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1105-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0803-0803		●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0804-1501	●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-	●	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0804-	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0804-	●
61	00.206 PIN; STRAIGHT VIETNAM EQUIPMENT(CL0) 01.453 L=31	8-97920-964-1	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0803-1104		●	●
61	00.206 PIN; STRAIGHT EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31	9-09878-597-0	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1105-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0804-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0803-		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0804-	●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	0804-1304	●
148	02.313 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0804-0907	●
148	02.313 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0908-1304	●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-1304	●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0804-	●

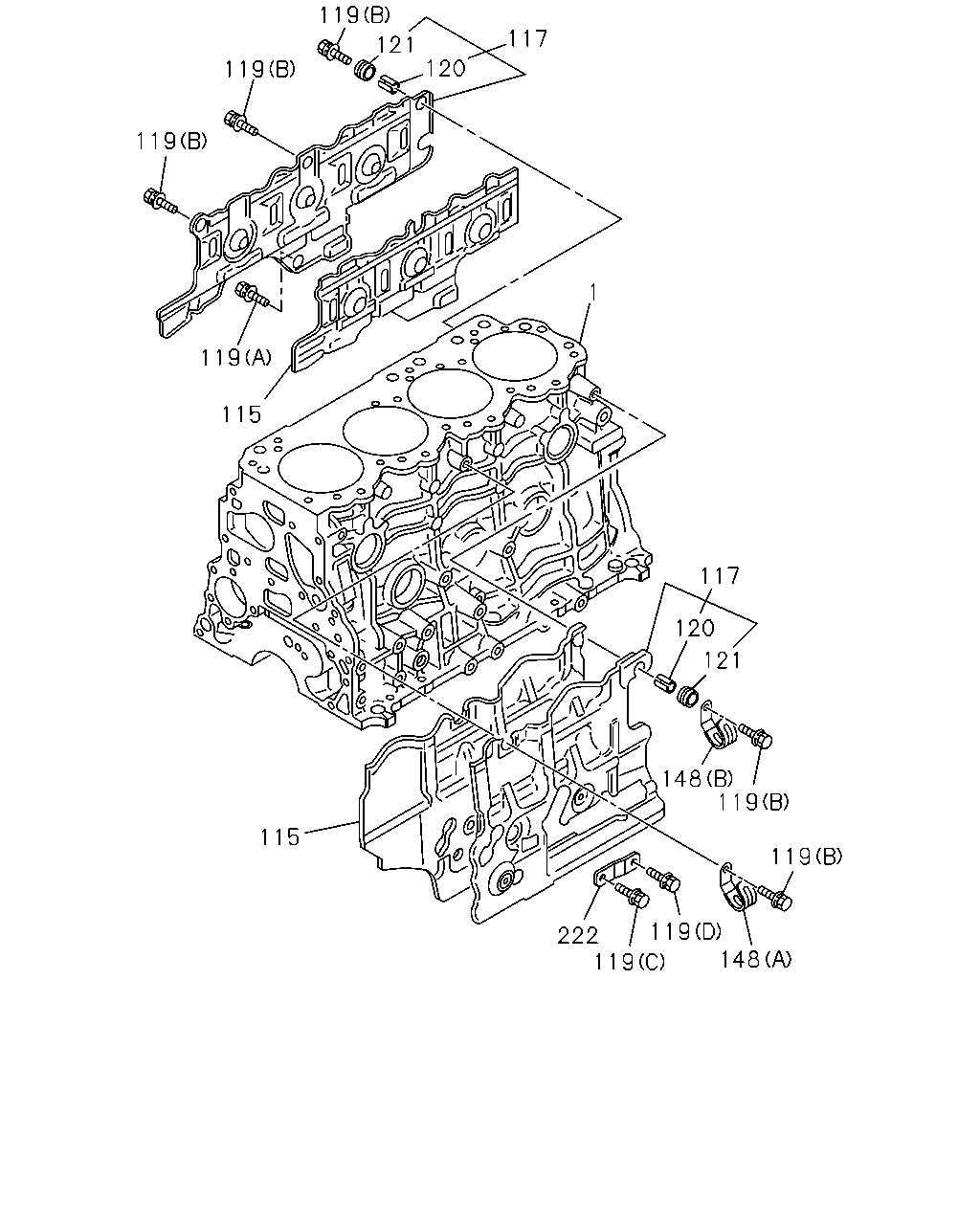

119 117 121 120 119 119 1 119 115 117 120 121 148 119 115 119 119 148 222 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	0804-	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0803-1210		●	●
1	00.033 BLOCK ASM; CYL	8-98239-516-0	01	1	1210-		●	●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0804-1304	●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0804-1304	●
117	00.030 COVER ASM; C/BL	8-97020-126-0	01	1	0804-1304	●
117	00.030 COVER ASM; C/BL	8-97204-191-1	01	1	0804-1304	●
119	00.034 BOLT; COVER FIX 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	0804-1304	●
119	00.034 BOLT; COVER FIX (D) M10X20 W/LK WASHER	0-50541-020-0	01	1	0804-1304	●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	0804-1304	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0804-1304	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	06	1	0804-1304	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	06	1	0804-1304	●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	0804-1304	●
148	02.313 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0804-0907	●
148	02.313 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0908-1304	●
222	00.340 BRACKET; COVER,C/BL	8-97209-129-0	01	1	0804-1304	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
