◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#52733) — 93 parça

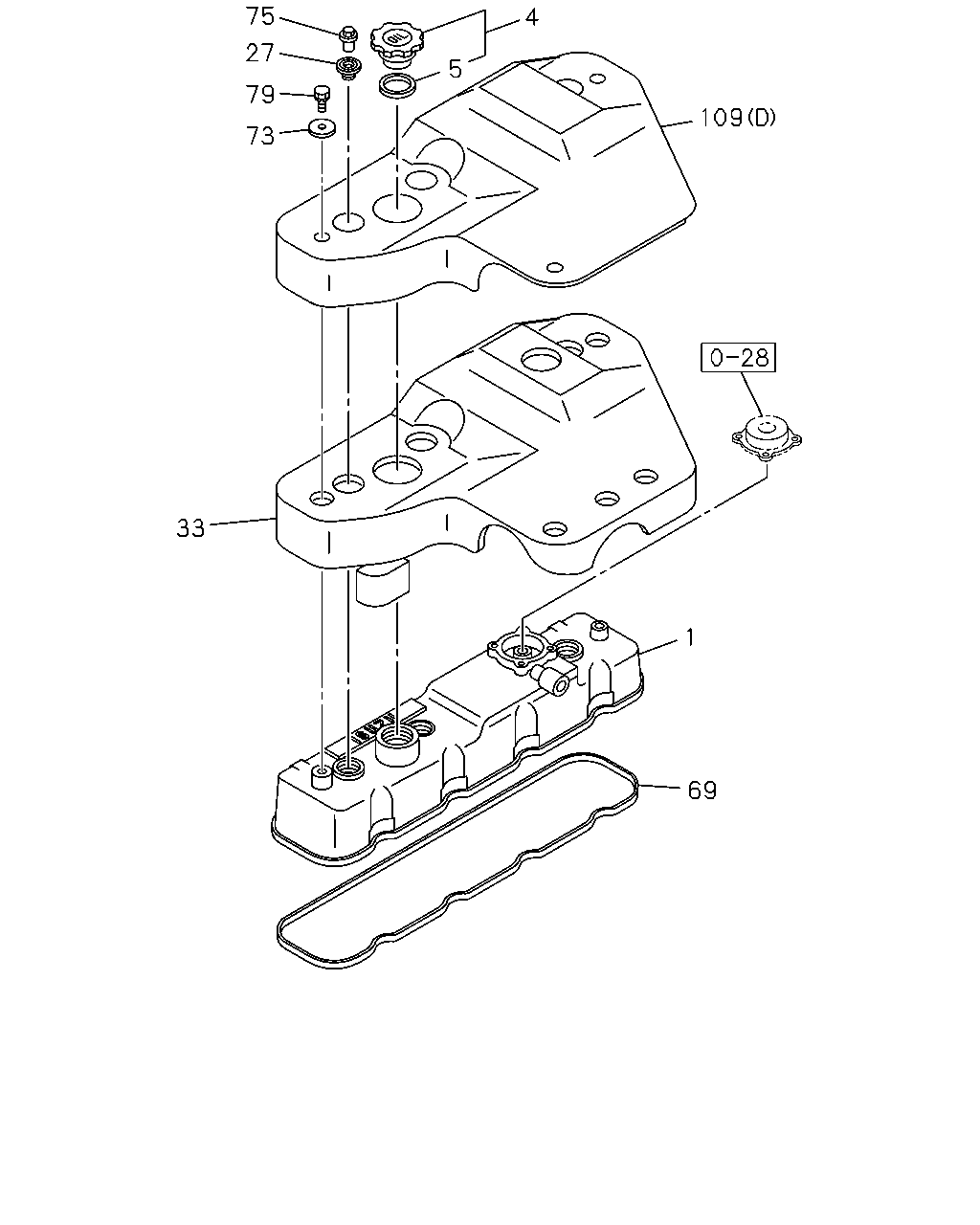

çizim 153761
75 4 27 5 79 109 73 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 0803-1305 ● ●
1 00.386 COVER; CYL HD 8-98226-103-0 01 1 1306-1505 ● ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1506- ● ●
1 00.386 COVER; CYL HD 8-94476-696-1 01 1 0804- ●
4 01.758 CAP; OIL FILLER
VIETNAM EQUIPMENT(CL0) 		8-97912-543-0 01 1 1201- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0803-0803 ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0804-1112 ● ● ●
4 01.758 CAP; OIL FILLER
EXC. VIETNAM EQUIPMENT(CL0) 		8-94133-207-5 01 1 1201- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1201- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) ID=32 OD=40 		8-97918-298-0 01 1 1201- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0803-0803 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0804-1112 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1201- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1201- ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0804- ●
33 00.386 RUBBER; SPACE,CYL HD COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97204-206-1 01 1 0804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0803- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0804- ●
73 00.413 WASHER; PL,HD COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0804- ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0804- ●
79 00.293 BOLT; COVER
EURO2 SPECIFICATION(NT2) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0804- ●
79 00.293 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0803-0807 ● ●
79 00.293 BOLT; COVER
EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0808- ●
79 00.293 BOLT; COVER
EURO4 SPECIFICATION(NT4) 04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0808- ●
79 00.293 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0804- ●
79 00.293 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0804- ●
109 00.386 COVER; ENG
(A) 		8-97223-628-2 01 1 0804- ●
109 00.386 COVER; ENG
(B) 		8-97223-629-1 01 1 0804- ●
109 00.386 COVER; ENG
(C) 		8-97223-630-1 01 1 0804- ●
109 00.386 COVER; ENG
NOISE PACK FOR REGULATION VAR.2<7TF> (D) 		8-97204-205-4 01 1 0804- ●

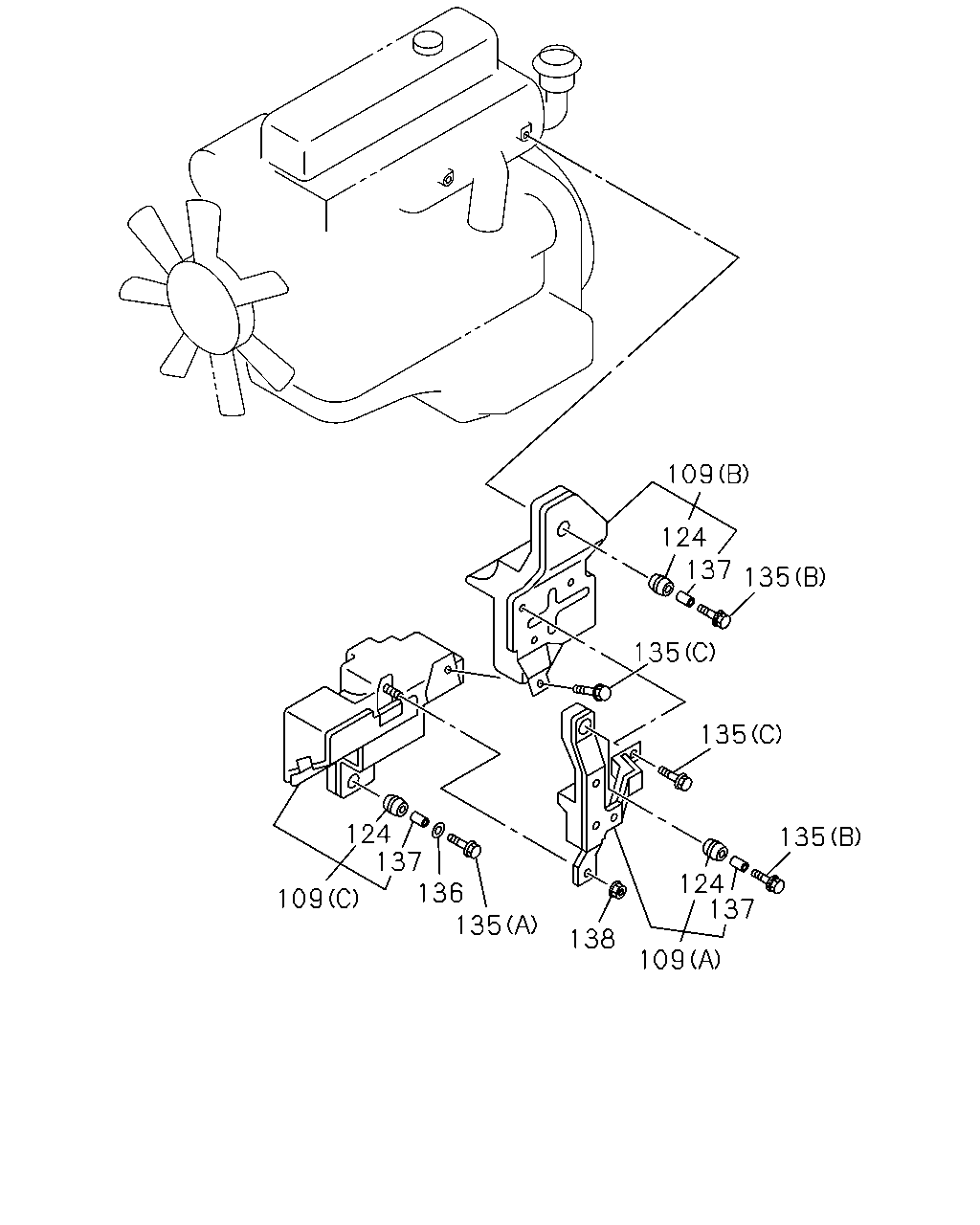

çizim 153765
109 124 137 135 135 135 124 137 136 135 135 124 137 109 138 109
BalonParca AdiParca NoAdetTipApplied Date A B C
109 00.386 COVER; ENG
(A) 		8-97223-628-2 01 1 0804- ●
109 00.386 COVER; ENG
(B) 		8-97223-629-1 01 1 0804- ●
109 00.386 COVER; ENG
(C) 		8-97223-630-1 01 1 0804- ●
109 00.386 COVER; ENG
NOISE PACK FOR REGULATION VAR.2<7TF> (D) 		8-97204-205-4 01 1 0804- ●
124 00.413 RUBBER; MTG,COVER 8-98036-119-0 05 1 0803- ● ●
124 00.413 RUBBER; MTG,COVER
OD=21.8 		8-97325-051-0 03 1 0804- ●
135 00.413 BOLT; COVER,ENG
03.407 (C) M8X10 FLANGE 		0-28050-810-0 02 1 0804- ●
135 00.413 BOLT; COVER,ENG
00.029 (A) M10X20 FLANGE 		0-28051-020-0 01 1 0804- ●
135 00.413 BOLT; COVER,ENG
00.034 (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 02 1 0804- ●
136 00.413 WASHER; PL,ENG COVER
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ●
137 00.413 BUSHING; MTG RUBBER,COVER 8-98036-120-0 05 1 0803- ● ●
137 00.413 BUSHING; MTG RUBBER,COVER
00.034 OD=13 T=9.5 		8-94140-427-1 03 1 0804- ●
138 00.413 NUT; COVER,ENG
01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ●

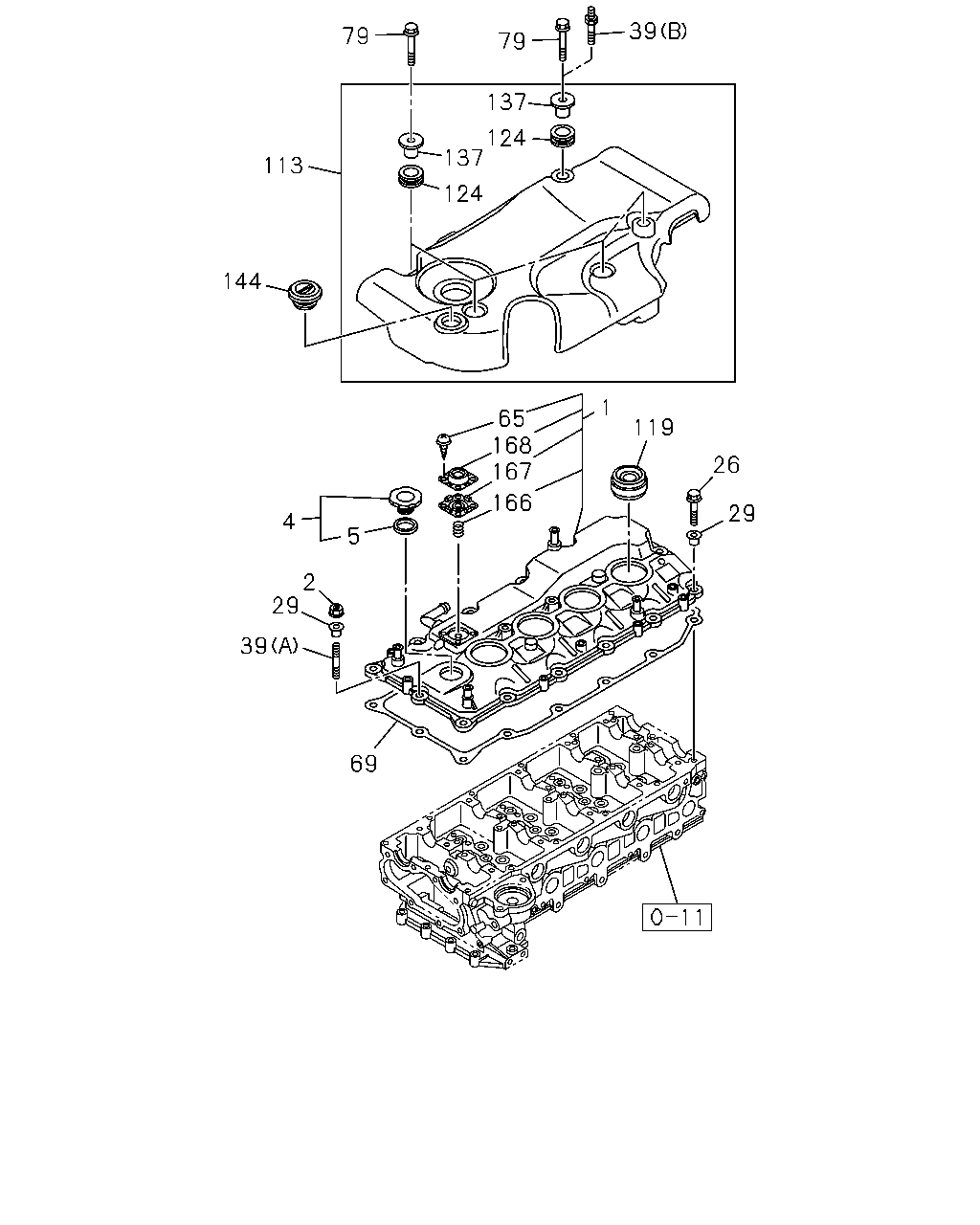

çizim 153772
39 79 79 137 124 137 113 124 144 1 65 168 167 119 26 166 29 4 5 2 29 39 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 0803-1305 ● ●
1 00.386 COVER; CYL HD 8-98226-103-0 01 1 1306-1505 ● ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1506- ● ●
1 00.386 COVER; CYL HD 8-94476-696-1 01 1 0804- ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 0803- ● ●
4 01.758 CAP; OIL FILLER
VIETNAM EQUIPMENT(CL0) 		8-97912-543-0 01 1 1201- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0803-0803 ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0804-1112 ● ● ●
4 01.758 CAP; OIL FILLER
EXC. VIETNAM EQUIPMENT(CL0) 		8-94133-207-5 01 1 1201- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1201- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) ID=32 OD=40 		8-97918-298-0 01 1 1201- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0803-0803 ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0804-1112 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1201- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1201- ● ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 0803- ● ●
29 00.413 RUBBER; MTG,HD COVER
VIETNAM EQUIPMENT(CL0) 		8-97361-811-1 14 1 1105- ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 14 1 0803-1104 ● ●
29 00.413 RUBBER; MTG,HD COVER
EXC. VIETNAM EQUIPMENT(CL0) 		8-97381-524-0 14 1 1105-1408 ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 14 1 1105-1408 ●
29 00.413 RUBBER; MTG,HD COVER
EXC. VIETNAM EQUIPMENT(CL0) 00.206 		8-97168-200-1 14 1 1409- ●
29 00.413 RUBBER; MTG,HD COVER
00.206 		8-97168-200-1 14 1 1409- ●
39 00.413 STUD; COVER,HD
VIETNAM EQUIPMENT(CL0) (A) M6X30 L=38 		0-41010-630-0 01 1 1105- ●
39 00.413 STUD; COVER,HD
EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45 		8-97220-552-2 01 1 0804- ●
39 00.413 STUD; COVER,HD
(A) M6X30 L=38 		8-97372-795-0 01 1 0803-1104 ● ●
39 00.413 STUD; COVER,HD
EXC. VIETNAM EQUIPMENT(CL0) (A) M6X30 L=38 		8-97372-795-0 01 1 1105- ●
39 00.413 STUD; COVER,HD
(A) M6X30 L=38 		8-97372-795-0 01 1 1105- ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 0803- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0803- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 0804- ●
79 00.293 BOLT; COVER
EURO2 SPECIFICATION(NT2) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0804- ●
79 00.293 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0803-0807 ● ●
79 00.293 BOLT; COVER
EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0808- ●
79 00.293 BOLT; COVER
EURO4 SPECIFICATION(NT4) 04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0808- ●
79 00.293 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0804- ●
79 00.293 BOLT; COVER
NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0804- ●
113 00.386 COVER; CYL HEAD COVER
EXC. RUSSIA EQUIPMENT(B12) 		8-98158-904-1 01 1 1105- ●
113 00.386 COVER; CYL HEAD COVER 8-98039-090-4 01 1 0803-1104 ● ●
113 00.386 COVER; CYL HEAD COVER
RUSSIA EQUIPMENT(B12) 		8-98039-090-4 01 1 1105- ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 0803- ● ●
124 00.413 RUBBER; MTG,COVER 8-98036-119-0 05 1 0803- ● ●
124 00.413 RUBBER; MTG,COVER
OD=21.8 		8-97325-051-0 03 1 0804- ●
137 00.413 BUSHING; MTG RUBBER,COVER 8-98036-120-0 05 1 0803- ● ●
137 00.413 BUSHING; MTG RUBBER,COVER
00.034 OD=13 T=9.5 		8-94140-427-1 03 1 0804- ●
144 01.758 CAP; PIPE,CYL HEAD COVER 8-98036-117-0 01 1 0803-0907 ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 0803- ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 0803-1305 ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98226-101-0 01 1 1306-1505 ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1506- ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
