◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51147 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#52731) — 14 parça

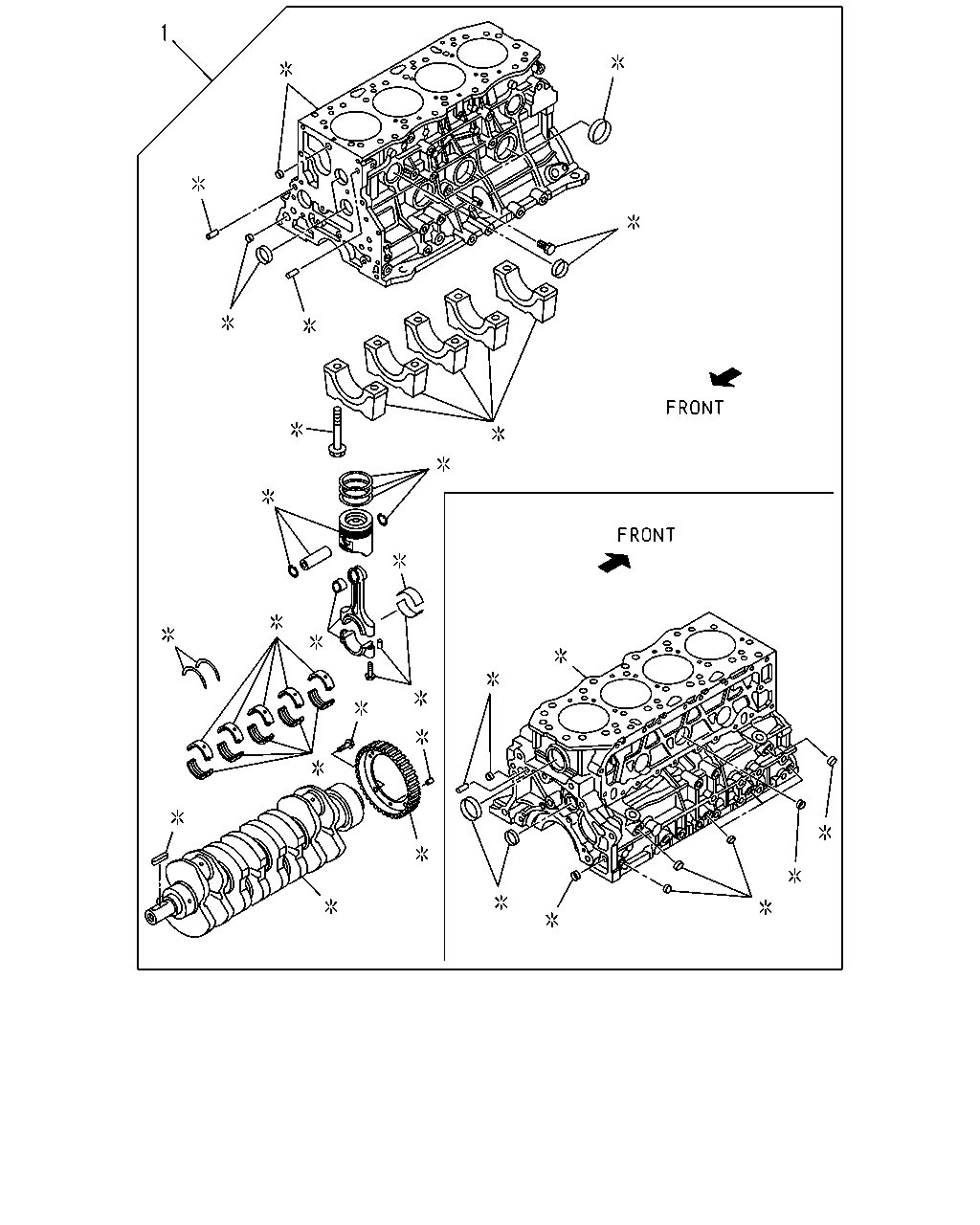

çizim 153762
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL 5-87310-924-3 01 1 0803-1007 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-1 01 1 1008-1104 ● ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 0804- ●

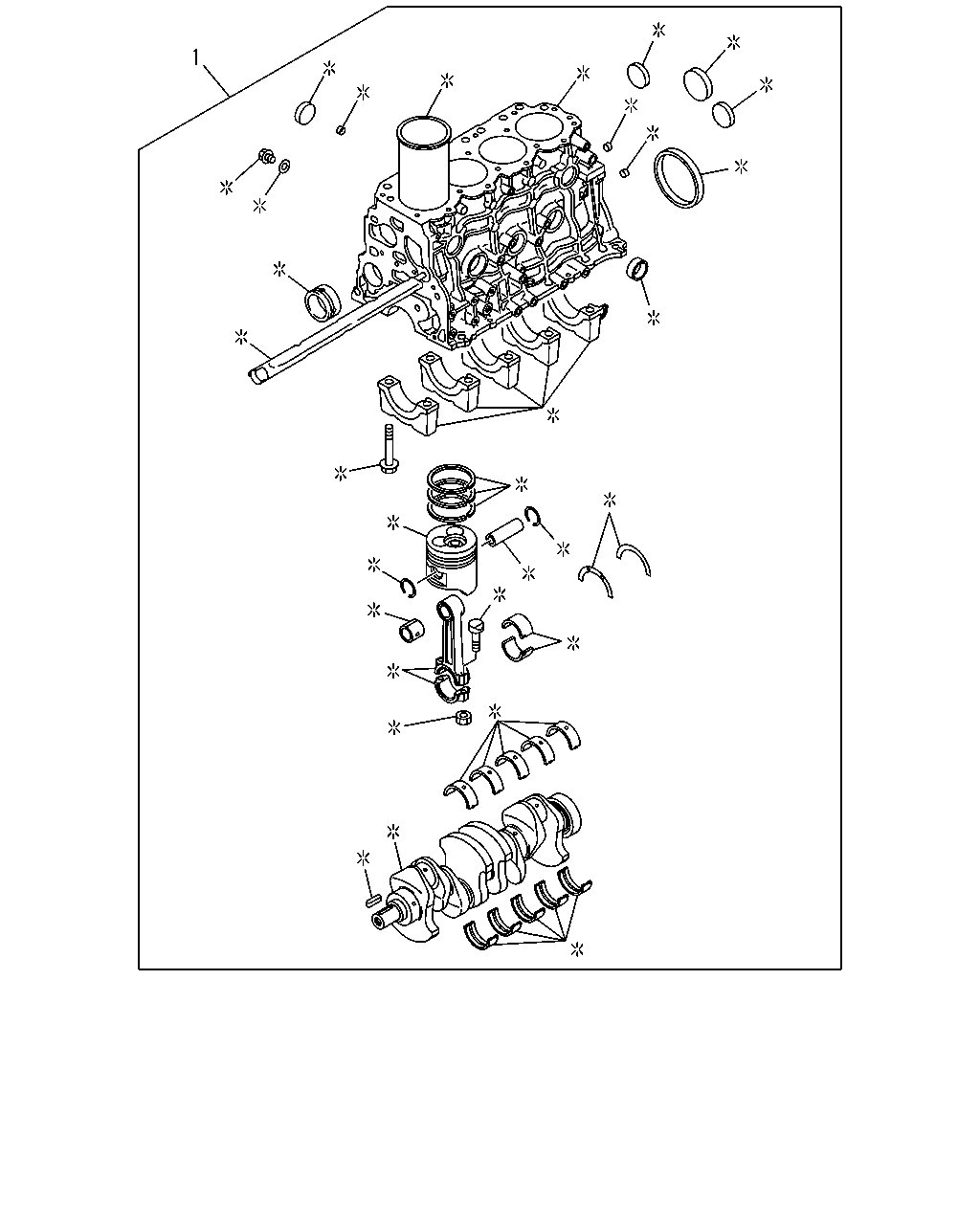

çizim 153769
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL 5-87310-924-3 01 1 0803-1007 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-1 01 1 1008-1104 ● ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
