Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
9 - Tools
▶
9-01 - TOOLS
▶

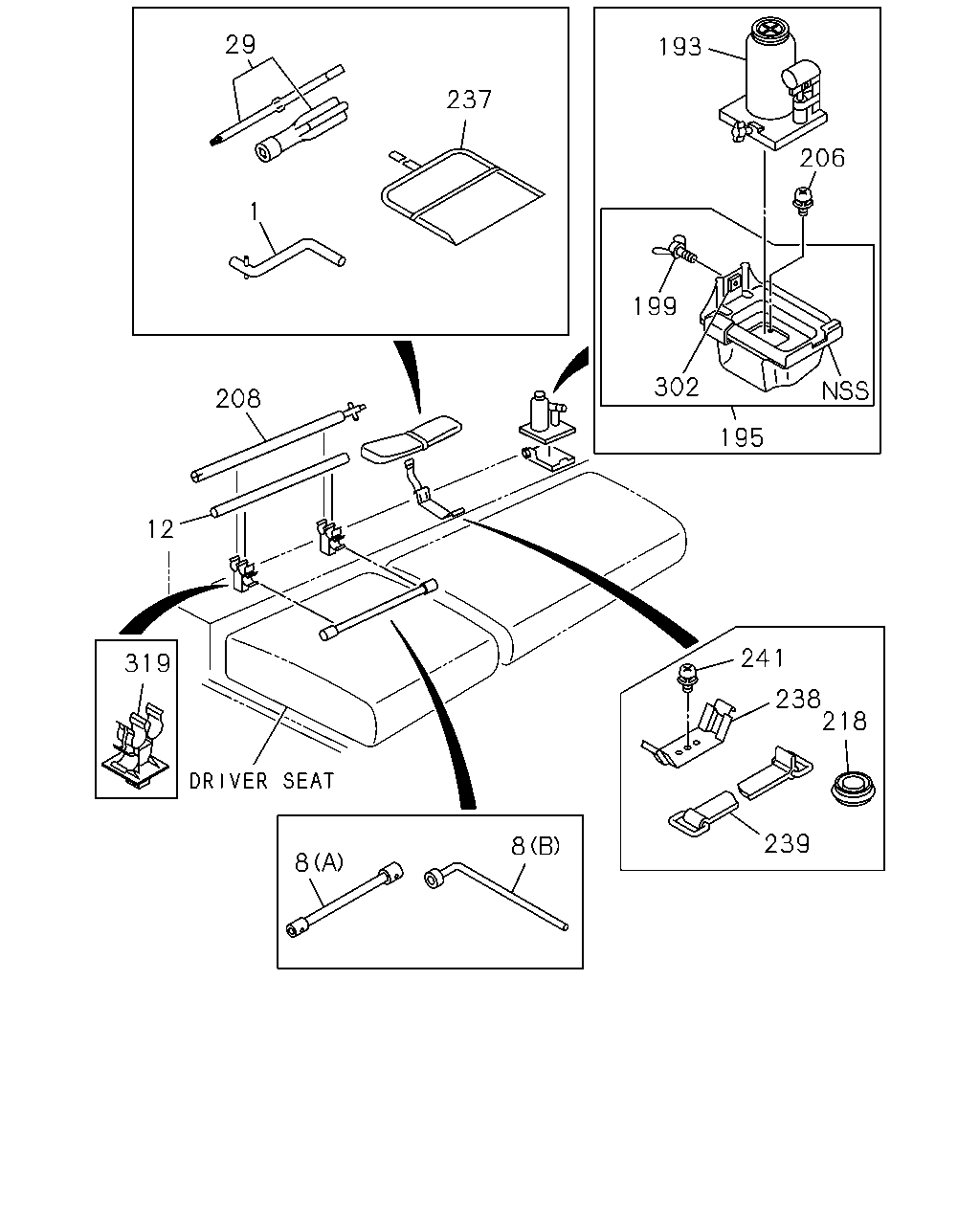

9-01 — TOOLS
(#52730) — 22 parça
29
193
237
206
1
199
302
208
195
12
241
319
238
218
239
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.629 HANDLE; SPARE TIRE CARRIER
8-97218-985-0
01
1
0712-
8
08.821 WRENCH; WHEEL
(A) B=35X17 L=300
8-94341-283-1
01
1
0712-
8
08.821 WRENCH; WHEEL
(B) B=23 L=300
9-85113-935-0
01
1
0712-0901
8
08.821 WRENCH; WHEEL
(B) B=41X19 L=330
8-94386-490-1
01
1
0902-
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590
8-97332-988-0
01
1
0712-1001
12
08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480
1-85116-011-0
01
1
1002-1407
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1408-
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
0712-
193
08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON
8-98090-823-0
01
1
0712-1311
193
08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON
8-98239-828-0
01
1
1312-
195
08.820 BRACKET; JACK
8-94273-287-7
01
1
0712-
199
08.820 BOLT; JACK
M8X30 WING
8-94279-018-1
01
1
0712-
206
08.820 SCREW; OIL JACK BRKT
16.570 M6X16
0-38050-616-0
01
1
0712-
208
08.820 HANDLE; JACK
L=642
8-97217-800-0
01
1
0712-1108
208
08.820 HANDLE; JACK
L=642
8-98181-477-0
01
1
1109-
218
08.821 PLUG
08.131 OD=53.5
8-94356-253-0
02
1
0712-
237
08.821 BAG; TOOL
8-97130-903-1
01
1
0712-
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
0712-
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
0712-
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
0712-
302
08.820 NUT; JACK BRKT
8-94279-522-0
01
1
0712-
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
0712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
