3-41 — REAR BRAKE POWER CHAMBER (#5273) — 1037 parça

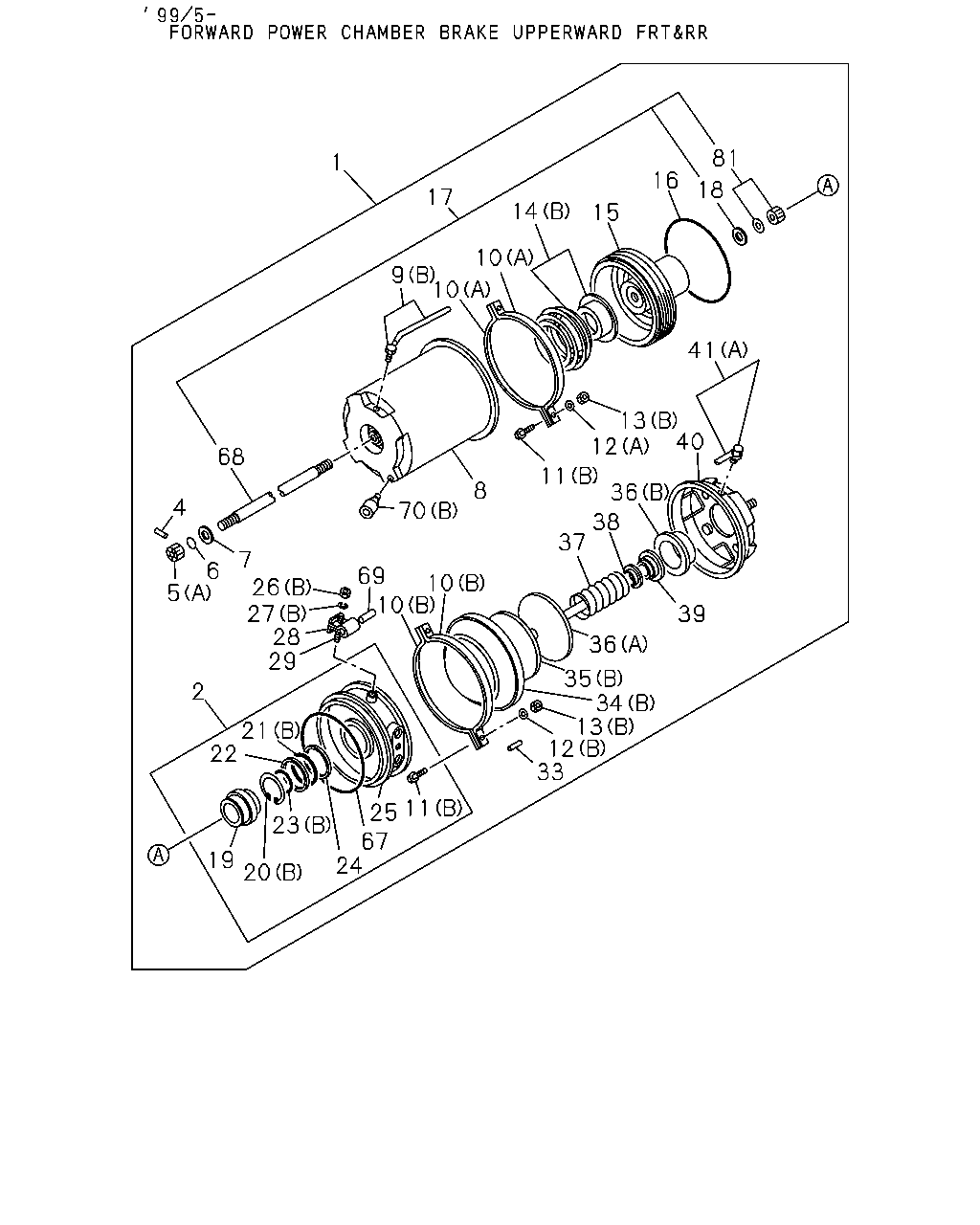

çizim 5996
81 1 16 18 17 14 15 10 9 10 41 13 40 12 68 11 8 36 4 70 38 37 7 26 27 28 29 6 69 10 10 5 39 36 35 34 13 12 33 2 21 22 11 25 23 67 24 19 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-252-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-252-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-253-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-253-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-249-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-249-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48250-249-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-248-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-248-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48250-248-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-181-2 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-181-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-180-2 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-180-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-618-0 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-618-0 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWAED 		1-48250-724-1 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-617-0 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-617-0 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-723-1 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-021-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-040-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-040-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-040-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-040-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-040-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48252-040-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-040-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-020-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-039-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-039-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-039-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-039-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-039-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48252-039-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-039-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-019-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-019-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-018-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-018-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-236-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-236-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-237-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-237-0 01 1 9911- ● ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9603-9910 ● ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9603-9910 ● ●
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 9911- ● ●
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 9911- ● ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9603-9910 ● ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9603-9910 ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 9911- ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 9911- ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9603-9904 ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9603-9904 ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9905-9910 ● ●
5 NUT; SHELL
REAR AXLE RT210<C2A> (B) 		1-48259-074-0 02 1 9905-9910 ● ●
5 NUT; SHELL
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-074-0 02 1 9905-9910 ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-074-0 02 1 9911- ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (B) 		1-48259-074-0 02 1 9911- ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-074-0 02 1 9911- ● ●
6 GASKET; SHELL
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		9-09920-268-0 02 1 9905-9910 ● ●
6 GASKET; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		9-09920-268-0 02 1 9911- ● ●
7 GASKET 1-48259-055-0 02 1 9603-9910 ● ●
7 GASKET 1-48259-055-0 02 1 9603-9910 ● ●
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 9911- ● ●
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
REARWARD 		1-48251-043-0 02 1 9603-9904 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48251-043-0 02 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48251-043-0 02 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48251-043-0 02 1 9911-0003 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48251-043-0 02 1 9911-0003 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48251-043-0 02 1 0004- ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48251-043-0 02 1 0004- ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-070-0 01 1 9603-9904 ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-069-0 01 1 9603-9904 ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9911- ● ●
9 PIPE ASM; SHELL
(A) 		1-48259-076-0 02 1 9603-9904 ● ●
9 PIPE ASM; SHELL
(A) 		1-48259-076-0 02 1 9603-9904 ● ●
9 PIPE ASM; SHELL
(A) 		1-48259-076-0 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
REAR AXLE RT210<C2A> (A) 		1-48259-076-0 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-076-0 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-076-0 02 1 9911-0003 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-076-0 02 1 9911-0003 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-076-0 02 1 9911-0003 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-076-0 02 1 0004- ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-076-0 02 1 0004- ● ●
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89922-126-1 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89922-126-1 02 1 9911-0003 ● ●

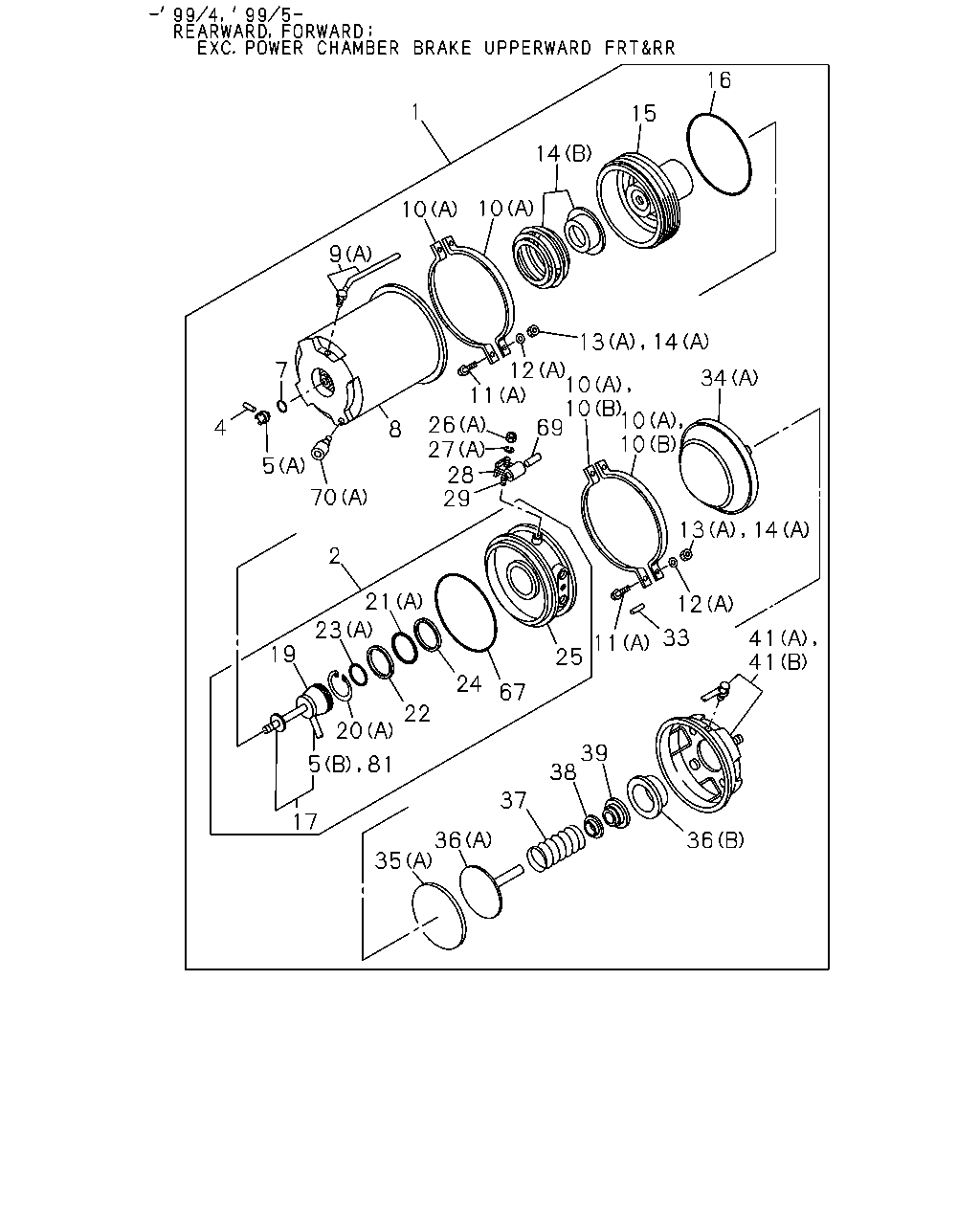

10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 08 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 08 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> (B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-016-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-016-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-016-0 04 1 9911- ● ●
11 BOLT; CLAMP RING
(A) 		1-48259-035-0 08 1 9603-9904 ● ●
11 BOLT; CLAMP RING
(A) 		1-48259-035-0 08 1 9603-9904 ● ●
11 BOLT; CLAMP RING
(A) 		1-48259-035-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
REAR AXLE RT210<C2A> (A) 		1-48259-035-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-035-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-035-0 08 1 9911- ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-035-0 08 1 9911- ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-035-0 08 1 9911- ● ●
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-092-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-092-0 08 1 9911- ● ●
12 WASHER; LK,CLAMP RING
(A) FORWARD 		1-48259-046-0 08 1 9603-9904 ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9911-0001 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9911-0001 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9911-0001 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD,REARWARD 		1-48259-046-0 08 1 0002- ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 0002- ● ●
12 WASHER; LK,CLAMP RING
(A) REAWARD ID=10.2 		9-09150-510-0 08 1 9603-9904 ● ●
12 WASHER; LK,CLAMP RING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=10.2 		9-09150-510-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=10.2 		9-09150-510-0 08 1 9911- ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=10.2 		9-09150-510-0 08 1 9905- ● ●
13 NUT; CLAMP RING
(A) M10 		9-09110-510-0 08 1 9603-9904 ● ●
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 9905-9910 ● ●
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) M10 		9-09110-510-0 04 1 9905-9910 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 9911-0003 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) M10 		9-09110-510-0 04 1 9911-0003 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 04 1 0004-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 0004-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 08 1 0012- ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 0012- ● ●
13 NUT; CLAMP RING
(A) M10 		9-09110-510-0 04 1 9603-9904 ● ●
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> (A) M10 		9-09110-510-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10 		9-09110-510-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) M10 		9-09110-510-0 08 1 9911-0001 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10 		9-09110-510-0 08 1 9911-0001 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 9911-0001 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 08 1 0002-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 0002-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 04 1 0012- ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 0012- ● ●
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		9-83315-080-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		9-83315-080-0 08 1 9911- ● ●
14 SPRING & SEAT SET
(B) 		1-48259-037-0 02 1 9603-9910 ● ●
14 SPRING & SEAT SET
(B) 		1-48259-037-0 02 1 9603-9910 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-037-1 02 1 9911- ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-037-1 02 1 9911- ● ●
14 SPRING & SEAT SET
(A) REARWARD 		8-83315-080-0 04 1 9603-9904 ● ●
14 SPRING & SEAT SET
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		8-83315-080-0 04 1 9905-9910 ● ●
14 SPRING & SEAT SET
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		8-83315-080-0 04 1 9905-9910 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		8-83315-080-0 04 1 9911-0003 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		8-83315-080-0 04 1 9911-0003 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		8-83315-080-0 04 1 0004- ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		8-83315-080-0 04 1 0004- ● ●
15 PISTON 1-48262-005-0 02 1 9603-9910 ● ●
15 PISTON 1-48262-005-0 02 1 9603-9910 ● ●
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 9911- ● ●
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 9911- ● ●
16 GASKET 1-48259-048-0 02 1 9603-9910 ● ●
16 GASKET 1-48259-048-0 02 1 9603-9910 ● ●
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 9911- ● ●
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 9911- ● ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9603-9910 ● ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9603-9910 ● ●
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 9911- ● ●
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 9911- ● ●
18 WASHER; PISTON COVER,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-098-0 02 1 9905-9910 ● ●
18 WASHER; PISTON COVER,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-098-0 02 1 9911- ● ●
19 COVER; PISTON 1-48269-011-0 02 1 9603-9910 ● ●
19 COVER; PISTON 1-48269-011-0 02 1 9603-9910 ● ●
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 9911- ● ●
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 9911- ● ●
20 RING; RET
(A) 		1-48259-060-0 02 1 9603-9904 ● ●
20 RING; RET
(A) 		1-48259-060-0 02 1 9603-9904 ● ●
20 RING; RET
(A) 		1-48259-060-0 02 1 9905-9910 ● ●
20 RING; RET
REAR AXLE RT210<C2A> (A) 		1-48259-060-0 02 1 9905-9910 ● ●
20 RING; RET
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-060-0 02 1 9905-9910 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-060-0 02 1 9911-0003 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-060-0 02 1 9911-0003 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-060-0 02 1 9911-0003 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-060-0 02 1 0004- ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-060-0 02 1 0004- ● ●
20 RING; RET
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-294-0 02 1 9905-9910 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-294-0 02 1 9911-0003 ● ●
21 GASKET; SPR CHAMBER
(A) 		1-48259-049-0 02 1 9603-9904 ● ●
21 GASKET; SPR CHAMBER
(A) 		1-48259-049-0 02 1 9603-9904 ● ●
21 GASKET; SPR CHAMBER
(A) 		1-48259-049-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-049-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-049-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-049-0 02 1 9911- ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-049-0 02 1 9911- ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-049-0 02 1 9911- ● ●
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-047-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-047-0 02 1 9911- ● ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9603-9910 ● ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9603-9910 ● ●
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 9911- ● ●
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
(A) 		1-48259-047-0 02 1 9603-9904 ● ●
23 GASKET; SPR CHAMBER
(A) 		1-48259-047-0 02 1 9603-9904 ● ●
23 GASKET; SPR CHAMBER
(A) 		1-48259-047-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-047-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-047-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-047-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-047-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-047-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-049-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-049-0 02 1 9911- ● ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9603-9910 ● ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9603-9910 ● ●
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 9911- ● ●
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-088-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-088-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-088-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-088-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> FORWARD 		1-48259-088-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-088-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-088-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD 		1-48259-088-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-140-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-140-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-140-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-140-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-140-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48259-140-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-140-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-087-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-087-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-087-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-087-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> FORWARD 		1-48259-087-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-087-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-087-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD 		1-48259-087-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-138-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-138-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-138-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-138-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-138-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48259-138-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-138-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-086-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-086-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-085-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-085-0 01 1 9911- ● ●
26 NUT; PRESSURE PLATE
(A) 		1-48259-058-0 04 1 9603-9904 ● ●
26 NUT; PRESSURE PLATE
(A) 		1-48259-058-0 04 1 9603-9904 ● ●
26 NUT; PRESSURE PLATE
(A) 		1-48259-058-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
REAR AXLE RT210<C2A> (A) 		1-48259-058-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-058-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-058-0 04 1 9911-0003 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-058-0 04 1 9911-0003 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-058-0 04 1 9911-0003 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-058-0 04 1 0004- ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-058-0 04 1 0004- ● ●
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		8-94311-428-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		8-94311-428-0 04 1 9911-0003 ● ●
27 WASHER; PRESSURE PLATE
(A) FORWARD 		1-48259-057-0 02 1 9603-9904 ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9911-0001 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9911-0001 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9911-0001 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD,REARWARD 		1-48259-057-0 02 1 0002- ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 0002- ● ●
27 WASHER; PRESSURE PLATE
(A) REARWARD ID=8.2 		9-09150-508-0 02 1 9603-9904 ● ●
27 WASHER; PRESSURE PLATE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=8.2 		9-09150-508-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=8.2 		9-09150-508-0 02 1 9911- ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=8.2 		9-09150-508-0 02 1 9905- ● ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9603-9910 ● ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9603-9910 ● ●
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 9911- ● ●
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 9911- ● ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9603-9910 ● ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9603-9910 ● ●
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 9911- ● ●
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 9911- ● ●
33 RETAINER; DIAPH 1-48250-044-0 02 1 9603-9904 ● ●
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48250-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48250-044-0 04 1 9911- ● ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 9603-9904 ● ●
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> 		1-48259-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48259-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> 		1-48259-044-0 04 1 9911-0001 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-044-0 04 1 9911-0001 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48259-044-0 04 1 9911-0001 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-044-0 04 1 0002- ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48259-044-0 04 1 0002- ● ●
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48250-044-0 02 1 9905-9910 ● ●
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> 		1-48250-044-0 02 1 9905-9910 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48250-044-0 02 1 9911-0003 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> 		1-48250-044-0 02 1 9911-0003 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-044-0 02 1 0004- ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48250-044-0 02 1 0004- ● ●
34 DIAPHRAGM
(A) FORWARD 		1-48252-011-0 02 1 9603-9904 ● ●
34 DIAPHRAGM
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9911- ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9911- ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9911- ● ●
34 DIAPHRAGM
(A) REARWARD 		1-48258-011-0 02 1 9603-9904 ● ●
34 DIAPHRAGM
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48258-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48258-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48258-011-0 02 1 9911-0003 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48258-011-0 02 1 9911-0003 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		1-48258-011-0 02 1 0004- ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48258-011-0 02 1 0004- ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48252-010-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48252-010-0 02 1 9911- ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48252-057-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48252-057-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
(A) FORWARD 		1-48253-011-0 02 1 9603-9904 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
(A) REARWARD 		1-48253-035-0 01 1 9603-9904 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-035-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-035-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-035-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-035-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		1-48253-035-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-035-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
(A) REARWARD 		1-48253-029-0 01 1 9603-9904 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-029-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-029-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-029-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-029-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		1-48253-029-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-029-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48253-010-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48253-010-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48253-053-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48253-053-0 02 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48253-063-0 02 1 0004- ● ●
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9603-9904 ● ●
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9603-9904 ● ●
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 9603-9910 ● ●
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 9603-9910 ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-043-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-043-0 02 1 9911- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9603-9910 ● ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9603-9910 ● ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 02 1 9911- ● ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 02 1 9911- ● ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9603-9910 ● ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9603-9910 ● ●
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 9911- ● ●
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 9911- ● ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9603-9910 ● ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9603-9910 ● ●
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 9911- ● ●
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48259-082-1 01 1 9603-9904 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-082-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-082-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> FORWARD 		1-48259-082-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-082-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-082-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD 		1-48259-082-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-139-0 01 1 9603-9904 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-139-0 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-139-0 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-139-0 01 1 9911-0003 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-139-0 01 1 9911-0003 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48259-139-0 01 1 0004- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-139-0 01 1 0004- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD 		1-48259-081-1 01 1 9603-9904 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-081-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-081-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> FORWARD 		1-48259-081-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-081-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-081-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD 		1-48259-081-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD 		1-48259-137-0 01 1 9603-9904 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-137-0 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-137-0 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-137-0 01 1 9911-0003 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-137-0 01 1 9911-0003 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48259-137-0 01 1 0004- ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-137-0 01 1 0004- ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-081-1 01 1 9905-0003 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-082-1 01 1 9905-0003 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-068-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-068-1 01 1 9911- ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-067-1 01 1 9905-9910 ● ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-067-1 01 1 9911- ● ●
41 PIPE ASM; LWR COVER
(A) 		1-48259-080-0 02 1 9603-9904 ● ●
41 PIPE ASM; LWR COVER
(A) 		1-48259-080-0 02 1 9603-9904 ● ●
41 PIPE ASM; LWR COVER
(A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT210<C2A> (A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD 		1-48259-075-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD 		1-48259-075-0 02 1 9911- ● ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9603-9910 ● ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9603-9910 ● ●
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 9911- ● ●
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 9911- ● ●
68 BOLT; PISTON COVER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-026-0 02 1 9905-9910 ● ●
68 BOLT; PISTON COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-026-0 02 1 9911- ● ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9603-9910 ● ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9603-9910 ● ●
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 9911- ● ●
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 9911- ● ●
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 01 1 9905-9910 ● ●
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-052-0 01 1 9905-9910 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 01 1 9911-0003 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-052-0 01 1 9911-0003 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-052-0 01 1 0004-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 01 1 0004-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-052-0 02 1 0012- ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 02 1 0012- ● ●
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89966-127-3 02 1 9905-9910 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89966-127-3 02 1 9911- ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-052-0 02 1 0005-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-48259-052-0 02 1 0005-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-052-0 01 1 0012- ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-48259-052-0 01 1 0012- ● ●
81 NUT ASM; EMERGENCY
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-074-0 02 1 9905-9910 ● ●
81 NUT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-074-0 02 1 9911- ● ●
çizim 6936
16 1 15 14 10 10 9 12 11 13 14 7 10 10 10 69 10 34 26 27 28 29 4 8 5 70 13 14 2 21 12 23 33 41 41 11 19 25 24 67 22 20 39 38 37 17 36 36 35 5 81
BalonParca AdiParca NoAdetTipApplied Date A B

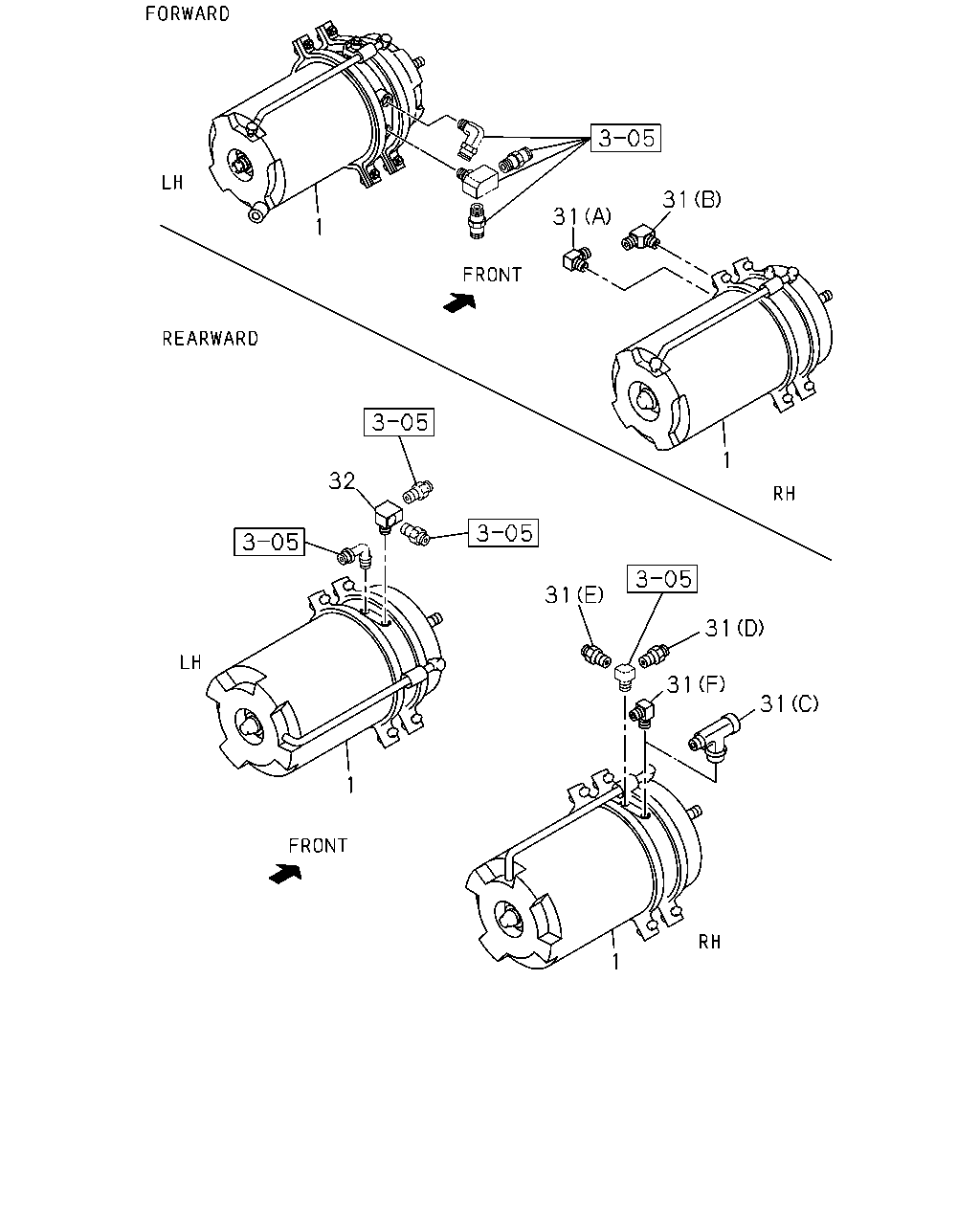

1 CHAMBER ASM; SPRING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-252-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-252-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-253-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-253-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-249-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-249-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48250-249-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-248-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-248-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48250-248-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-181-2 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-181-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-180-2 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-180-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-618-0 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-618-0 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWAED 		1-48250-724-1 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-617-0 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-617-0 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-723-1 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-021-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-040-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-040-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-040-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-040-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-040-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48252-040-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-040-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
FORWARD 		1-48252-020-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REARWARD 		1-48252-039-0 01 1 9603-9904 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-039-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-039-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-039-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48252-039-0 01 1 9911-0003 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48252-039-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48252-039-0 01 1 0004- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-019-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-019-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-018-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48252-018-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-236-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-236-0 01 1 9911- ● ●
2 CHAMBER; EMERGENCY
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-237-0 01 1 9905-9910 ● ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-237-0 01 1 9911- ● ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9603-9910 ● ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9603-9910 ● ●
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 9911- ● ●
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 9911- ● ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9603-9910 ● ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9603-9910 ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 9911- ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 9911- ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9603-9904 ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9603-9904 ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9905-9910 ● ●
5 NUT; SHELL
REAR AXLE RT210<C2A> (B) 		1-48259-074-0 02 1 9905-9910 ● ●
5 NUT; SHELL
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-074-0 02 1 9905-9910 ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-074-0 02 1 9911- ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (B) 		1-48259-074-0 02 1 9911- ● ●
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-074-0 02 1 9911- ● ●
7 GASKET 1-48259-055-0 02 1 9603-9910 ● ●
7 GASKET 1-48259-055-0 02 1 9603-9910 ● ●
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 9911- ● ●
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
REARWARD 		1-48251-043-0 02 1 9603-9904 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48251-043-0 02 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48251-043-0 02 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48251-043-0 02 1 9911-0003 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48251-043-0 02 1 9911-0003 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48251-043-0 02 1 0004- ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48251-043-0 02 1 0004- ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-070-0 01 1 9603-9904 ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48259-070-0 01 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD 		1-48259-069-0 01 1 9603-9904 ● ●
8 SHELL; CYL,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9905-9910 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9911- ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48259-069-0 01 1 9911- ● ●
9 PIPE ASM; SHELL
(A) 		1-48259-076-0 02 1 9603-9904 ● ●
9 PIPE ASM; SHELL
(A) 		1-48259-076-0 02 1 9603-9904 ● ●
9 PIPE ASM; SHELL
(A) 		1-48259-076-0 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
REAR AXLE RT210<C2A> (A) 		1-48259-076-0 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-076-0 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-076-0 02 1 9911-0003 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-076-0 02 1 9911-0003 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-076-0 02 1 9911-0003 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-076-0 02 1 0004- ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-076-0 02 1 0004- ● ●
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89922-126-1 02 1 9905-9910 ● ●
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89922-126-1 02 1 9911-0003 ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 08 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 08 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9603-9904 ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> (B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-48259-031-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-48259-031-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-016-0 04 1 9905-9910 ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-016-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-016-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-016-0 04 1 9911- ● ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-016-0 04 1 9911- ● ●
11 BOLT; CLAMP RING
(A) 		1-48259-035-0 08 1 9603-9904 ● ●
11 BOLT; CLAMP RING
(A) 		1-48259-035-0 08 1 9603-9904 ● ●
11 BOLT; CLAMP RING
(A) 		1-48259-035-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
REAR AXLE RT210<C2A> (A) 		1-48259-035-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-035-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-035-0 08 1 9911- ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-035-0 08 1 9911- ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-035-0 08 1 9911- ● ●
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-092-0 08 1 9905-9910 ● ●
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-092-0 08 1 9911- ● ●
12 WASHER; LK,CLAMP RING
(A) FORWARD 		1-48259-046-0 08 1 9603-9904 ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9911-0001 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9911-0001 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 9911-0001 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD,REARWARD 		1-48259-046-0 08 1 0002- ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-046-0 08 1 0002- ● ●
12 WASHER; LK,CLAMP RING
(A) REAWARD ID=10.2 		9-09150-510-0 08 1 9603-9904 ● ●
12 WASHER; LK,CLAMP RING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=10.2 		9-09150-510-0 08 1 9905-9910 ● ●
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=10.2 		9-09150-510-0 08 1 9911- ● ●
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=10.2 		9-09150-510-0 08 1 9905- ● ●
13 NUT; CLAMP RING
(A) M10 		9-09110-510-0 08 1 9603-9904 ● ●
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 9905-9910 ● ●
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) M10 		9-09110-510-0 04 1 9905-9910 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 9911-0003 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) M10 		9-09110-510-0 04 1 9911-0003 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 04 1 0004-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 0004-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 08 1 0012- ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 0012- ● ●
13 NUT; CLAMP RING
(A) M10 		9-09110-510-0 04 1 9603-9904 ● ●
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> (A) M10 		9-09110-510-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10 		9-09110-510-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) M10 		9-09110-510-0 08 1 9911-0001 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10 		9-09110-510-0 08 1 9911-0001 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 9911-0001 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 08 1 0002-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 08 1 0002-0011 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 		9-09110-510-0 04 1 0012- ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10 		9-09110-510-0 04 1 0012- ● ●
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		9-83315-080-0 08 1 9905-9910 ● ●
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		9-83315-080-0 08 1 9911- ● ●
14 SPRING & SEAT SET
(B) 		1-48259-037-0 02 1 9603-9910 ● ●
14 SPRING & SEAT SET
(B) 		1-48259-037-0 02 1 9603-9910 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-037-1 02 1 9911- ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-037-1 02 1 9911- ● ●
14 SPRING & SEAT SET
(A) REARWARD 		8-83315-080-0 04 1 9603-9904 ● ●
14 SPRING & SEAT SET
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		8-83315-080-0 04 1 9905-9910 ● ●
14 SPRING & SEAT SET
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		8-83315-080-0 04 1 9905-9910 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		8-83315-080-0 04 1 9911-0003 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		8-83315-080-0 04 1 9911-0003 ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		8-83315-080-0 04 1 0004- ● ●
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		8-83315-080-0 04 1 0004- ● ●
15 PISTON 1-48262-005-0 02 1 9603-9910 ● ●
15 PISTON 1-48262-005-0 02 1 9603-9910 ● ●
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 9911- ● ●
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 9911- ● ●
16 GASKET 1-48259-048-0 02 1 9603-9910 ● ●
16 GASKET 1-48259-048-0 02 1 9603-9910 ● ●
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 9911- ● ●
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 9911- ● ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9603-9910 ● ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9603-9910 ● ●
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 9911- ● ●
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 9911- ● ●
19 COVER; PISTON 1-48269-011-0 02 1 9603-9910 ● ●
19 COVER; PISTON 1-48269-011-0 02 1 9603-9910 ● ●
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 9911- ● ●
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 9911- ● ●
20 RING; RET
(A) 		1-48259-060-0 02 1 9603-9904 ● ●
20 RING; RET
(A) 		1-48259-060-0 02 1 9603-9904 ● ●
20 RING; RET
(A) 		1-48259-060-0 02 1 9905-9910 ● ●
20 RING; RET
REAR AXLE RT210<C2A> (A) 		1-48259-060-0 02 1 9905-9910 ● ●
20 RING; RET
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-060-0 02 1 9905-9910 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-060-0 02 1 9911-0003 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-060-0 02 1 9911-0003 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-060-0 02 1 9911-0003 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-060-0 02 1 0004- ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-060-0 02 1 0004- ● ●
20 RING; RET
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-294-0 02 1 9905-9910 ● ●
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-294-0 02 1 9911-0003 ● ●
21 GASKET; SPR CHAMBER
(A) 		1-48259-049-0 02 1 9603-9904 ● ●
21 GASKET; SPR CHAMBER
(A) 		1-48259-049-0 02 1 9603-9904 ● ●
21 GASKET; SPR CHAMBER
(A) 		1-48259-049-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-049-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-049-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-049-0 02 1 9911- ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-049-0 02 1 9911- ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-049-0 02 1 9911- ● ●
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-047-0 02 1 9905-9910 ● ●
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-047-0 02 1 9911- ● ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9603-9910 ● ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9603-9910 ● ●
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 9911- ● ●
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
(A) 		1-48259-047-0 02 1 9603-9904 ● ●
23 GASKET; SPR CHAMBER
(A) 		1-48259-047-0 02 1 9603-9904 ● ●
23 GASKET; SPR CHAMBER
(A) 		1-48259-047-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-047-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-047-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-047-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-047-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-047-0 02 1 9911- ● ●
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-049-0 02 1 9905-9910 ● ●
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48259-049-0 02 1 9911- ● ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9603-9910 ● ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9603-9910 ● ●
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 9911- ● ●
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-088-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-088-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-088-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-088-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> FORWARD 		1-48259-088-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-088-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-088-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD 		1-48259-088-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-140-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-140-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-140-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-140-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-140-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48259-140-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-140-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-087-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD 		1-48259-087-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-087-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-087-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> FORWARD 		1-48259-087-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-087-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD 		1-48259-087-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD 		1-48259-087-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REARWARD 		1-48259-138-0 01 1 9603-9904 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-138-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-138-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-138-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48259-138-0 01 1 9911-0003 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48259-138-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48259-138-0 01 1 0004- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-086-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-086-0 01 1 9911- ● ●
25 PLATE; PRESSURE,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-085-0 01 1 9905-9910 ● ●
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48259-085-0 01 1 9911- ● ●
26 NUT; PRESSURE PLATE
(A) 		1-48259-058-0 04 1 9603-9904 ● ●
26 NUT; PRESSURE PLATE
(A) 		1-48259-058-0 04 1 9603-9904 ● ●
26 NUT; PRESSURE PLATE
(A) 		1-48259-058-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
REAR AXLE RT210<C2A> (A) 		1-48259-058-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-058-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-058-0 04 1 9911-0003 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-058-0 04 1 9911-0003 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-058-0 04 1 9911-0003 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-058-0 04 1 0004- ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-058-0 04 1 0004- ● ●
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		8-94311-428-0 04 1 9905-9910 ● ●
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		8-94311-428-0 04 1 9911-0003 ● ●
27 WASHER; PRESSURE PLATE
(A) FORWARD 		1-48259-057-0 02 1 9603-9904 ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9911-0001 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9911-0001 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 9911-0001 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD,REARWARD 		1-48259-057-0 02 1 0002- ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48259-057-0 02 1 0002- ● ●
27 WASHER; PRESSURE PLATE
(A) REARWARD ID=8.2 		9-09150-508-0 02 1 9603-9904 ● ●
27 WASHER; PRESSURE PLATE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=8.2 		9-09150-508-0 02 1 9905-9910 ● ●
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD ID=8.2 		9-09150-508-0 02 1 9911- ● ●
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=8.2 		9-09150-508-0 02 1 9905- ● ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9603-9910 ● ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9603-9910 ● ●
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 9911- ● ●
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 9911- ● ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9603-9910 ● ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9603-9910 ● ●
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 9911- ● ●
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 9911- ● ●
33 RETAINER; DIAPH 1-48250-044-0 02 1 9603-9904 ● ●
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48250-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48250-044-0 04 1 9911- ● ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 9603-9904 ● ●
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> 		1-48259-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48259-044-0 04 1 9905-9910 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> 		1-48259-044-0 04 1 9911-0001 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-044-0 04 1 9911-0001 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48259-044-0 04 1 9911-0001 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-044-0 04 1 0002- ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48259-044-0 04 1 0002- ● ●
33 RETAINER; DIAPH
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48250-044-0 02 1 9905-9910 ● ●
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> 		1-48250-044-0 02 1 9905-9910 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48250-044-0 02 1 9911-0003 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> 		1-48250-044-0 02 1 9911-0003 ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-044-0 02 1 0004- ● ●
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> 		1-48250-044-0 02 1 0004- ● ●
34 DIAPHRAGM
(A) FORWARD 		1-48252-011-0 02 1 9603-9904 ● ●
34 DIAPHRAGM
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9911- ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9911- ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48252-011-0 02 1 9911- ● ●
34 DIAPHRAGM
(A) REARWARD 		1-48258-011-0 02 1 9603-9904 ● ●
34 DIAPHRAGM
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48258-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48258-011-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48258-011-0 02 1 9911-0003 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48258-011-0 02 1 9911-0003 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		1-48258-011-0 02 1 0004- ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48258-011-0 02 1 0004- ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48252-010-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48252-010-0 02 1 9911- ● ●
34 DIAPHRAGM
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48252-057-0 02 1 9905-9910 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48252-057-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
(A) FORWARD 		1-48253-011-0 02 1 9603-9904 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD,REARWARD 		1-48253-011-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
(A) REARWARD 		1-48253-035-0 01 1 9603-9904 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-035-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-035-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-035-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-035-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		1-48253-035-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-035-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
(A) REARWARD 		1-48253-029-0 01 1 9603-9904 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-029-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-029-0 01 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-029-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) REARWARD 		1-48253-029-0 01 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD 		1-48253-029-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD 		1-48253-029-0 01 1 0004- ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48253-010-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD 		1-48253-010-0 02 1 9911- ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48253-053-0 02 1 9905-9910 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48253-053-0 02 1 9911-0003 ● ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48253-063-0 02 1 0004- ● ●
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9603-9904 ● ●
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9603-9904 ● ●
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
REAR AXLE RT210<C2A> (A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-033-0 02 1 9905-9910 ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-033-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 9603-9910 ● ●
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 9603-9910 ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-043-0 02 1 9911- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-043-0 02 1 9911- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9603-9910 ● ●
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9603-9910 ● ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 02 1 9911- ● ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 02 1 9911- ● ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9603-9910 ● ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9603-9910 ● ●
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 9911- ● ●
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 9911- ● ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9603-9910 ● ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9603-9910 ● ●
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 9911- ● ●
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
(A) 		1-48259-080-0 02 1 9603-9904 ● ●
41 PIPE ASM; LWR COVER
(A) 		1-48259-080-0 02 1 9603-9904 ● ●
41 PIPE ASM; LWR COVER
(A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT210<C2A> (A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-080-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-080-0 02 1 9911- ● ●
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD 		1-48259-075-0 02 1 9905-9910 ● ●
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD 		1-48259-075-0 02 1 9911- ● ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9603-9910 ● ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9603-9910 ● ●
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 9911- ● ●
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 9911- ● ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9603-9910 ● ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9603-9910 ● ●
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 9911- ● ●
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 9911- ● ●
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 01 1 9905-9910 ● ●
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-052-0 01 1 9905-9910 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 01 1 9911-0003 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-48259-052-0 01 1 9911-0003 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-052-0 01 1 0004-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 01 1 0004-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-052-0 02 1 0012- ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) 		1-48259-052-0 02 1 0012- ● ●
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89966-127-3 02 1 9905-9910 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-89966-127-3 02 1 9911- ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-052-0 02 1 0005-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-48259-052-0 02 1 0005-0011 ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-052-0 01 1 0012- ● ●
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-48259-052-0 01 1 0012- ● ●
81 NUT ASM; EMERGENCY
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-074-0 02 1 9905-9910 ● ●
81 NUT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48259-074-0 02 1 9911- ● ●
çizim 42912
31 31 1 1 32 31 31 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-252-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-252-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-253-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-253-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-177-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48250-177-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-249-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-249-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-249-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48250-249-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-249-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-48250-176-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48250-176-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, LOAD SENSING PROPORTIONING VALVE<JR7> FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-48250-248-1 01 1 9603-9904 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-248-1 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> REARWARD 		1-48250-248-1 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-48250-248-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-48250-248-2 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-181-2 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-181-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-180-2 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-180-2 01 1 9911- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-618-0 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-618-0 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWAED 		1-48250-724-1 01 1 0004- ● ●
1 CHAMBER ASM; SPRING
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-617-0 01 1 9905-9910 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-617-0 01 1 9911-0003 ● ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> FORWARD 		1-48250-723-1 01 1 0004- ● ●
31 CONNECTOR
(D) REARWARD DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9904 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION ECE<TDV> (D) REARWARD DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT260<C2B> (D) REARWARD DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (D) REARWARD DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9905-9910 ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) REARWARD DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9911-0001 ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (D) REARWARD DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 0002- ● ●
31 CONNECTOR
(B) FORWARD DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9904 ● ●
31 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-9910 ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9911- ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9911- ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9911- ● ●
31 CONNECTOR
(F) REARWARD DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9904 ● ●
31 CONNECTOR
(A) FORWARD DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9904 ● ●
31 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9905-9910 ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9911- ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9911- ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9911- ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9911- ●
31 CONNECTOR
(E) REARWARD DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9603-9605 ● ●
31 CONNECTOR
EXC. REAR AXLE RT260<C2B> (E) REARWARD DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9606-9707 ● ●
31 CONNECTOR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B>,TAIL PIPE SINGLE HORIZONTAL<NC2> (E) REARWARD DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9708-9904 ● ●
31 CONNECTOR
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9905-9910 ● ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9905-9910 ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9911- ● ●
31 CONNECTOR
REAR AXLE RT260<C2B> (E) REARWARD M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 9606-9707 ● ●
31 CONNECTOR
REAR AXLE RT260<C2B> (E) REARWARD M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 9708-9904 ● ●
31 CONNECTOR
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. REAR AXLE RT260<C2B> (E) REARWARD M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 9708-9904 ● ●
31 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (E) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 9905-9910 ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (E) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 9911- ● ●
31 CONNECTOR
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. REAR AXLE RT260<C2B>,TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9708-9904 ●
31 CONNECTOR
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9905-9910 ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9911-0003 ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9911-0003 ● ●
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0004- ● ●
32 CONNECTOR; SPR CHAMBER
REARWARD 		1-09660-697-1 01 1 9603-9707 ● ●
32 CONNECTOR; SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> REARWARD 		1-09660-697-1 01 1 9708-9904 ● ●
32 CONNECTOR; SPR CHAMBER
REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD 		1-09660-697-1 01 1 9708-9904 ● ●
32 CONNECTOR; SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION ECE<TDV> REARWARD 		1-09660-697-1 01 1 9905-9910 ● ●
32 CONNECTOR; SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD 		1-09660-697-1 01 1 9905-9910 ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 		1-09660-697-1 01 1 9911-0001 ● ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD 		1-09660-697-1 01 1 0002- ● ●
32 CONNECTOR; SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. REAR AXLE RT260<C2B>,TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9708-9904 ●
32 CONNECTOR; SPR CHAMBER
REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> REARWARD DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9905-9910 ● ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9911-0003 ● ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 9911-0003 ● ●
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY 		1-09660-660-1 01 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
